- Page 1 07/17 Hi-Lo Tilting Desk INSTRUCTIONS FOR USE Codes 2500-2507...
-
Page 2: Table Of Contents
SERVICE INSPECTION ................. 12 INTRODUCTION Thank you for choosing your new Smirthwaite Hi-Lo Tilting Desk. The Hi-Lo Tilting Desk has been designed to provide an effective multi usage- learning surface for the user. Incorporating a rise and fall feature to allow for... -
Page 3: Illustration Of Your Hi-Lo Tilting Desk

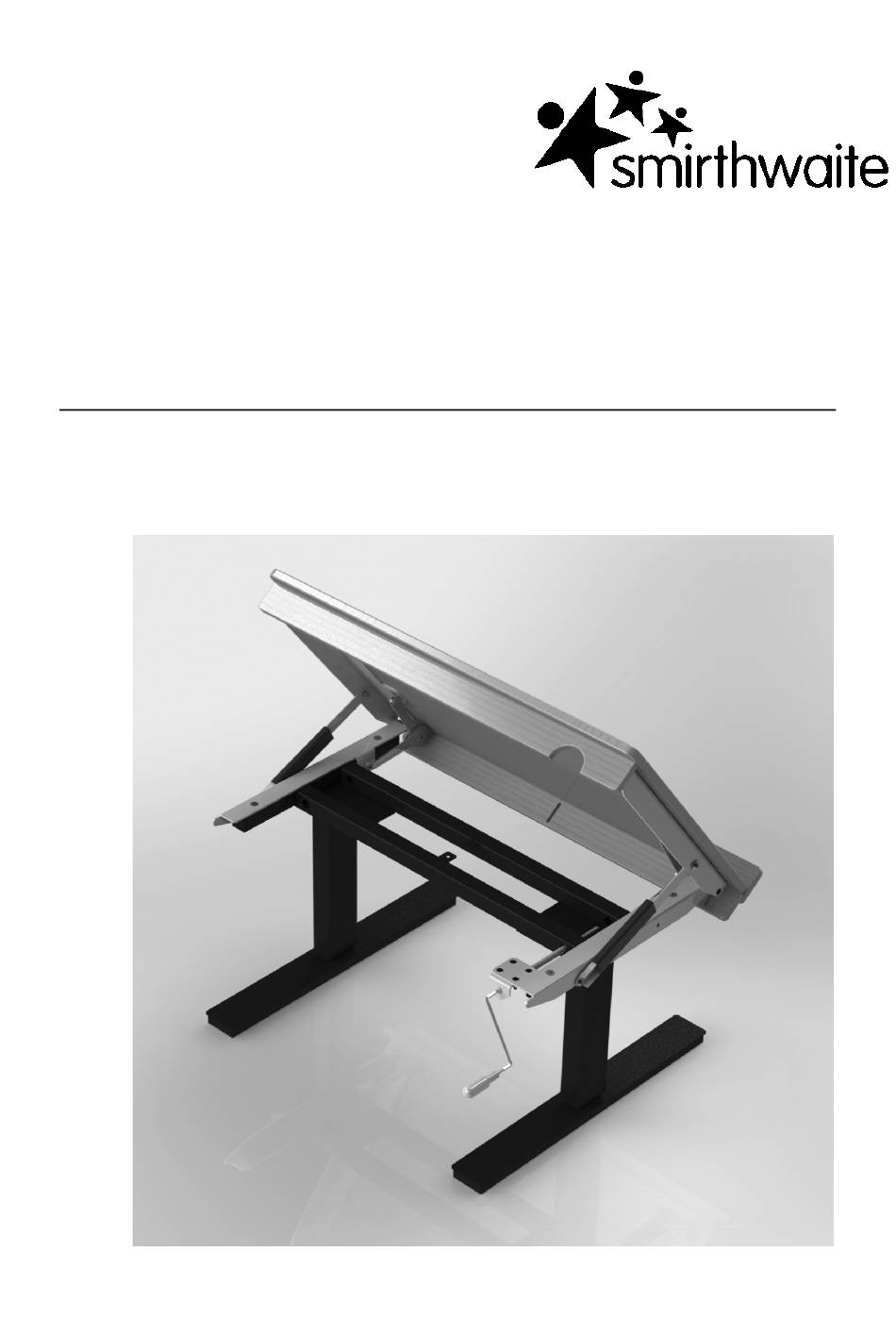

ILLUSTRATION OF YOUR HI-LO TILTING DESK A. Tilting Desk B. Adjustable Pen Rail C. Tilting Mechanism D. Rise and Fall Crank TECHNICAL DATA TYPE CODE HEIGHT WIDTH DEPTH MAX WEIGHT Product Weight (kg) RANGE (kg) Fixed top 2500 470-610 Fixed top with 2501 545-685... -
Page 4: For Your Safety
Smirthwaite Ltd will not accept liability for any injury or damage incurred through such malpractices. Any repairs required must be carried out by Smirthwaite Ltd authorized personnel. If you believe this product to be faulty -DO NOT USE-Contact Smirthwaite Ltd on T: +44 (0)1626 83552 Hi-Lo Tilting Desk... -
Page 5: Unpacking And Assembling Your Hi-Lo Tilting Desk
UNPACKING AND ASSEMBLING YOUR HI-LO TILTING DESK • The Hi-Lo Tilting Desk is supplied fully assembled. • Before use, ensure that if supplied with castors, that they run straight over a flat and level surface. • The Hi-Lo Tilting Desk is supplied with a removable crank handle (A) (see Diagram 5.1) that is used to adjust the height of the table top. - Page 6 DESK HEIGHT ADJUSTMENT • To raise the height of the Hi-Low Tilting Desk, turn the crank arm (A) clockwise. • This will extend the legs of the desk (B, C) • To lower the desk, simply turn the crank (A) anti clockwise and the desk legs (B, C) will lower.
- Page 7 DESK ANGLE • The Hi-Lo Tilting Desk has 10 angle positions. • To adjust simply lift the desk surface (B) • Lift until the ratchet (A) clicks to the desired position. • To lower the desk back to the horizontal position, continue to raise the desk top (B) to the vertical position and then push back down in a single motion.
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE All our wooden products are easy to clean. Each product has anti-bacterial properties, ensuring that surfaces are kept hygienic to reduce any risk of cross infection. IMPORTANT! Cleaning is recommended on a regular basis • Clean wooden parts with a damp cloth and mild detergent •... - Page 9 SERVICE INTERVAL The Juni chair should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. NOMINAL SERVICE LIFE Your product has a nominal service life of 12 years, during which full post-sales support will be available with regard to spares and servicing.
- Page 10 • Use by a client who is extremely active, either voluntarily or involuntarily EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.
- Page 11 • Smirthwaite will document and maintain a record of the original product configuration at the time of first sale • Smirthwaite will not be held responsible for any subsequent changes to this configuration unless authorized to do so in writing by Smirthwaite Ltd It is the equipment owner’s responsibility to maintain their own records of changes to...
-
Page 12: Warranty & Service
WARRANTY & SERVICE Smirthwaite Ltd warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. If a fault develops during the period, please call Customer Services by email or telephone 01626 835552 who will advise you on the best course of action. -
Page 13: Service Inspection
SERVICE INSPECTION Product Information Model: Size: Date of Manufacture: Serial Number: Final Inspection: Service & inspection record form: Date Procedure Service Personnel Hi-Lo Tilting Desk... - Page 14 Hi-Lo Tilting Desk...
- Page 15 Hi-Lo Tilting Desk...
- Page 16 Smirthwaite, 16 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: info@smirthwaite.co.uk www.smirthwaite.co.uk Hi-Lo Tilting Desk...
