Summary of Contents for smirthwaite IndiGO

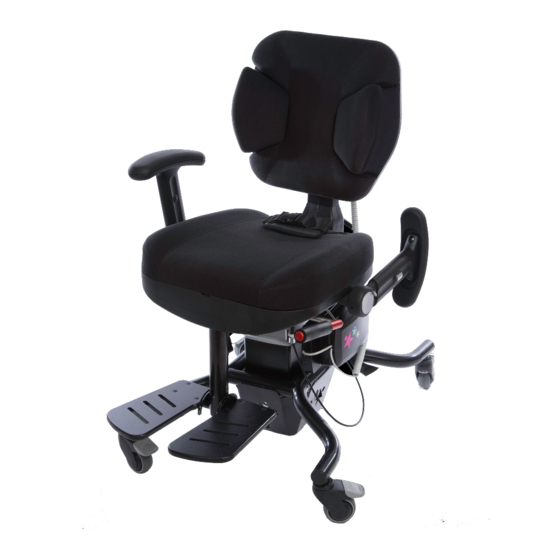

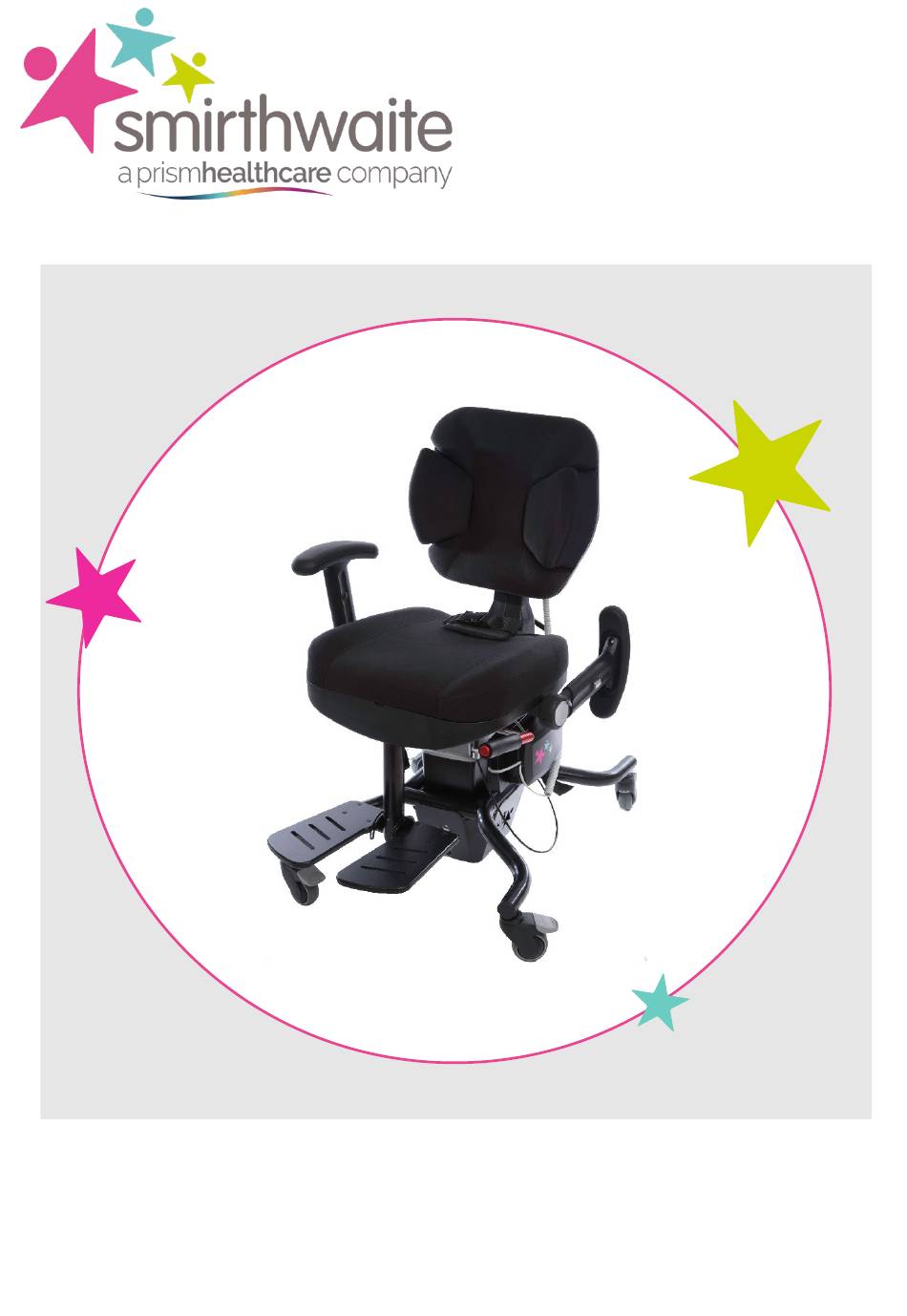

- Page 1 User Manual IndiGO P a g e...
-
Page 2: Table Of Contents
Components/Key Parts ......................8 Key Parts ..........................8 Standard ........................8 Hi-Lo ..........................9 IndiGO Configurations ...................... 10 Packaging ......................... 10 Unpacking Your IndiGO ....................11 Hi-Lo ........................... 11 Standard ........................11 Installation ........................... 12 Adjustments ........................12 Seat Height ........................ 12 Seat Angle ........................ - Page 3 CONTENTS Height ......................... 19 Depth & Angle ......................19 Headrest Profile/Shape ....................19 Flip-Up Footrest ........................ 20 Fitment ........................20 Height ......................... 20 Pommel ..........................21 Fitment ........................21 Technical Specification ......................22 Chair Dimensions......................22 Environmental - Storage and Operating Conditions ............23 Normal operating conditions ..................
-
Page 4: Safety Instructions And Warnings
If you require larger print or videos – these are available on the Smirthwaite website: www.smirthwaite.co.uk/product/IndiGO/ The information in this manual is important for the safety of anyone near the IndiGO chair and must be read and understood to help prevent injuries. It is also crucial to the proper operation and maintenance of the IndiGO chair. -
Page 5: Symbols Used
European Community 1.4 Contraindications/Limitations There are no known “contraindications” associated with the usage of the IndiGO chair and its accessories, provided they are used as per manufacturer’s recommendations and guidelines. Smirthwaite Ltd. does not recommend a required number of care givers for the use of our... -
Page 6: Intended Use
IndiGO. The IndiGO is designed to be checked and adjusted by a therapist to ensure the child is seated correctly. -
Page 7: Vicinity To Other Equipment
• Smirthwaite Ltd will not accept liability for any injury or damage incurred through such malpractices. Any repairs required must be carried out by Smirthwaite Ltd authorised personnel. -
Page 8: Components/Key Parts
2 minutes If in any doubt, always seek advice. Always turn hand wheels, levers and screws clockwise to tighten or anti-clockwise to loosen. Conveniently packaged in a single box the following components are included with your new IndiGO chair: Standard A. -
Page 9: Hi-Lo
Please see above to familiarise yourself with the components of the IndiGO chair. The image above shows the key components of the IndiGO chair. If you have not received all the components contact your local Smirthwaite dealer immediately – contact details are provided on the last page of this manual. -
Page 10: Indigo Configurations
Smirthwaite Ltd. will document and maintain a record of the original product configuration at the time of first sale. Smirthwaite Ltd. will not be held responsible for any subsequent changes to this configuration unless authorized to do so in writing by Smirthwaite Ltd. -
Page 11: Unpacking Your Indigo
Tighten lever (C) to secure the back rest into place. If you have specified accessories at the time of order, your IndiGO HiLo may be supplied with these factory fitted. Alternatively, please refer to Section 6.0 for details of how to fit and adjust... -
Page 12: Installation
lever (G) whilst sat in the seat and release the lever once at the desired height setting. 3.1.1.2 IndiGO Hi-Lo • The height of the chair can be altered by using the ‘Actuator Control Pad’ which is hooked onto the push handle of the chair. -
Page 13: Seat Angle
INSTALLATION Seat Angle To adjust the tile angle of the seat: Lift the front lever (H) on the side of the chair to unlock the tilt mechanism. Adjust the seat tilt to the desired position. Push the lever back down to lock the ... -
Page 14: Back Rest Height
INSTALLATION Back Rest Height To raise the backrest: Loosen lever (K) found on rear of seat by turning anti-clockwise Lift the backrest to the desired height; there are a series of back height ‘steps’ that be selected. To lower the backrest: Raise the backrest by lifting to the ... -
Page 15: User Operated Brakes
released it will automatically return to its top position 3.1.8.2 Carer Operation The IndiGO has been designed to permit any of the castors to be independently applied or released by a carer, using each individual castor foot pedal If the user is having difficulty operating the brake system, check that the brake pedal on each castor is in the ‘un-braked’... -
Page 16: Armrests
INSTALLATION Armrests 3.1.9.1 Height To raise or lower the armrests: Press and hold button (P). Slide armrests to desired position. Release button (P) to lock. Repeat on opposite side, as necessary. 3.1.9.2 Rotation To swing the armrest away for ease of transfer: Press and hold button (Q). -
Page 17: Pelvic Strap
INSTALLATION Pelvic Strap The IndiGO is supplied with a 2 point pelvic padded lap strap as standard. The buckle is secured by pushing the male plug (R) into the female receiver (S). To release the buckle, press both ... -
Page 18: Compatible Accessories
COMPATIBLE ACCESSORIES 4.0 COMPATIBLE ACCESSORIES The IndiGO chair comes with a variety of compatible accessories. These accessories and part codes are listed below (Table 2); Size 4 Size 5 Size 6 Accessories Code Code Code Flip-Up Footrest FR055 FR055 FR055... -
Page 19: Headrests
COMPATIBLE ACCESSORIES 4.1 Headrests Fitment Insert the head rest stem into the socket located on the rear of the seat back (B). Take the M6 x 20mm screw (D) and washer (C) and insert the screw through aperture (E) and into the head rest stem to secure in place. -
Page 20: Flip-Up Footrest
The footrest assembly can be adjusted for height position by loosening the lever (H). Ensure lever (H) is securely tightened before using the chair. Each foot plate can be stored vertically (flipped up) to aid transfer in and out of the Indigo. -
Page 21: Pommel
COMPATIBLE ACCESSORIES 4.3 Pommel Fitment Insert the Pommel through the slot on the front face of the seat (I) and secure in place on the underside of the chair using the grip knob (J) Always lock the castors when attaching items or making adjustments. To lock, apply foot to point (A), to unlock apply foot to point (B). -
Page 22: Technical Specification
TECHNICAL SPECIFICATION 5.0 TECHNICAL SPECIFICATION 5.1 Chair Dimensions Standard Hi-Lo Size 4 Size 5 Size 6 Seat Height From Floor (mm) 490 – 650 Seat Height From Floor Using Hi Lo Base (mm) 510 – 760 Seat Depth (mm) 340 – 420 390 –... -
Page 23: Environmental - Storage And Operating Conditions
It is not intended to be used in environments where there are rapid changes in the environmental temperature and humidity during intended use. The IndiGO chair suffers little from any effects of lint, dust and light. Lint – Due to there being no mechanical or electrical mechanisms on the •... -
Page 24: Standards Applied
TECHNICAL SPECIFICATION 5.3 Standards Applied The standards that have been applied to the device are as follows: • BS EN ISO 12182:2012 (Assistive products for persons with disability. General requirements and test methods). • IEC 62366:2015 (Application of usability engineering to medical devices). •... -
Page 25: General Inspection And Maintenance
• The battery will become fully charged in approximately 6 hours. 6.3 Service Interval The IndiGO chair should be serviced every 1 year(s). Servicing must only be undertaken by a Smirthwaite Ltd. service engineer, or by a Smirthwaite Ltd. trained representative. -
Page 26: Nominal Service Life
• Use by a client who is extremely active, either voluntarily or involuntarily. 6.5 Extending Nominal Service Life At Smirthwaite Ltd. we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above. -
Page 27: Final Inspection
GENERAL INSPECTION AND MAINTENANCE 6.7 Final Inspection When the service is complete: • Remove any waste created as part of the service from the site. • Confirm with the operator if the chair is safe to use and that it has been left in a working state. -
Page 28: Cleaning
7.1 General cleaning The exterior of the IndiGO chair can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet. Ensure the exterior of the chair is dry after cleaning. -
Page 29: Service Documentation
SERVICE DOCUMENTATION 8.0 SERVICE DOCUMENTATION 8.1 Documentation/ Records It is the responsibility of the current equipment owner to ensure the Service Manual (As well as any further manuals for accessories fitted to the equipment) are handed over to the new owner at the time of exchange/sale. -
Page 30: Service Record History
SERVICE DOCUMENTATION 8.2 Service Record History Complete this record after each service, repair inspection and/or maintenance. * Photocopy additional pages as required * Product Information Model Size Date of Manufacture Serial Number Service & inspection record form: Date Procedure Service Personnel... -
Page 31: Warranty
WARRANTY 9.0 WARRANTY Smirthwaite Ltd warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. If a fault develops during the period, please call Customer Services by email or telephone 01626 835552 who will advise you on the best course of action. - Page 32 Smirthwaite Ltd, 16 Wentworth Road • Heathfield • Newton Abbot • Devon • TQ12 6TL Part Number: 999-1-06 / Rev: 2 / Date: Sep 21...
