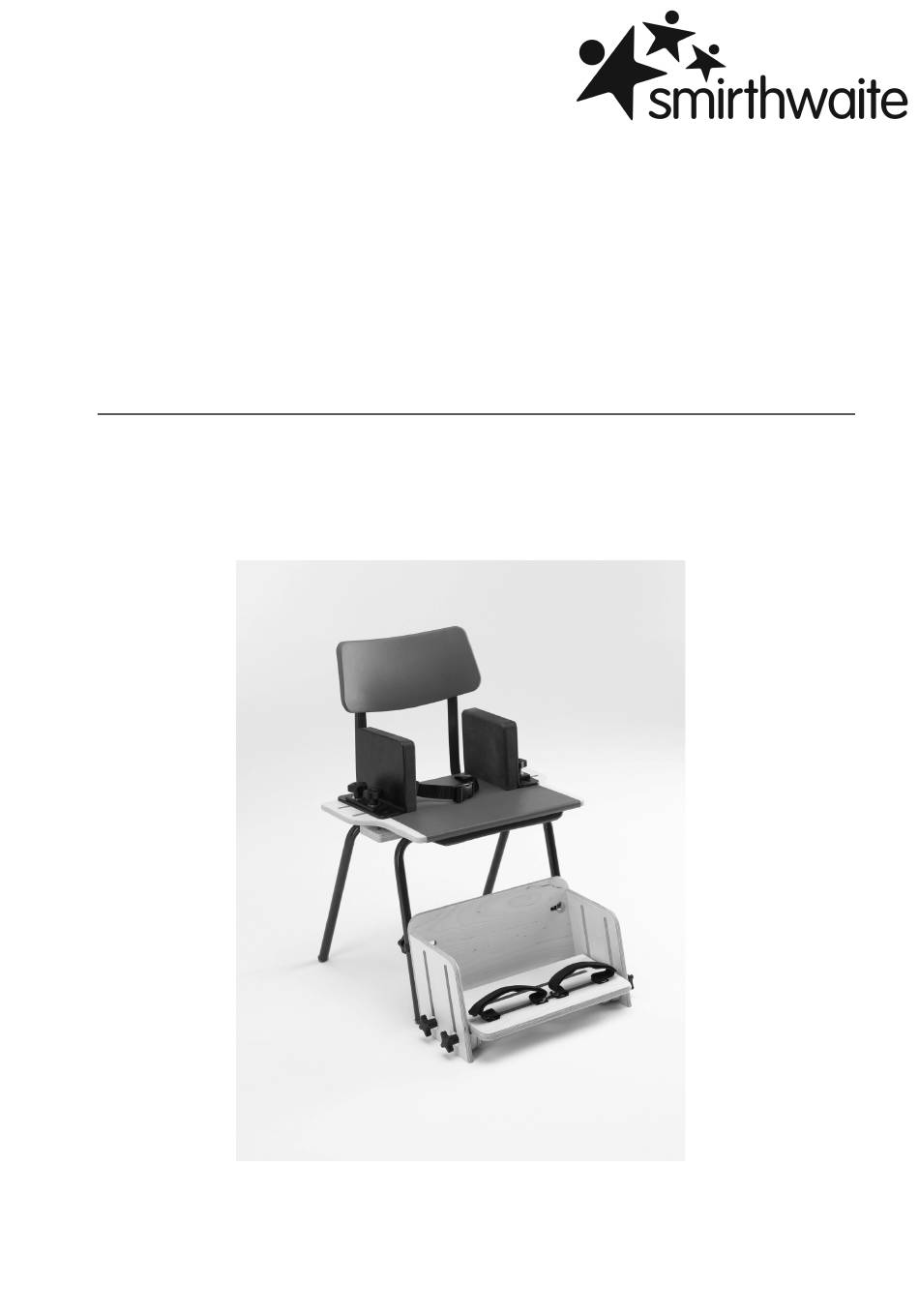

- Page 1 06/17 FOXDENTON INSTRUCTIONS FOR USE Codes 8011-8015...
-
Page 2: Table Of Contents
SERVICE INSPECTION 1.0 INTRODUCTION Thank you for choosing the Smirthwaite Foxdenton Chair. The Foxdenton is a basic classroom chair for children from the age of 3 years old who require minimal levels of postural support when seated. The Foxdenton chair has been purposely created to ensure your child feels more included whilst in their classroom environment. -
Page 3: Illustration & Technical Data

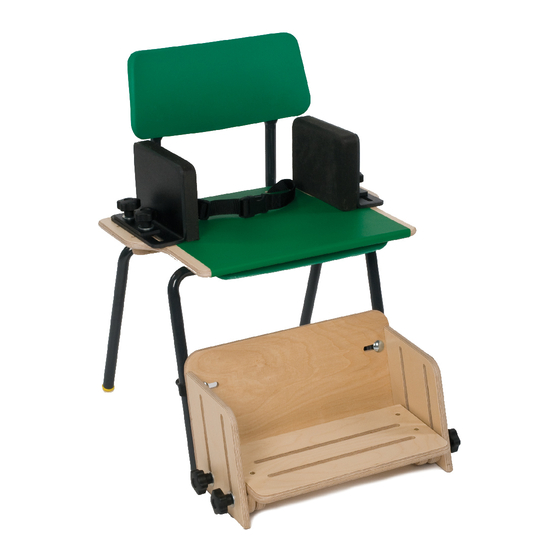

2.0 ILLUSTRATION OF YOUR FOXDENTON CHAIR A. Seat board B. Side supports C. Footrest fittings D. Foot straps E. Footrest 2.1 TECHNICAL DATA SIZE CODE 8011 8012 8013 8014 8015 Dimensions Seat Height (mm) Seat Width (mm) 120-240 140-260 180-310 200-380 200-380 Seat Depth (mm) -
Page 4: For Your Safety
• Smirthwaite Ltd will not accept liability for any injury or damage incurred through such malpractices. Any repairs required must be carried out by Smirthwaite Ltd authorized personnel. -
Page 5: Unpacking Your Chair
• Please take note of any instructions on the packaging/box when unpacking. • Once the seat has been carefully unpacked, please check all parts. STOP! If you believe this product to be faulty – DO NOT USE – Contact Smirthwaite Ltd on T: +44 (0) 1626 835552 Foxdenton... -
Page 6: Setting Up And Adjusting Your Chair
5.0 SETTING UP AND ADJUSTING YOUR CHAIR STOP! If in any doubt, ALWAYS seek ADVICE. Always turn hand wheels, levers and screws clockwise to tighten or anti-clockwise to loosen. The chair must be fully adjusted by a therapist or trained representative before use. 5.1 SIDE SUPPORTS The side supports can be adjusted for Width, Depth and Angle. - Page 7 5.2 FOOTREST The footrest height can be adjusted Loosen handwheels (B) on both • sides of the footrest With the handwheels loose, adjust • the footrest height. Tighten handwheels (B) when the • desired position is achieved. The footrest can also be rotated •...
- Page 8 5.3 FOOTSTRAPS The foot straps can be adjusted for width and depth Loosen screws (C) on one or both • foot straps With the screws loose, each strap • can be easily adjusted for width. The foot strap depth can be •...
-
Page 9: Assembly Of Separate Components
6.0 ASSEMBLY OF SEPARATE COMPONENTS STOP! If in any doubt, ALWAYS seek ADVICE Always turn handwheels and screws clockwise to tighten or anti- clockwise to loosen. The chair must be fully adjusted by a therapist or trained representative before use. 6.1 FITTING SEAT TO CHAIR If a Lapstrap or side supports are •... - Page 10 6.3 FITTING THE SIDE SUPPORTS The seat board needs to be • detached from the chair to fit the two side supports The side supports are attached to • the seat board by two threaded knobs (J) that pass through the slots in the board.
-
Page 11: Care & Maintenance
The user should not be seated while the checks are carried out. 7.2 SERVICE INTERVAL The Foxdenton chair should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. Foxdenton... - Page 12 Product service life has been determined based upon the design complexity of product, and the anticipated exposure to normal use. Good practice dictates all Smirthwaite products have been designed and manufactured to high levels of safety and quality, and will meet requirements of normal use when maintained in line with our servicing recommendations.
- Page 13 7.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.
-
Page 14: Warranty & Service
If in any doubt, ALWAYS seek ADVICE. 8.0 WARRANTY & SERVICE Smirthwaite Ltd warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. If a fault develops during the period, please call Customer Services by email or telephone 01626 835552 who will advise you on the best course of action. -
Page 15: Service Inspection
10.0 SERVICE INSPECTION 10.1 Product Information Model Size Date of Manufacture Serial Number Final Inspection 10.2 Service & inspection record form: Date Procedure Service Personnel Foxdenton... - Page 16 Smirthwaite, 16 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: info@smirthwaite.co.uk www.smirthwaite.co.uk Foxdenton...
