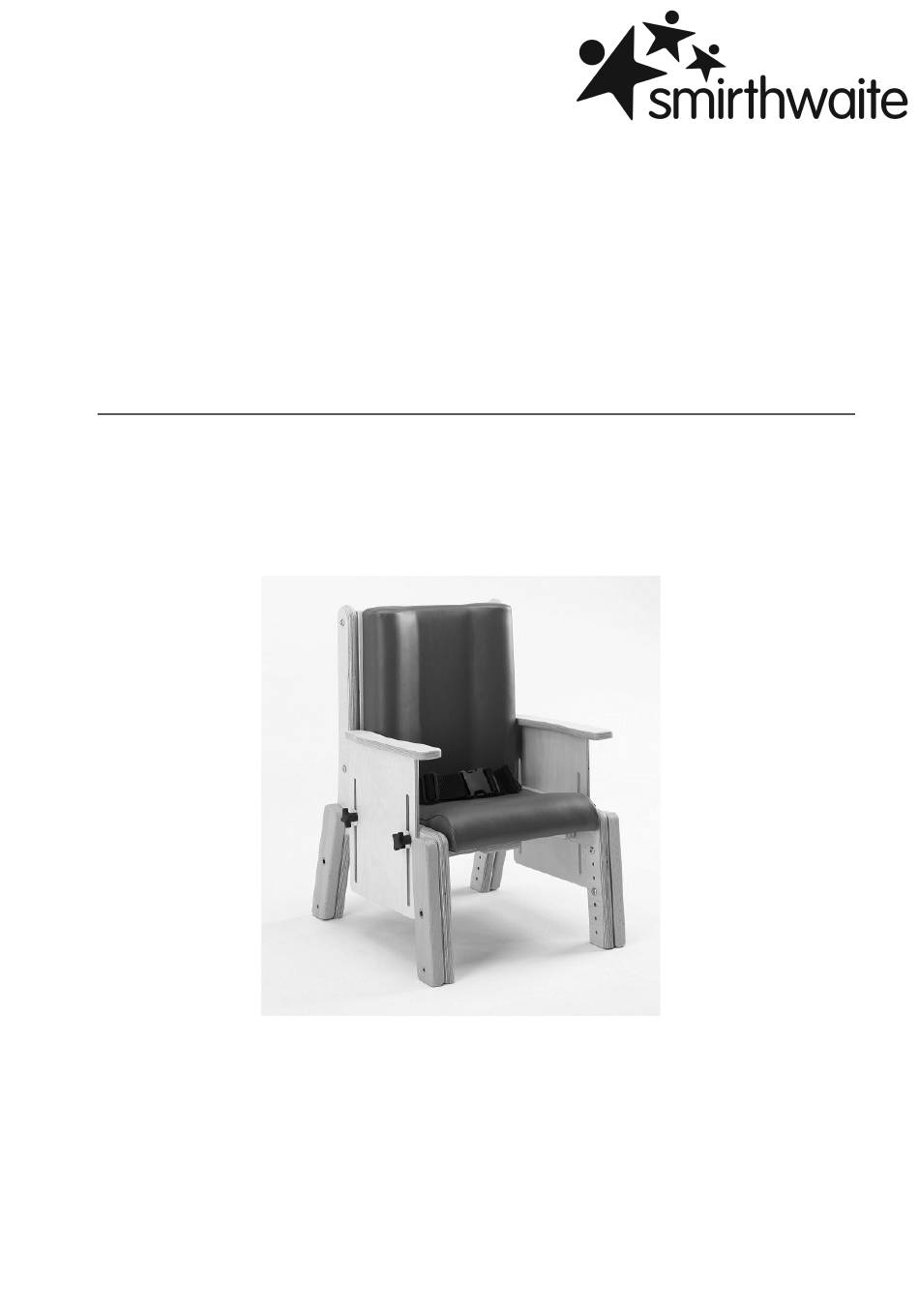

- Page 1 06/17 BROOKFIELD INSTRUCTIONS FOR USE Codes 6571 to 6578...
-
Page 2: Table Of Contents

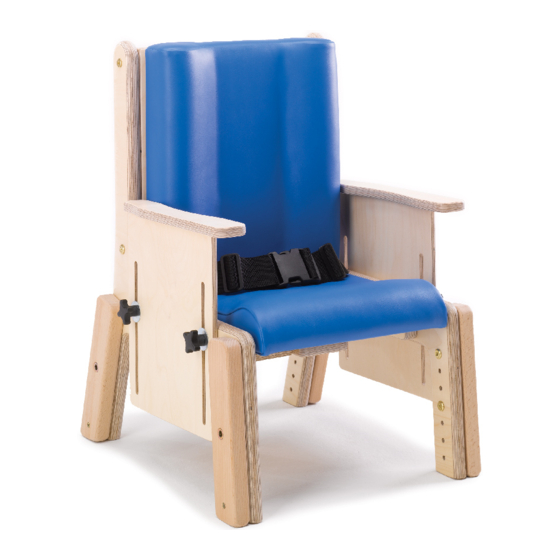

9.0 SERVICE INSPECTION 1.0 INTRODUCTION Thank you for choosing the Smirthwaite Brookfield Chair. The Brookfield is a robust chair for children from the age of 2 years old to young adult who require moderate levels of postural support when seated. Its natural wood design means that it fits wells into nursery, school and home environments. -
Page 3: Illustration & Technical Data
2.0 ILLUSTRATION OF YOUR CHAIR A. Ramped Seat B. Contoured Backrest C. Armrest D. Leg Outrigger E. Lapstrap 2.1 TECHNICAL DATA SIZE CODE 6571 6572 6573 6574 6575 6576 6577 6578 Dimension Seat Height (mm) 255-330 255-330 280-380 280-380 345-445 345-445 425-575 425-575... -
Page 4: For Your Safety
• DO NOT fit parts or accessories of other manufacturers to this product unless authorised to do so in writing by Smirthwaite Ltd. Failure to follow these instructions will not only invalidate the guarantee but could make the chair dangerous to use. -
Page 5: Unpacking Your Chair
• Please take note of any instructions on the packaging/box when unpacking. • Once the chair has been carefully unpacked, please check all parts. STOP! If you believe this product to be faulty – DO NOT USE – Contact Smirthwaite Ltd on T: +44 (0) 1626 835552 Brookfield... -
Page 6: Setting Up And Adjusting Your Chair
5.0 SETTING UP AND ADJUSTING YOUR CHAIR STOP! If in any doubt, ALWAYS seek ADVICE. Always turn hand wheels, levers and screws clockwise to tighten or anti-clockwise to loosen. 5.1 ADJUSTMENTS Adjustments can be made to the seat; depth, seat height and back height 5.1.1 SEAT DEPTH move... - Page 7 5.1.2 SEAT HEIGHT • To adjust the seat height, reposition the leg outriggers (A) using the tool provided for this purpose. • There are 2 screws per leg. • Ensure the screws are re- inserted and tightened when the desired height is achieved. 5.1.3 BACK HEIGHT To adjust the height position of the back cushion...
- Page 8 5.1.3 ARMREST HEIGHT ADJUSMENT To adjust the height of the armrest • Loosen handwheels (A) • Slide armrest desired position (B) • Tighten handwheels (A) when the armrest is set to the desired position • Repeat for both armrests • Armrests can be lowered to minimum setting to facilitate side transfer of child into the seat.
- Page 9 5.1.5 PELVIC STRAP Buckle Strap (Standard) • The buckle is secured by pushing (A) into (B). • To release the buckle, press both sides of (A) • The strap length altered by adjusting the tri- glide (as shown opposite) Velcro Strap •...
-
Page 10: Care & Maintenance
THE USER SHOULD NOT BE SEATED WHILE THE CHECKS ARE CARRIED OUT. 6.2 SERVICE INTERVAL The Brookfield chair should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. Brookfield... - Page 11 Product service life has been determined based upon the design complexity of product, and the anticipated exposure to normal use. Good practice dictates all Smirthwaite products have been designed and manufactured to high levels of safety and quality, and will meet requirements of normal use when maintained in line with our servicing recommendations.
- Page 12 6.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.
- Page 13 DO NOT fit parts or accessories of other manufacturers to this product unless authorized to do so in writing by Smirthwaite Ltd. Any servicing or repairs required must be carried out by Smirthwaite Ltd (or a Smirthwaite trained engineer). If you believe this product to be faulty – DO NOT USE – Contact Smirthwaite Ltd on T: +44 (0) 1626 835552 If in any doubt, ALWAYS seek ADVICE.
-
Page 14: Warranty & Service
7.0 WARRANTY & SERVICE Smirthwaite Ltd warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. If a fault develops during the period, please call Customer Services by email or telephone 01626 835552 who will advise you on the best course of action. -
Page 15: Service Inspection
9.0 SERVICE INSPECTION 9.1 Product Information Model Size Date of Manufacture Serial Number Final inspection 9.2 Service & inspection record form: Date Procedure Service Personnel Brookfield... - Page 16 Smirthwaite, 16 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: info@smirthwaite.co.uk www.smirthwaite.co.uk Brookfield...
