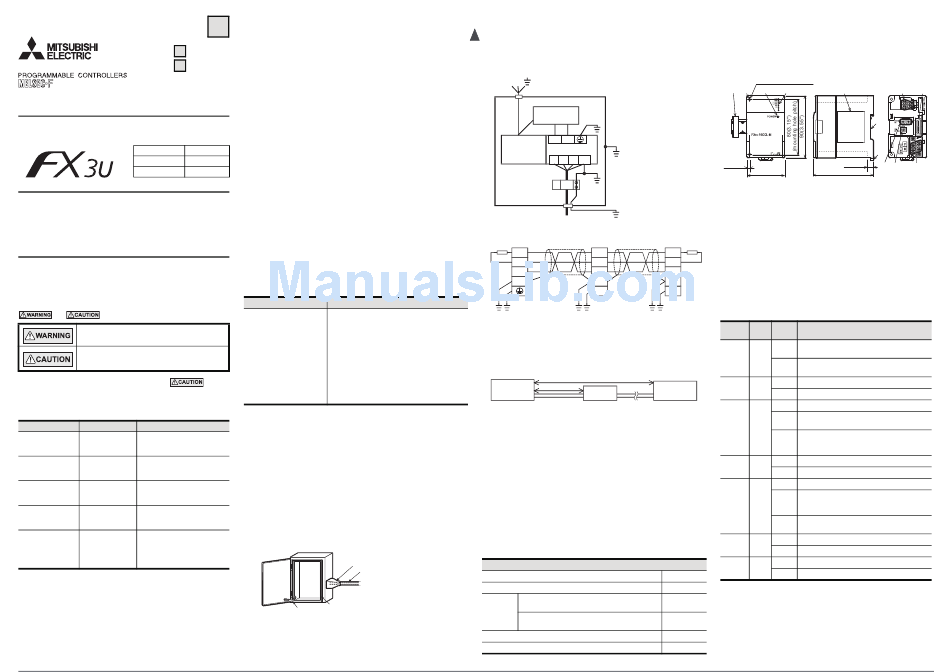

Mitsubishi FX3U-16CCL-M Installation Manual

JY997D43401C
Side
JAPANESE
A
Side
ENGLISH
B
FX -16CCL-M
3U
INSTALLATION MANUAL
Manual Number JY997D43401
Revision C
Date April 2015
This manual describes the part names, dimensions, mounting, and specifications
of the product. Before use, read this manual and the manuals of all relevant
products fully to acquire proficiency in handling and operating the product. Make
sure to learn all the product information, safety information, and precautions.
Store this manual in a safe place so that it can be taken out and read whenever
necessary. Always forward it to the end user.
Registration:
The company and product names described in this manual are registered
trademarks or the trademarks of their respective companies.
Effective April 2015
Specifications are subject to change without notice.
©
2011 Mitsubishi Electric Corporation
Safety Precaution
(Read these precautions before use.)
This manual classifies the safety precautions into two categories:
and .
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
Depending on the circumstances, procedures indicated by
cause severe injury.
It is important to follow all precautions for personal safety.
Associated Manuals
Manual name Manual No. Description
JY997D43601
FX 3U -16CCL-M Describes details of the FX
MODEL CODE:
User's Manual 16CCL-M CC-Link master block.
09R724
FX 3G Series JY997D31301 Explains the FX 3G Series PLC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R521 installation, and maintenance.
FX Series JY997D16501 Explains the FX Series PLC
3U 3U
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R516 installation, and maintenance.
FX Series JY997D28701 Explains the FX Series PLC
3UC 3UC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R519 installation, and maintenance.
FX 3S /FX 3G /FX 3GC /
FX 3U /FX 3UC Series JY997D16601 Describes PLC programming for
Programming Manual MODEL CODE: basic/applied instructions and
- Basic & Applied 09R517 devices.
Instruction Edition
How to obtain manuals
For product manuals or documents, consult with the Mitsubishi Electric dealer
from who you purchased your product.
Side
B
Certification of UL, cUL standards
FX 3U -16CCL-M units comply with the UL standards (UL, cUL).
UL, cUL File Number:E95239
Regarding the standards that comply with the main unit, please refer to either the FX
series product catalog or consult with your nearest Mitsubishi product provider.
Compliance with EC directive (CE Marking)
This note does not guarantee that an entire mechanical module produced in
accordance with the contents of this note will comply with the following standards.
Compliance to EMC directive and LVD directive for the entire mechanical module
should be checked by the user / manufacturer. For more information please consult
with your nearest Mitsubishi product provider.
Regarding the standards that comply with the main unit, please refer to either the FX
series product catalog or consult with your nearest Mitsubishi product provider.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct testing (of the identified
standards below) and design analysis (through the creation of a technical construction
file) to the European Directive for Electromagnetic Compatibility (2004/108/EC) when
used as directed by the appropriate documentation.
Attention
• This product is designed for use in industrial applications.
Note
• Authorized Representative in the European Community:
Mitsubishi Electric Europe B.V.
Gothaer Str. 8, 40880 Ratingen, Germany
Type: Programmable Controller (Open Type Equipment)
Models: MELSEC FX 3U series manufactured
from August 1st, 2011 FX 3U -16CCL-M
Standard
EN61131-2:2007 C omp lia nce w ith a ll rele van t aspe cts of th e
Programmable controllers standard.
- Equipment requirements EMI
and tests • Radiated Emission
• Conducted Emission
EMS
• Radiated electromagnetic field
• Fast transient burst
• Electrostatic discharge
• High-energy surge
may also
• Voltage drops and interruptions
• Conducted RF
• Power frequency magnetic field
Caution for EC Directive
• Installation in Enclosure
Programmable logic controllers are open-type devices that must be installed and
used within conductive control cabinets. Please use the programmable logic
3U -
controller while installed within a conductive shielded control cabinet. Please secure
the cabinet door to the control cabinet (for conduction). Installation within a control
cabinet greatly affects the safety of the system and aids in shielding noise from the
programmable logic controller.
• Control cabinet
- The control cabinet must be conductive.
- Ground the control cabinet with the thickest possible grounding cable.
- To ensure that there is electric contact between the control cabinet and its door,
connect the cabinet and its doors with thick wires.
- In order to suppress the leakage of radio waves, the control cabinet structure
must have minimal openings. Also, wrap the cable holes with a shielding cover
or other shielding devices.
- The gap between the control cabinet and its door must be as small as possible
by attaching EMI gaskets between them.
Shielding cover
Shielded cable
EMI gasket
Wires *1
*1 These wires are used to improve the conductivity between the door and control
cabinet.
• Configuration example inside control cabinet
L N
Power
cable
24V DC power
supply
24+ 24-
Main unit FX -16CCL-M
3U
DA DB
CC-Link dedicated cable
Cable clamp
(AD75CK,
MITSUBISHI)
Conductive control cabinet
• Wiring simplified diagram
Termi-
nating FX -16CCL-M
3U
resistor
(Blue)
DA
(White)
DB
(Yellow)
DG
CC-Link
SLD
Dedicated
Cable
Remark
• Notes for compliance with EN61131-2:2007
General notes on the use of the power supply cable.
- The FX -16CCL-M unit requires that the cable used for power supply is 30 m or
3U
less.
- When the cable used for power supply exceeds 30 m, a noise filter (Ex. TDK-
Lambda MBS1205-22 or similar) should be placed on the 24 V DC power cabling
as close (within 500 mm) to the FX
refer to following figure.
FX -16CCL-M 500 mm or less
3U
24 V DC

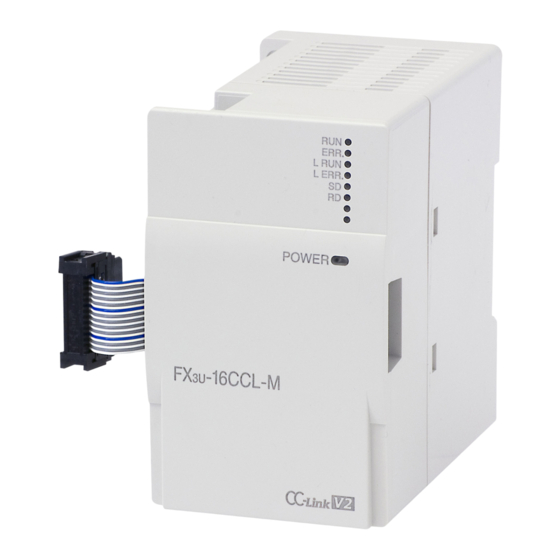

1. Introduction
The CC-Link master block FX -16CCL-M is a special function block which assigns an
3U
FX /FX /FX Series PLC as the master station of a CC-Link system.
3G 3U 3UC
Only one FX 16CCL-M unit can be connected to a single programmable logic
3U-
controller main unit.
→ For details, refer to the FX
1.1 Major Features of the FX
1) Compatible with CC-Link Ver. 2.00 and Ver. 1.10
The FX 16CCL-M is compatible with CC-Link Ver. 2.00, and enables expanded
3U-
cyclic transmission to facilitate the handling of applications requiring multiple
points of data processing.
In addition to Ver. 2.00, Ver. 1.10 is also supported by the FX
2) The FX 16CCL-M supports connection of intelligent device stations
3U-
Remote I/O stations, remote device stations and intelligent device station can also
be connected to the FX 16CCL-M.
3U-
[Caution]
Local stations can not be connected.
1.2 Incorporated Items
Check to ensure the following product and items are included in the package.
FX -16CCL-M
3U
Special unit/block No. label
For CC-Link dedicated cable
110 Ω 1/2 W (color cable: brown, brown and brown)
Te r m i n a l
resistor
For CC-Link dedicated high-performance cable
130 Ω 1/2 W (color cable: brown, orange and brown)
Dust proof protection sheet
Manuals (Japanese version, English version)
1.3 External Dimensions and Part Names
[1] [2]
Ground
cable
DG SLD
4(0.16")
Ground
cable
[1] Extension cable
[2] Direct mounting hole
2 holes of φ4.5 (0.18")
(mounting screw: M4 screw)
Other Other Termi-
station station nating
[3] Power LED (green)
resistor
DA DA
[4] Status LEDs
DB DB
[5] Name plate
DG DG
CC-Link [6] DIN rail mounting groove
SLD SLD
Dedicated
(DIN rail: DIN46277,
FG FG
Cable
35 mm (1.38") width)
1.4 Power and status LEDs
LED
display
POWER
-16CCL-M termination points as possible,
3U
Exceeding 30 m
RUN
24 V DC power
Noise
supply
Filter
ERR.
-16CCL-M User's Manual.
3U
-16CCL-M
3U
L RUN
16CCL-M.
3U-
L ERR.
SD
Included Item
RD
1 unit
1 sheet
2 cables
2 cables
1 sheet
1 manual each
Without top cover
2-φ4.5 mounting holes
[3] [4] [5] [8] [9]
[6]
[7]
9(0.36")
[12] [11] [10]
87(3.43")
55(2.17")
Unit: mm (inches)
MASS (Weight): 0.3 kg (0.66 lbs)
[7] DIN rail mounting hook
[8] Power supply terminal block
[9] Extension connector
[10] CC-Link connection terminal block
[11] Transmission rate setting switch
[12] Station number setting switch
LED
Status Description
Color
Power is not being supplied from the external
OFF
power supply (24 V DC).
Green
Power is being supplied from the external power
ON
supply (24 V DC).
OFF FX -16CCL-M has failed.
3U
Green
ON Under FX -16CCL-M normal operation.
3U
OFF No errors.
Communication error has occurred in some
Flicker
stations.
Red
Communication error has occurred in all stations,
ON error in the settings, error in the parameter details,
error with the communication, error with the H/W.
OFF Offline.
Green
ON Data link is being executed (host station).
OFF No communication error.
The switch setting was changed after start.
Flicker There is no terminating resistor.
Red
Influence from noise.
There is a data linking error (host station).
ON
There is a setting error.
OFF Data is not being sent.
Green
ON Data is being sent.
OFF Data is not being received.
Green
ON Data is being received.
