jablotron JK-84 Oasis Installation Manual

Installation of the JK-84 kit shall only be undertaken by technicians
holding a certificate issued by an authorized distributor. This simplified
installation manual only describes the basics, for more details see the
manuals of particular devices.
1. Factory-default pre-enrolled devices
Address Device
05 JA-83M door detector
06 JA-83P PIR detector
48 RC-86 keyfob
49 JA-81F keypad unit
50 JA-80L indoor siren
JA-82KR

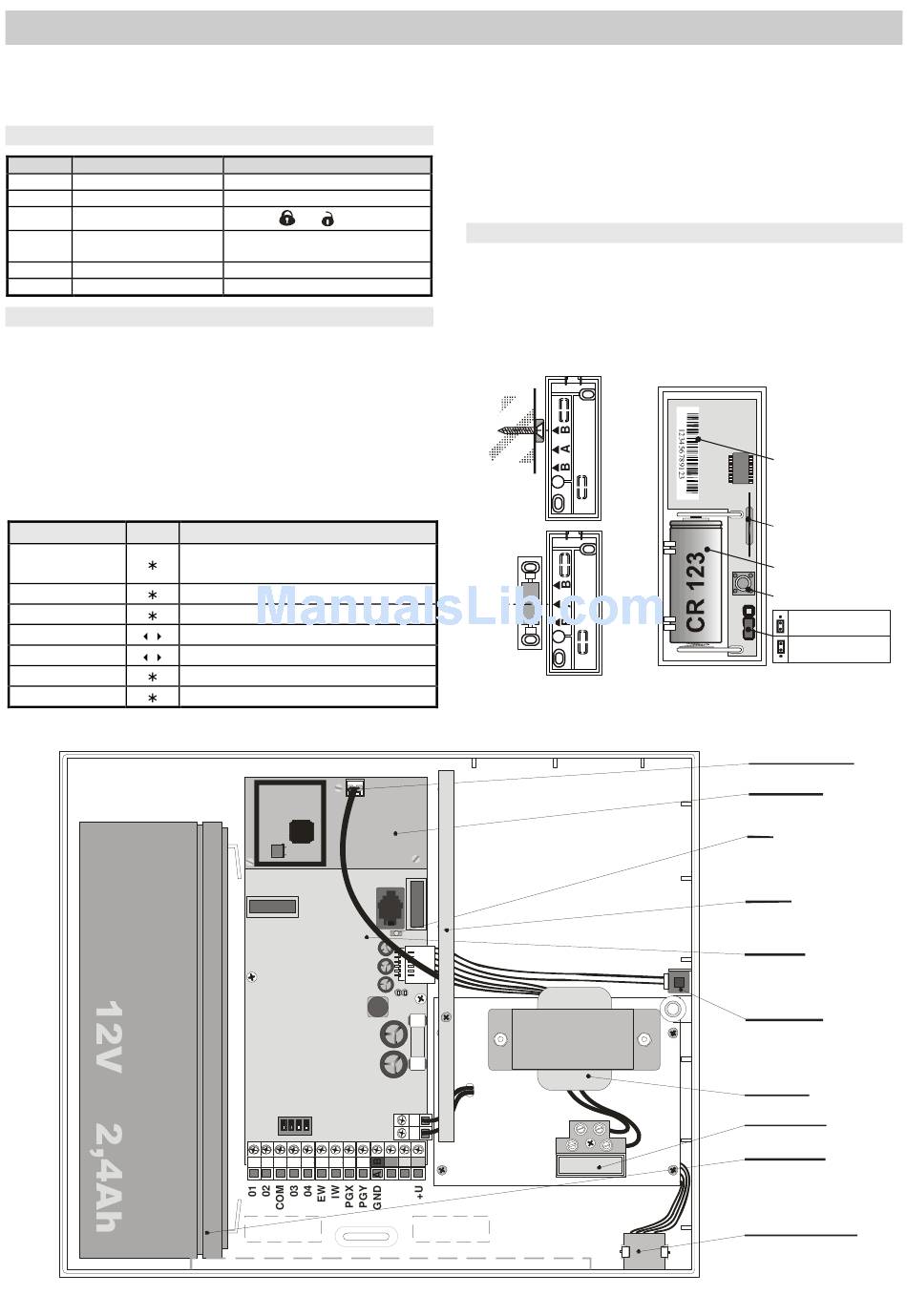

2. Control panel and keypad installation
1. Attach the Control Panel (CP) to the desired location.
2. Connect back-up battery to the CP (attach it securely with
adhesive tape).
3. Connect the mains to the CP – its green LED will start flashing
4. Connect up the batteries in the JA-81F keypad – service mode
should be displayed (if not, disconnect the keypad batteries, check
that the control panel is powered up and reconnect the keypad
batteries).
The internal keypad menu can be entered in Service mode by
?
holding the key. Using the arrows on keys 1 and 7 you can scroll
thought this menu:
Display Key
Tamper ON
Door chime ON
Beeper ON
Brightness
Contrast
Edit text
English
To exit the menu, press # (exiting also occurs after 10 seconds' inactivity)

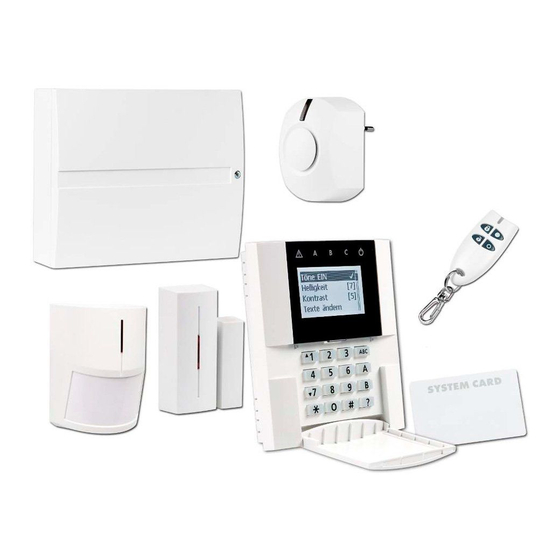

The JK-84 "Oasis" wireless alarm kit
The JK-84 "Oasis" wireless alarm kit
Note
Delayed reaction
Delayed reaction
Buttons and pre-enrolled
Connect a magnetic door sensor
to its IN input.
Pre-enrolled to the JA-80L
Description
Disable / Enable the tamper sensor
(only for service purposes)
Disable / Enable sound when IN triggered
Disable / Enable system sounds
Sets the display brightness 0 - 9
Sets the display contrast 0 - 9
Entry to keypads text editing
Sets English (reload default texts)
ON
OFF
1 2 3 4
o If you exit Service mode accidentally, it can be re-entered by
keying in ∗ ∗ ∗ ∗ 0 8080.
o Close the keypad's flip cover to save the battery while in the
service mode.
Before attaching the JA-81F keypad, test that it functions correctly at
the desired location. We recommended wiring up a magnetic door
sensor (provided with the kit) to the keypad's IN input. This will ensure
that the keypad is "woken up" whenever the door is opened (to indicate
system status, to make entrance delay beeps and to have the access
card reader ready for reading cards).
3. Installing the detectors and the siren
1. Install the JA-83M magnetic detector, select its reaction via the
internal DIP switch (INS/DEL), connect its battery up and close the
cover.
2. Install the JA-83P PIR motion detector about 2 to 2.5 meters above
the floor, select its reaction via the relevant internal DIP switch
(INS/DEL), connect its battery and close the cover.
3. Plug the JA-80L siren into a mains power socket.
RESET
1 / 2
serial number
reed contact
+
battery CR123A
tamper
DELAY
INSTANT
Antenna connection
Radio module
LED
Antenna
Main board
Tamper switch
Transformer
Mains terminal
Back-up battery
Digital bus connector
MKE59904
