JA-63 "Profi" User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ja-63 profi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jablotron Ja-63 profi

Summary of Contents for jablotron Ja-63 profi

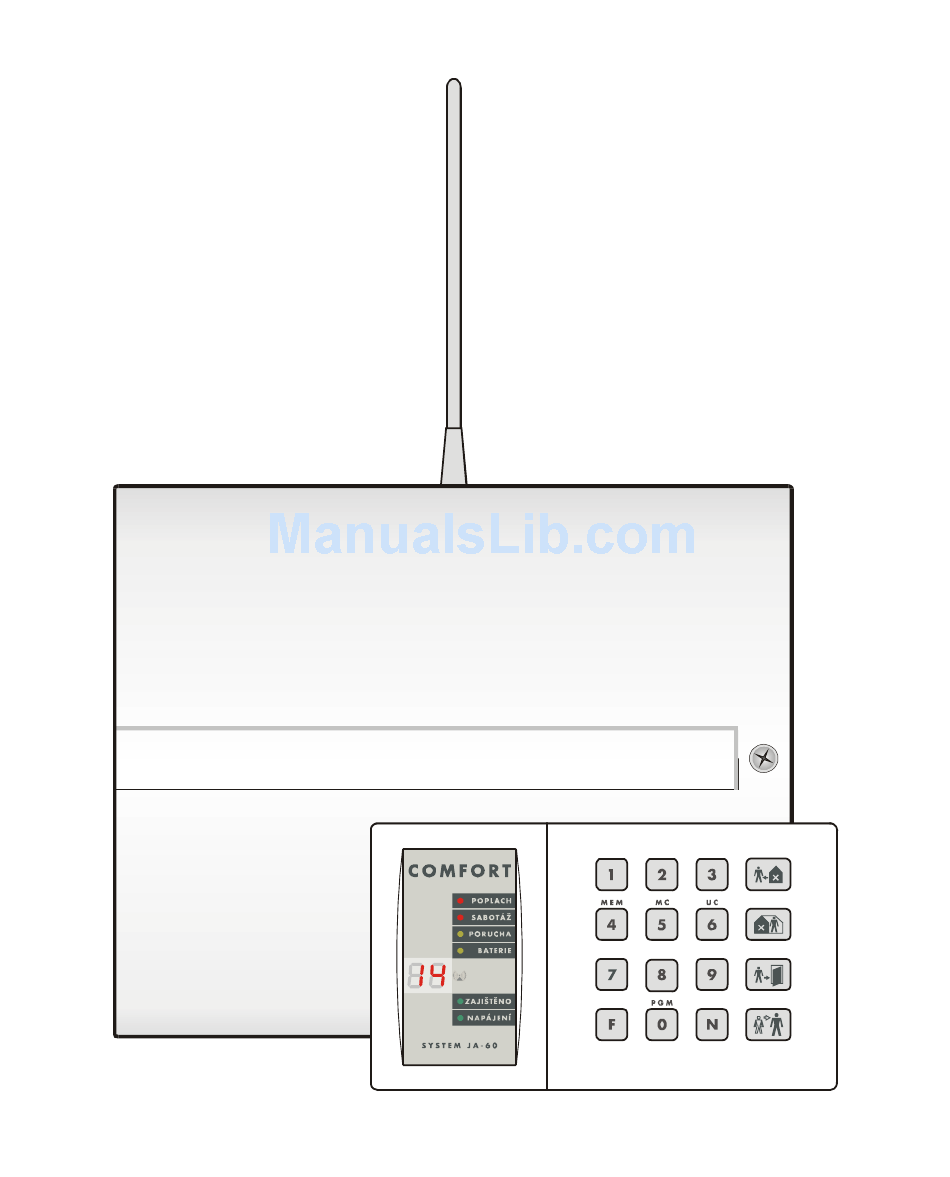

  • Page 1 JA-63 “Profi“ User manual...

  • Page 2: Table Of Contents

    Contents: Indicators ........................3 Controlling the system....................4 Arming ........................5 Disarming ......................6 Panic Alarm ......................6 To stop ALARM ....................6 Home arming ......................7 Door opening ......................7 Alarm memory reading ..................7 Voice messages listening ..................7 Split system arming ....................

  • Page 3: Indicators

    Note: features of this system can be substantially modified by programming during installation. The installer should instruct the users how to operate and test the system. 1 Indicators The alarm system’s status is indicated on the keypad. There can be multiple keypads in the system and in such a case all keypads will have identical functions.

  • Page 4: Controlling The System

    indicated event (Tamper or Failure) was caused Telephone line by the telephone line indicated event (Tamper or Failure) was caused digital bus by a device (keypad or PC) connected to the digital bus communication wireless keypad lost connection with the control failure panel error...

  • Page 5: Arming

    Master code Is an extra (15 ) access code for the supervisor. It can operate the system and it also allows for the programming of the other user codes and to enter the user mode (see section 3). Factory default master code is 1234. The supervisor should change it after installation.

  • Page 6: Disarming

    2.2 Disarming On the keypad - enter your user code On the remote control (RC-11) – press the B button • system will beep twice • if there are 3 beeps, important information is indicated and will be displayed on the keypad. Examples: FAILURE LED is flashing –...

  • Page 7: Home Arming

    2.5 Home arming The installer can program particular detectors so that they will be automatically bypassed in the so called “Home” partial arming. This allows for people to stay in the particular part of the house after arming. To arm partially: •...

  • Page 8: Subsystem Arming

    With the master code the supervisor can arm and disarm both sections. If the master code is entered, the system will arm (if completely disarmed) or disarm (if any section is armed). Entering F1 master code will control only section A and F2 master code only section B (this is true only when fast arming is disabled by the installer).

  • Page 9: User Codes Setting

    3.2 User codes setting There can be up to 14 different user codes for individual users. The system stores to its memory which code was used for what event and when. This data can go to a Central monitoring station as well and can also be viewed by a PC with Comlink software.

  • Page 10: Automatic Arming / Disarming

    3.4 Automatic arming / disarming The system can automatically arm and disarm for a requested period of a day. While in the user more, up to ten instructions (time & action) can be programmed in the period of one day. To switch the control panel to the user mode enter F 0 master code.

  • Page 11: Telephone Communicator Programming

    c. multiple pressing and holding of the keys (2 or 3) will switch the bypass on – off – on – off … 4. By repeating step 3. you can bypass all required alarm sources. • To close the Bypass menu press the N key. If anything is bypassed when arming, four beeps will sound and b will be displayed on the keypad during the exit delay (and partial arming will be recorded to the memory).

  • Page 12: Automatic Sms Sending

    F 0 master code. User mode will be indicated by a U on the keypad. If Jablotron’s SMS server service is provided in your country (check with your distributor), the following setting allows the control panel to send alarm text messages (SMS) automatically to a desired mobile phone: 7 xx…x F9 yy..y F7 00F9 F7zz..z F5...

  • Page 13: System Testing

    F5 = storing of the sequence to memory 5 (32 digits can be stored to memory 5 as a maximum - separators F9 and F7 takes only 1 digit each). How the SMS server woks: when activated, the control panel dials the SMS server.

  • Page 14: Enrollment Of The Control Panel To Uc-2Xx Modules

    • switch the control panel to the user mode (entering F0 master code) • open the cover of the detector (keypad) • replace its batteries with new ones (use only corresponding size and good quality alkaline batteries). Wait for approximately 20 seconds before inserting batteries •...
  • Page 15 User codes and controllers section code user name notes index Master code - supervisor Telephone communicator setting memory calling to notes tel. number SMS message o Pager Timers exit / entrance delay alarm duraton Notes: Alarm system JA-63 „PROFI“ - 15 - MGK51501...
  • Page 16 Detectors section detectors position location in the house reaction* type I – instant D – delayed F – fire P – panic T – tamper N – next delayed Alarm system JA-63 „PROFI“ - 16 - MGK51501...
