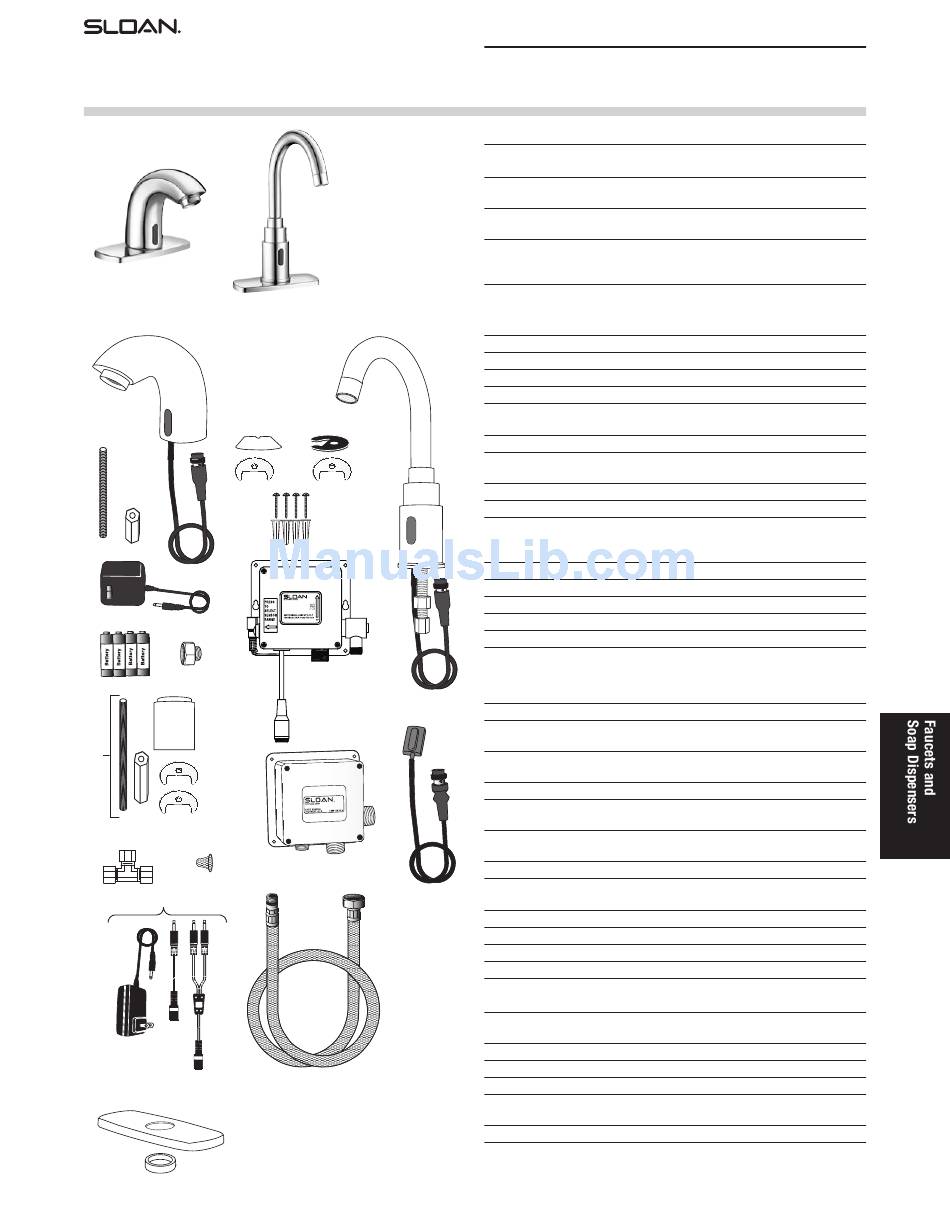

Repair Parts and Maintenance Guide
SF-2100/SF-2150
SF-2200/SF-2250
PARTS LIST—SF-2100/SF-2150/SF-2200/SF-2250
Item
No. Code No. Part No. Description
1A. — — Pedestal Faucet Assembly w/Outlet (Models
SF-2100 and SF-2150)
1B. — — Gooseneck Faucet Assembly w/Outlet
(Models SF-2200 and SF-2250)
— 0362004 SFP-4 Mounting Hardware Kit, Pedestal Faucet (Models
SF-2100/SF-2150): includes Items 2A, 2B, 2C,
2D and 2E
— 0362005 SFP-5 Mounting Hardware Kit, Screws and Anchors for
Control Module (all models)
2A. — — Gasket
2B. — — Metal Retainer
2C. — — Threaded Studs (Models SF-2100/2150)
—
2D. — Retainer Nuts (Models SF-2100/2150)
—
2E. — Screws and Anchors for Control Module (all models)
0362006
3. SFP-6 110 VAC/6 VDC Plug-In Adapter (US)
(Models SF-2100 and SF-2200)
4. — Batteries, 4 AA-size (all models)
0362040
5A. SFP-40-A Control module w/ adjustable button
(6 pin connector)
0362008
5B. SFP-8 Control module (Old Style 4 pin connector)*
0362010
6. SFP-10 Flex Hose, Control Module to Spout (all models)
7. 0362045 SFP-45-A Inlet adapter – 1/2" NPSM to 3/8" compression
connection (not supplied with most
international models)
8. 0362011 SFP-11 4" Trim Plate with Spacer (all models)
9. 0362030 SFP-30A Faucet Extension Kit (Models SF-2100/2150)
10A. 0362041 SFP-41-A Sensor Assembly (6 pin connector)
10B. 0362034 SFP-34 Sensor Assembly (Old Style 4 pin connector)*
11. 3365461 ETF-617-A 3/8" Bak-Chek
* IMPORTANT: Sloan added the range adjustment feature in August 2008 for faucets made prior to August 2008
use the following replacement parts: SFP-34 and SFP-8
NOT SHOWN SEPARATELY
— 0335029 EAF-51 0.35 gpm (1.3 Lpm) spray head (Models SF-2100/2150)
— 0335012 EAF-15 0.5 gpm (1.9 Lpm) vandal resistant spray head
(Models SF-2100/2150)
— 3362000 SFP-1000 0.35 gpm (1.3 Lpm) vandal resistant spray head
(Models SF-2100/2150)
— 0362012 SFP-12 Gooseneck Spout w/Outlet (Models SF-2200/2250)
— 0362013 SFP-13 0.5 gpm (1.9 Lpm) spray head (Models
SF-2100/2150)
0362014
— SFP-14 Spray head for Gooseneck Faucet
(Models SF-2200/2250)
0362023
— SFP-23 2.2 gpm (8.3 Lpm) Aerator (Models SF-2100/2150)
0362024
— SFP-24 2.2 gpm (8.3 Lpm) vandal resistant aerator
(Models: SF-2100/2150)
0362020
— SFP-26 220 VAC/6 VDC Plug-In Adapter (ASIA)
0362025
— SFP-25 220 VAC/6 VDC Plug-In Adapter (EURO)
0362026
— SFP-20 220 VAC/6 VDC Plug-In Adapter (UK)
— 3362022 SFP-22-A 8" Trim Plate
ACCESSORIES
12. 0362035 SFP-35-A 100-240 VAC/6 VDC Gang Adapter Kit,
includes 12A, 12B and 12C
12A. 0362016 SFP-36-A 100-240 VAC/6 VDC Plug-In Adapter
12B. 0362018 SFP-38 Cable Splitter, 51" (1300 mm) – 5 included in kit
12C. 0362017 SFP-37 Cable Extension, 51" (1300 mm)
REPAIR PARTS
13. 0362015 SFP-15 Strainer (located in water inlet of control module)
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
