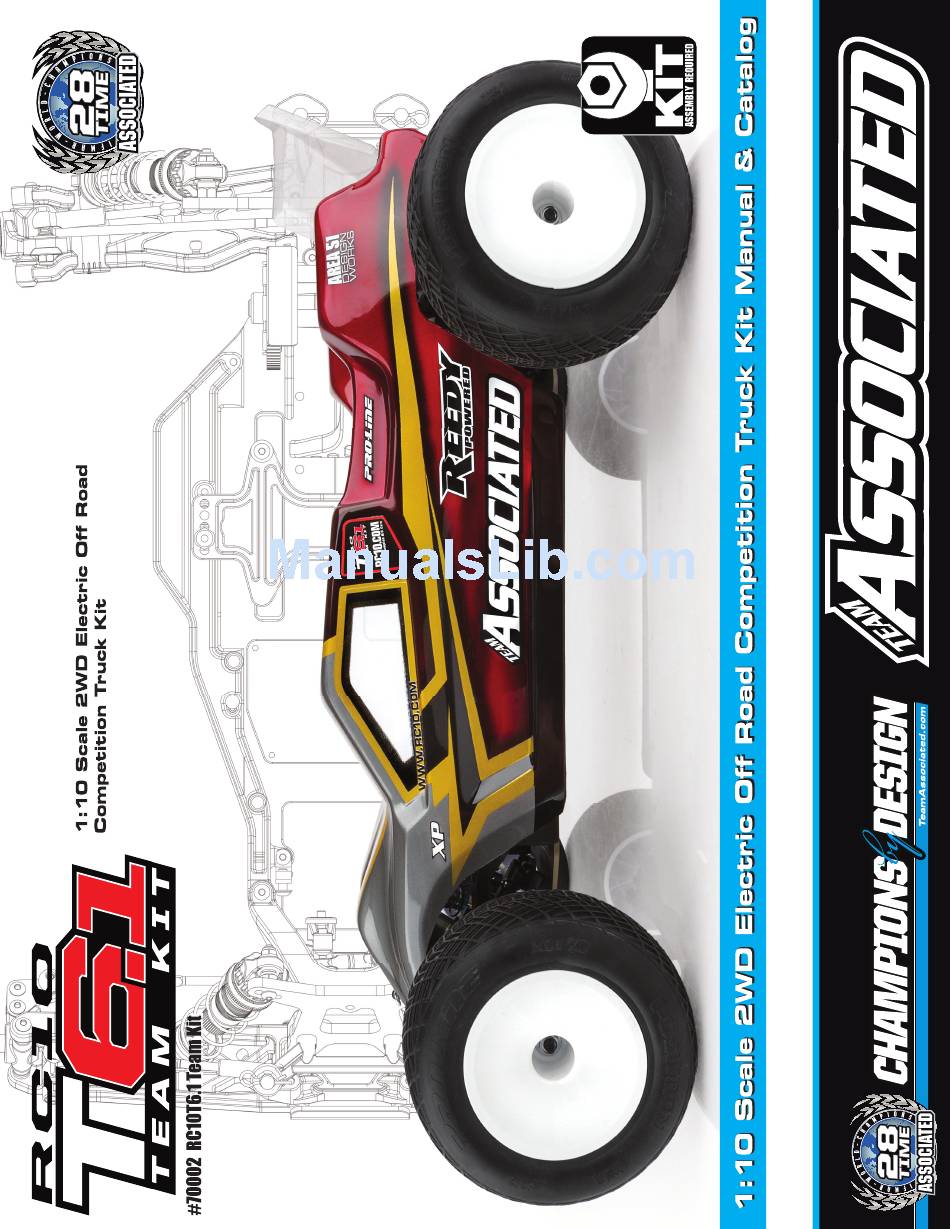

Associated Electrics RC10T6.1 Team Kit Assembly Manual

1:10 scale 2wd electric off road competition truck kit
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC10T6.1 Team Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics RC10T6.1 Team Kit

Summary of Contents for Associated Electrics RC10T6.1 Team Kit

  • Page 2 • Calipers or a Precision Ruler • Green Slime shock lube (AE Part # 1105) • FT Dual Turnbuckle Wrench (#1114) • FT Universal Tire Balancer (#1498) Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 3 :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x4mm (31510) 2x3mm (91743) 3x7x3mm (91475) Aluminum (8545) 3x8mm (25201) 2.5x6mm (31520) Aluminum (8553) 5x8x2.5mm (31400) Titanium (91592) 2.5x8mm (31521) 3x10mm (25202) 5x10x4mm (91560) 2.5x10mm (31522) Aluminum (8555) Titanium (91593) 3x4mm (91158)
  • Page 4 Each part in the This symbol indicates a Racers Tip. foldout has a number assigned to it for ordering replacement parts. Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 5 3/18 :: Bag 1 - Step 1 Front 91475 31383 3 x 7 x 3 FT Ballstud Ball Bearing 91667 Washer, Note orientation Steering Aluminum of steering rack. Bellcrank (2mm) (Right) 91667 Steering 91048 Rack Heavy-duty Ballstud, 31382 91667 FT Ballstud 91475 Steering Washer,...
  • Page 6 :: Bag 2 - Step 2 31382 91820 91734 71101 FT Ballstud Steering Battery Side Rails Washer, Aluminum Link, B6.1 Foam, B6 T6.1 (1mm) (L & R) 4671 M3x10mm #91734 - Set Screw Battery Foam There are two thickness options to accomodate battery size.
  • Page 7 :: Bag 2 - Step 5 91815 25188 Shock M3 x 20mm Bushing, BHCS 10mm 91766 Top Plate, 71119 Front Body Post, T6.1 25203 71115 25211 M3 x 12mm Front Shock M3 x 10mm FHCS Tower, T6.1 BHCS :: Bag 2 - Step 6 25187 25211 M3 x 14mm...
  • Page 8 :: Bag 3 - Step 1 31531 31382 91048 M3 x 6mm FT Ballstud FT Ballstud Heavy-duty BHCS 91776 Washer, Washer, Ballstud, Steering Aluminum Aluminum Block (1mm) (4mm) 91560 5 x 10 x 4 91679 Bearing Steering Steering Block Arm Block Arm There are two sets of steering There are two sets of steering...
  • Page 9 :: Bag 4 - Step 1 Install the rear arm insert in the same position for the left and right side arms! 71105 Rear Arms, T6.1 (L&R) 71105 Rear Arm Insert :: Bag 4 - Step 2 C Plate D Plate 91772 Center Center...
  • Page 10 :: Bag 5 - Step 2 6573 Diff thrust washer 6574 5/64 diff 31400 thrust balls 5 x 8 x 2.5mm, Bearing 6573 Diff thrust bolt :: Bag 5 - Step 3 6575 As you tighten the diff bolt, you will notice the T-nut ears moving closer to the bottom of the outdrive slot.
  • Page 11 :: Bag 6 - Step 2 89202 89203 91563 3 x 12mm 3 x 16mm 10x15x4 BHCS BHCS Bearing Add a drop of Diff Lube (#6591) to the teeth of the diff gear, idler gear, and 91790 top shaft. B6.1 Layback Gearbox Top 91792 B6.1 Diff...
  • Page 12 :: Bag 6 - Step 5 25189 25211 M3 x 22mm M3 x 10mm BHCS BHCS 91816 Shock Bushing, 12mm 71119 71116 25204 25202 Rear Body Rear Shock M3 x 16mm M3 x 10mm Posts, T6.1 Tower, T6.1 FHCS FHCS :: Bag 6 - Step 6 89202 M3 x 12mm...
  • Page 13 :: Bag 7 - Step 2 91563 10 x 15 x 4 91438 Bearing Coupler 71113 92062 CVA Bone, HD CVA 91mm Axle, B64 91438 CVA Pin 91562 6 x 13 x 5 Bearing Build x2 (left and right side) :: Bag 7 - Step 3 91611 M1.6 x 5mm...
  • Page 14 :: Bag 8 - Step 2 91722 9175 91722 Ball Cup Turnbuckle Ball Cup 3x58mm Front Camber Turnbuckle 37.00mm Racers Tip: Orient the notch Orient the notch to the left throughout the to the left throughout the Use black grease car.
  • Page 15 :: Bag 9 - Step 2 91481 91491 There is a short and long shock eyelet. long shock eyelet. 12mm 12x27.5mm Front and rear Shock Cap V2 Shock shocks use the O-Ring Bodies (front) long eyelet. Lightly rub shock oil on the o-ring before 91483 installation!
  • Page 16 :: Bag 9 - Step 5 Use middle 25612 hole in front arm! M3 Locknut w/Flange 25612 M3 Locknut w/Flange 25187 25188 M3 x 14mm M3 x 20mm BHCS BHCS Build x2 (left and right side) Build x2 (left and right side) :: Bag 10 - Step 1 25225 6338...
  • Page 17 :: Bag 10 - Step 3 89218 91731 M3 x 8mm 31531 Battery Washer M3 x 6mm Strap, B6 BHCS Make sure the battery strap shoulder screw is flush with the top of your battery pack! 91731 Battery Strap Nut, :: Bag 10 - Step 4 91729 Thumb...
  • Page 18 :: Bag 10 - Step 6 91826 M4 Steel 91826 Serrated M4 Steel Nut, with Serrated Flange - Nut, with Silver Flange - Silver Build 2 (1 left, 1 right) Build 2 (1 left, 1 right) :: Rear Shock Mounting Option - Step 1 25189 71116 M3 x 22mm...
  • Page 19 :: Tuning Tips Painting: Your Kit comes with a clear polycarbonate body. You will need to prep the body before you can paint it. Wash the INSIDE thoroughly with warm water and liquid detergent (do not use any detergents with scents or added hand lotion ingredients!).
  • Page 20 :: Tuning Tips (cont.) Motor Gearing: Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and premature motor failure. The gear ratio chart lists recommended starting gear ratios for the most widely used motor types.

  • Page 21: Ride Height

    :: Tuning Tips Front Camber Links: Changing the length of the camber link is considered a bigger step than adjusting the ball end height on the tower. Shortening the camber link (or lowering the ball end) will give the front end less roll and quicken steering *Raise or lower the response.
  • Page 22 :: Shocks :: Ball Differential 4187 .030 Nylon Washer 1733 Diff Shims 31327 VCS3 Shock Bottom Cap and O-Ring 2 ea. 6573 Diff Thrust Washer & Bolt 31510 2x4mm BHCS 6574 Precision Diff Thrust Balls, 5/64” 89278 2.6x6mm Washer 6575 Locking T-Nut, Diff Thrust Bolt, &...
  • Page 23 :: Transmission 25188 M3 x 20mm BHCS 89203 89203 25202 M3 x 10mm FHCS 31383 Ballstud Washers, 5.5x2.0 mm, 89202 blue aluminum 31448 M2.5 x 8mm FHCS 31532 M3 x 8mm BHCS 89202 M3 x 12mm BHCS 89203 M3 x 16mm BHCS 91790 89218 25202...
  • Page 24 :: Optional Gear Differential 31522 M2.5 x 10mm BHCS 91563 31522 91563 FT Bearings, 10x15x4 mm 91792 91780 B6.1 Gear Differential Rebuild 91782 91782 B6.1 Gear Differential Seals 91783 B6.1 Gear Differential Case 91785 91780 91784 B6.1 Aluminum Cross Pins 91783 91785 B6.1 Gear Differential Outdrives...
  • Page 25 :: Front Arm 25187 M3 x 14mm BHCS 25188 M3 x 20mm BHCS 25215 M3 Locknut, Black 25187 31382 FT Ballstud Washer, aluminum1mm 31510 M2 x 4mm BHCS 91049 91048 31531 M3 x 6mm, BHCS 31532 M3 x 8mm, BHCS 25215 31532 71103...
  • Page 26 :: Front Shock Tower 25188 M3 x 20mm BHCS 25203 M3 x 12mm FHCS 25211 M3 x 10mm BHCS 25612 M3 Locknuts w/Flange 71115 T6.1 Front Shock Tower 71119 T6.1 Body Posts 91815 Shock Bushing, 10mm 91815 25188 25612 71119 25612 91815 25211...
  • Page 27 :: Front Bulkhead / Steering 25187 M3 x 14mm BHCS 25204 M3 x 16mm FHCS 25211 M3 x 10mm BHCS 25225 M3 x 3mm Set Screw 31283 Ball Studs, Long, 5mm 31382 Ballstud Washers, 5.5x1.0 mm, 91049 blue aluminum 91678 89202 M3 x 12mm BHCS 31382...
  • Page 28 :: Factory Team and Option Parts :: MyLaps Transponders 71102 T6.1 Side Rails (HARD) MLP10R078 MyLaps Hybrid (2-wire) Transponder 71104 T6.1 Front Suspension Arm (HARD) MLP10R078BK MyLaps Hybrid Black Edition 71106 T6.1 Rear Suspension Arm (HARD) (2-wire) Transponder 91494 FT 12mm Machined Shock Spacers, V2 MLP10R120 MyLaps RC4 (3-wire) Transponder 91495...
  • Page 29 :: Reedy Motors / Spare Parts / Accessories :: Reedy ESC’s MOTORS 256C Blackbox 1000Z+/540-M3 10.5 Combo Sonic 540-M3 10.5 258C Blackbox 1000Z+/540-M3 8.5 Combo Sonic 540-M3 9.5 259C Blackbox 1000Z+/540-M3 8.0 Combo Sonic 540-M3 8.5 260C Blackbox 1000Z+/540-M3 7.5 Combo Sonic 540-M3 8.0 261C Blackbox 1000Z+/540-M3 7.0 Combo...
  • Page 30 :: Apparel / Promotional :: Tools TEE SHIRTS 1111 FT Turnbuckle Wrench SP11* 2016 Worlds T-shirt, blue, (S, M, L, XL-5XL) 1112 FT 4mm Turnbuckle Wrench SP12* 2016 Worlds T-shirt, black, (S, M, L, XL-5XL) 1113 12mm Big Bore Shock Tool SP113* AE Worlds Car Retro T-Shirt, (S, XL, 2XL) 1114...
  • Page 31 :: Notes :: Contact Information Check out the following web sites for all of our electric kits, current products, new releases, setup help, tips, and racing info! Associated Electrics, Inc. 26021 Commercentre Drive Lake Forest, CA 92630-8853 USA http://www.TeamAssociated.com http://www.RC10.com http://twitter/Team_Associated http://www.instagram.com/teamassociatedrc/...
  • Page 32 Driver: Team Kit Stock Setup Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: 29mm Anti Roll Bar: Axle Height: Ride Height: Bump Steer Spacing: Ball Stud Spacing: White (0.8mm) -1° Camber: Gray (0.9mm) 0° Toe: Blue (1.0mm) Kit #71103 Arm Type: Other:...
  • Page 33 Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: Anti Roll Bar: Axle Height: Ride Height: Bump Steer Spacing: Ball Stud Spacing: White (0.8mm) Camber: Gray (0.9mm) Toe: Blue (1.0mm) Arm Type: Other: Tower Type: Caster Block Insert: Steering Plate: Steering Block: Steering Stop Spacing:...
