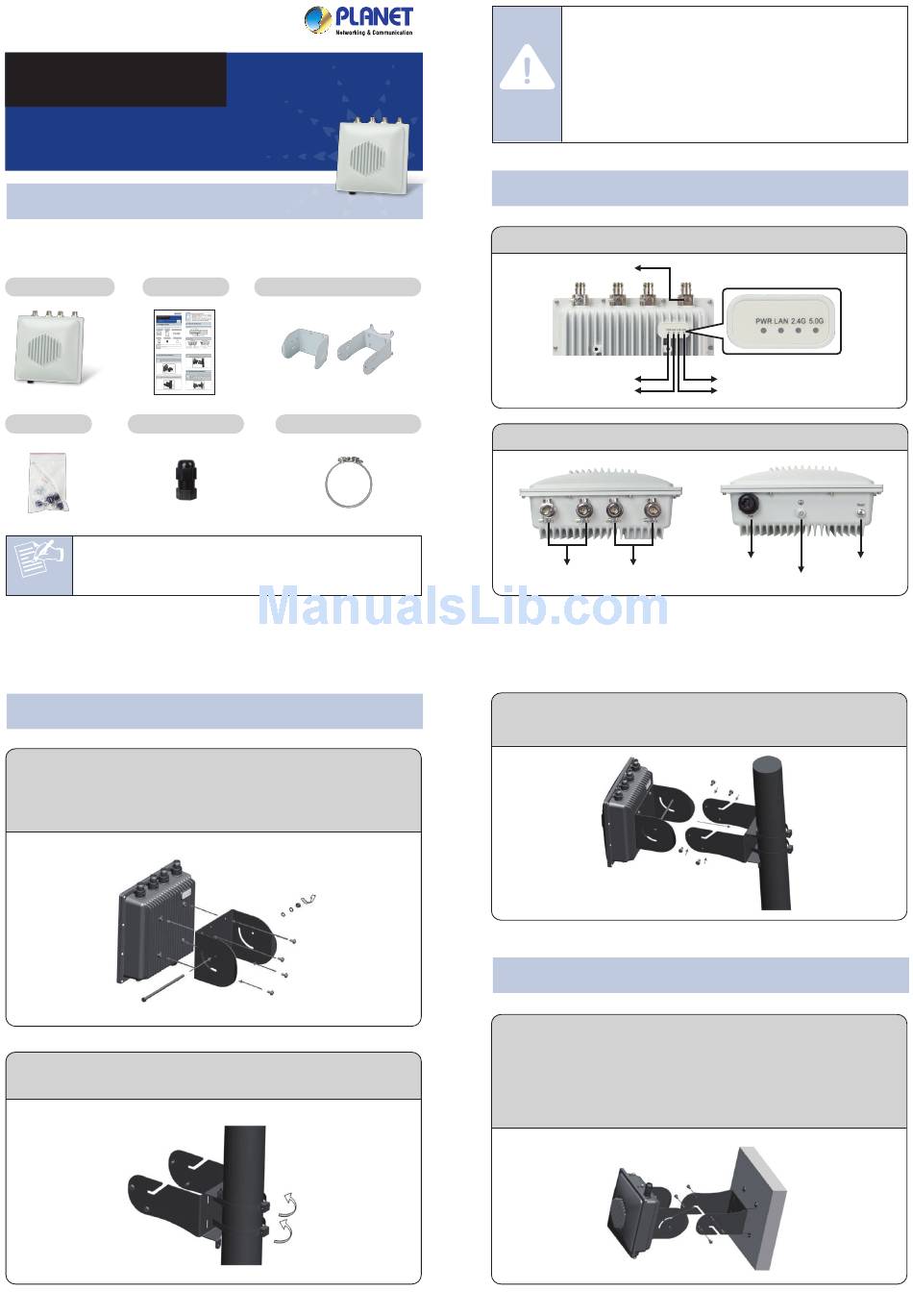

Quick Installation Guide

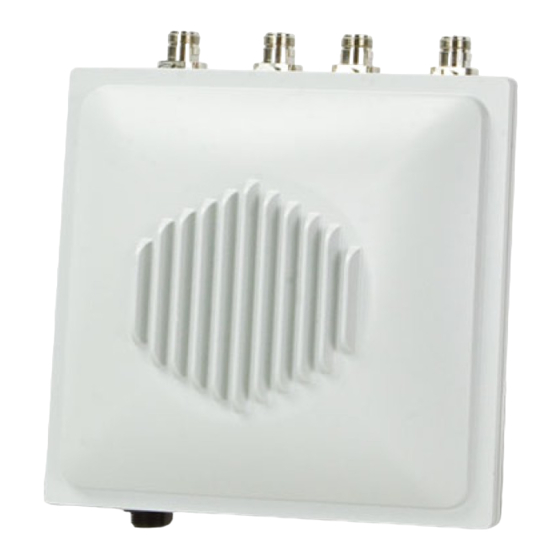

WDAP-8350
600Mbps 802.11n Dual Band Outdoor
Wireless CPE
1. Package Contents
Thank you for choosing PLANET WDAP-8350. Before installing the AP, please
verify the contents inside the package box.
WDAP-8350
Quick Guide
Mounting Kit
RJ45 Waterproof Kit
If there is any item missing or damaged, please contact the
seller immediately.
Note
3. Pole Mounting Installation
Step 1: Install the backplane at the rear of WDAP-8350 and screw the 4
short screws with a Phillips screwdriver. Make the long screw rod
pass through the holes of the backplane and put the flat pad,
spring shim and the screw nut on it in proper order; do not lock
it tight.
Step 2: Lock the 2 stainless tight hoop strips around the pole by passing
through the mounting bracket and lock the fastening screws.
Backplane & Mounting Bracket
Stainless Tight Hoop Strip
– 1 –
– 3 –
Caution
2. Physical Introduction
LED Indication
Connector and Port
x 2
5GHz N-Type (Female)
Antenna Connectors
Step 3: Install the device with the backplane to the mounting bracket on
the column and fix the device and mounting bracket together by
using 4 hex cap screws.
4. Wall Mounting Installation
Step 1: As shown in Step 3-1, install the backplane at the rear of the
WDAP-8350 first. Then, mark each point in the bracket for the
screws. Remove the bracket to drill the points and insert the
plastic wall-mounts. Use screws to lock the bracket with a
screwdriver.
Step 2: Assemble the device with the mounting bracket on the wall by
using 4 short screws and 1 long screw.
IMPORTANT SAFETY PRECAUTIONS:
1) LIVES MAY BE AT RISK! Please be aware of the electrical
wires around. Carefully read the section "OUTDOOR
INSTALLATION WARNING" in the manual before
installation.
2) Users
MUST
complete
grounding
WDAP-8350; otherwise, a sudden lightning could cause
fatal damage to the WDAP-8350. EMD (Lightning)
DAMAGE IS NOT COVERED UNDER WARRANTY.
Ground Lug
Power LED
5GHz WLAN LED
LAN LED
2.4GHz WLAN LED
PoE LAN Port
2.4GHz N-Type (Female)
Antenna Connectors
– 2 –
– 4 –
wired
with
the
Reset Button
Ground Terminal
