Planet WDRT-730 Quick Installation Manual

300Mbps Dual Band 802.11n
2.4G&5G
Wireless Gigabit Router
WDRT-730

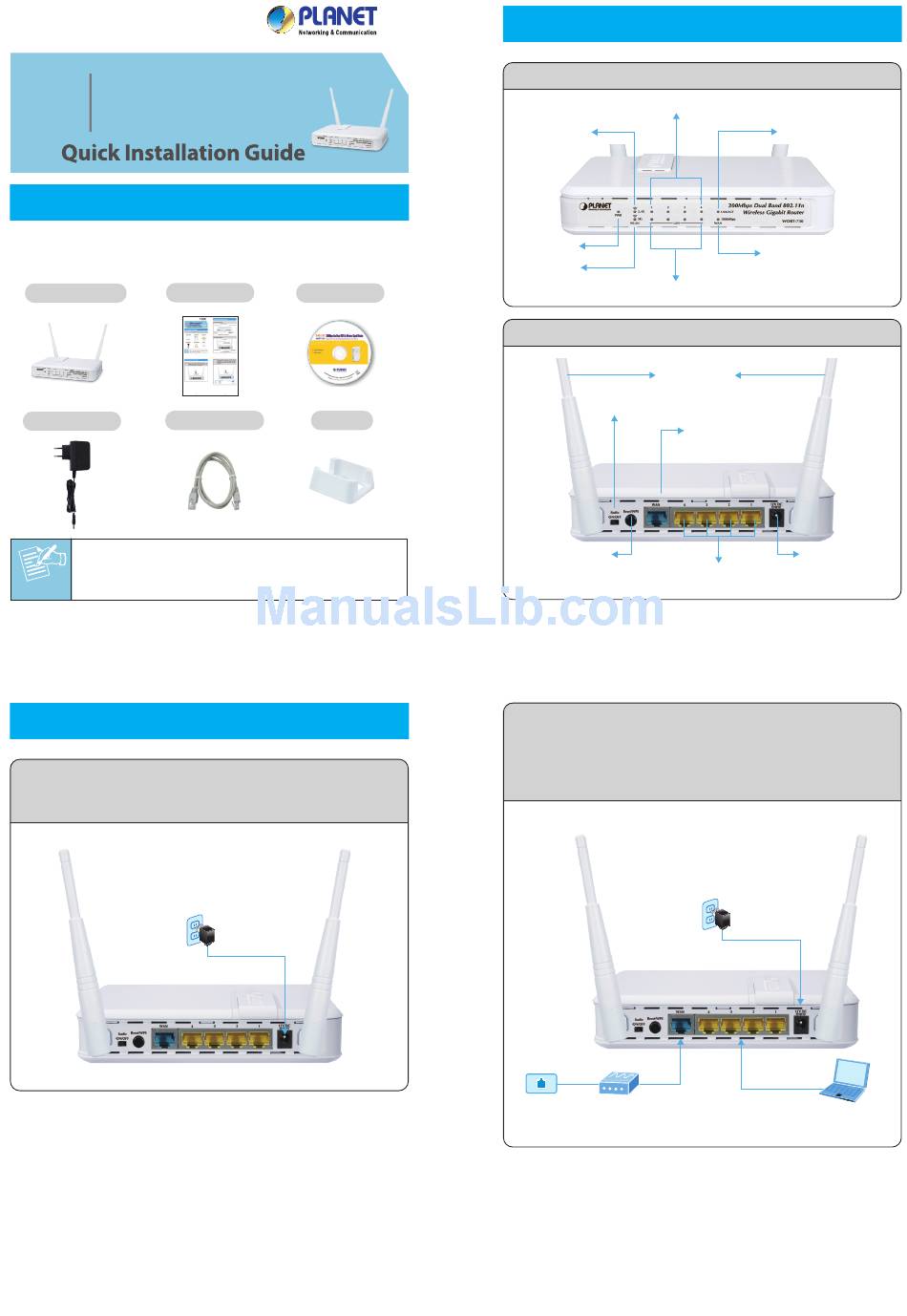

1. Package Contents
Thank you for choosing PLANET WDRT-730. Before installing
the router, please verify the contents inside the package box.
Wireless Router Quick Guide
Ethernet Cable
Power Adapter
If there is any item missed or damaged, please
contact the seller immediately.
Note
3. Hardware Installation
STEP 1: Connect the Power Adapter provided in the
package to the WDRT-730. The Power LED on the
front panel shall turn on accordingly.
Power Adapter
CD-ROM
Stand
– 1 –
Power
– 3 –
2. Physical Introduction
Front Panel Description
Link LED of LAN1~LAN4
Wi-Fi (2.4G)
Power LED
Wi-Fi (5G)
1000Mbps Link LED of LAN1~LAN4
Rear Panel Description
3 dBi Antenna
Wi-Fi Function Switch
Reset/WPS Button
4 x Gigabit LAN Ports
(Connect to PC or Network Devices)
STEP 2: Follow the figure below to connect with the
network devices. It depends on your network
environment to connect the WAN port to a
Cable/xDSL modem, or the Ethernet directly in
your place.
RJ-45
RJ-11
Phone Cable /xDSL
Jack Modem
Link LED of WAN Port
1000Mbps Link LED
of WAN Port
WAN Port (Connect to
Cable/xDSL Modem)
Power Connector
(12V DC Input)
– 2 –
Power
Power Adapter
RJ-45
PC/Laptop
– 4 –
