User's Manual
150Mbps 802.11n
Wireless 3G Router

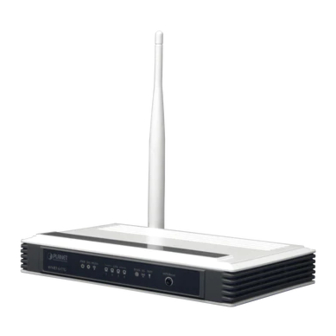

WNRT-617G
www.PLANET.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the wnrt-617g and is the answer not in the manual?

Questions and answers

Related Manuals for Planet wnrt-617g

Summary of Contents for Planet wnrt-617g

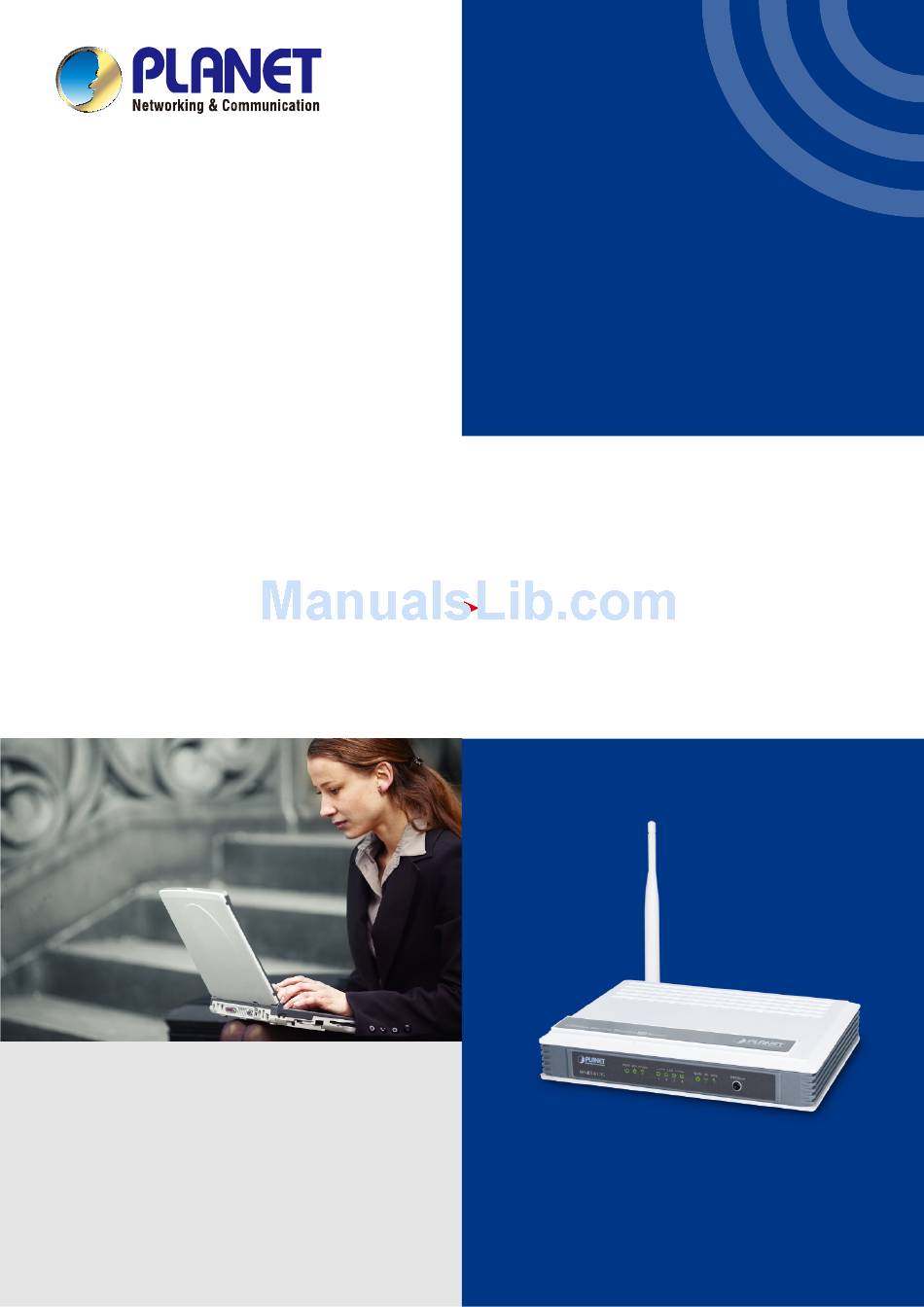

  • Page 1 User’s Manual 150Mbps 802.11n Wireless 3G Router WNRT-617G www.PLANET.com.tw...

  • Page 2: Federal Communication Commission Interference Statement

    Copyright Copyright  2013 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.

  • Page 3: National Restrictions

    Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal...
  • Page 4 Revision User’s Manual for PLANET 802.11n Wireless 3G Router Model: WNRT-617G Rev: 2.0 (MAY. 2013) Part No: EM-WNRT-617Gv2_v2.0 (2081-E50210-002)

  • Page 5: Table Of Contents

    CONTENTS Chapter 1. Product Introduction......................1 Package Contents......................... 1 Product Description....................... 1 Product Features........................3 Product Specifications......................4 Chapter 2. Hardware Installation ......................7 Hardware Description......................7 2.1.1 The Front Panel ......................7 2.1.2 LED Indications......................7 2.1.3 The Rear Panel......................9 Chapter 3.
  • Page 6 5.6.4 Wireless Advanced ....................66 5.6.5 Wireless Statistics....................68 DHCP ..........................69 5.7.1 DHCP Settings......................69 5.7.2 DHCP Clients List ....................70 5.7.3 Address Reservation ....................71 Forwarding ..........................73 5.8.1 Virtual Servers ......................73 5.8.2 Port Triggering ......................76 5.8.3 DMZ ........................78 5.8.4 UPnP........................79 Security ..........................80 5.9.1 Basic Security ......................80 5.9.2 Advanced Security....................82 5.9.3...
  • Page 7 5.16.1 Time Settings ......................117 5.16.2 Diagnostic ......................119 5.16.3 Firmware Upgrade ....................121 5.16.4 Factory Defaults....................122 5.16.5 Backup & Restore....................123 5.16.6 Reboot ........................123 5.16.7 Password ......................124 5.16.8 System Log......................125 5.16.9 Statistics........................128 Chapter 6. Quick Connection to a Wireless Network ..............130 Windows XP (Wireless Zero Configuration)..............130 Windows 7 (WLAN AutoConfig) ..................132 Mac OS X 10.x ........................135...
  • Page 8 FIGURE 2-1 WNRT-617G F ....................7 IGURE RONT ANEL 2-2 WNRT-617G F ....................8 IGURE RONT ANEL 3-1 A ................11 IGURE DJUST THE DIRECTION OF THE ANTENNA 3-2 H WNRT-617G W ........11 IGURE ARDWARE NSTALLATION OF THE IRELESS...
  • Page 9 5-14 WAN - D IP......................42 IGURE YNAMIC 5-15 WAN - S IP ......................43 IGURE TATIC 5-16 WAN – PPP E ........................44 IGURE 5-17 PPP ...................46 IGURE DVANCED ETTINGS 5-18 WAN – B ....................47 IGURE ABLE 5-19 WAN - L2TP S .....................49 IGURE ETTINGS...
  • Page 10 5-54 P ..................90 IGURE ARENTAL ONTROL ETTINGS 5-55 A ......................91 IGURE CCESS ONTROL 5-56 A ................91 IGURE CCESS ONTROL ANAGEMENT 5-57 A ............93 IGURE DD OR ODIFY NTERNET CCESS ONTROL NTRY 5-58 A ....................94 IGURE CCESS ONTROL ULE LIST 5-59 A ..................95 IGURE CCESS...
  • Page 11 5-94 R ...................122 IGURE ESTORE ACTORY EFAULT 5-95 B & R ................123 IGURE ACKUP ESTORE ONFIGURATION 5-96 R .....................123 IGURE EBOOT THE OUTER 5-97 P ........................124 IGURE ASSWORD 5-98 S ........................125 IGURE YSTEM 5-99 M ....................126 IGURE CCOUNT ETTINGS 5-100 M ..............127 IGURE CCOUNT...

  • Page 12: Chapter 1. Product Introduction

    1.2 Product Description 3G Broadband Sharing PLANET Wireless 3G Router, WNRT-617G, provides home and SOHO users with a reliable and cost effective wireless solution by featuring 3G/WAN backup Internet access and high speed IEEE 802.11n wireless transmission. The WNRT-617G is equipped with one USB port for connection to mobile network of UMTS / HSPA / EVDO via 3G/3.5G USB modem and one WAN port for wired cable and...
  • Page 13 Internet service when the ISPs use different connection type. It also provides Virtual Server and DMZ functions for LAN PC to act as an application server and offer certain service to the clients in the LAN. The WNRT-617G allows users to set up trigger ports of special...

  • Page 14: Product Features

    User’s Manual of WNRT-617G applications and utilize Internet services smoothly. Moreover, IP-Based ingress and egress bandwidth control optimizes time-critical applications such as VoIP or video conference not to be interrupted or lagged due to P2P file download by other clients in the same network environment.

  • Page 15: Product Specifications

    User’s Manual of WNRT-617G  Remote Management allows configuration from a remote site  System status monitoring includes DHCP Client, System Log 1.4 Product Specifications WNRT-617G Product 150Mbps 802.11n Wireless 3G Router Hardware Specification WAN Port: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port...
  • Page 16 User’s Manual of WNRT-617G 1M: -90dBm@8% PER Wireless Management Features Wireless Operation AP, WDS (AP+Bridge) Mode WEP (64/128/152-bit) encryption security WPA-PSK / WPA2-PSK (TKIP/AES) Encryption Security WPA / WPA2 (TKIP/AES) WPA / WPA2 enterprise mode (802.1x authentication) Provides wireless LAN ACL (Access Control List) filtering...
  • Page 17 User’s Manual of WNRT-617G Easy firmware upgrade System Log supports auto mail and saves to local host Windows 7(32-bit/64-bit) Windows Vista (32-bit/64-bit) OS Compatibility Windows XP Mac OS X 10.4 and higher Standards Conformance IEEE 802.11n (1T1R, up to 150Mbps) IEEE 802.11g...

  • Page 18: Chapter 2. Hardware Installation

    User’s Manual of WNRT-617G Chapter 2. Hardware Installation Please follow the instructions below to build the wireless network connection between WNRT-617G and your computers. 2.1 Hardware Description 2.1.1 The Front Panel The front panel provides a simple interface monitoring the router.
  • Page 19 User’s Manual of WNRT-617G LED Definition Figure 2-2 WNRT-617G Front Panel Status Function Power is on. Power is off. The Router is initializing. Flashing The Router is working properly. The Router has a system error. Flashing The Wireless function is enabled.

  • Page 20: The Rear Panel

    Figure 2-3 Rear Panel Interface Function The Power socket is where you will connect the power adapter. POWER Please use the power adapter provided with WNRT-617G. ON/OFF The button of the power. Connect to the DSL/cable Modem, or Ethernet 1,2,3,4 (LAN) Connect to the user’s PC or network devices...

  • Page 21: Chapter 3. Connecting The Router

    User’s Manual of WNRT-617G Chapter 3. Connecting the Router 3.1 System Requirements 3G Internet Access Service (DSL/Cable/Ethernet connection) One DSL/Cable Modem that has an RJ-45 connector (not necessary if the Router is connected directly to the Ethernet.) PCs with a working Ethernet Adapter and an Ethernet cable with RJ-45 connectors PC of subscribers running Windows 98/ME, NT4.0, 2000/XP, Windows Vista / Win 7, MAC...
  • Page 22 Phone Jack PC/Laptop DSL/Cable Modem Figure 3-2 Hardware Installation of the WNRT-617G Wireless Router Step 5. Connect the power adapter to the power socket on the Router, and the other end into an electrical outlet. Then power on the Router.

  • Page 23: Chapter 4. Quick Installation Guide

    4.1 Manual Network Setup - TCP/IP Configuration The default IP address of the WNRT-617G is 192.168.1.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.
  • Page 24 User’s Manual of WNRT-617G Figure 4-1 Change adapter settings 3) Right-click on the Wireless Network Connection, and select Properties in the appearing window. Figure 4-2 Network Connection Properties -13-...
  • Page 25 User’s Manual of WNRT-617G 4) In the prompt window shown below, double click on the Internet Protocol Version 4 (TCP/IPv4). Figure 4-3 TCP/IP Setting 5) Choose Obtain an IP address automatically, and Obtain DNS server address automatically as shown in the figure below. Then click OK to save your settings.

  • Page 26: Configure The Ip Address Manually

    1) Continue the settings from the last figure, select Use the following IP address radio button. 2) If the LAN IP address of the WNRT-617G is 192.168.1.1, enter IP address 192.168.1.x (x is from 2 to 254), and Subnet mask 255.255.255.0.
  • Page 27 User’s Manual of WNRT-617G you can enter the DNS server IP address provided by your local ISP. Then click OK to save your settings. Figure 4-5 Use Static IP address Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the Router.
  • Page 28 User’s Manual of WNRT-617G Figure 4-6 Windows 7 - Search box Open a command prompt, and type ping 192.168.1.1, and then press Enter.  If the result displayed is similar to Figure 4-7, it means the connection between your PC and the Router has been established well.
  • Page 29 User’s Manual of WNRT-617G Figure 4-8 Failed result of Ping command If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some firewall software programs may block a DHCP request on newly installed adapters.

  • Page 30: Starting Setup In Web Ui

    User’s Manual of WNRT-617G 4.2 Starting Setup in Web UI It is easy to configure and manage the WNRT-617G with web browser. Step 1. To access the configuration utility, open a web-browser and enter the default IP address http://192.168.1.1 in the address field of the browser.
  • Page 31 After entering the username and password, the main screen appears as Figure 4-11. Figure 4-11 WNRT-617G Web UI Screenshot Step 2. After the successful login, you can click the Quick Setup to quickly configure your Router. Figure 4-12 Quick Setup...
  • Page 32 User’s Manual of WNRT-617G Figure 4-13 Quick Setup – Internet Access The page includes the following fields: Object Description 3G Preferred In this mode, the router will try 3G access first. If 3G access fails and WAN access is valid, or if no 3G USB modem is inserted, the router would switch to WAN access.
  • Page 33 User’s Manual of WNRT-617G Figure 4-14 Quick Setup – 3G The page includes the following fields: Object Description Location Select the country where you're using the 3G modem. Mobile ISP Select the ISP (Internet Service Provider) you apply to for 3G service.
  • Page 34 User’s Manual of WNRT-617G Step 5. You will then see the Figure 4-15. Select Auto-Detect, the Router will automatically detect the connection type your ISP provides. Make sure the cable is plugged into the WAN port before detection. The appropriate configuration page will be displayed when an active Internet service is successfully detected by the Router.
  • Page 35 User’s Manual of WNRT-617G Figure 4-17 Quick Setup – Static IP If the connection type detected is Dynamic IP, the next screen will appear as shown in Figure 4-18. Then you can go on with the wireless configuration. Figure 4-18 Quick Setup – MAC Clone Step 6.
  • Page 36 User’s Manual of WNRT-617G Figure 4-19 Quick Setup – Wireless -25-...
  • Page 37 Name (SSID) Identification) must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be default. This value is case-sensitive. For example, PLANET is NOT the same as planet. Region Select your region from the pull-down list.
  • Page 38 User’s Manual of WNRT-617G Step 7. Click the Next button. You will then see the Finish page. If you don’t make any change on the Wireless page, you will see the Finish page as shown in Figure 4-20. Click the Finish button to finish the Quick Setup.

  • Page 39: Chapter 5. Configuring The Router

    User’s Manual of WNRT-617G Chapter 5. Configuring the Router This chapter will show each Web page's key functions and the configuration way. 5.1 Login After the successful login, you will see the fifteen main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and instructions.
  • Page 40 User’s Manual of WNRT-617G Figure 5-2 Router Status -29-...

  • Page 41: Quick Setup

    User’s Manual of WNRT-617G 5.3 Quick Setup Please refer to 4.2 Starting Setup in Web 5.4 WPS This section will guide you to adding a new wireless device quickly to an existing network by WPS (Wi-Fi Protected Setup) function. Step 1. Choose menu “WPS”, you will see the next screen (shown in...
  • Page 42 User’s Manual of WNRT-617G If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and Router using either Push Button Configuration (PBC) method or PIN method. To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function.
  • Page 43 User’s Manual of WNRT-617G When pressing and holding the WPS/Reset Button on the router for more than 5 seconds, you will reset the router. Step 2: Press and hold the WPS Button equipped on the adapter directly for 2 or 3 seconds. Or you can click the WPS button with the same function in the configuration utility of the adapter.
  • Page 44 User’s Manual of WNRT-617G Step 3: For the configuration of the wireless adapter, please choose the option that you want to enter PIN into the Router in the configuration utility of the WPS, and click Next. Method Two: Enter the PIN of the Router into the configuration utility of your Wireless adapter...

  • Page 45: Network

    User’s Manual of WNRT-617G 5.5 Network There are three submenus under the Network menu (shown in Figure 5-8): WAN, LAN, and MAC Clone. Click any of them, and you will be able to configure the corresponding function. Figure 5-8 The Network menu 5.5.1 Internet Access...
  • Page 46 User’s Manual of WNRT-617G immediately. 3G Only In this mode, the router will try 3G access only. WAN access is disabled. In this mode, the router will try WAN access first; WAN Preferred When the WAN access fails, and 3G access is valid, the router would switch to 3G access;...
  • Page 47 User’s Manual of WNRT-617G 5.5.2 3G Choose menu “Network→3G”, you can configure parameters for 3G function on the screen below. Please do not insert the 3G USB Modem into the router before configuring the settings. When the USB modem is unplugged, corresponding information will be shown as in Figure 5-10.
  • Page 48 User’s Manual of WNRT-617G The page includes the following fields: Object Description Please select the location where you're enjoying the 3G Modem. Location Mobile ISP Please select the ISP (Internet Service Provider) you apply to for 3G service. The router will show the default Dial Number and APN of that ISP.
  • Page 49 User’s Manual of WNRT-617G disconnect your Internet connection, and not be able re-establish your connection automatically as soon as you attempt to access the Internet again. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field.

  • Page 50: Advanced Settings

    User’s Manual of WNRT-617G "unknown" 3G modem if the correct parameters are in the list. We suggest you do the “3G USB Modem Setting” only in such circumstance. To add 3G USB Modem entries, follow the steps below. 1. Download the most recent 3G USB modem configuration file from our website.
  • Page 51 User’s Manual of WNRT-617G Figure 5-13 3G Advanced Settings The page includes the following fields: Object Description Display the location where you're enjoying the 3G Modem. Location Mobile ISP Display the ISP (Internet Service Provider) you applyed to for 3G service.

  • Page 52: Wan

    User’s Manual of WNRT-617G Enter the Username and Password provided by your ISP. These fields Username/Password are case-sensitive. SIM/UIM PIN Enter the PIN code if the SIM/UIM Protection is enabled. Please note that 3 times of wrong PIN code will lock your SIM/UIM card. You need to unlock it on the PC using PUK code.
  • Page 53 User’s Manual of WNRT-617G  Dynamic IP If your ISP provides the DHCP service, please choose Dynamic IP type, and the Router will automatically obtain IP parameters from your ISP. You can see the page as follows (Figure 5-14): Figure 5-14 WAN - Dynamic IP This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc.
  • Page 54 User’s Manual of WNRT-617G This option specifies the Host Name of the Router. Host Name Get IP with Unicast A few ISPs' DHCP servers do not support the broadcast applications. If DHCP you cannot get the IP Address normally, you can choose this option. (It is rarely required.)
  • Page 55 User’s Manual of WNRT-617G usually is 255.255.255.0 Default Gateway (Optional) Enter the gateway IP address in dotted-decimal notation provided by your ISP. The normal MTU (Maximum Transmission Unit) value for most Ethernet MTU Size networks is 1500 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP.
  • Page 56 User’s Manual of WNRT-617G The page includes the following fields: Object Description Enter the User Name and Password provided by your ISP. These fields User Name/Password are case-sensitive. The Secondary Connection is disabled by Secondary Connection Disabled default, so there is PPPoE connection only. This is recommended.
  • Page 57 User’s Manual of WNRT-617G Figure 5-17 PPPoE Advanced Settings The page includes the following fields: Object Description MTU Size The default MTU size is “1480” bytes, which is usually fine. It is not recommended that you change the default MTU Size unless required by your ISP.
  • Page 58 User’s Manual of WNRT-617G  BigPond Cable If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select BigPond Cable. And you should enter the following parameters (Figure 5-18): Figure 5-18 WAN – BigPond Cable The page includes the following fields:...
  • Page 59 User’s Manual of WNRT-617G change the default MTU Size unless required by your ISP. Connect on Demand In this mode, the Internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection to keep active all the time, please enter “0”...
  • Page 60 User’s Manual of WNRT-617G  L2TP / Russia L2TP If your ISP provides L2TP / Russia L2TP connection, please select L2TP/Russia L2TP option. And enter the following parameters (Figure 5-19): Figure 5-19 WAN - L2TP Settings The page includes the following fields:...
  • Page 61 User’s Manual of WNRT-617G wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.
  • Page 62 User’s Manual of WNRT-617G  PPTP / Russia PPTP If your ISP provid es PPTP / Russia PPTP connection, please select PPTP/Russia PPTP option. And enter the following parameters (Figure 5-20): Figure 5-20 WAN - PPTP Settings The page includes the following fields:...
  • Page 63 User’s Manual of WNRT-617G Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button.

  • Page 64: Lan

    User’s Manual of WNRT-617G 5.5.5 LAN Choose menu “Network→LAN”, you can configure the IP parameters of the LAN on the screen as below. Figure 5-21 LAN Settings The page includes the following fields: Object Description MAC Address The physical address of the Router, as seen from the LAN. The value can't be changed.

  • Page 65: Mac Clone

    User’s Manual of WNRT-617G 5.5.6 MAC Clone Choose m enu “Network→MAC Clone”, you can configure the MAC address of the WAN on the screen below (Figure 5-22 Figure 5-22 MAC Address Clone Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here.

  • Page 66: Wireless

    User’s Manual of WNRT-617G 5.6 Wireless There are five submenus under the Wireless menu (shown in Figure 5-23): Wireless Settings, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them, and you will be able to configure the corresponding function.
  • Page 67 Set Identification) must be assigned to all wireless devices in your (SSID) network. Considering your wireless network security, the default SSID is set to be default. This value is case-sensitive. For example, PLANET is NOT the same as planet. Region Select your region from the pull-down list.
  • Page 68 User’s Manual of WNRT-617G The wireless radio of this Router can be enabled or disabled to allow Enable Wireless Router Radio wireless stations access. Enable SSID Broadcast When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Router. If you select the Enable SSID Broadcast checkbox, the Wireless Router will broadcast its name (SSID) on the air.

  • Page 69: Wireless Security

    User’s Manual of WNRT-617G can also use the search function to select the BSSID to join. Search Click this button, you can search the AP which runs in the current channel. This option should be chosen according to the AP's security Key type configuration.
  • Page 70 User’s Manual of WNRT-617G Figure 5-26 Wireless Security - None The page includes the following fields: Object Description Disable Security If you do not want to use wireless security, select this check box, but it’s strongly recommended to choose one of the following modes to enable security.
  • Page 71 User’s Manual of WNRT-617G Object Description It is based on the IEEE 802.11 standard. If you select this check box, you will find a notice in red as show in Figure 5-27. Type you can choose the type for the WEP security on the pull-down list. The...
  • Page 72 User’s Manual of WNRT-617G Figure 5-28 Wireless Security - WPA/WPA2 Enterprise The page includes the following fields: Object Description It is based on Radius Server. WPA/WPA2 Version You can choose the version of the WPA security on the pull-down list.
  • Page 73 User’s Manual of WNRT-617G Figure 5-29 Wireless Security - WPA/WPA2 Personal The page includes the following fields: Object Description It’s the WPA/WPA2 authentication type based on pre-shared WPA-PSK/WPA2-PSK passphrase. You can choose the version of the WPA-PSK security on the Version drop-down list.

  • Page 74: Wireless Mac Filtering

    User’s Manual of WNRT-617G 5.6.3 Wireless MAC Filtering Choose menu “Wireless→MAC Filtering” and you can control the wireless access by configuring the Wireless MAC Address Filtering function as shown in Figure 5-30. Figure 5-30 Wireless MAC Address Filtering To filter wireless users by MAC Address, click Enable. The default setting is Disable.
  • Page 75 User’s Manual of WNRT-617G Figure 5-31 Add or Modify Wireless MAC Address Filtering entry To add or modify a MAC Address Filtering entry, follow these instructions: Step 1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address XX-XX-XX-XX-XX-XX (X is any hexadecimal digit).
  • Page 76 User’s Manual of WNRT-617G For example, If you desire that the wireless station A with MAC address 00-30-4F-11-22-33 and the wireless station B with MAC address 00-30-4F-1A-2B-3C are able to access the Router, but all the other wireless stations cannot access the Router, you can configure the Wireless MAC Address Filtering list by following these steps: Step 1.

  • Page 77: Wireless Advanced

    User’s Manual of WNRT-617G 5.6.4 Wireless Advanced Choose menu “Wireless→Wireless Advanced”, and you can configure the advanced settings of your wireless network. Figure 5-33 Wireless Advanced The page includes the following fields: Object Description Beacon Interval Enter a value between 20-1000 milliseconds for Beacon Interval here.
  • Page 78 User’s Manual of WNRT-617G You can specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval. Enable WMM WMM function can guarantee the packets with high-priority messages being transmitted preferentially.

  • Page 79: Wireless Statistics

    User’s Manual of WNRT-617G 5.6.5 Wireless Statistics Choose menu “Wireless→Wireless Statistics”, and you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station. Figure 5-34 The Router attached wireless stations The page includes the following fields:...

  • Page 80: Dhcp

    User’s Manual of WNRT-617G 5.7 DHCP There are three submenus under the DHCP menu (shown in Figure 5-35): DHCP Settings, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding function.

  • Page 81: Dhcp Clients List

    User’s Manual of WNRT-617G DHCP Server Enable or Disable the DHCP server. If you disable the Server, you must have another DHCP server within your network or else you must configure the computer manually. Start IP Address Specify an IP address for the DHCP Server to start with when assigning IP addresses.

  • Page 82: Address Reservation

    User’s Manual of WNRT-617G Figure 5-37 DHCP Clients List The page includes the following fields: Object Description The index of the DHCP Client Client Name The name of the DHCP client MAC Address The MAC address of the DHCP client Assigned IP The IP address that the Router has allocated to the DHCP client.
  • Page 83 User’s Manual of WNRT-617G Figure 5-38 Address Reservation The page includes the following fields: Object Description MAC Address The MAC address of the PC for which you want to reserve IP address. Assigned IP Address The IP address of the Router reserved.

  • Page 84: Forwarding

    User’s Manual of WNRT-617G To modify or delete an existing entry: Step 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. Step 2. Modify the information. Step 3. Click the Save button.
  • Page 85 User’s Manual of WNRT-617G Figure 5-41 Virtual Servers The page includes the following fields: Object Description Service Port The numbers of External Ports. You can type a service port or a range of service ports (in XXX – YYY format, XXX is the start port number, YYY is the end port number).
  • Page 86 User’s Manual of WNRT-617G Figure 5-42 Add or Modify a Virtual Server Entry If your computer or server has more than one type of available service, please select another service, and enter the same IP Address for that computer or server.

  • Page 87: Port Triggering

    User’s Manual of WNRT-617G 5.8.2 Port Triggering Choose menu “Forwarding→Port Triggering”, and you can view and add port triggering in the next screen (shown in Figure 5-43). Some applications require multiple connections, like Internet games, video conferencing, Internet calling and so on. These applications cannot work with a pure NAT Router.
  • Page 88 User’s Manual of WNRT-617G 2000-2038, 2050-2051, 2085, 3010-3030. Incoming Protocol The protocol used for Incoming Ports Range, either TCP or UDP, or ALL (all protocols supported by the Router). The status of this entry either Enabled or Disabled. Status To add a new rule, follow the steps below.

  • Page 89: Dmz

    User’s Manual of WNRT-617G Modify the information. Click the Save button. Click the Enable All button to make all entries enabled Click the Disabled All button to make all entries disabled. Click the Delete All button to delete all entries When the trigger connection is released, the related opening ports will be closed.

  • Page 90: Upnp

    User’s Manual of WNRT-617G Step 3. Click the Save button. After you set the DMZ host, the firewall related to the host will not work. 5.8.4 UPnP Choose menu “Forwarding→UPnP”, and you can view the information about UPnP(Universal Plug and Play) in the screen (shown in Figure 5-46).The UPnP feature allows the devices, such as Internet...

  • Page 91: Security

    User’s Manual of WNRT-617G Protocol - Shows which type of protocol is opened. Internal Port - Internal port, which the router opened for local host. IP Address - The UPnP device that is currently accessing the router. Status - The port’s status displayed here. “Enabled” means that port is still active.
  • Page 92 User’s Manual of WNRT-617G Figure 5-48 Basic Security The page includes the following fields: Object Description Firewall A firewall protects your network from the outside world. Here you can enable or disable the Router’s firewall. SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet filtering) helps to prevent cyber attacks by tracking more state per session.

  • Page 93: Advanced Security

    User’s Manual of WNRT-617G Router, keep the default, Enabled. L2TP Passthrough - Layer 2 Tunneling Protocol (L2TP) is the method used to enable Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Router, keep the default, Enabled.
  • Page 94 User’s Manual of WNRT-617G Figure 5-49 Advanced Security The page includes the following fields: Object Description The default value is 10. Select a value between 5 and 60 seconds from Packets Statistics Interval (5~60) the drop-down list. The Packets Statistics Interval value indicates the time section of the packets statistics.

  • Page 95: Local Management

    User’s Manual of WNRT-617G Router will start up the blocking function immediately. Threshold (5~3600) Enable UDP-FLOOD Enable or Disable the UDP-FLOOD Filtering. Filtering The default value is 500. Enter a value between 5 ~ 3600. When the UDP-FLOOD Packets Threshold (5~3600) current UPD-FLOOD Packets number is beyond the set value, the Router will start up the blocking function immediately.
  • Page 96 User’s Manual of WNRT-617G Figure 5-50 Local Management By default, the radio button “All the PCs on the LAN are allowed to access the Router's Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access the Setup page of the Router's Web-Based Utility locally from inside the network, check the radio button “Only the PCs listed can browse the built-in web pages to perform Administrator tasks”, and...

  • Page 97: Remote Management

    User’s Manual of WNRT-617G 5.9.4 Remote Management Choose menu “Security → Remote Management”, and you can configure the Remote Management function in the screen as shown in Figure 5-51. This feature allows you to manage your Router from a remote location via the Internet.

  • Page 98: Parental Control

    User’s Manual of WNRT-617G 5.10 Parental Control Choose menu “Parental Control”, and you can configure the parental control in the screen as shown Figure 5-52. The Parental Control function can be used to control the internet activities of the child, limit the child to access certain websites and restrict the time of surfing.
  • Page 99 User’s Manual of WNRT-617G For detailed information, please go to “Access Control → Schedule”. Modify Here you can edit or delete an existing entry. To add a new entry, please follow the steps below: Step 1. Click the Add New… button and the next screen will pop-up as shown in Figure 5-52.
  • Page 100 User’s Manual of WNRT-617G Figure 5-53 Add or Modify Parental Control Entry For example, If you desire that the child PC with MAC address 00-11-22-33-44-AA can access www.google.com on Saturday only while the parent PC with MAC address 00-11-22-33-44-BB is without any restriction, you should follow the settings below.
  • Page 101 User’s Manual of WNRT-617G Enter “www.google.com” in the Allowed Domain Name field. Select “Schedule_1” you create just now from the Effective Time drop-down list. In Status field, select Enable. Step 4. Click Save to complete the settings. Then you will go back to the Parental Control Settings page and see the following list, as shown Figure 5-54.

  • Page 102: Access Control

    User’s Manual of WNRT-617G 5.11 Access Control There are four submenus under the Access Control menu as shown in Figure 5-55: Rule, Host, Target and Schedule. Click any of them, and you will be able to configure the corresponding function.
  • Page 103 User’s Manual of WNRT-617G The page includes the following fields: Object Description Select the check box to enable the Internet Access Control function, so Enable Internet Access Control the Default Filter Policy can take effect. Here displays the name of the rule and this name is unique.
  • Page 104 User’s Manual of WNRT-617G You can change the entry’s order as desired. Fore entries are before hind entries. Enter the ID number in the first box you want to move to and another ID number in the second box you want to move to, and then click the Move button to change the entry’s order.
  • Page 105 User’s Manual of WNRT-617G In Rule Name field, create a name for the rule. Note that this name should be unique, for example Rule_1. In Host field, select Host_1. In Target field, select Target_1. In Schedule field, select Schedule_1. In Action field, select Allow.

  • Page 106: Host

    User’s Manual of WNRT-617G 5.11.2 Host Choose menu “Access Control → Host”, and you can view and set a Host list in the screen as shown in Figure 5-59. The host list is necessary for the Access Control Rule. Figure 5-59 Access Control host Settings...
  • Page 107 User’s Manual of WNRT-617G Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button to return to the previous page. Figure 5-60 Add or Modify a Host Entry – IP Mode Figure 5-61 Add or Modify a Host Entry –...

  • Page 108: Target

    User’s Manual of WNRT-617G Figure 5-62 Host Settings List 5.11.3 Target Choose menu “Access Control → Target”, and you can view and set a Target list in the screen as shown in Figure 5-63. The target list is necessary for the Access Control Rule.
  • Page 109 User’s Manual of WNRT-617G To add a new entry, please follow the steps below: Step 1. Click the Add New… button. Step 2. In Mode field, select IP Address or Domain Name. If you select IP Address, the screen shown is Figure 5-64.
  • Page 110 User’s Manual of WNRT-617G Figure 5-64 Add or Modify an Access Target Entry Figure 5-65 Add or Modify an Access Target Entry For example, If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA in the LAN to access www.google.com...

  • Page 111: Schedule

    User’s Manual of WNRT-617G Step 3. In Target Description field, create a unique description for the target (e.g. Target_1). Step 4. In Domain Name field, enter www.google.com. Step 5. Click Save to complete the settings. Then you will go back to the Target Settings page and see the following list.
  • Page 112 User’s Manual of WNRT-617G unique. Here displays the day(s) in a week. Time Here displays the time period in a day. Here you can edit or delete an existing schedule. Modify To add a new schedule, follow the steps below: Step 1.

  • Page 113: Advanced Routing

    User’s Manual of WNRT-617G For example, If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday, you should first follow the settings below: Step 1.

  • Page 114: Static Routing List

    User’s Manual of WNRT-617G Figure 5-70 Advanced Routing 5.12.1 Static Routing List Choose menu “Static Routing List”, and you can configure the static route in the next screen (shown Figure 5-71). A static route is a pre-determined path that network information must travel to reach a specific host or network.

  • Page 115: System Routing Table

    User’s Manual of WNRT-617G Step 2. Enter the following data: Object Description Destination IP Address The Destination IP Address is the address of the network or host that you want to assign to a static route. Subnet Mask The Subnet Mask determines which portion of an IP Address is the network portion, and which portion is the host portion.

  • Page 116: Bandwidth Control

    User’s Manual of WNRT-617G Figure 5-73 System Routing Table 5.13 Bandwidth Control There are two submenus under the Bandwidth Control menu as shown in Figure 5-74. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.

  • Page 117: Rules List

    User’s Manual of WNRT-617G Figure 5-75 Bandwidth Control Settings The page includes the following fields: Object Description Enable Bandwidth Check this box so that the Bandwidth Control settings can take effect. Control Select the right type for you network connection. If you don’t know how Line Type to choose, please ask your ISP for the information.
  • Page 118 User’s Manual of WNRT-617G The page includes the following fields: Object Description Description This is the information about the rules such as address range. This field displays the max and mix upload bandwidth through the WAN Egress bandwidth port, the default is 0.

  • Page 119: Ip & Mac Binding

    User’s Manual of WNRT-617G 5.14 IP & MAC Binding There are two submenus under the IP &MAC Binding menu (shown in Figure 5-78): Binding Settings and ARP List. Click any of them, and you will be able to scan or configure the corresponding function.
  • Page 120 User’s Manual of WNRT-617G When you want to add or modify an IP & MAC Binding entry, you can click the Add New button or Modify button, and then you will go to the next page. This page is used for adding or modifying an IP &...

  • Page 121: Arp List

    User’s Manual of WNRT-617G Figure 5-81 Find IP & MAC Binding Entry Click the Enable All button to make all entries enabled. Click the Delete All button to delete all entries. 5.14.2 ARP List To manage the computer, you could observe the computers in the LAN by checking the relationship of MAC address and IP address on the ARP list, and you could configure the items on the ARP list also.
  • Page 122 User’s Manual of WNRT-617G The MAC address of the controlled computer in the LAN. MAC Address IP Address The assigned IP address of the controlled computer in the LAN. Status Indicates whether or not the MAC and IP addresses are bound.

  • Page 123: Dynamic Dns

    User’s Manual of WNRT-617G 5.15 Dynamic DNS Choose menu “Dynamic DNS”, and you can configure the Dynamic DNS function. The Router offers the DDNS (Dynamic Domain Name System) feature, which allows the hosting of a website, FTP server, or e-mail server with a fixed domain name (named by yourself) and a dynamic IP address, and then your friends can connect to your server by entering your domain name no matter what your IP address is.

  • Page 124: Dyndns.org Ddns

    User’s Manual of WNRT-617G To set up for DDNS, follow these instructions: Step 1. Type the Domain Name received from your dynamic DNS service provider. Step 2. Type the User Name for your DDNS account. Step 3. Type the Password for your DDNS account.

  • Page 125: No-Ip.com Ddns

    User’s Manual of WNRT-617G Step 3. Type the Domain Name you received from dynamic DNS service provider here. Step 4. Click the Login button to log in to the DDNS service. Connection Status -The status of the DDNS service connection is displayed here.

  • Page 126: Planetddns.com Ddns

    5.15.4 Planetddns.com DDNS First of all, please go to http://www.planetddns.com to register a Planet DDNS account, and refer to the FAQ (http://www.planetddns.com/index.php/faq) for how to register a free account. Figure 5-70 Planet DDNS Website When you finish your DDNS account, please return to Network -> WAN option to set up your WAN type which can be connected to external network.
  • Page 127 Click Logout to log out the DDNS service. Lastly you can go to My Devices page of Planet DDNS website to check if the “Last Connection IP” is displayed. This indicates your DDNS service is working properly. Figure 5-88 My Devices...

  • Page 128: System Tools

    User’s Manual of WNRT-617G 5.16 System Tools Choose menu “System Tools”, and you can see the submenus under the main menu: Time Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot, Password, System Log and Statistics. Click any of them, and you will be able to configure the corresponding function.
  • Page 129 User’s Manual of WNRT-617G Object Description Time Zone Select your local time zone from this pull down list. Date Enter your local date in MM/DD/YY into the right blanks. Time Enter your local time in HH/MM/SS into the right blanks.

  • Page 130: Diagnostic

    User’s Manual of WNRT-617G 5.16.2 Diagnostic Choose menu “System Tools → Diagnostic”, and you can transact Ping or Traceroute function to check connectivity of your network in the following screen. Figure 5-91 Diagnostic Tools The page includes the following fields:...
  • Page 131 User’s Manual of WNRT-617G The number of Ping packets for a Ping connection. Pings Count Ping Packet Size The size of Ping packet. Ping Timeout Set the waiting time for the reply of each Ping packet. If there is no reply in the specified time, the connection is overtime.

  • Page 132: Firmware Upgrade

    Step 3. Click the Upgrade button. New firmware versions posted at the website of PLANET Technology can be downloaded for free. There is no need to upgrade the firmware unless the new firmware has a new feature you want to use. However, when experiencing problems caused by the Router rather than the configuration, you can try to upgrade the firmware.

  • Page 133: Factory Defaults

    User’s Manual of WNRT-617G 5.16.4 Factory Defaults Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of the Router to factory defaults on the following screen Figure 5-94 Restore Factory Default Click the Restore button to reset all configuration settings to their default values.

  • Page 134: Backup & Restore

    User’s Manual of WNRT-617G 5.16.5 Backup & Restore Choose menu “System Tools → Backup & Restore”, and you can save the current configuration of the Router as a backup file and restore the configuration via a backup file as shown in Figure 5-95.

  • Page 135: Password

    User’s Manual of WNRT-617G Change the LAN IP Address (system will reboot automatically). Change the DHCP Settings. Change the Wireless configurations. Change the Web Management Port. Upgrade the firmware of the Router (system will reboot automatically). Restore the Router's settings to factory defaults (system will reboot automatically).

  • Page 136: System Log

    User’s Manual of WNRT-617G Click the Save button when finished. Click the Clear All button to clear all. 5.16.8 System Log Choose menu “System Tools → System Log”, and you can view the logs of the Router. Figure 5-98 System Log...
  • Page 137 User’s Manual of WNRT-617G Figure 5-99 Mail Account Settings The page includes the following fields: Object Description From Your mail box address. The Router would connect it to send logs. Recipient’s address. The destination mailbox where the logs would be received.
  • Page 138 User’s Manual of WNRT-617G Only when you select Authentication, you have to enter the User Name and Password in the following fields. Figure 5-100 Mail Account Settings - Authentication Click Save to keep your settings. Click Back to return to the previous page.

  • Page 139: Statistics

    User’s Manual of WNRT-617G 5.16.9 Statistics Choose menu “System Tools → Statistics”, and you can view the statistics of the Router, including total traffic and current traffic of the last Packets Statistic Interval. Figure 5-101 Statistics The page includes the following fields:...
  • Page 140 User’s Manual of WNRT-617G Statistics Table: IP/MAC Address The IP and MAC addresses are displayed with related statistics. Packets The total number of packets received and transmitted by the Router. Total Bytes The total number of bytes received and transmitted by the Router.

  • Page 141: Chapter 6. Quick Connection To A Wireless Network

    User’s Manual of WNRT-617G Chapter 6. Quick Connection to a Wireless Network Windows XP (Wireless Zero Configuration) Step 1: Right-Click on the wireless network icon displayed in the system tray Figure 6-1 Wireless Zero Configuration Step 2: Select [View Available Wireless Networks]...
  • Page 142 User’s Manual of WNRT-617G Step 4: Enter the encryption key of the Wireless Router (1) The Wireless Network Connection box will appear (2) Enter the encryption key that is configured in Section 5.6.2 (3) Click the [Connect] button Figure 6-3 Enter the encryption key Step 5: Check if “Connected”...

  • Page 143: Windows 7 (Wlan Autoconfig)

    User’s Manual of WNRT-617G Some laptops are equipped with a “Wireless ON/OFF” switch for the internal wireless LAN. Make sure the hardware wireless switch is switched to “ON” position. 6.2 Windows 7 (WLAN AutoConfig) WLAN AutoConfig service is built-in in Windows 7 that can be used to detect and connect to wireless network.
  • Page 144 User’s Manual of WNRT-617G If you will be connecting to this Wireless Router in the future, check [Connect automatically]. Step 4: Enter the encryption key of the Wireless Router (1) The Connect to a Network box will appear (2) Enter the encryption key that is configured in Section 5.6.2...
  • Page 145 User’s Manual of WNRT-617G Figure 6-9 WLAN AutoConfig – Connected -134-...

  • Page 146: Mac Os X 10.X

    User’s Manual of WNRT-617G 6.3 Mac OS X 10.x .3 Mac OS X 10.x Step 1: Right-Click on the network icon displayed in the system tray The AirPort Network Connection menu will appear Figure 6-10 The AirPort Network Connection icon...
  • Page 147 User’s Manual of WNRT-617G Figure 6-12 The AirPort Network Connection – enter password If you will be connecting to this Wireless Router in the future, check [Remember this network]. Step 5: Check if the AirPort is connected to the selected wireless network.

  • Page 148: Iphone / Ipod Touch / Ipad

    User’s Manual of WNRT-617G 6.4 iPhone / iPod Touch / iPad .4 iPhone / iPod Touch / iPad Step 1: Tap the [Settings] icon displayed in the home screen Figure 6-14 The Wi-Fi Settings in iPhone/iPod Touch/iPad Step 2: Check Wi-Fi setting and select the available wireless network...
  • Page 149 User’s Manual of WNRT-617G Figure 6-16 General Settings – Not Connected Step 3: Tap the target wireless network (SSID) in “Choose a Network…” (1) Turn on Wi-Fi by tapping “Wi-Fi” (2) Select SSID [PLANET] Figure 6-17 General Settings – Wi-Fi On...
  • Page 150 User’s Manual of WNRT-617G Figure 6-18 General Settings – Enter password Step 5: Check if the iDevice is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID. Figure 6-19 General Settings – Wi-Fi Network Connected...

  • Page 151: Appendix A: Faq

    User’s Manual of WNRT-617G Appendix A: FAQ How do I configure the Router to access Internet by ADSL users? First, configure the ADSL Modem configured in RFC1483 bridge model. Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. Plug the telephone cord into the Line port of the ADSL Modem.
  • Page 152 User’s Manual of WNRT-617G Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applicants are visiting the Internet continually in the background. If you are a Cable user, please configure the Router following the above steps.
  • Page 153 User’s Manual of WNRT-617G “Service Port” blank, and your IP address for the “IP Address” blank, taking 192.168.1.169 for an example, remember to Enable and Save. Figure A-3 Virtual Servers Figure A-4 Add or Modify a Virtual Server Entry Your opposite side should call your WAN IP, which is displayed on the “Status”...
  • Page 154 User’s Manual of WNRT-617G type your IP address into the “DMZ Host IP Address” field, using 192.168.1.169 as an example, remember to click the Save button. Figure A-5 DMZ How to enable H323 ALG: Log in to the Router, click the “Security” menu on the left of your browser, and click “Basic Security”...
  • Page 155 User’s Manual of WNRT-617G Figure A-6 Basic Security I want to build a WEB Server on the LAN. What should I do? Because the WEB Server port 80 will interfere with the WEB management port 80 on the Router, you must change the WEB management port number to avoid interference.
  • Page 156 User’s Manual of WNRT-617G Figure A-7 Remote Management If the above configuration takes effect, you can configure the Router by typing http://192.168.1.1:88 (the Router’s LAN IP address: Web Management Port) in the address field of the Web browser. Log in to the Router, click the “Forwarding” menu on the left of your browser, and click the "Virtual Servers"...
  • Page 157 User’s Manual of WNRT-617G Figure A-9 Add or Modify a Virtual Server Entry The wireless stations cannot be connected to the Router. Make sure the "Wireless Router Radio" is enabled. Make sure that the wireless stations' SSID is in accordance with the Router's SSID.

  • Page 158: Appendix B: Configuring The Pcs

    User’s Manual of WNRT-617G Appendix B: Configuring the PCs In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working. Refer to the adapter’s manual if needed.
  • Page 159 User’s Manual of WNRT-617G Figure B-2 TCP/IP Settings The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below:  Setting IP address automatically...
  • Page 160 User’s Manual of WNRT-617G Figure B-3 TCP/IP – Obtain an IP address automatically  Setting IP address manually Select Use the following IP address radio button. If the Router's LAN IP address is 192.168.1.1, type in IP address 192.168.1.x (x is from 2 to 254), and Subnet mask 255.255.255.0.
  • Page 161 User’s Manual of WNRT-617G Figure B-4 TCP/IP Settings – Static IP Now click OK to keep your settings. -150-...

  • Page 162: Appendix C: Specifications

    User’s Manual of WNRT-617G Appendix C: Specifications WNRT-617G Product 150Mbps 802.11n Wireless 3G Router Hardware Specification WAN Port: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port Interface LAN Port: 4 x 10/100Mbps Auto MDI/MDI-X RJ45 ports 1 x Detachable RP-SMA Connector...
  • Page 163 User’s Manual of WNRT-617G Mode WEP (64/128/152-bit) encryption security WPA-PSK / WPA2-PSK (TKIP/AES) Encryption Security WPA / WPA2 (TKIP/AES) WPA / WPA2 enterprise mode (802.1x authentication) Provides wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Wireless Security...
  • Page 164 User’s Manual of WNRT-617G Windows XP Mac OS X 10.4 and higher Standards Conformance IEEE 802.11n (1T1R, up to 150Mbps) IEEE 802.11g IEEE 802.11b IEEE Standards IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control Other Protocols and...

  • Page 165: Appendix D: Glossary

    User’s Manual of WNRT-617G Appendix D: Glossary 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input  multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding.
  • Page 166 User’s Manual of WNRT-617G SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key  identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card.
  • Page 167 *Model Number: WNRT-617G * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the 1999/5/EC R&TTE.
  • Page 168 ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ disposições da Directiva 1999/5/CE. ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ Por medio de la presente, PLANET Technology Slovensky Español Výrobca PLANET Technology Corporation, Corporation, declara que 802.11n Wireless 3G týmto deklaruje, že táto 802.11n Wireless 3G...

Table of Contents
