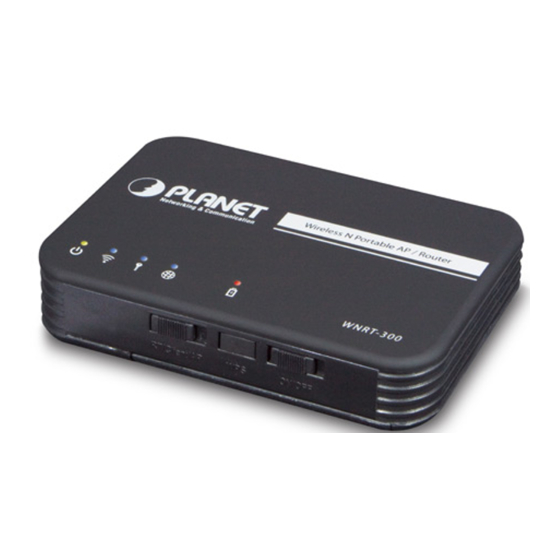

Planet WNRT-300 Quick Installation Manual

802.11n wireless portable ap/router
Hide thumbs Also See for WNRT-300:

Advertisement

Quick Links

Download this manual See also: User Manual
802.11n Wireless Portable AP/Router
WNRT-300
Quick Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the WNRT-300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet WNRT-300

Summary of Contents for Planet WNRT-300

  • Page 1 802.11n Wireless Portable AP/Router WNRT-300 Quick Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ..........3 2. Physical Introduction ..........4 3. Hardware Installation ..........5 4. Web UI Configuration .......... 10 5. Further Information: ........... 12...

  • Page 3: Package Contents

    1. Package Contents Thank you for choosing PLANET WNRT-300, the most convenient portable router. Before installing the router, please verify the contents inside the package box. Portable Router Quick Guide CD-ROM Power Adapter USB Cable Ethernet Cable Li-ion Battery If there is any item missed or damaged, please contact the seller immediately.

  • Page 4: Physical Introduction

    2. Physical Introduction Top Panel Description Power Battery WAN/LAN Wireless Connection Front Panel Description Power Switch WPS Button The Switch of Router, AP and Client Modes. Rear Panel Description 10/100Mbps WAN/LAN Port Power Connector Reset 5V DC Input...

  • Page 5: Hardware Installation

    LED will be lit up. When the battery is fully charged, the LED will be off. If you will use the WNRT-300 powered by AC power supply for a long time, please remove the battery from the slot and keep Note it of full power in a cool and dry place.
  • Page 6 Router Mode. Please connect the Cable/xDSL Modem to RJ-45 port of WNRT- 300 by UTP cable. RT/Client/AP ON/OFF STEP 3: Please follow the figure below to connect the network devices. Router Mode WNRT-300 SSID: default RJ-11 RJ-45 Phone Jack Cable/xDSL Client Modem...
  • Page 7 *Default SSID: default *Default Wireless Security: No Security 1. When the WNRT-300 is at Router Mode, the only RJ-45 port will become a WAN port. Therefore, you have to configure it wirelessly. However, if you need to configure the WNRT-300 by the UTP cable, please switch it to AP Mode first.
  • Page 8 2. If you cannot obtain an IP address automatically from WNRT-300, please refer to the next two figures and follow the procedures below to referconfigure the network connection. Step 1. Click “Start” button located at lower-left corner of the screen.

  • Page 10: Web Ui Configuration

    4. W eb UI Configuration Default IP Address: 192.168.1.1 Default Username: admin Default Password: admin STEP 1: Open the Web browser and enter the default IP address http://192.168.1.1 The default User name and Password are both “admin”. Then click OK button to continue.
  • Page 11 You have already finished the configuration of the WNRT-300. Now you can use your iPhone, iPad, laptop, and any other Wi-Fi devices to connect with it wirelessly and start to surf the Internet.

  • Page 12: Further Information

    5. Further Information: The above introductions are simple installations and configurations for WNRT-300. For further configurations of WAN, LAN, Wireless Security, Firewall, Routing, Port Forwarding, DMZ, and DDNS etc, please refer to the user’s manual in the CD. If you have further questions, please contact the local dealer or distributor where you purchased this product.
