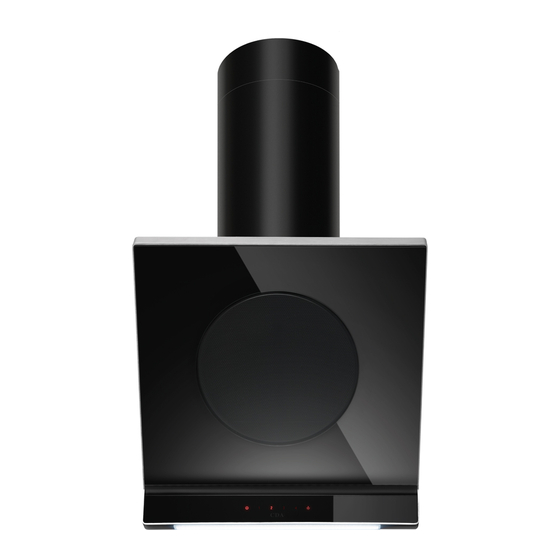

Summary of Contents for CDA EZA60BL
- Page 1 EZA90BL Extractors Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
-
Page 2: Table Of Contents
Contents: Important Important information Using your extractor Care and maintenance Removing the grease filter Changing/fitting the charcoal filter(s) Changing the light Troubleshooting 10 - 16 Installation Installation preparation - height Ducting and ventilation Mains electricity connection Electrical information Energy Efficiency Information... -
Page 3: Important
Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model... -
Page 4: Important Information
and requirements of EU Directive 2014/30/EU (EMC). IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. - Page 5 • This extractor has been designed to be used in a room with a volume of less than 36m3. • Steam cleaners must not be used when cleaning this appliance. • The performance of your extractor will vary depending on a number of factors.
-
Page 6: Using Your Extractor
Using your Extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel A - Power off button B - Speed level buttons C - Light button To switch the extractor light on or off •... -
Page 7: Care And Maintenance
Care and Maintenance IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a non-abrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. - Page 8 Removing and cleaning the grease filter - Fig. 2 The grease filter should be kept clean to minimise the risk of fire. At least once a month you should remove and clean the grease filters with hot soapy water. You can also wash the grease filter in a dishwasher, ensuring that you place it in an upright position to prevent damage from other items in the dishwasher.
-
Page 9: Changing The Light
If the lights still do not work, contact CDA Customer Care: Contact CDA Customer Care A: Customer Care Department, The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY T: 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu... -
Page 10: Installation
Installation When installing this product we recommend you seek the help of another individual. This product may have some sharp edges. Please take care and wear adequate PPE when handling. Installation preparation - height When the extractor is to be installed above an electric hob, the minimum distance between the hob and the bottom edge of the extractor must exceed 450mm (500mm is recommended). - Page 11 There are images showing the extractor dimensions for both models below (Fig. 4 and 5). This is intended to help with preparation for installing the extractor. EZA60 EZA90 Fig. 4 Fig. 5 Fig. 5 Fig. 6 Fig. 7 Fig. 5 Taking into account the extractor dimensions, and the advice regard- ing installation height as per page 9, mark the centre line for the extractor.
-
Page 12: Ducting And Ventilation
Ducting and ventilation For best performance and lowest noise output, we recommend the use of 150mm ducting. You can also use smaller diameter ducting but this will reduce performance and potentially increase the noise level of the extractor whilst in use. In general, the less ducting you use (i.e. distance and bends) the more efficient your extractor will be. - Page 13 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Please note: • Measurement ‘X’ in Fig. 10 is the distance between the mounting holes on the back panel of the extractor. • The chimney fixing bracket is mounted just below the ceiling line in Fig.
- Page 14 Fig. 14 Fig. 15 Fig. 16 Fig. 17 Open the front panel and remove the grease filter to access the mounting holes on the back panel of the extractor. There are clips on the bottom of the telescopic guides that can be removed which allow for the panel to be fully opened (Fig.
- Page 15 Tighten the mounting screws fully to secure the extractor to the wall and fit the ducting as required. Secure the ducting using appropriate (cable) ties. Once they are at the desired height, secure the chimney pieces using the black screws provided as per Fig. 18. Fig.
-
Page 16: Mains Electricity Connection
Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A 3A FUSE. DOUBLE POLE We recommend that the appliance is SWITCHED FUSED SPUR OUTLET connected by a qualified electrician,... -
Page 17: Electrical Information
Assembly and electrical connection should be carried out by competent personnel. Do not mount the isolation switch behind the chimney section. It is a requirement that you must be able to isolate the extractor from the mains electrical supply after installation. Electrical Information Mains electrical voltage: 230 –... - Page 18 NOTES:...
- Page 19 NOTES: E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
- Page 20 T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu Copyright © CDA 2017...
