Velleman VM207 User Manual

64 led rgb matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

USER MANUAL

64 LED RGB MATRIX
W W W . V E L L E M A N P R O J E C T S . E U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM207 and is the answer not in the manual?

Questions and answers

Related Manuals for Velleman VM207

Summary of Contents for Velleman VM207

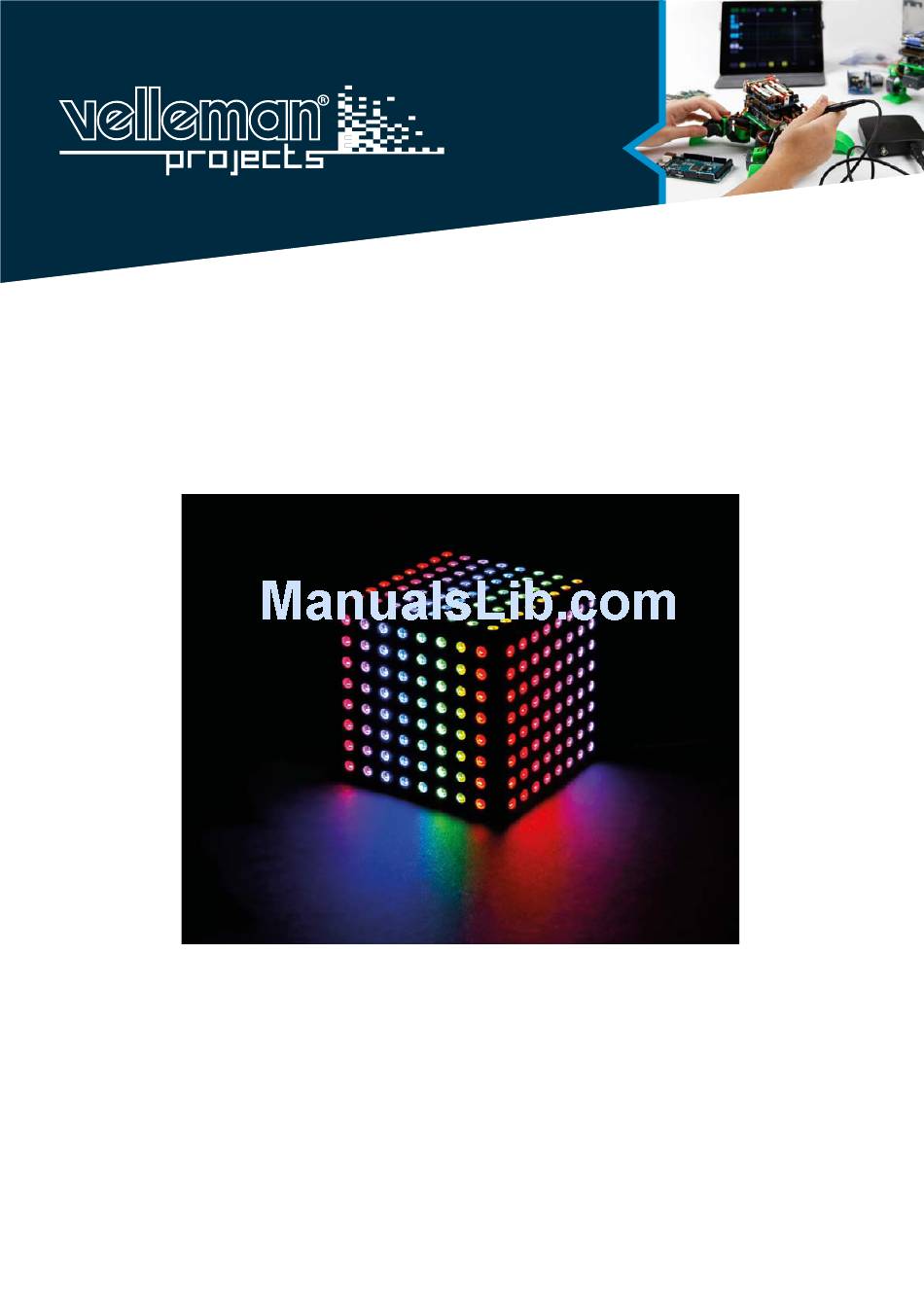

  • Page 1: User Manual

    USER MANUAL 64 LED RGB MATRIX W W W . V E L L E M A N P R O J E C T S . E U...

  • Page 2: Table Of Contents

    Table of contents Preparing the 64 LED RGB matrix Data lines Power supply Controlling the 64 LED RGB matrix What microcontroller should I use ? Connecting a panel to an Arduino™ Uno Adafruit™ neopixel library Adafruit™ neomatrix library Mounting the 64 LED RGB matrix Mounting holes 3D print mounting brackets LED’s get started!

  • Page 3: Preparing The 64 Led Rgb Matrix

    LED. That is how the display data propagates through a panel, from one led to the next. In the VM207, the LEDs are connected in rows and each row has a returning line so the beginning of the next row can be connected to the end of the previous row.
  • Page 4 You can see that the panel is not going to work right away because the first row just ends and isn’t connected to anything. The display data would just stop at the end of the first row of LEDs and not continue through the panel.

  • Page 5: User Manual K8403

    The drawing below shows how you can tile two (or more) panel(s) next to each other by connecting the solder pads at the sides with some bare wire. You can see that a row now exists out of 16 LEDs instead of 8. fig.

  • Page 6: Power Supply

    Power supply Powering the VM207 is a bit simpler. There are 3 contacts labeled DV+, LV+ and GND, they respectively stand for Data Voltage +, LED Voltage +, and Ground. The WS2812 LEDs that are mounted on the panels are the 6 pin variant and these have separate pins for the 5 V for the LED die and the 5 V for the IC die inside the package.
  • Page 7 When you have more panels you will need to place them in parallel. When you are having a lot of panels, make sure you are using wires of the correct gauge or use multiple wires from the supply to the panels! fig.

  • Page 8: Controlling The 64 Led Rgb Matrix

    Follow the drawing below to connect a panel to an Arduino Uno. At the moment we use pin 6 as the data output but this can be changed in the code later. Supply the Arduino with power as well as the VM207 and connect the grounds together.

  • Page 9: Adafruit Neopixel Library

    Adafruit neopixel library First we will explain the ADAFRUIT NEOPIXEL library. This library written by Adafruit can control a whole bunch of WS2812 LEDs seperatly. So this isn’t exactly useful when you want to draw text or shapes on your panel but it is when you want to control each LED separately and do your own thing with it.
  • Page 10 Next we see this line: Adafruit_NeoPixel pixels = Adafruit_NeoPixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800); This line gives a name to our bunch of LEDs, here this is “pixels”. You could easily change this to “panel” or something else but you would have to change all the occurrences of “pixels” in the rest of the program. Then we tell the program how “pixels”...
  • Page 11 Next, we have the main loop function: void loop() { // For a set of NeoPixels the first NeoPixel is 0, second is 1, all the way up to the count of pix- els minus one. for(int i=0;i<NUMPIXELS;i++){ // pixels.Color takes RGB values, from 0,0,0 up to 255,255,255 pixels.setPixelColor(i, pixels.Color(0,150,0));...
  • Page 12 pixels.show(); // This sends the updated pixel color to the hardware. delay(delayval); // Delay for a period of time (in milliseconds). for(int i=0;i<NUMPIXELS;i++){ pixels.setPixelColor(i, pixels.Color(0,0,0)); // No color (dark). pixels.show(); //Updating the panel to show nothing. This code will erase all values after the initial for-loop using a second for-loop. Also, we have changed the colour to fully saturated blue.
  • Page 13 // On a Trinket or Gemma we suggest changing this to 1 #define PIN // How many NeoPixels are attached to the Arduino? #define NUMPIXELS // When we setup the NeoPixel library, we tell it how many pixels, and which pin to use to send sig- nals.

  • Page 14: Adafruit Neomatrix Library

    Adafruit neomatrix library If you want to display text or draw shapes on your panel(s) you can use the ADAFRUIT NEOMATRIX library. To make this library work you actually also need to use the ADAFRUIT GFX libraries. This one takes care of the shapes, letters and colours while the neomatrix takes care of sending all that data to the panels.
  • Page 15 NEO_GRB + NEO_KHZ800); If you ever build a bigger display out of VM207 panels you just need to think of it as one big panel and adjust the parameters accordingly. The following code in the program is just an array with 3 colours so we can cycle through some colours...
  • Page 16 const uint16_t colors[] = { matrix.Color(255, 0, 0), matrix.Color(0, 255, 0), matrix.Color(0, 0, 255) }; In the setup function there are a few things we must take care of, but the most important part is the matrix. begin(); function as this will initialise the panel. All the code that follows takes care of the animating text that will be displayed on the panel.
  • Page 17 NEO_MATRIX_ROWS + NEO_MATRIX_PROGRESSIVE, NEO_GRB + NEO_KHZ800); const uint16_t colors[] = { matrix.Color(255, 0, 0), matrix.Color(0, 255, 0), matrix.Color(0, 0, 255) }; void setup() { matrix.begin(); matrix.setTextWrap(false); matrix.setBrightness(40); matrix.setTextColor(colors[0]); int x = matrix.width(); int pass = 0; void loop() { matrix.fillScreen(0); matrix.setCursor(x, 0);...

  • Page 18: Mounting The 64 Led Rgb Matrix

    Mounting the 64 LED RGB matrix Mounting holes The panels have mounting holes in a pattern that tiles when you use multiple panels. These holes are 2 mm in diameter so use a small M2 screw to mount the panels. They are spaced 72 mm apart and staggered. See the drawing below: USER MANUAL K8403...

  • Page 19: 3D Print Mounting Brackets

    3D print mounting brackets You can download the following mounting brackets if you have a 3D printer: vm207-tile_mount.stl Several mounts connect together with M3 x 10 bolts. USER MANUAL K8403...
  • Page 20 Requires 6 x VM207 panels. Pay extra attention to how the panels need to be connected to each other! USER MANUAL K8403...
  • Page 21 ORDERCODE: VM207 REVISION: HVM207’1 VellemanProjects @Velleman_RnD VELLEMAN nv - Legen Heirweg 33, Gavere (Belgium) vellemanprojects.com...
