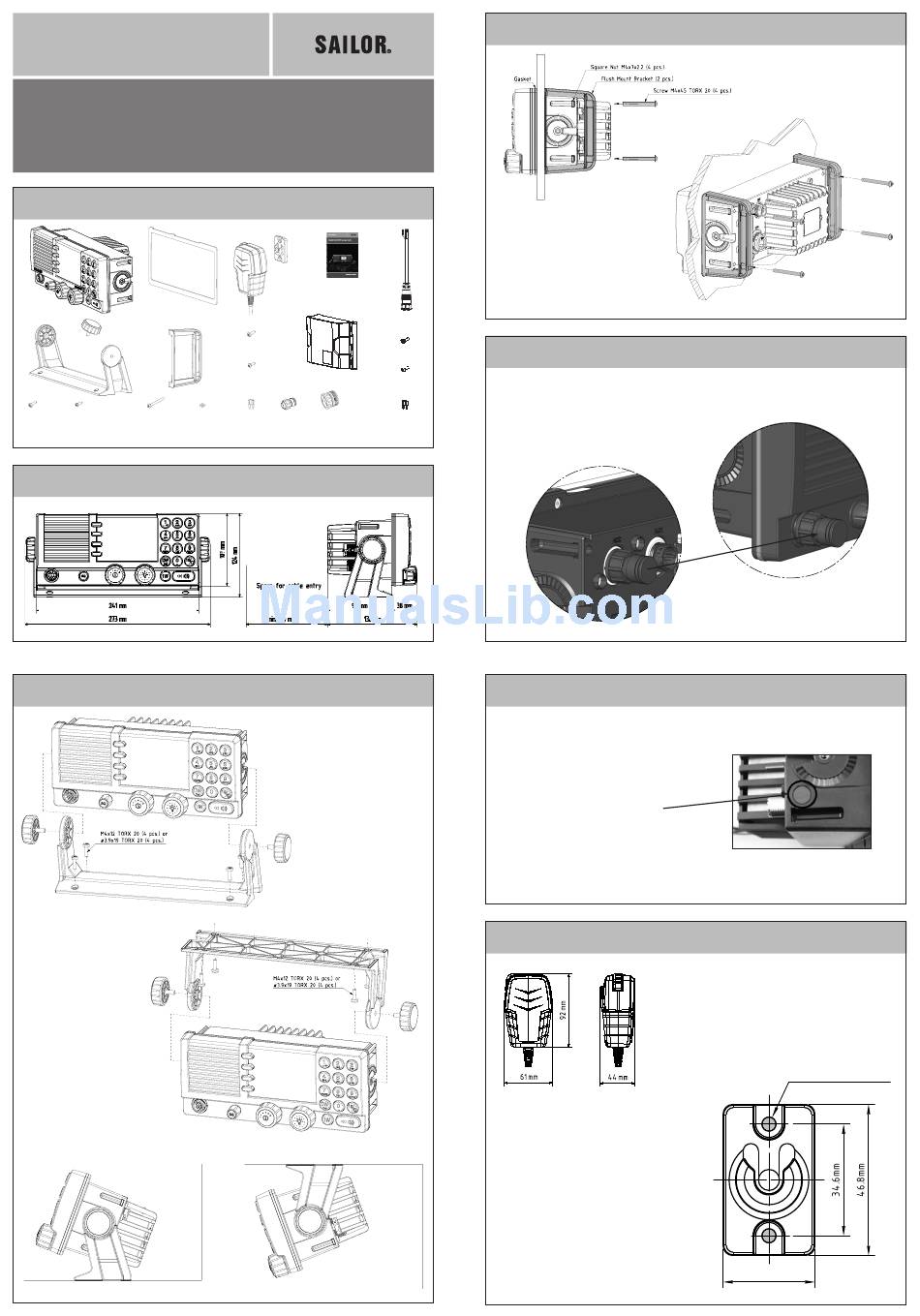

INSTALLATION GUIDE
SAILOR 6249 VHF Survival Craft
What's in the box?
Gasket
Transceiver
Flush Mount
Bracket (2 pcs.)
Wheel Knob
(2 pcs.)
U-Mounting
Bracket
Screw M4x12
Screw ø3.9x19
Screw M4x45
Square Nut
TORX 20
TORX 20
TORX 20
(5 pcs.)
(5 pcs.)
(5 pcs.)
Dimensions for the VHF
How to install the VHF on desktop and overhead
Cradle
Hand
User
Manual
Microphone
Screw M4x12
TORX 20 (3 pcs.)
Screw ø3.9x19
SAILOR 6090
TORX 20 (3 pcs.)
Power Converter
Fuse
Cap for LTW
Cap for LTW
M4x7x2.2
6.3x3.2mm
BD/BU
RJ45
(5 pcs.)
(10AT)
Connector
Connector
(3 pcs.)
Tilting ±20°
How to install the VHF flush mount
Power
Cable
How to prevent water ingress
Screw M4x12
TORX 20 (4 pcs.)
Screw ø3.9x19
Connector for Hand Microphone or Handset - If not used, put the cap
TORX 20 (4 pcs.)
from the ACC connector on the front connector to prevent water ingress.
Fuse
6.3x3.2mm
(10AT)
Very important information!
Do not remove the membrane.
If you remove the membrane the
radio will not be waterproof.
Dimensions for hand microphone - how to install the cradle
IMPORTANT!
If this template was printed from an electronic
file or copied, scaling (1:1) may not be correct.
Consequently do not attempt to use a printed
or copied template without prior checking of
dimensions.
2 x M4 or hole for
self-tapping ø3.9
28.5mm
Scale 1:1
99-129296
