INSTALLATION GUIDE
SAILOR 6249 VHF Survival Craft
What's in the box?
Gasket

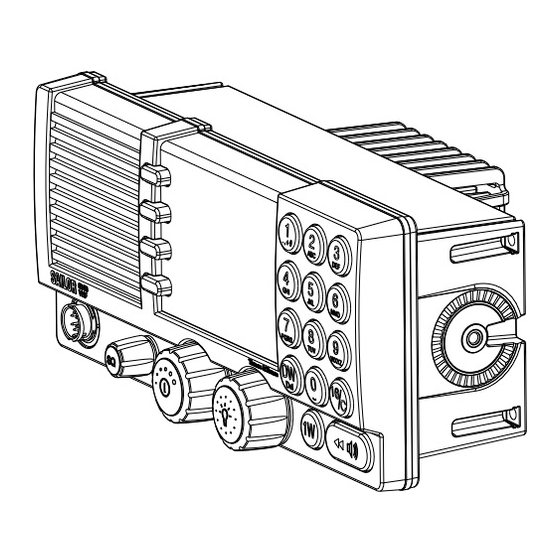

Transceiver
Flush Mount
Bracket (2 pcs.)
Wheel Knob
(2 pcs.)
U-Mounting
Bracket
Screw M4x12 Screw ø3.9x19 Screw M4x45 Square Nut
TORX 20 TORX 20 TORX 20 M4x7x2.2
(5 pcs.) (5 pcs.) (5 pcs.) (5 pcs.)

Dimensions for the VHF

How to install the VHF on desktop and overhead

Tilting ±20°
All manuals and user guides at all-guides.com
Cradle
Hand User
Manual
Microphone
Power
Cable
Screw M4x12
Screw M4x12
TORX 20 (3 pcs.)
TORX 20 (4 pcs.)
Screw ø3.9x19 SAILOR 6090
Screw ø3.9x19
TORX 20 (3 pcs.) Power Converter
TORX 20 (4 pcs.)
Fuse Cap for LTW Cap for LTW Fuse
6.3x3.2mm BD/BU RJ45 6.3x3.2mm
(10AT) Connector Connector (10AT)
(3 pcs.)
How to install the VHF flush mount

How to prevent water ingress

Connector for Hand Microphone or Handset - If not used, put the cap
from the ACC connector on the front connector to prevent water ingress.
Very important information!
Do not remove the membrane.
If you remove the membrane the
radio will not be waterproof.

Dimensions for hand microphone - how to install the cradle

IMPORTANT!
If this template was printed from an electronic
file or copied, scaling (1:1) may not be correct.
Consequently do not attempt to use a printed
or copied template without prior checking of
dimensions.
2 x M4 or hole for
self-tapping ø3.9
28.5mm
Scale 1:1
99-129296
