User Manual

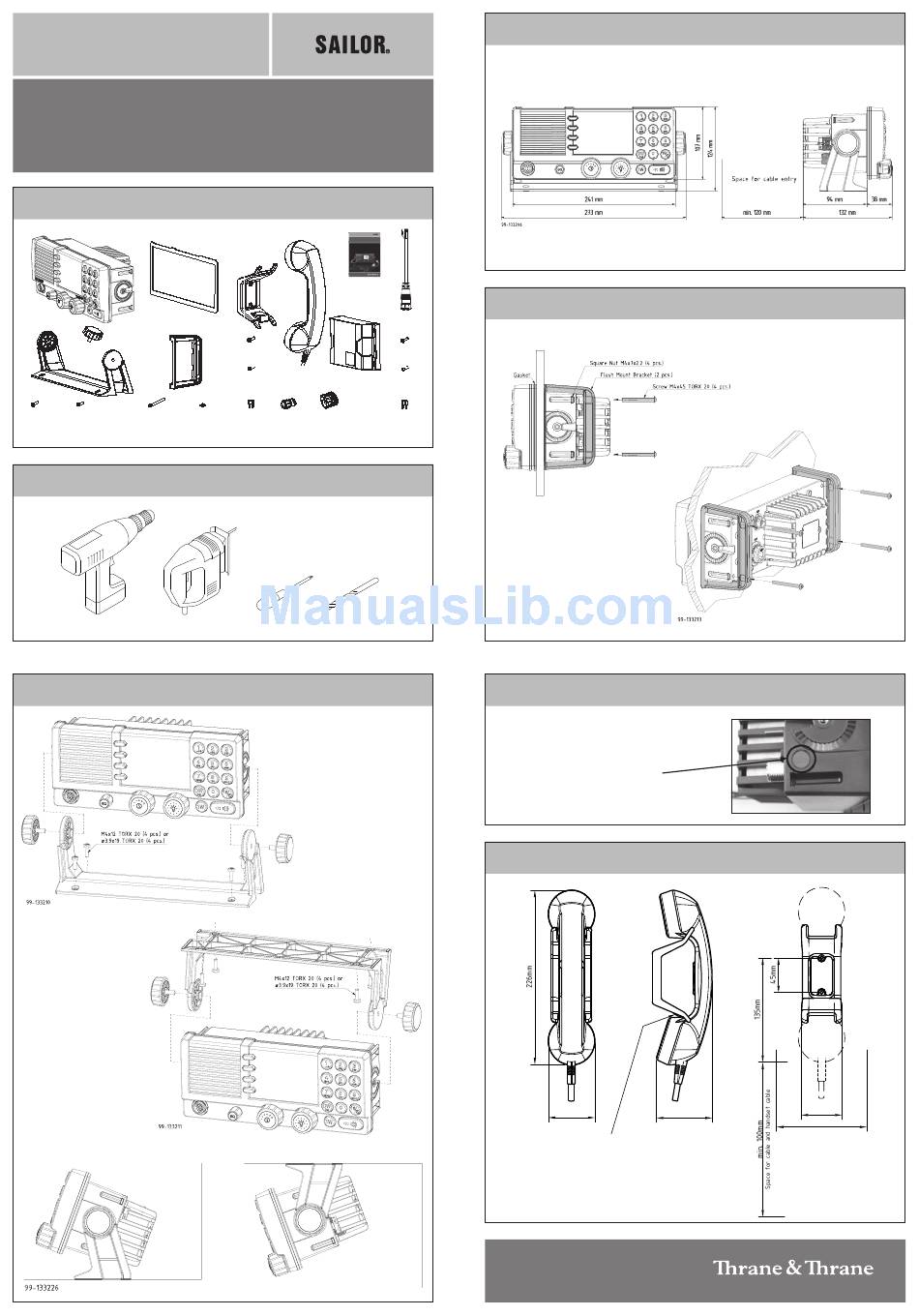

INSTALLATION GUIDE
SAILOR 6248 VHF
What's in the box?
Gasket
Transceiver
Flush Mount
Wheel Knob
Bracket (2 pcs.)
(2 pcs.)
U-Mounting
Bracket
Screw M4x12
Screw ø3.9x19
Screw M4x45
Square Nut
TORX 20
TORX 20
TORX 20
(5 pcs.)
(5 pcs.)
(5 pcs.)
What do I need to fi t it?
Power Drill
Jigsaw
How to install the VHF on desktop and overhead
USER MANUAL
SAILOR 6248 VHF
Cradle
User
Manual
Handset
Screw M4x12
TORX 20 (2 pcs.)
SAILOR 6090
Screw ø3.9x19
Power Converter
TORX 20 (2 pcs.)
Fuse
Cap for LTW
Cap for LTW
M4x7x2.2
6.3x3.2mm
BD/BU
RJ45
(5 pcs.)
(10AT)
Connector
Connector
(3 pcs.)
Screwdriver
Drill for M4 or
TORX 20
Ø3.9 self-tapping
Tilting ±20°
Dimentions for the SAILOR 6248 VHF
How to install the VHF fl ush mount
Power
Cable
Screw M4x12
TORX 20 (4 pcs.)
Screw ø3.9x19
TORX 20 (4 pcs.)
Fuse
6.3x3.2mm
(10AT)
Very important information!
Do not remove the membrane.
If you remove the membrane the
radio will not be waterproof.
How to install the handset
39655C
Thrane & Thrane A/S • info@thrane.com • thrane.com
62mm
75mm
This Handset has a hook-on/off function,
which is activated by a small magnet embedded
in the cradle.
The cradle must be installed as illustrated in
order to ensure the hook-on/off functionality
of the Handset.
54mm
* 120mm
Space for handset access
98-132282-A
Advertisement
Related Manuals for Sailor 6248 VHF
Summary of Contents for Sailor 6248 VHF
- Page 1 Dimentions for the SAILOR 6248 VHF INSTALLATION GUIDE SAILOR 6248 VHF What’s in the box? USER MANUAL SAILOR 6248 VHF Cradle User Manual Handset How to install the VHF fl ush mount Gasket Transceiver Power Flush Mount Cable Wheel Knob Bracket (2 pcs.)
- Page 2 Drilling plan on desktop and overhead How to install the SAILOR 6090 Power Converter Drilling plan 4 x M4 or hole for self-tapping ø3.9 23.5mm 200mm 247mm 99-131985 Cutout template for fl ush mounting of the VHF R2.5mm x 4...
