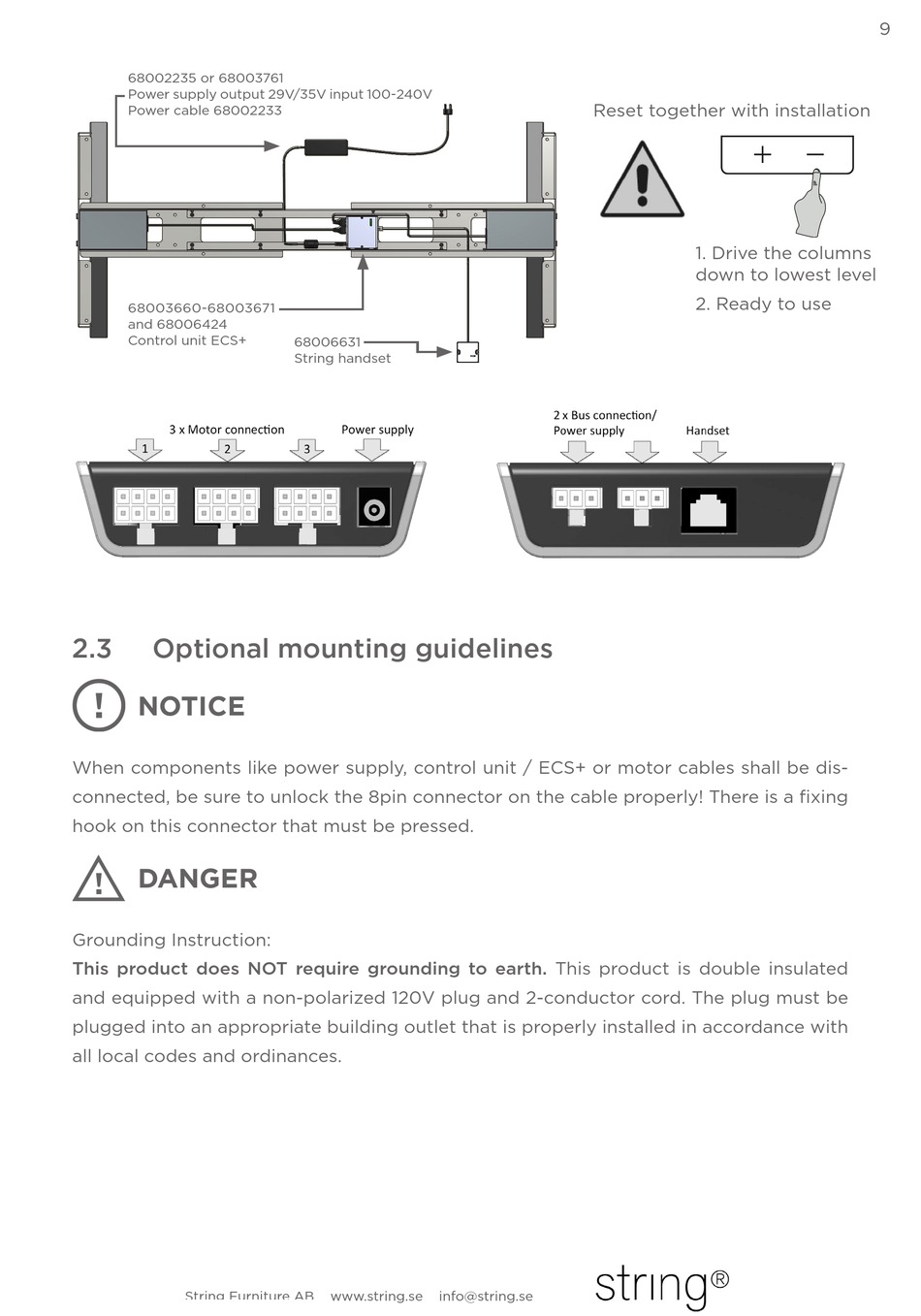

68002235 or 68003761
Power supply output 29V/35V input 100-240V
Power cable 68002233
68003660-68003671
and 68006424
Control unit ECS+
2.3

Optional mounting guidelines

NOTICE
When components like power supply, control unit / ECS+ or motor cables shall be dis-
connected, be sure to unlock the 8pin connector on the cable properly! There is a fixing
hook on this connector that must be pressed.
DANGER
Grounding Instruction:
This product does NOT require grounding to earth. This product is double insulated
and equipped with a non-polarized 120V plug and 2-conductor cord. The plug must be
plugged into an appropriate building outlet that is properly installed in accordance with
all local codes and ordinances.
String Furniture AB
68006631
String handset
DATE DESCRIPTION
2015-10-20
String Table EPI 1200-1500
DRAWN
conand
ROL
PART NUMBER DRAWING NUMBER
68004880
www.string.se info@string.se
Reset together with installation
SS-ISO 2768-1m / SMS 723 AA
Tolerance where not spec:
Measures in millimeters unless otherwise stated.
EXTRACT FROM SS-ISO 2768-1m : VIEW PLACEMENT
Nom. Tol. Nom. Tol. Nom. Tol.
  
0,5 - 3 0,1 >30 - 120 0,3 >1000 - 2000 1,2
SURFACE QUALITY
>3 - 6 0,1 >120 - 400 0,5 >2000 - 4000 2
HAN:1084
>6 - 30 0,2 >400 - 1000 0,8 >4000 - 8000 3
WEIGHT PAGE (OF) FORMAT SCALE REVISION
154,73 kg 1 (1 ) A3
1:4 A
1. Drive the columns
down to lowest level
2. Ready to use
9
