Summary of Contents for STRING WORKS EE Series
-
Page 1: User Manual

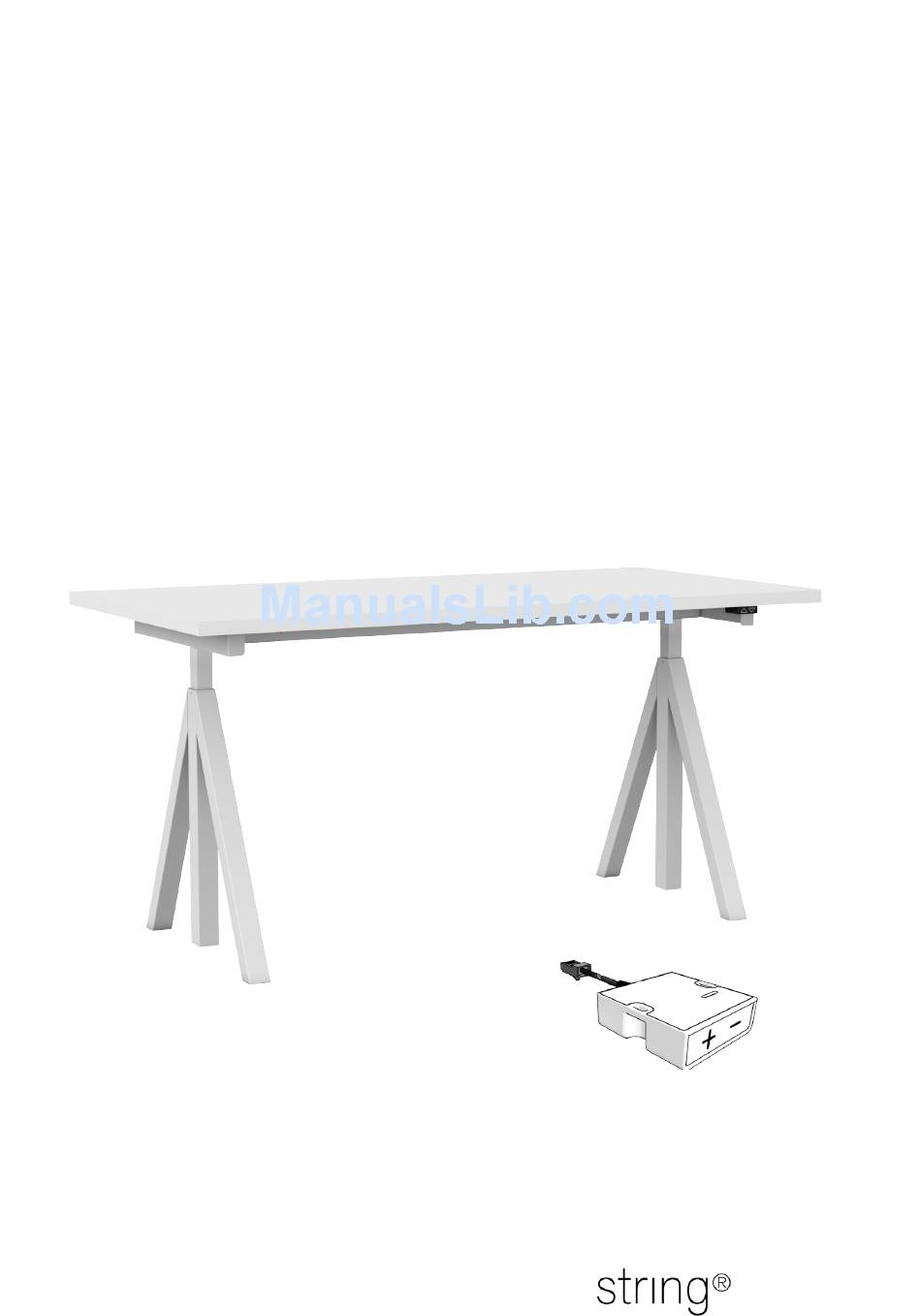

METRIC STRING WORKS USER MANUAL EE Series, ECS+ Stroke 470 String Furniture AB www.string.se info@string.se... -
Page 2: Table Of Contents
CONTENTS IMPORTANT INFORMATION - SAFETY FIRST! ..... 3 Important saftey instructions ..................4 User information ........................7 Before you start ........................8 Electrical rating ........................8 ASSEMBLY & ADJUSTMENT ............ 8 Assembly Instruction ......................8 Setup procedure ........................8 Optional mounting guidelines ..................9 System configuration (example) ................. 10 Adjustments ..........................11 OPERATION INSTRUCTIONS .......... -
Page 3: Important Information - Safety First
IMPORTANT INFORMATION - SAFETY FIRST! Your safety and the safety of others is very important. Please familiarize yourself with all instructions and safety warnings before operating the table. Please keep this manual for future reference. To help you make informed decisions about safety, we have provided operating proce- dures and other information on labels and in this user’s manual. -
Page 4: Important Saftey Instructions
Important saftey instructions Please save this instruction. When using an electrical table, basic precautions should always be followed, including the following: Read all instructions before using table. DANGER To reduce the risk of electric shock: Always unplug this furnishing from the electrical outlet before cleaning. WARNING To reduce the risk of burns, fire, electric shock, or injury to persons: Unplug from outlet before putting on or taking off parts. - Page 5 WARNING Risk of Injury to Persons: Do not use this table to lift people and do not use the table to lift heavy parts or use this table as a platform for storage. Maximum intended load is 120 kilograms uniformly distributed (265 pounds) inclu- ding the table top.
- Page 6 12. Do not use the desk with if it has been dropped or damaged. Contact the manu- facturer for examination or repair. 13. It is not allowed to connect self-constructed products to the power supply, control unit/ECS+, handset or other electrical device. To prevent damage, use only compo- nents recommended by the manufacturing company.
-
Page 7: User Information
This table is not intended for use by individuals (including children) with limited physical, sensory or mental abilities or with a lack of experience and/or lack of ex- pertise, unless they are supervised by a person responsible for their safety or have received instructions from that person on how to use the control unit. -
Page 8: Before You Start
Before you start Check for and remove obstacles in path of the table top. If divergence between the columns will be discovered, please do a manual reset as listed in section 3.2. Electrical rating Electrical rating, input: 110-240VAC, 50-60Hz, 3,2A. Output 29V or 35V. ASSEMBLY &... -
Page 9: Optional Mounting Guidelines
68002235 or 68003761 Power supply output 29V/35V input 100-240V Reset together with installation Power cable 68002233 1. Drive the columns down to lowest level 2. Ready to use 68003660-68003671 and 68006424 Control unit ECS+ 68006631 String handset DATE DESCRIPTION SS-ISO 2768-1m / SMS 723 AA Tolerance where not spec: 2015-10-20 Measures in millimeters unless otherwise stated. -
Page 10: System Configuration (Example)
DANGER Risk of electrical shock: Improper connection of the equipment can result in a risk of electric shock. Check with a qualified electrician for any concerns. Do not modify the plug provided with the product – if it will not fit the outlet have a proper outlet installed by a qualified electrician. -
Page 11: Adjustments
Adjustments The table control, handset and motors are sealed units and have no parts that can be serviced or adjusted by the user. In case of failure or unexpected operation or from maintenance control your vendor and arrange for service by a qualified technician. OPERATION INSTRUCTIONS To ensure safe operation of the ECS+ control unit, please observe the following safety instructions:... - Page 12 Overload protection! If the total load on the equipment is to high you will only be able to drive for 2 seconds. The system will then stop and you need to release the table from load before new drive. After load release, press button again. Overheat protection! If heavy loaded and driven continuously for a long period of time the motor might get overheated.
- Page 13 NOTICE The desktop will continue moving downwards until you release the button or the mini- mum height is reached. 3.1.3 Simple memory, end positions ECS+ have editable memory for high and low (sit or stand) position. Could also be used to avoid collision with i.e.
-
Page 14: Advanced Functions, Manuel Reset
Advanced functions, Manuel reset In case of exchanged parts (i.e. motor, electronics) there could be a need of a manual reset so columns and handsets correspond to each other. Even poor connection of the cables could create a need of resetting. Reset together with installation >7 sec 1. - Page 15 If the table cannot be raised or lowered, check the cable connection between: • the power supply and the outlet • the power supply and the control unit / ECS+ • the handset and the control unit / ECS+ • the columns/motors and the control unit /ECS+ If the table still doesn’t operational, the control system may have triggered the overhea- ting or duty cycle protection.
-
Page 16: Servicing Of Double-Insulated Products
Servicing of double-insulated products In a double-insulated product, two systems of insulation are provided instead of groun- ding. No grounding means is provided on a double-insulated product, nor is a means for grounding to be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and is to be done only by qualified service personnel. - Page 17 Power supply: For 40mm/sec speed P/N 68003761 Length x width x height 152x59x34 mm, 360gr (6,00”x 2,32”x1,34”, 12.63 oz) Power supply: For 32mm/sec speed P/N 68002235 Length x width x height 115 x 55 x 38 mm 330 gr (4,52”x2,16”x1,49”, 11.64 oz) Cables: Length 1500mm (primary side) separately item, 70gr.
-
Page 18: Dimensions Column System: Series Ee, Ecs
Dimensions column system: Series EE, ECS+ with 470 stroke MAX LEVEL MIN LEVEL WORKTOP M8x1.25 Fixing holes for crossbar String Furniture AB www.string.se info@string.se...
