• Four independent frame syncs per unit
• Web Interface with Video Proxies
• Optional SFPs for Fiber I/O
• HDMI and HDCP Support
• Front Panel Live Monitor
900 Series Quick Start Guide
• Video Proc Amp and Color Correction
• Audio Channel Swap and Level Adjust
• Monitor Pre- and Post-Processed Signals
• Automatic Format and Frame Rate Conversion
• Supports SD to 4K, and Everything In-between
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ensemble Designs BrightEye NXT 900
Summary of Contents for Ensemble Designs BrightEye NXT 900

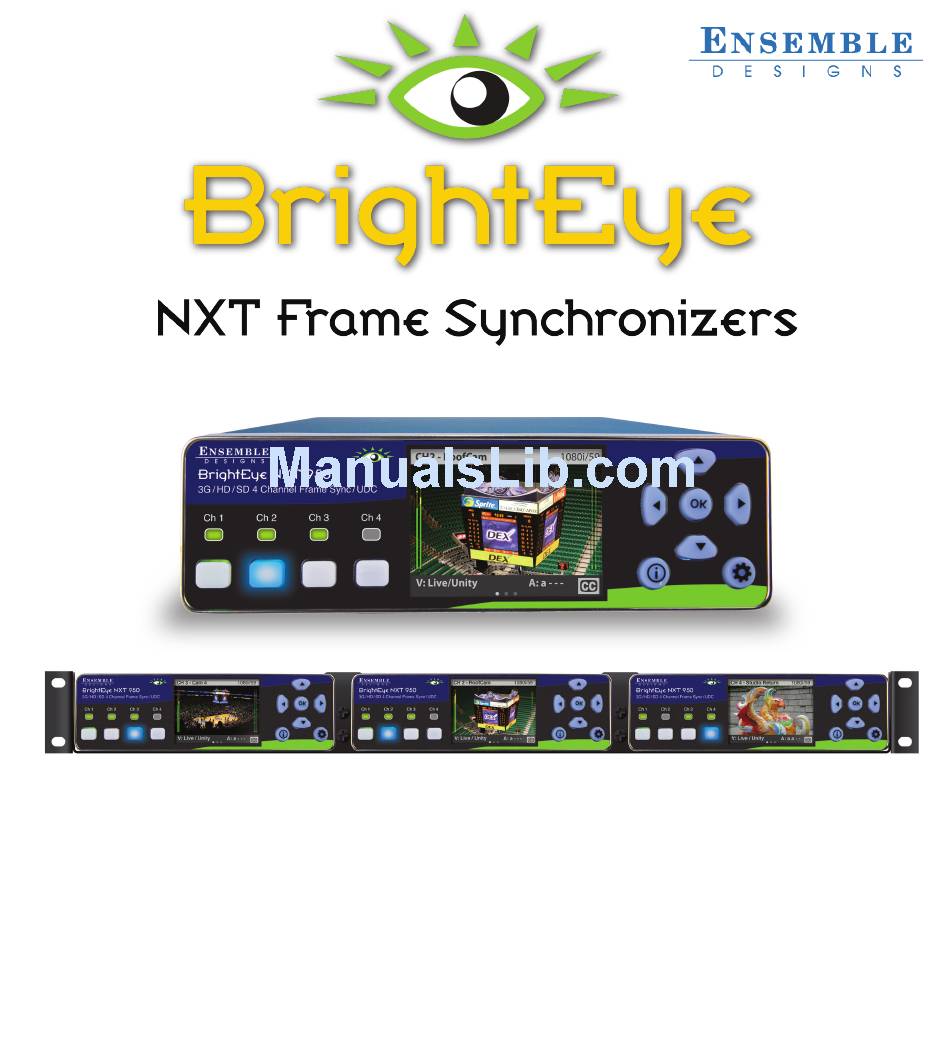

- Page 1 900 Series Quick Start Guide • Four independent frame syncs per unit • Video Proc Amp and Color Correction • Web Interface with Video Proxies • Audio Channel Swap and Level Adjust • Optional SFPs for Fiber I/O • Monitor Pre- and Post-Processed Signals •...
-

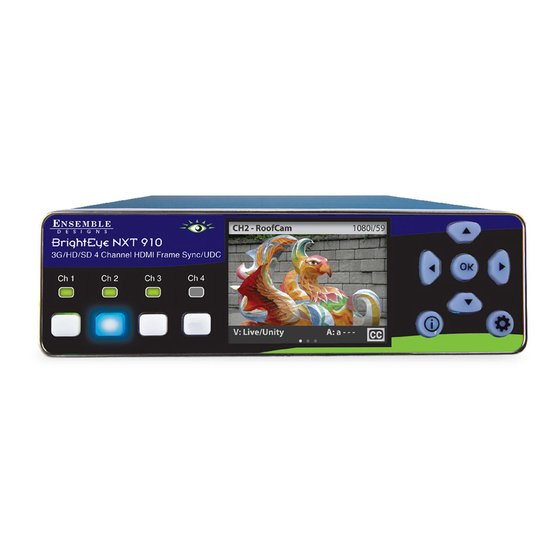

Page 2: Front Panel Navigation
BrightEye NXT 900 Series Frame Syncs Arrow Buttons: BrightEye NXT 950 Front Panel Navigate the Menu Header: system, adjust settings ID’s channel, name of channel, and format OK Button: Select a Menu Input Status: or Control. Illuminates In control mode,... - Page 3 Quick Start Guide Two SFP Ports BrightEye NXT 950 Rear Connectors Connect fiber optic or SDI signals, two I/O connections per port; HDMI one I/O SDI Inputs connection per port Control Network Ethernet Port For operational control and setup Power of the Frame Sync from any browser- enabled device...
- Page 4 BrightEye NXT 900 Series Frame Syncs Overview The BrightEye NXT Frame Syncs pack a lot of features in a tiny package. Frame Synchronization and Format Conversion, with 16 channels of embedded Audio. Each frame sync has independent timing and controls. Each supports automatic input format detection and conversion to the desired output format.
-
Page 5: Getting Started
The BrightEye NXT must be powered by its own product-specific power supply that comes with the unit. This is a 5 amp single power supply, Ensemble Designs part number 23600106, order info: BEPS-NXT. DO NOT use a BrightEye Spider power supply (BEPS6) or a BrightEye Individual power supply (BEPS, ED part number 23118900). - Page 6 BrightEye NXT 900 Series Frame Syncs 5. Set the IP Address from the Front Panel arrow to navigate to the Network menu. Press and use the to highlight the Address submenu. Press Press to enter the Network Address submenu. Use the arrows to modify the IP address and other network settings as needed.
- Page 7 Quick Start Guide Click Control Points. The Settings > Control Points page displays. The Control Point you just requested will now be shown at the top of the Pending Authorization area. You can rename the Control Point, and choose which Frame Sync Channels the Control Point has control of.
- Page 8 BrightEye NXT 900 Series Frame Syncs Configuring the Frame Syncs BrightEye NXT Frame Syncs are configured in the Settings page. Each Frame Sync is independently configured from its specific menu (Frame Sync 1 through Frame Sync 4). Input signals will be shown in the left-hand thumbnail. The processed output will be shown in the right-hand side.
-
Page 9: Config Tab
Quick Start Guide Config Tab Chose the Output Standard In the Frame Sync menu under the Config tab, select the desired output standard. The NXT will automatically up/down or cross convert the input to the output standard selected here. Each of the four frame syncs are individually configured and can have different output standards. - Page 10 BrightEye NXT 900 Series Frame Syncs Proc Tab allows you to: • Enable or disable the Proc Controls • Adjust Gain, Chroma and Pedestal • Turn operator access to the Proc Controls On or Off Color Correction Tab allows you to: •...
-
Page 11: Audio Tab
Quick Start Guide Audio Tab Provides agile and complete audio control. Adjust the level of all 16 possible embedded audio channels, and map those channels to produce any combination of swaps and mixes on the output. Audio delay can be adjusted for timing into your processing chain. -
Page 12: Factory Reset
For additional assistance, contact us at +1 530.478.1830 or service@ensembledesigns.com. All Ensemble Designs products have a 5-year warranty. Avenue and BrightEye products are designed and built in California at Ensemble Designs. Come visit us! Page 12 September 2017...
