Kusam-meco KM-LUX-200K Instruction Manual

AN ISO 9001:2008 COMPANY

FEATURES :

— Precise & easy readout.
— High accuracy in measuring.
— LSI - circuit use provides high reliability & durability.
— Permits a wide range of light measurements.
— Low Battery Indication.
— Auto zero adjust.
— Compact, light-weight, & excellent operation.
— LCD display can clearly read out even in High Ambient Light
— LCD display provides low power consumption.
— Separate LIGHT SENSOR allows user take measurements at an optimum position.

GENERAL SPECIFICATIONS:

• Display: 3½ digits LCD Display with maximum reading of 1999.
• Ranges: 200, 2000, 20000, 200000Lux.(4 Ranges)
(20,000Lux range reading x 10, 200,000Lux range reading x 100)
20, 200, 2000, 20000FC (20,000FC range reading x 10).
• Accuracy: ± 3%rdg ± 0.5% f.s. (± 5%rdg ± 10dgts as > 20,000Lux / 2000FC range)
(Calibrated to standard incandescent lamp at color temperature 2856K).
• Over range display: Highest digit of "I" is displayed.
• Measuring Rate: Approx. 2.0 time / sec.
• Repeatability: ± 2%
• Photo Detector : One silicon photo diode with filter.
• Data Hold & Peak Hold Function.
• Operating Temperature: 0°C to 40°C (32°F ~ 104°F)
• Operating Humidity: 0 ~ 80% R.H
• Storage Temperature: -10°C to 60°C (14°F ~ 140°F)
• Storage Humidity: 0 ~ 80% R.H
• Power Supply: DC 9V battery .
• Dimension: 149(H) x 71(W) x 41(D)mm
• Photo Detector Dimension: 100(H) x 60(W) x 28(D)mm
• Photo Detector Lead Length: Approx. 150cm
• Weight: Approx. 250g (including battery)
• Standard Accessories: Light Sensor, Instruction manual, Battery & Carrying case.
®
An ISO 9001:2008 Company
Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2015 new arrival catalogs/KM-LUX-200K.cdr
® ®

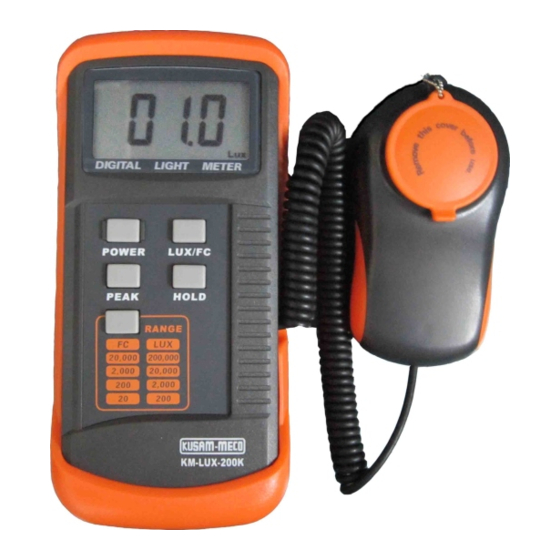

DIGITAL LUX METER
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022-24156638,
Email : kusam_meco@vsnl.net
Model - KM-LUX-200K
All specifications are subject to change without prior notice.
