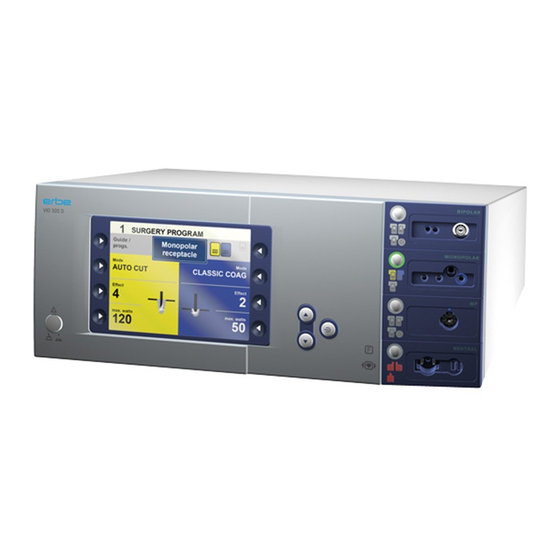

Erbe VIO 200 D Quick Manual

This quick guide is no substitute for briefing and user manual. This quick guide does not include any safety notes. Make yourself familiar
with the safety notes in the user manuals.

Necessary operating steps

1

Switch on the device

2

Select program

3

Check settings

4

Apply and connect return electrode

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
The long edge of the return electrode (1) must point to the operating
field.
ELECTROSURGERY
QUICK GUIDE
VIO 200 D
®
5

Monitor return electrode

If the red return electrode symbol lights up, check the following:
• Is the return electrode correctly connected to the device?
• Does the long edge of the return electrode point to the operating
field?
• Does the return electrode have sufficient contact to the skin?
6

Connect instruments

7

For APC applications, open argon bottle

Correct
ATTENTION: You may only plug monopo-
lar 4 mm Ø connectors into the receptacle
with the blue ring (1). Otherwise you
damage the device.
Error
1
80114-291 02.16
