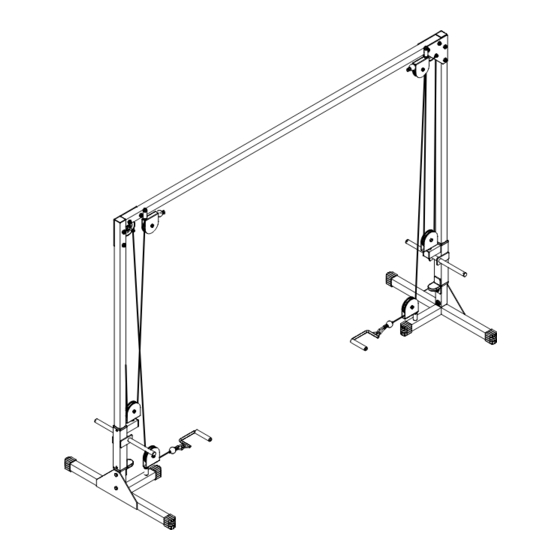

  • Page 1 PCCO90X CABLE CROSSOVER Owner’s Manual WWW.BODYSOLID.COM ¡ ¢ ¢ £ ¤ ¥ ¦ § ¨ © © ¨ ¨...
  • Page 2 THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF EQUIPMENT. TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES: Inspect equipment before each workout. Check that all nuts, bolts, screws and pop pins are in place and fully tightened. Also, before use, check cables for sign of wear. Replace all worn parts immediately.
  • Page 3: Table Of Contents

    PCCO90X TABLE OF CONTENTS • SAFETY INSTRUCTIONS....... PAGE 4 • PREPARATION........PAGE 5 • HARDWARE LIST........PAGE 6 • HARDWARE ILLUSTRATION....PAGE 7 • PART LIST / ILLUSTRATION....PAGE 10 • ASSEMBLY INSTRUCTIONS....PAGE 12 • EXPLODED VIEW........PAGE 22 •...
  • Page 4: Safety Instructions

    Never operate unit when it has been dropped or For information about product operation or damaged. Return the equipment to a service center service, check out the offi cial Powerline website for examination and repair. at www.bodysolid.com or contact an authorized •...
  • Page 5: Preparation

    PCCO90X PREPARATION Required tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each step. the PCCO90X include but are not limit to: While you may be able to assemble the PCCO90X using the •...
  • Page 6: Hardware List

    PCCO90X HARDWARE LIST PART # SIZE DESCRIPTION QUANTITY...
  • Page 7: Hardware Illustration

    PCCO90X HARDWARE ILLUSTRATION Part #1 M12X75mm hex head bolt QTY. 10 Part #2 M12X70mm hex head bolt QTY. 2 Part #3 M10X75mm hex head bolt QTY. 2 Part #4 M10X40mm hex head bolt QTY. 6 Part #5 M12 nylon lock nut QTY.
  • Page 8 PCCO90X HARDWARE ILLUSTRATION CONT. Part #6 M10 nylon lock nut QTY. 8 Part #7 1/2” nylon lock nut QTY. 6 Part #8 M12 washer QTY. 2 Part #9 50X50mm end cap QTY. 4 Part #10 60X50mm nylon bushing QTY. 4...
  • Page 9 PCCO90X HARDWARE ILLUSTRATION CONT. Part #11 1” round end cap QTY. 4 Part #12 110mm pulley QTY. 8 Part #13 50X50mm foot cap QTY. 6 Part #14 8mm snap link QTY. 2 Part #15 50mm rubber cushion QTY. 2 Part #17 5/8”...
  • Page 10: Part List / Illustration

    PCCO90X PART LIST PartA PartB PartC vertical frame base frame l-bracket [2pcs] [2pcs] [2pcs] PartD PartE PartF weight frame connecting bracket right support bracket [2pcs] [2pcs] [1pcs] PartG PartH PartI left support bracket mid pulley holder pulley holder [1pcs] [2pcs] [4pcs] Partj Partk...
  • Page 11 PCCO90X NOTES...
  • Page 12: Assembly Instructions

    PCCO90X STEP 1 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware first in this step. wrench tighten at the end of this step. some components may be PRE-ASSEMBLED. nylon lock nuts will not fully screw onto bolts, must wrench tighten. 1A.
  • Page 13 PCCO90X STEP 1 Above shows STEP 1 assembled and completed...
  • Page 14 PCCO90X STEP 2 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware in this step. DO NOT wrench tighten until the last step. some components may be PRE-ASSEMBLED. nylon lock nuts will not fully screw onto bolts, must wrench tighten. 2A.
  • Page 15 PCCO90X STEP 2 left shows STEP 2 assembled and complete...
  • Page 16 PCCO90X STEP 3 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware in this step. DO NOT wrench tighten until the last step. some components may be PRE-ASSEMBLED. nylon lock nuts will not fully screw onto bolts, must wrench tighten. 3A.
  • Page 17 PCCO90X STEP 3 left shows STEP 3 assembled and complete...
  • Page 18 PCCO90X STEP 4 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: this step is intended to show you where the pulleys need to be installed and what hardware you will need to install them. however, you must install the pulleys the same time you route the cables which can be found on the next step 4A.
  • Page 19 PCCO90X STEP 4 left shows STEP 4 assembled and complete...
  • Page 20 PCCO90X STEP 5 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: this step is intended to show you where the pulleys need to be installed and what hardware you will need to install them. however, you must install the pulleys the same time you route the cables which can be found on the next step 5A.
  • Page 21 PCCO90X STEP 5 below shows STEP 5 assembled and complete...
  • Page 22: Exploded View

    PCCO90X EXPLODED VIEW...
  • Page 23 PCCO90X NOTES...
  • Page 24: Contact Page

    PCCO90X please write your serial number in the boxes below S/N # Body-Solid ® Built for Life 1900 S. Des Plaines Ave. 1900 S. Des Plaines Ave. Forest Park, IL 60130 Forest Park, IL 60130 Phone:(708)427-3555 Phone:(708)427-3555 Fax:(708)427-3556 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST Hours: M-F 8:30 - 5:00 CST www.bodysolid.com Copyright 2011.
