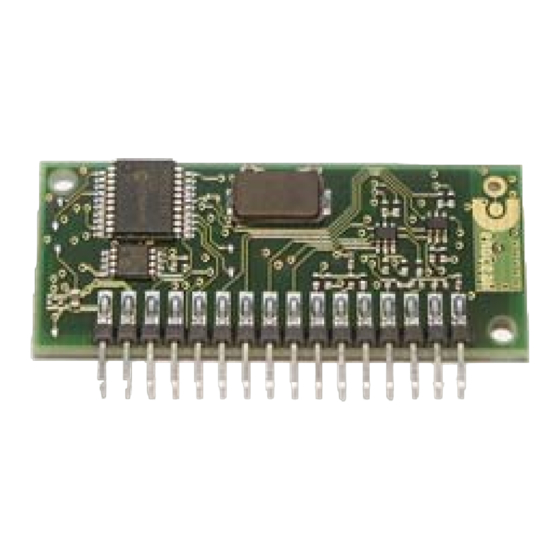

- Page 1 RF Receiver Modules RCM 142 User Manual V1.1 April 2006...
- Page 2 EnOcean GmbH does not recommend the use of its products in life support applications and will not knowingly sell its products for use in such applications unless it receives an adequate “products liability indemnification insurance agreement”.
-
Page 3: Table Of Contents
Table of Contents 1. GENERAL DESCRIPTION________________________________________________________________ 4 1.1 EnOcean RCM 1x0 Family - Basic receiver functionalities ________________________ 4 1.2 Typical Applications _________________________________________________________________ 5 1.3 Features Overview __________________________________________________________________ 5 1.4 Physical Dimensions ________________________________________________________________ 6 1.5 Environmental Conditions __________________________________________________________ 6 1.6 Ordering Information _______________________________________________________________ 6 2. -
Page 4: General Description
Learning procedure for EnOcean transmitters, easy to operate RCM 120 receiver functionalities: • Serial data link from EnOcean RF transmitters (9600 bps, 1 start bit, 1 stop bit). This interface facilitates any desired actor functionality by the user. • Logic output control functions “pushbutton” (1 channel) and “tubular motor control”... -
Page 5: Typical Applications
1.2 Typical Applications • Building installation • Industrial automation • Consumer electronics The RCM modules are part of a powerful RF system solution from EnOcean for operation and control applications. Because transmitters self-powered batteries), maintenance-free RF systems can be implemented. -
Page 6: Physical Dimensions
Operating Temperature:..............-25 up to +65 °C Storage Temperature: ......-40 up to +85 °C, +85 up to +100 °C for 1h max. Humidity:.................... 0 % to 95 % r.h. 1.6 Ordering Information Type EnOcean Ordering Code Remarks RCM 142 S3002-B142 2 channel Pushbutton Control ©EnOcean GmbH... -
Page 7: Functional Description
A change of the operation mode is GND (for encoding possible with cleared ID memory only (see CLR). schematics, see 2.3 RCM 142 Operating Modes). ©EnOcean GmbH Page 7 of 20 RCM 142 User Manual V1.1... - Page 8 Ground connection CODE_2 CODE_2 SSLM SSLM CODE_1 CODE_1 (Mode) (internal) (Mode) (internal CODE_0 CODE_0 100n 100n 100n 100n Figure 4: Equivalent schematics of Control Inputs (pins 2 to 7) ©EnOcean GmbH Page 8 of 20 RCM 142 User Manual V1.1...
-
Page 9: Rcm 142 Operating Modes
OUT_1 are blocked against each other (OUT_0-1, (OUT_0 and OUT_1 never can be OUT_2-3) active at the same time). The same is given for channel 2 (OUT_2 and OUT_3). ©EnOcean GmbH Page 9 of 20 RCM 142 User Manual V1.1... -
Page 10: Learning Modes
Three different learning modes are implemented within the RCM 142 module: 1.) Learning Mode CLR: ID Memory Reset. All learned transmitter IDs are deleted. Learning mode LRN is entered subsequently. CLR mode has to be entered also for ©EnOcean GmbH Page 10 of 20 RCM 142 User Manual V1.1... -
Page 11: Learning Of Radio Transmitters
(1 sec. on / 1 sec. off) 3.) If Learning Mode has been entered via LRN pin, ensure that the associated radio transmitter will be in a distance less than 5 m to the ©EnOcean GmbH Page 11 of 20 RCM 142 User Manual V1.1... - Page 12 Or activate the sensor radio transmitter at least once (triggering is done by a movement within the motion sensor area, illumination of a brightness sensor, etc.). EnOcean sensors in general have a separate pushbutton for easy generation of a triggering signal.
-
Page 13: Deleting Radio Transmitters
Please note that RCM 12x offers a 9.6 kbps standardized serial output of all received EnOcean radio telegrams. ©EnOcean GmbH Page 13 of 20... -
Page 14: Applications Information
For a good antenna performance don’t roll up or twist the whip and please draw attention to an overall whip distance of at least 10 mm (20 mm is better) from any PCB strip, ground plane and conductive part or electric part. ©EnOcean GmbH Page 14 of 20 RCM 142 User Manual V1.1... - Page 15 (connect the inner cable to the resoldered hole, and solder the shielding as short as possible to the RCM Groundplane, length of insulation max. 4 mm): Figure 14: Mounting an external antenna ©EnOcean GmbH Page 15 of 20 RCM 142 User Manual V1.1...
-
Page 16: Transmission Range
• Lead glass or glass with metal coating, steel furniture The distance between EnOcean receivers and other transmitting devices such as computers, audio and video equipment that also emit high-frequency signals should be at least 0.5m A summarized application note to determine the transmission range within buildings are available as download from www.enocean.com. -
Page 17: Power Supply Requirements
EnOcean RF modules must not be modified or used outside their specification limits. • EnOcean RF modules may only be used to transfer digital or digitized data. Analog speech and/or music are not permitted. ©EnOcean GmbH Page 17 of 20... -
Page 18: Fcc/Ic Approval Requirements
3.7 FCC/IC Approval Requirements Because of the very low radiated field strength on average, the 868.3 MHz EnOcean radio technology can be approved in the USA and in Canada. In the US approval of receivers is not necessary in general. On a voluntary base an US representative can last out a "Declaration of Conformity"... -
Page 19: Development Tools
4. DEVELOPMENT TOOLS 4.1 Evaluation Kit EVA 100 EVA 100 is an evaluation kit to support the development of applications based on the EnOcean receiver modules RCM 1xx. EVA 100 supports a quite easy setting-up operation of the receiver side... -
Page 20: Declaration Of Ce Conformity
5. DECLARATION OF CE CONFORMITY ©EnOcean GmbH Page 20 of 20 RCM 142 User Manual V1.1...
