BS Videophone Switch Settings

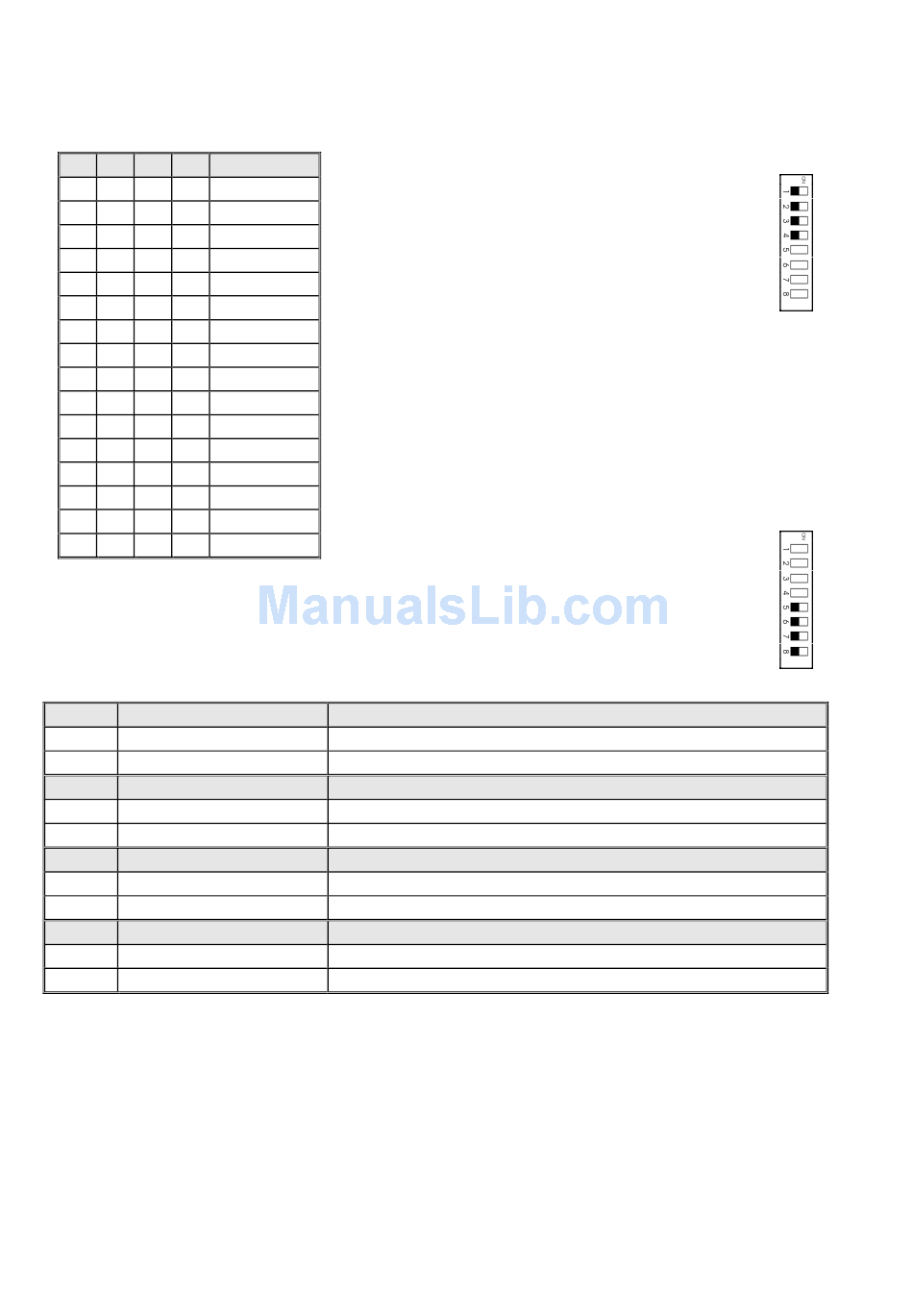

Mute Time Settings (1-4)
4 3 2 1 Mute Time
On On On On Disabled¹
On On On Off 2 minutes
On On Off On 5 minutes
On On Off Off 10 minutes
On Off On On 15 minutes
On Off On Off 20 minutes
On Off Off On 30 minutes
On Off Off Off 45 minutes
Off On On On 1 hour
Off On On Off 2 hours
Off On Off On 4 hours
Off On Off Off 5 hours
Off Off On On 6 hours
Off Off On Off 8 hours
Off Off Off On 10 hours
Off Off Off Off *Indefinite²
*Default setting¹Disabled means touching the mute symbol has no effect.
²Indefinite; the mute is cancelled by touching the symbol again.
Individual Functions Settings (5-8)
SW-5 Master / Extension
*Off Master
On Extension / Slave
SW-6 Auto Display on Ring Videophone display behaviour
*Off Display during ring
On No display during ring
SW-7 Spare
*Off
On
SW-8 Spare
*Off
On
*Default setting
Video Terminator Jumper Setting
The jumper is situated above the input connector. It is 3 pin and labelled On and Off.
The jumper should be on when there is only one videophone on an individual BSC4
output. Otherwise only the last videophone should have a jumper set to On the rest being
set to Off.
PD-307 Issue 2
tabellet Apartment Station 2-72 Way System
Which Videophone to set
Only or first apartment station per BSC4 output.
Second and subsequent videophones per BSC4 output.
Picture is on while ringing, stays on when answered.
Picture is off while ringing, comes on when answered.
Spare
Spare
