Door Speech Volume Adjustment

Introduction
The speech level heard by a caller at the door is adjustable by use of three pushbuttons on
the BFD8/72 door controller. This is useful if the door is on a noisy street, or alternatively
in a quiet location. Speech gain in the other direction is fixed.
Method

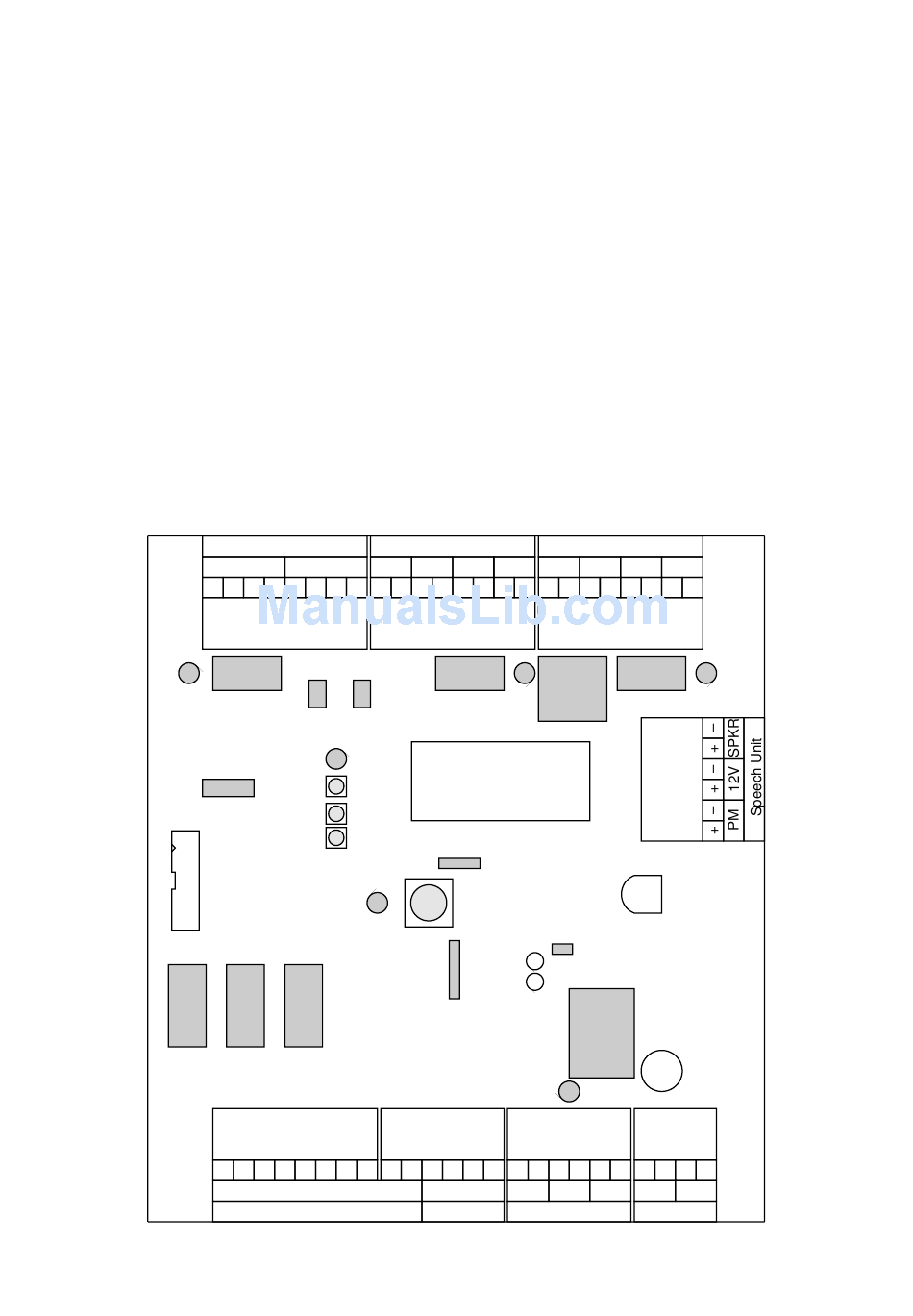

To perform volume adjustment, first borrow the jumper from Prog-6 and place it on the two
pin header ZLK. The Yellow Speech LED should light.
WARNING. A power fail during a Save may require the unit to be returned to Bell System
for reprogramming. Do not perform volume adjustment without the jumper in place.
8 presses of Vol+ doubles the volume level and 8 presses of Vol– halves it. Pressing
Save stores the new value. Increasing the volume too far will make speech less stable
and there will be a tendency for feedback – intermittent screeching and howling. If this
happens press Vol– four times and Save and test again.
The new level is tested by ringing one or more apartment stations and talking to them.
Finally return the jumper to its original location on Prog-6.
