SMC Networks IP8000 Installation And Maintenance Manual page 2

IP80X14-TFJ21GB-B

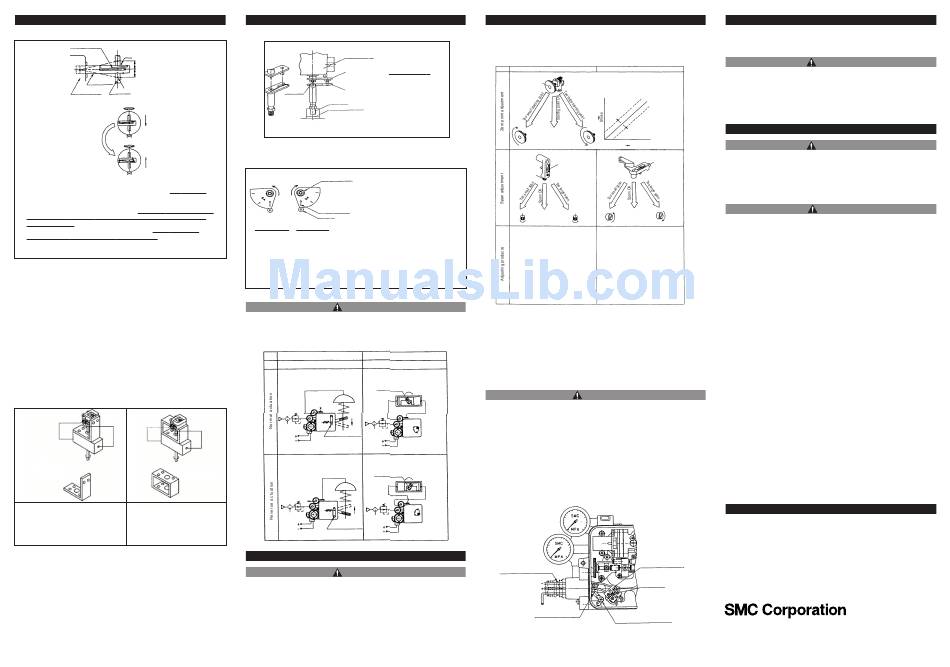

4 Mounting (continued)
4.1.2 Connection with external feedback lever
Tighening spring
Right angle
Input 0% (or 100%) position current
Input 50% position current
Input 100% (or 0%) position current
Fedd back
lever
Connecting metal
Positioner body Valve stem
Fig.4 Attaching the feed back lever
Stem direction
Turn over the feed
back lever (The stem moves down as the input increases)
Stem direction
Fig.5 Use position for feedback lever
(1) Attach to the position that the valve stem and lever form the right angle
when the input signal is 50% (distribute evenly with 50% input signal set as
the reference).
(2) Attach to the position of the runout angle is within the range of 10° to 30°.
(3) To move the valve stem downward at the time of input current increase
(normal actuation), attach to the position at which the tightening spring
comes to the upper side of the connecting metal, as shown in Fig 5.
To move the valve stem upward (reverse actuation), turn-over the feedback
lever and attach to the position at which the tightening spring comes to the
lower side of connecting metal.
4.2 Type IP8100
4.2.1 Example of attaching to actuator
The type IP8000 positioner is compatible with type IP610 and IP6100 in
the attaching pitch. If you are using IP610 or IP6100 already, the bracket
can be used to attach IP8000 to the actuator. If you change from IP6100
to IP8100 and select accessory H (with external scale plate), fork lever
type fitting needs to be adjusted at lower position.
OUT 1
OUT 2
OUT 1
OUT 2
Bracket shape
Bracket shape
example
example
Fig.6 Example of attaching using the Fig.7 Example of attaching using
positioner side screw the positioner back screw
Attaching using the screw hole of a side Attaching using the screw hole at
of the positioner and the screw hole at the positioner back and the screw
the actuator top. hole at the actuator top.
4 Mounting (continued)
4.2.2 Connection with feedback shaft
(1) Attach to the position at
which the positioner feed
Positionery body
back shaft and the rotary
actuator main shaft are
Fork pin unit
almost concentric (range
(P368010-23)
in which the spring pin of
feed back shaft edge
Fork lever assembly
enters the hole of fork
Spring pin
(P368010-36)
lever assembly shaft
M6 x 1 edge).
Actuator main shaft
(2) If the seration joint type
for IP610 is made in a
special specification, it
can be used for this
Fig.8 Attaching the feed back lever
connection.
4.2.3 Cam attaching procedure
(1) Use the DA face of the cam to turn the
Counter- Hex. nut with flange
Clockwise
actuator main shaft clockwise (viewed from
clockwise
the positioner front cover side) at the time
of input signal increase. Use the RA face to
turn it counter-clockwise (reverse
actuation). Correctly attach the cam to the
Cam reference
flange part of feed back shaft.
Bearing (2) Attach the cam in the procedure of
loosening the hexagonal nut with flange
(Reverse actuation) (Normal actuation)
first, setting the using actuatorto the
starting position and then setting the cam
reference line and the bearing contact point
of span adjusting arm unit to the matching
position.
(3) Do not apply the supply pressure when attaching the cam as otherwise it is very
dangerous.
(4) When the positioner is shipped out of our plant, the cam is tentatively tightened to the
shaft. Be sure to firmly lock the cam to the lock nut [tightening torque 2.0 ~ 2.5 Nm.
Fig.9 Example of cam attaching
CAUTION
Table 2
IP8000 (Lever type) IP8100 (Rotary type)
Single action Double action
Actuation: The stem moves in the arrow Actuation: The actuator main shaft turns
direction when the input current increases. clockwise when the input signal increases.
OUT 1
Main shaft Double action
actuator
OUT 1
OUT 2
SUP
Span adjusting lever
IN
normal position
IN
OUT 2: Plug
Actuation: The stem moves in the arrow Actuation: The actuator main shaft turns
direction when the input current increases. counter-clockwise when the input signal
(Reverse actuation using the normal increases.
Main shaft
actuation drive unit).
Double action
actuator
OUT 2 OUT 2
OUT 1
SUP
IN
Span adjusting lever
IN
normal position
OUT 1: Plug
5 Adjustment
CAUTION
Check the following prior to start the adjustment.
(1) Check that the pipeline is correctly connected with the pressure supply
port and OUT1 and OUT2 ports.
(2) Check that the actuator and positioner are sturdily connected.
(3) Check that the span adjusting lever of internal feed back (Type IP8000)
is attached to the correct (normal or reverse)
(Refer to Tables 2.)
(4) Check for locking of the auto/manual changeover screw of pilot valve
(fully tightened in the clockwise direction).
5 Adjustment (continued)
(5) Check for correct use of the cam face (normal or reverse) in Type
IP8100 and that the flange nut is firmly locked. (Refer to Table 2.)
(6) Check that the wires are connected correctly with the (+), (-) and
grounding terminals.
Type IP8000
When the zero adjusting knob is turned
clockwise, the starting point increases. When it
Zero adjusting knob
is turned counter-clockwise, the starting point
decreases.
Move Move counter-
clockwise
clockwise
to span adjustment
Lock screw
Span adjusting
screw
*¹
Move counter-clockwise
Move clockwise
Move counter-clockwise
(1) Set the input current to 0% (4mADC in the (1) Set the input current to 0% (4mADC in the
standard specification) and turn the zero standard specification) and turn the zero
adjusting knob by hand to set it to the actuator
adjusting knob by hand to set it to the actuator
starting point.
starting point.
(2) Then set the input current to 100% (20mADC in
(2) Then set the input current to 100% (20mADC in
the standard specification) and check the actuator
the standard specification) and check the
stroke. At this point depending on the span is too
actuator stroke. At this point depending on the
large or too small, loosen the lock screw and
span is too large or too small, loosen the lock
adjust the span as shown in the illustration above. screw and adjust the span as shown in the
(3) Set the input current to 0% and conduct the zero illustration above.
point adjudtment, as done in Step (1) again.
(3) Set the input current to 0% and conduct the zero
(4) Repeat the above operations until the
point adjudtment, as done in Step (1) again.
predetermined stroke of the actuator is obtained
(4) Repeat the above operations until the
to the input current.
predetermined stroke of the actuator is obtained
to the input current.
*¹ When the span adjusting screw is turned clock-wise with a slothead(-)
screwdriver, the span increases. When it is turned counter-clockwise, the
span decreases.
*² When the span adjusting screw is turned clock-wise with a slothead(-)
screwdriver, the span decreases. When it is turned counter-clockwise, the
span increases.
CAUTION
(1) For this positioner, span and zero point adjustment of each actuator is
necessary. Adjustment shall be done based on each actuator size.
The cam
(2) Keep in mind that span and zero point adjustment interfere in each
should be
other.
set to DA
surface.
(3) Characteristics changes due to change of mounting position, ambient
temperature and supply pressure.
(4) If it takes along time until the operation after initial adjustment, check
and adjust this product.
(5) Sensitive adjustment is effective for only double acting actuator.
(6) Manual change function is effective for single acting actuator which is
controlled by using OUT1.
5.1 Electrical wiring
The cam
should be
set to RA
OUT2
surface.
(blue) cable connector
M20 x 1.5
Input current
Grounding
Terminal lug
(Use twisted wire of 2.63 to 6.64mm²)
position.
5 Adjustment (continued)
Connect the (+) and (-) output terminal of positioner with the (+) and (-)
input terminal of positioner respectively. The input port of the electrical
connection is equiped with a (blue) cable connector M20 x 1.5.
Type IP8100
To use as explosion protection specification may only be connected to a
certified intrinsically safe electrical circuit with the following maximum
values.
Decrease of starting points
Parameters (current circuit)
Counter-
Increase of
clockwise Ui ≤ 28V, Ii ≤ 125mA, Pi ≤ 1.2W, Ci ≤ 0nF, Li ≤ 0mH
starting points
turn
6 Maintenance
Input current
(1) After installation, repair and disassembly, connect compressed air
Span adjusting
screw and perform a proper function test and leak test. If bleed noise is
louder than the initial state, or operation is abnormal, stop operation
*²
and check if installation is correct or not.
(2) Modification of Electrical construction is prohibited to maintain
explosion proof certification.
Move clockwise
(1) Check if supply air is clean or not. Inspect compressed air cleaning
system periodically so that dust, oil and humidity, which can cause
malfunction and failure of the unit, do not enter the equipment
(2) If handled improperly, compressed air can be dangerous.
Maintenance and replacement of unit parts should only be
performed by trained and experienced personnel for instrumentation
equipment , as well as following the product specifications.
(3) Check the positioner once a year. When an excessively worn
diaphragm, O-ring or other packing of any unit that has been
damaged is found, replace with new ones. Treatment at an early
stage is especially important if the positioner is used in a place of
severe environment, such as costal areas.
(4) Before removing the positioner for maintenance, or replacing unit
parts after installation, ensure the supply pressure is shut off and all
residual air pressure is released from the piping.
(5) When the fixed orifice is clogged with carbon particles or other
material, remove the pilot valve Auto/Manual change over screw
(built in fixed aperture) and clean it by inserting a 0.3mm diameter
wire into the aperture.
(6) When you disassemble the pilot valve, coat the O-ring of the sliding
section with grease. (Use the Dow Corning Toray Company, Limited
SH45 grease.)
(7) Check for air leaks from the compressed air piping. Air leaks could
lower the performance characteristics of the positioner. Air is
normally discharged form a bleed port, but this is necessary air
consumption based on the construction of the positioner, and is not
an abnormality if the air consumption is within the specified range.
(8) If atmosphere is below freezing point, take measure to avoid
freezing the supply pressure and the actuator.
7 Contact
AUSTRIA (43) 2262 62280
BELGIUM (32) 3 355 1464
CZECH REP. (420) 541 424 611
DENMARK (45) 7025 2900
FINLAND (358) 207 513513
FRANCE (33) 1 6476 1000
Mini-terminal unit GERMANY (49) 6103 4020
(Use twisted wire of
GREECE (30) 210 271 7265
0.5 to 1.5mm²)
HUNGARY (36) 23 511 390
Twisted wire fixing screw
IRELAND (353) 1 403 9000
ITALY (39) 02 92711
M4 screw for internal
grounding terminal connection
URL: http// www.smcworld.com (Global) http// www.smceu.com (Europe)
Specifications are subject to change without prior notice from the manufacturer.
© SMC Corporation All Rights Reserved.
WARNING
WARNING
CAUTION
NETHERLANDS (31) 20 531 8888
NORWAY (47) 67 12 90 20
POLAND (48) 22 211 9600
PORTUGAL (351) 21 471 1880
SLOVAKIA (421) 2 444 56725
SLOVENIA (386) 73 885 412
SPAIN (34) 945 184 100
SWEDEN (46) 8 603 1200
SWITZERLAND (41) 52 396 3131
UNITED KINGDOM (44) 1908 563888
