Viavi FFL-100 User Manual

Visual Fault Locator
User Manual

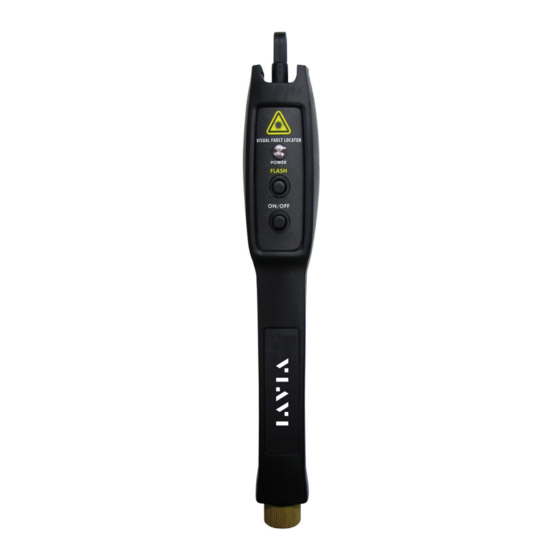

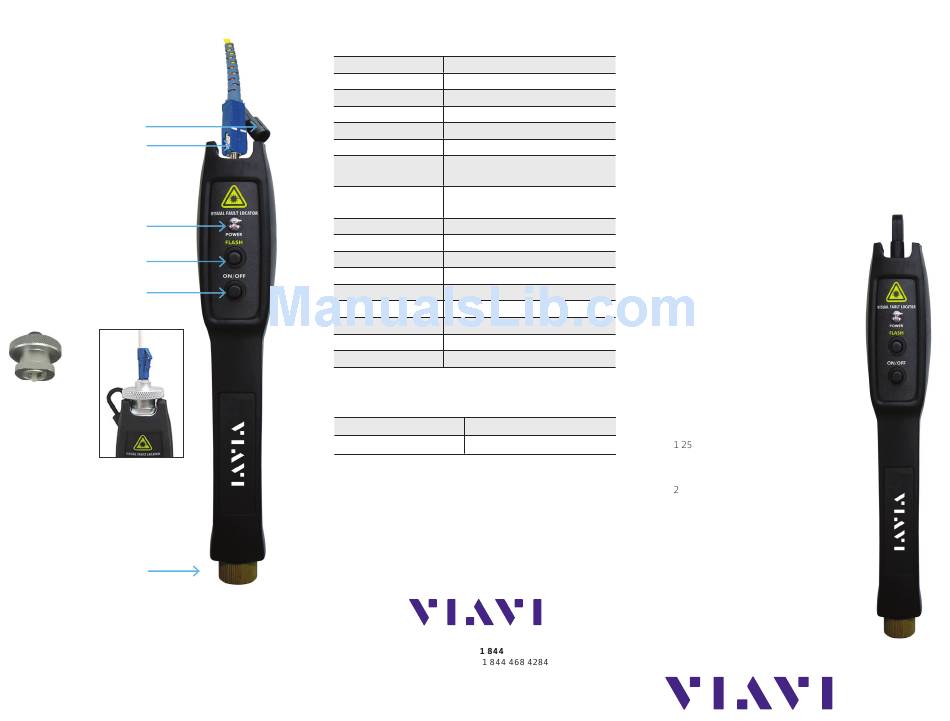

Parts Overview

Dust Cover
Connector (2.5mm) Input
ON/FLASH Indicator
FLASH Button
ON/OFF Button
1.25mm Universal
Adapter
(FFL-U12)
twist/turn to align
geometry for lock
& unlock
Battery Cap & Compartment

Maintenance

Keep this instrument clean and dry. The Visual Fault
Locator is built for durability and heavy use, but careful
operation and handling will greatly extend its life.

VFL Specifications

Dimensions 22cm x 3.5cm x 3.0cm
0.15kg (w/ 2 "AA" batteries)
Weight
Fiber Compatibility Single-mode, Multimode (simplex)
650nm (visible)
Wavelength
Laser Safety Rating Class 2
1.0mW max.
Output Power
Continuous and flashing
Output Modes
(2–3Hz pulsed)
4 km Single-mode, 3 km
Range
Multimode
0°C to 40°C
Operating Temperature
Storage Temperature -20°C to 60°C
2.5mm Universal
Adapter
Controls ON/OFF, continuous/flashing
2 x "AA"
Battery Type
> 80 hours in continuous mode
Battery Life
Soft-sided with belt loop
Carry Case
1992, EN 61010-2, CE
Safety
1 year
Warranty
Parts & Accessories
Visual Fault Locator FFL-100
1.25mm Universal Adapter
FFL-U12
