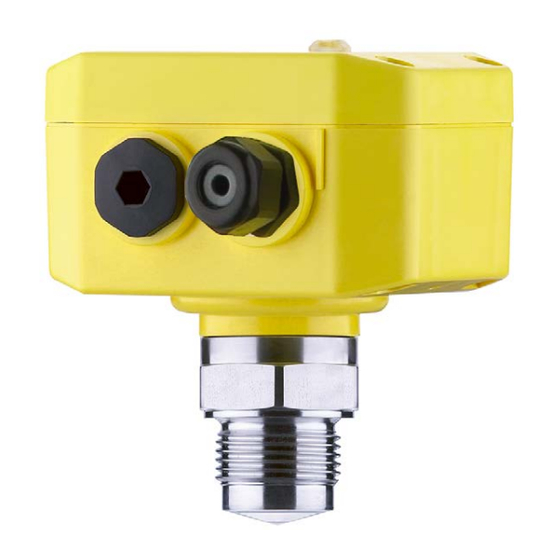

Vega VEGAKON 61 Operating Instructions Manual
Conductive point level switch for liquids
(front-flush installation) transistor (npn/pnp)
Hide thumbs
Also See for VEGAKON 61:
- Operating instructions manual (24 pages) ,
- Operating instructions manual (24 pages)
Related Manuals for Vega VEGAKON 61
Summary of Contents for Vega VEGAKON 61
- Page 1 Operating Instructions Conductive point level switch for liquids (front-flush installation) VEGAKON 61 Transistor (NPN/PNP) Document ID: 32648...
-
Page 2: Table Of Contents
How to proceed if a repair is necessary ................16 Dismount Dismounting steps......................18 Disposal ......................... 18 Supplement Technical data ........................ 19 Dimensions ........................21 Industrial property rights ....................22 Trademark ........................22 Editing status: 2017-07-24 VEGAKON 61 • Transistor (NPN/PNP) -
Page 3: About This Document
Action This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. VEGAKON 61 • Transistor (NPN/PNP) -
Page 4: For Your Safety
During work on and with the device the required personal protective equipment must always be worn. Appropriate use The VEGAKON 61 is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. -
Page 5: Safety Label On The Instrument
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGAKON 61 • Transistor (NPN/PNP) -
Page 6: Product Description
Scan the Data Matrix code on the type label of the instrument or • Enter the serial number manually in the app Principle of operation The conductive VEGAKON 61 compact level switches detect levels of Application area conductive liquids. VEGAKON 61 • Transistor (NPN/PNP) -
Page 7: Adjustment
Interfering buildup is automatically eliminated via the neutralisation electrode, the conductivity detected and the switching point sensitivity derived thereof. An adjustment of the instrument is not necessary. VEGAKON 61 can be used for reliable detection of products over a very wide conductivity and viscosity range. Voltage supply VEGAKON 61 is a compact instrument, i.e. - Page 8 Technical data - Ambient conditions" • Relative humidity 20 … 85 % Lifting and carrying With an instrument weight of more than 18 kg (39.68 lbs) suitable and approved equipment must be used for lifting and carrying. VEGAKON 61 • Transistor (NPN/PNP)
-
Page 9: Mounting
Fig. 3: Measures against moisture ingress Pressure/Vacuum The process fitting must be sealed if there is gauge or low pressure in the vessel. Before use, check if the seal material is resistant against the measured product and the process temperature. The max. permissible pressure is specified in chapter "Technical data" or on the type label of the sensor. VEGAKON 61 • Transistor (NPN/PNP) -
Page 10: Mounting Instructions
Mounting instructions Welded socket Remove the supplied seal from the thread of VEGAKON 61. This seal is not required when using the welded socket with O-ring in front. Before welding, unscrew VEGAKON 61 and remove the rubber ring from the welded socket. -
Page 11: Connecting To Power Supply
Connect the voltage supply according to the following diagrams. Voltage supply Take note of the general installation regulations. As a rule, connect VEGAKON 61 to vessel ground (PA), or in case of plastic vessels, to the next ground potential. On the side of the instrument housing there is a ground terminal. This connection serves to drain off electrostatic charges. -
Page 12: Wiring Plan
The transistor switches the operating voltage of the electronic module to the binary input of a PLC or an electrical load. Through different connections of the consumer (load), PNP or NPN action can be at- tained. Caution: There is no reverse polarity protection. Take note of the polarity of the output lines. VEGAKON 61 • Transistor (NPN/PNP) - Page 13 5 Connecting to power supply Fig. 6: Electronics with transistor output NPN action PNP action VEGAKON 61 • Transistor (NPN/PNP)
-
Page 14: Setup
Signal lamp (2) The switching condition of the signal lamp can be checked when the housing is closed. To adjust VEGAKON 61 loosen the four screws with a wrench on the upper side of the instrument and remove the housing cover. - Page 15 Mode B open Dry run protection lights Failure of the sup- open ply voltage (mode A/B) Max. detection - Vessel empty Max. detection - Vessel full Min. detection - Vessel full Min. detection - Vessel empty VEGAKON 61 • Transistor (NPN/PNP)
-
Page 16: Maintenance And Fault Rectification
13. Check cable gland on tightness. The seal ring must completely encircle the cable. 14. Screw the housing lid back on The electronics exchange is now finished. As soon as you insert the electronics module, VEGAKON 61 is ready for operation. How to proceed if a repair is necessary You can find an instrument return form as well as detailed informa- tion about the procedure in the download area of our homepage: www.vega.com. - Page 17 Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGAKON 61 • Transistor (NPN/PNP)
-
Page 18: Dismount
WEEE directive. Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGAKON 61 • Transistor (NPN/PNP) -
Page 19: Supplement
NPN or PNP reaction (depending on connection) Switching voltage = < 55 V DC Switching current = < 400 mA Voltage loss on the transistor 1 V at I 400 mA Blocking current < 10 µA VEGAKON 61 • Transistor (NPN/PNP) -
Page 20: Ambient Conditions
50 °C 100 °C 150 °C -40 °C 0 °C (122 °F) (212 °F) (302 °F) (-40 °F) (32 °F) Fig. 18: Process temperature - Process pressure Process temperature in °C Process pressure in bar VEGAKON 61 • Transistor (NPN/PNP) -
Page 21: Dimensions
For voltage supply via separator through networks of overvoltage category III Protection class Dimensions 80 mm x 110 mm ~30 mm (3.15" x 4.33") (1.18") M20x1,5 SW 41mm (1.61") Fig. 19: VEGAKON 61 Threaded version Cone version Temperature adapter When used with fulfilled housing protection. VEGAKON 61 • Transistor (NPN/PNP) -
Page 22: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 23 Notes VEGAKON 61 • Transistor (NPN/PNP)
- Page 24 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2017 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
