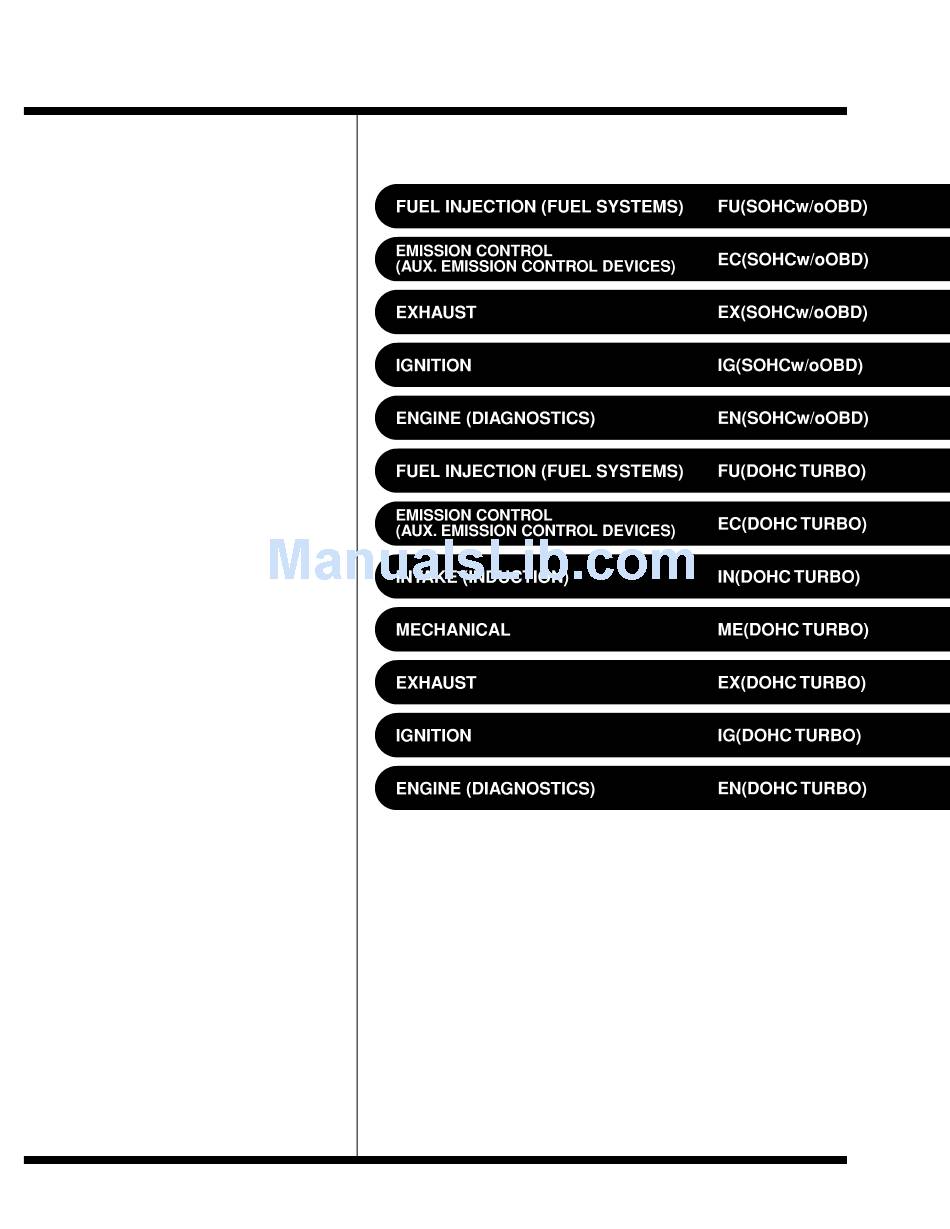

2001 FORESTER SERVICE MANUAL
ENGINE2 SECTION
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair of
SUBARU vehicles.
This manual includes the procedures for
maintenance, disassembling, reassem-
bling, inspection and adjustment of com-
ponents and diagnostics for guidance of
experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping their
vehicle in optimum condition. When
replacement of parts during repair work is
needed, be sure to use SUBARU genu-
ine parts.
All information, illustration and specifica-
tions contained in this manual are based
on the latest product information avail-
able at the time of publication approval.
FUJI HEAVY INDUSTRIES LTD.
QUICK REFERENCE INDEX
G8050GE3

Advertisement

loading

Related Manuals for Subaru Forester 2001

Summary of Contents for Subaru Forester 2001

  • Page 1 When replacement of parts during repair work is needed, be sure to use SUBARU genu- ine parts. All information, illustration and specifica- tions contained in this manual are based on the latest product information avail- able at the time of publication approval.
  • Page 2 IGNITION IG(DOHC TURBO) Page General Description..................2 Spark Plug....................4 Ignition Coil and Ignitor Assembly...............8...

  • Page 3: General Description

    GENERAL DESCRIPTION Ignition 1. General Description S181001 A: SPECIFICATIONS S181001E49 Item Designation Ignition coil Model FK0140 and ignitor Manufacturer DIAMOND assembly Type and manufacturer PFR6G ..NGK Spark plug Thread size 14, P = 1.25 Spark gap mm (in) 0.7 — 0.8 (0.028 — 0.031) IG(DOHC TURBO)-2...
  • Page 4 GENERAL DESCRIPTION Ignition B: COMPONENT S181001A05 EN0853 (1) Spark plug Tightening torque: N·m (kgf-m, ft-lb) (2) Ignition coil and ignitor ASSY 21 (2.1, 15) 16 (1.6, 11.7) C: CAUTION removal, installation, disassembly, and replace- S181001A03 ment. ¼ Wear working clothing, including a cap, protec- ¼...

  • Page 5: Spark Plug

    SPARK PLUG Ignition 2. Spark Plug 5) Remove spark plugs with the spark plug socket. S181003 A: REMOVAL S181003A18 CAUTION: All spark plugs installed on an engine, must be of the same heat range. Spark plug: NGK: PFR6G 1. RH SIDE S181003A1801 1) Disconnect battery ground cable.
  • Page 6 SPARK PLUG Ignition 4) Remove the two bolts which hold the washer B: INSTALLATION S181003A11 tank, then take the tank away from the working 1. RH SIDE area. S181003A1101 1) Install in the reverse order of removal. Tightening torque (Spark plug): 21 N·m (2.1 kgf-m, 15 ft-lb) Tightening torque (Ignition coil): 16 N·m (1.63 kgf-m, 11.8 ft-lb)
  • Page 7 SPARK PLUG Ignition 3) Oil fouled C: INSPECTION S181003A10 Wet black deposits show excessive oil entrance Check electrodes and inner and outer porcelain of into combustion chamber through worn rings and plugs, noting the type of deposits and the degree pistons or excessive clearance between valve of electrode erosion.
  • Page 8 SPARK PLUG Ignition D: ADJUSTMENT S181003A01 Clean spark plugs in a sand blast type cleaner. Avoid excessive blasting. Clean and remove car- bon or oxide deposits, but do not wear away por- celain. If deposits are too stubborn, replace plugs. After cleaning spark plugs, recondition firing sur- face of electrodes with file.

  • Page 9: Ignition Coil And Ignitor Assembly

    IGNITION COIL AND IGNITOR ASSEMBLY Ignition 3. Ignition Coil and Ignitor Assembly S181015 A: REMOVAL S181015A18 Direct ignition type has been adopted. Refer to the “Spark Plug Removal” for removal procedure. <Ref. to IG(DOHC TURBO)-4, REMOVAL, Spark Plug.> B: INSTALLATION S181015A11 Install in the reverse order of removal.
