2001 FORESTER SERVICE MANUAL
BODY SECTION
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair of
SUBARU vehicles.
This manual includes the procedures for
maintenance, disassembling, reassem-
bling, inspection and adjustment of com-
ponents and diagnostics for guidance of
experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping their
vehicle in optimum condition. When
replacement of parts during repair work is
needed, be sure to use SUBARU genu-
ine parts.
All information, illustration and specifica-
tions contained in this manual are based
on the latest product information avail-
able at the time of publication approval.
FUJI HEAVY INDUSTRIES LTD.

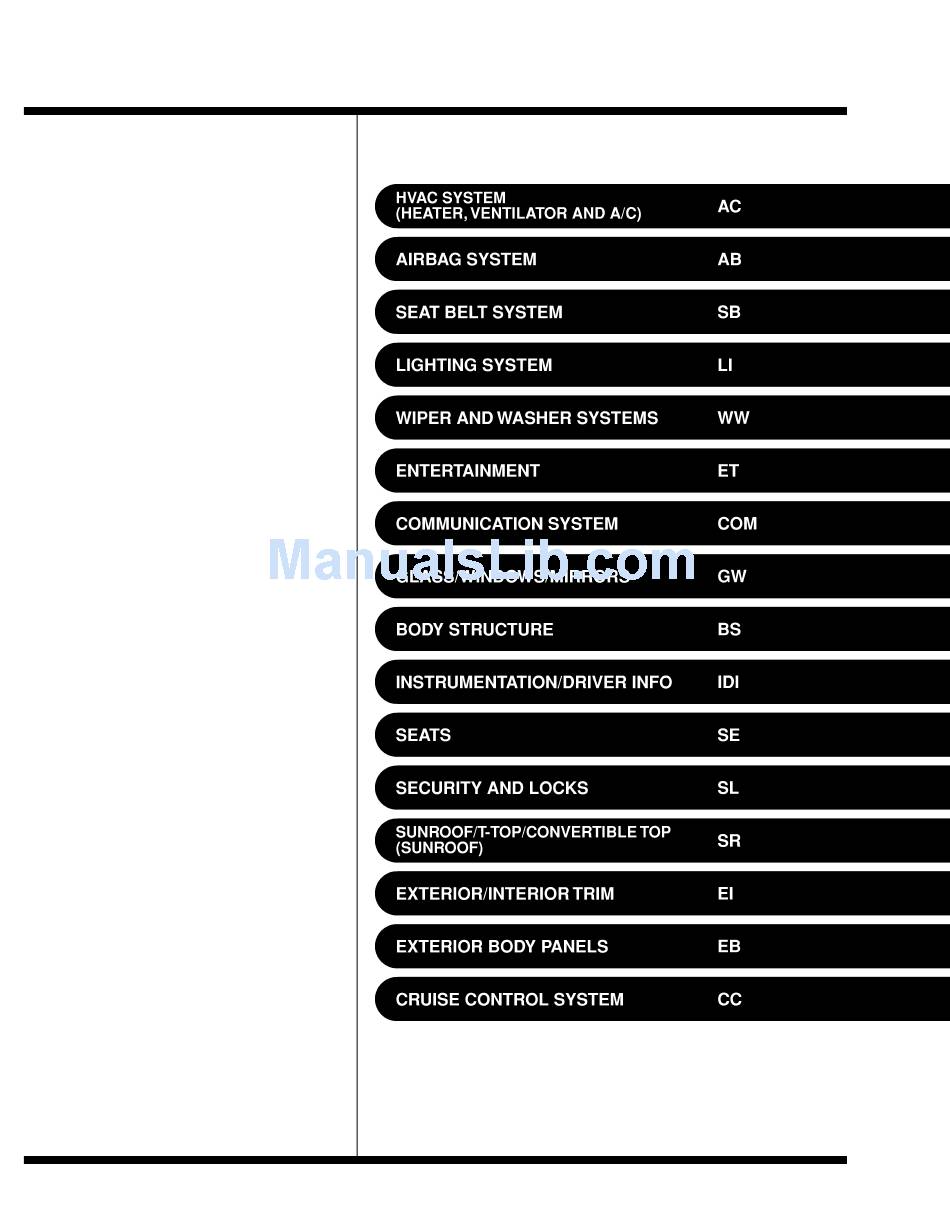

QUICK REFERENCE INDEX
G8050GE6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Forester 2001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Subaru Forester 2001

Summary of Contents for Subaru Forester 2001

  • Page 1 When replacement of parts during repair work is needed, be sure to use SUBARU genu- ine parts. All information, illustration and specifica- tions contained in this manual are based on the latest product information avail- able at the time of publication approval.
  • Page 2 COMMUNICATION SYSTEM Page General Description..................2 Horn System....................3 Horn......................5 Horn Switch ....................6...
  • Page 3 GENERAL DESCRIPTION Communication System 1. General Description S904001 A: PREPARATION TOOL S904001A17 1. GENERAL TOOLS S904001A1701 TOOL NAME REMARKS Circuit Tester Used for measuring resistance and voltage. COM-2...
  • Page 4 HORN SYSTEM Communication System 2. Horn System S904436 A: SCHEMATIC S904436A21 1. HORN S904436A2101 SG74-20 COM-3...
  • Page 5 HORN SYSTEM Communication System B: INSPECTION S904436A10 1. HORN RELAY S904436A1001 Check continuity between terminals (indicated in table below) when terminal No. 4 is connected to battery and terminal No. 3 is grounded. When current Between terminals Continuity exists. flows. No.
  • Page 6 HORN Communication System 3. Horn S904437 A: REMOVAL S904437A18 1) Remove horn bracket mounting bolt (A). 2) Disconnect harness connector and remove horn assembly (B). S6M0506A B: INSTALLATION S904437A11 Install in the reverse order of removal. C: INSPECTION S904437A10 With 12 V direct current supply between horn ter- minal and case ground, check that the horn sounds properly.
  • Page 7 HORN SWITCH Communication System 4. Horn Switch S904434 A: REMOVAL S904434A18 WARNING: Before servicing, be sure to read the notes in the AB section for proper handling of the driver airbag module. <Ref. to AB-3 CAUTION, Gen- eral Description.> 1) Remove the driver’s airbag module. <Ref. to AB-12 Driver’s Airbag Module.>...
