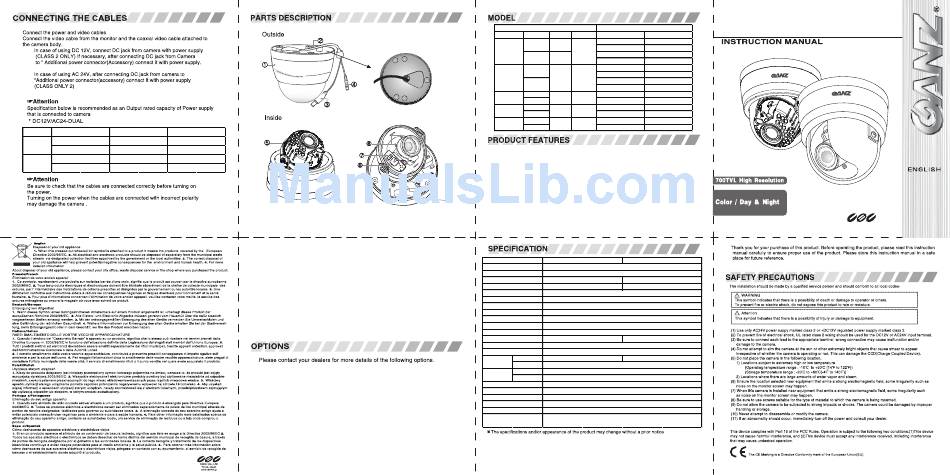

Ganz ZC-DW8039NXA Instruction Manual

Type Input Power Voltage Current
DC12V DC 12V±10% 300mA±10%
Standard
AC24V AC 24V±10% 300mA±10%
DC12V DC 12V±10% 550mA±10%
IR
AC24V AC 24V±10% 500mA±10%
⑨
(IR Model)
(Standard Model)
1. Top Cover
2. Bottom Cover
3. Video Output Connector
4. Power Input Jack
5. LED Cover (For IR Model)
6. Focus and View Angle Adjust Lever
7. Service Monitor Jack
8. Multi Tact Switch for OSD
9. Slide Switch for Sync. system
1. UTP Board (ZCA-UP8)
2. Service Monitor Cable (ZCA-SM8)
3. Flush Mount Kit (ZC-FM3)
4. NPT Pendant Mount (ZC7-PM1)
5. NPS Compact Pendant MOunt (ZCA-PA8)
6. Lens Variations
Lens Specification Models (Standard DC12/AC24V Dual-Voltage)
Focal Length D/N Aperture View Angle NTSC PAL
ZC-DW8039NXA ZC-DW8039PXA
Digital 1:1.2~2.1
ZC-DW8039NXA-IR ZC-DW8039PXA-IR
3~9mm 90~31.8
ZC-DWN8039NXA ZC-DWN8039PXA
True 1:1.4~2.4
ZC-DWN8039NXA-IR ZC-DWN8039PXA-IR
ZC-DW8312NXA ZC-DW8312PXA
Digital
ZC-DW8312NXA-IR ZC-DW8312PXA-IR
3.3~12mm 1:1.4~2.9 89.8~23.9
ZC-DWN8312NXA ZC-DWN8312PXA
True
ZC-DWN8039NXA-IR ZC-DWN8312PXA-IR
Digital ZC-DW8256NXA ZC-DW8256PXA
2.5~6mm 1:1.2~1.6 111.6~47.3
True ZC-DWN8256NXA ZC-DWN8256PXA
Digital ZC-DW8922NXA ZC-DW8922PXA
9-22mm 1:1.4~1.6 23.1~13.1
True ZC-DWN8922NXA ZC-DWN8922PXA
Digital ZC-DW8550NXA ZC-DW8550PXA
5-50mm 1:1.8~1.8 51.5~6.5
True ZC-DWN8550NXA ZC-DWN8550PXA
-. 1/3 SONY Super HAD-II CCD
-. Photocell Activate IR Lights at Night (For IR Model)
-. True or Digital Day & Night
-. Auto-sensing DC12V/AC24V Dual-Voltage Operation
-. True WDR(Wide Dynamic Range)
-. Back Light Compensation
-. High Light Compensation
-. Motion Detection
-. Privacy Masking
-. 3D Digital Noise Reduction (3DDNR)
-. Lens Shading Compensation
-. Low Power Consumption
-. Multi Tact Switch for OSD Control
-. IR Optimizer (For IR Model)
-. Sens Up(Slow shutter)
-. Compatible for UTC Communication
TV System NTSC PAL
Scanning System 2:1 Interlace
Image Sensor 1/3" Type Interline Transfer CCD (Sony HAD II CCD)
Effective Elements 976(H) x 494(V) 976(H) x 582(V)
Scanning Frequency 15.734kHz(H) x 59.94Hz(V) 15.625kHz(H) x 50.00Hz(V)
Video Output 1.0Vp-p/75Ω
Horizontal Resolution More than 700 TVL
Minimum Illumination(F1.4) Standard Type : D-DN:0.4lx T-DN:0.04lx, IR Type : 0 lx (B/W Model/LED ON)
Day / Night Digital or True Day / Night
S/N Ratio More than 50dB (at minimum AGC gain)
Gamma Characteristic 0.45
Sync. System Internal / Line Lock (Selectable)
Electronic Shutter 1/60 sec, FLK, 1/60-1/100,000 (Selectable) 1/50 sec, FLK, 1/50-1/100,000 (Selectable)
White Balance ATW, PUSH, USER1, USER2, MANUAL, PUSH LOCK (Selectable)
Back Light BLC, HLC, ATR-EX, WDR, OFF (Selectable)
AC AC24V±10% 60HZ±1Hz AC24V±10% 50HZ±1Hz
Power Supply
DC DC 12V±10%
Power Standard 3.0 Watt(AC24V), 2.7 Watt(DC12V)
Consumption
IR Model 6.1 Watt(AC24V), 5.9 Watt(DC12V)
Ambient Temperature Operation : -10℃ to +50℃ / Storage : -20℃ to +60℃
Ambient Humidity Operation : Max 85%RH / Storage : Max 95%RH
External Dimensions Standard Type : 122mm(W) x 108.3mm(H), IR Type : 126.4mm(W) x 108.8(H)
Weight Standard Type : Approx. 280g, IR Type : Approx. 310g
Switches Multi Tact Switch for OSD Control, Slide Switch for Sync. System
Self-tapping Screw : 3ea, Template : 1ea
Accessories
Instruction Manual : 1ea, Additional Power Connector : 1ea
