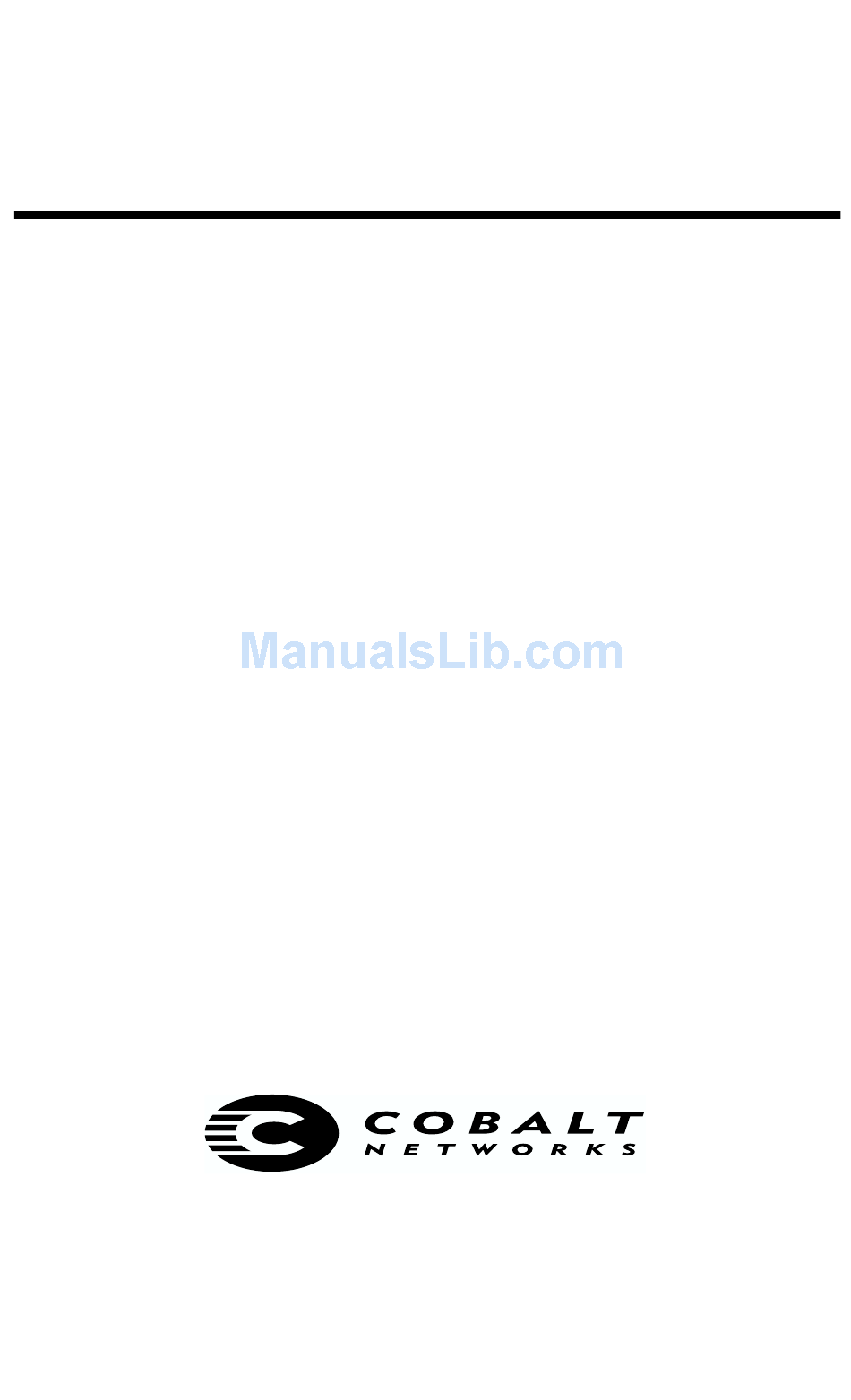

  • Page 1 COBALT RaQ™ 4 User Manual...
  • Page 2 fitness for particular purposes and non-infringement of third-party rights. The majority of the software used within the Cobalt RaQ 4 can be freely distributed under the terms of the BSD copyright and the GNU Public License. However, some applications remain the property of their owners and require their permission to redistribute.

  • Page 3: Important Safeguards

    Cobalt RaQ 4 and retain for future reference. 1. Ventilation The Cobalt RaQ 4’s bottom vents (on the front) and fan opening(s) (on the back panel) protect the server from overheating. These openings must not be blocked or covered.
  • Page 4 Incorrect reassembly can cause electric shock when this product is subsequently used. 5. Operating the unit in an equipment rack If you plan to install the Cobalt RaQ 4 in an equipment rack, take the following precautions: Ensure the ambient temperature around the Cobalt RaQ 4 (which may be higher than the room temperature) is within the limits specified in...
  • Page 5 Cobalt RaQ 4’s data. To use the RaQ 4, you need a personal computer (attached to the network) that uses a Web browser (for example, Netscape Navigator, version 4.7 or later, or Microsoft Internet Explorer, version 5.0 or later).
  • Page 6 Important Safeguards Cobalt RaQ 4 User Manual...

  • Page 7: Table Of Contents

    Contents Contents Important Safeguards 1 Introduction General Front view of the RaQ 4 Rear view of the RaQ 4 RaQ 4 requirements Target audience for the RaQ 4 Levels of user Organization of the user manual List of chapters and appendices...
  • Page 8 Configuring the RaQ 4 for the network Using the LCD console to configure the network Setting the configuration Phase 2: Setting up with the Web browser Configuring the RaQ 4 with the Setup Wizard Entering the network settings Entering the administrator settings Entering the service settings...
  • Page 9 Contents Adding a virtual site Adding a name-based virtual site Removing a virtual site RaQ 4 Administrator Changing the RaQ 4 Administrator password Resetting the RaQ 4 Administrator password Control panel Services Web server Email server SMTP server Email relaying...
  • Page 10 Search and sort functions Searching a list of site users Sorting a list of site users Removing a site user Entering user email settings and aliases Mail Forwarding and Vacation Reply Email aliases Adding an email alias Cobalt RaQ 4 User Manual...
  • Page 11 Receive the response from the external certification authority Enter the information from the external certification authority Delete an SSL certificate Site Usage Backup Manual backup Scheduled backup Backup file locations Restore Server management Publishing Web pages Cobalt RaQ 4 User Manual...
  • Page 12 Email Forward email to Vacation reply Usage data Backup Restore Using email on the RaQ 4 Developing Web pages CGI scripts Server-side scripting languages Publishing Web pages using FTP Publishing Web pages with FrontPage for User Webs only Using telnet...
  • Page 13 Upgrading your RaQ 4 Opening the RaQ 4 Adding a memory module or PCI card Printed circuit board Adding or replacing a hard disk drive in a RaQ 4 Specifications for a hard disk drive Requirements Overview Opening the RaQ 4...
  • Page 14 Brief history of the Domain Name System (DNS) What is a DNS record? Who manages your DNS records? How does DNS work? E Licenses The BSD Copyright GNU General Public License SSL License F Glossary Index Cobalt RaQ 4 User Manual...

  • Page 15: Introduction

    (DNS), the Linux operating system, FrontPage Server extensions, and support for Active Server Pages (ASP), PHP and common gateway interface (CGI) scripts. The RaQ 4 further enhances the suite of services by offering dual hard disk drives (RaQ 4r configuration) or room for an extra hard disk drive (RaQ 4i configuration);...
  • Page 16 RaQ 4r has two hard disk drives and offers RAID-1 disk mirroring. There is room in the RaQ 4i to add an extra hard disk drive but it does not support RAID-1. You cannot add an extra hard disk drive to the base RaQ 4 configuration. Table 1. RaQ 4 configurations Specification...

  • Page 17: General

    General The RaQ 4 provides a complete solution for virtual site hosting, Web publishing, file transfer, email and third-party applications: • Access to a broad range of Web and file transfer protocol (FTP) publishing capabilities. The RaQ 4 supports the common gateway interface (CGI) using Perl scripting, Active Server Pages (ASP) and PHP embedded scripting for creating interactive applications on the Web.

  • Page 18: Front View Of The Raq 4

    (See “Using the LCD console to configure the network” on page 22.) You can use the recessed Reset Password button if you forget the RaQ 4 Administrator password. (See “Resetting the RaQ 4 Administrator password”...

  • Page 19: Rear View Of The Raq 4

    General Rear view of the RaQ 4 Figure 2. RaQ 4 rear view Cobalt Networks and Cobalt RaQ are trademarks of Cobalt Networks, Inc. www.cobalt.com P/N 550-00135-01 100 - 240 VAC 50/60 Hz 1.4 A 60W max The Security lock hole is used to lock the unit to a secure location.

  • Page 20: Raq 4 Requirements

    (if communicating with other networks). Target audience for the RaQ 4 The user manual is for RaQ 4 Administrators who use the RaQ 4 to develop and host Web sites. RaQ 4 Administrators should be familiar with Microsoft® Windows , Macintosh®...

  • Page 21: Levels Of User

    The RaQ 4 Administrator is the person who controls and runs the RaQ 4. This person sets up and maintains the RaQ 4, sets up virtual sites, and sets access privileges and provides services for the Site Administrators and site users.

  • Page 22: Organization Of The User Manual

    Organization of the user manual The user manual is organized according to the user interface (UI). Chapter 3, “RaQ 4 Server Management, is based on the Server Management screen with the brown border on the left side. See Figure 3.
  • Page 23 Organization of the user manual Figure 4. Site Management screen Figure 5. Personal Profile screen Cobalt RaQ 4 User Manual...

  • Page 24: List Of Chapters And Appendices

    Chapter 4, “Site Management”, explains Site Management functions for virtual sites. Chapter 5, “Using Services on a Site”, shows how to use the RaQ 4 services (email, Web publishing and FTP) and how to manage your personal directory. Appendix A, “Using the LCD Console”, explains LCD console functions.

  • Page 25: Icons Used On The Ui And In The Manual

    In the Virtual Sites List on the Server Management screen; indicates that PHP embedded scripting is enabled on the virtual site. Telnet In the Virtual Sites List on the Server Management screen; indicates that telnet is enabled on the virtual site. Cobalt RaQ 4 User Manual...
  • Page 26 Delete In the Virtual Sites List on the Server Management screen; used to delete a virtual site from a RaQ 4. In the Bandwidth Limits table on the Server Management screen; used to delete a bandwidth limit for an IP address.

  • Page 27: Customer Service And Technical Support

    Site Administrator for the virtual site. Suspension In the Virtual Sites List on the Server Management screen; indicates that a virtual site has been suspended by the RaQ 4 Administrator. In the Users List on the Site Management screen; indicates that a user has been suspended by the Site Administrator.

  • Page 28: Cobalt Technical Support And Service

    Cobalt provides a wide range of resources, such as technical notes and white papers, for developers of Linux applications for Cobalt platforms. Premium resources are also available. To register with the Cobalt Developer Network at no cost, visit the Web site at http://developer.cobalt.com/. Cobalt RaQ 4 User Manual...

  • Page 29: Discussion Groups

    Networks products, we offer a number of training courses. The intended audience includes end users, Cobalt resellers, system and network administrators, systems engineers, product developers, support technicians, consultants and trainers. You can access the site at http://www.cobalt.com/support/education/index.html/. Cobalt RaQ 4 User Manual...

  • Page 30: Before Contacting Cobalt Networks Technical Support

    • the process you were running or the changes you had made when the error occurred • the steps you have taken to resolve the problem Cobalt RaQ 4 User Manual...

  • Page 31: Support Tools Feature

    If the RaQ 4 Administrator is familiar with Linux, he or she can look through this file in an effort to determine the problem with the RaQ 4. The file is a standard gzip file.
  • Page 32 Chapter 1: Introduction Cobalt RaQ 4 User Manual...

  • Page 33: Setting Up The Raq 4

    Phase 1: Making the connection Installing the RaQ 4 The RaQ 4 can either be placed on a flat surface—for example, a desk, shelf or table top—or it can be connected to a standard 19-inch equipment rack. ✍...
  • Page 34 Chapter 2: Setting up the RaQ 4 If you plan to use the RaQ 4 on a flat surface, attach the rubber feet to the five indentations in the bottom of the case; see Figure 6. Figure 6. Rubber feet for the RaQ 4 Rubber feet If you plan to operate the RaQ 4 in an equipment rack, first connect the mounting...

  • Page 35: Connecting To The Network

    Connecting to the network Connect one end of a Category 5 Ethernet cable to the 10/100 Base-T Network 1 connector on the RaQ 4; see Figure 8. Connect the other end of the cable to an existing network socket. Figure 8. Network connectors...

  • Page 36: Configuring The Raq 4 For The Network

    Figure 9 shows the LCD console for the RaQ 4. The LCD screen on the front of the RaQ 4 displays two lines of text. The top line of the LCD presents instructions on data to enter; the bottom line displays the data already entered.

  • Page 37: Setting The Configuration

    Follow these steps to configure the network manually: When you see the prompt ENTER IP ADDR: 000.000.000.000 enter the IP address assigned to the RaQ 4 using the arrow buttons on the LCD console. 2. Press If the IP address is valid, the next prompt appears: ENTER NETMASK: 255.000.000.000...

  • Page 38: Phase 2: Setting Up With The Web Browser

    Use one of the standard browsers available (for example, Netscape Navigator or Microsoft Internet Explorer, versions 4.0 or later) to do this. Once the setup process is complete, the RaQ 4 can be managed from any computer on the network that has a browser.

  • Page 39: Configuring The Raq 4 With The Setup Wizard

    Figure 10. RaQ 4 Welcome screen Configuring the RaQ 4 with the Setup Wizard To configure the RaQ 4, enter information into the fields on the Setup Wizard screen (see Figure 11). These fields are described in the sections that follow.

  • Page 40: Entering The Network Settings

    ICANN-accredited registrar (for example, “mydomain.com”) or an intranet domain name specific to your network. This allows you to access your RaQ 4 by host name and domain name, rather than by IP address only.

  • Page 41: Entering The Administrator Settings

    Phase 2: Setting up with the Web browser For informational purposes, this table also displays the IP address of the RaQ 4, the subnet mask of your network, your configured gateway and the Media Access Control (MAC) address that uniquely identifies this RaQ 4. These settings, with the exception of the MAC address, can be changed later from the Control Panel section of the Server Management screen.

  • Page 42: Entering The Service Settings

    Chapter 2: Setting up the RaQ 4 Entering the service settings You turn the RaQ 4 services on or off through the Service Settings table. See Figure 12. The default settings for these services are suitable for most users. These services include: •...

  • Page 43: Entering The Time Settings

    When you have entered the information in the Setup Wizard, click Save Changes. The RaQ 4 performs automatic checks on the information entered and alerts you if an illegal value or a problem is encountered. If the information is correct, the RaQ 4 enters the information in its configuration files.
  • Page 44 If you do not want to register online, click Register Later to proceed to the RaQ 4 default home page. Once you have registered the RaQ 4 online, you cannot register again. You receive an error window stating that the RaQ 4 has already been registered.

  • Page 45: Registering Online At A Later Time

    Click the Cobalt logo in the top left corner of the screen. The Server Configuration Information table appears. Click the About The Product link. The default home page for the RaQ 4 appears. 3. In the bottom right corner, click the link under Product Registration. The Product Registration screen appears.

  • Page 46: Registering The Raq 4

    RaQ 4 home page is replaced. Registering the RaQ 4 If you did not register the RaQ 4 online, fill out the registration card included in the packaging materials and return it to Cobalt Networks, Inc. By doing so, you will receive notifications of system and security upgrades and new product...

  • Page 47: Raq 4 Server Management

    Administrator of the RaQ 4 and is a member of the main site (which uses the IP address shown on the LCD screen of the RaQ 4). The RaQ 4 can have several Site Administrators, but only one...

  • Page 48: Approaches To Raq 4 Administration

    • Full control. If you want to control all the functions on the RaQ 4, you can create virtual sites without assigning any virtual Site Administrators. You are responsible for managing the main site and all the virtual sites. (See “Definition of a virtual site”...

  • Page 49: Definition Of A Virtual Site

    FTP account can only be enabled on one name-based virtual site per IP address hosted by the RaQ 4. The IP address of the RaQ 4 can be shared by many virtual sites or it can be unique to one virtual site.

  • Page 50: Support For Raid-1 (Raq 4R Configuration Only)

    Hardware failure. If a hard disk drive fails, the RaQ 4r can function with one hard disk drive, but the server can no longer provide disk mirroring. To restore RAID service, you must shut down the RaQ 4 and replace the failed hard disk drive.

  • Page 51: Site Management

    Site management The RaQ 4 is designed to host multiple virtual sites. A virtual site is an individual location on the Internet, such as www.abc.com or www.xyz.com. Each virtual site can have a unique set of users who can send and receive email, publish Web pages, or upload and download files through FTP.
  • Page 52 The fourth column displays icons to manage a site or to remove a site. ✍ Note: The trashcan icon for the main site on the RaQ 4 is grayed- out (disabled), as this site cannot be deleted from the list of virtual sites.

  • Page 53: Search And Sort Functions

    Figure 15. These functions are useful if you have a large number of virtual sites on your RaQ 4 and you want to restrict the display to certain virtual sites. You can search the list of virtual sites according to the following criteria: •...

  • Page 54: Searching A List Of Virtual Sites

    Chapter 3: RaQ 4 Server Management Searching a list of virtual sites To search the list of virtual sites: In the first field of the Search Virtual Site List window, select “Host Name” or “IP Address” from the pull-down menu.

  • Page 55: Overview Of Virtual Sites

    47. The following list of information is helpful when creating a site. • IP Address To use the RaQ 4, you require an IP address or range of IP addresses. ✍ Note: The RaQ 4 supports name-based virtual sites allowing many sites to share a single IP address.
  • Page 56 Chapter 3: RaQ 4 Server Management • Email server aliases You can add aliases for email servers; you are not restricted to receiving email messages only on the domain entered in the site settings. For the virtual site, enter additional host names or domain names for which to accept email connections (on SMTP port 25).
  • Page 57 • Enable Shell Accounts The users of the virtual site being created can telnet to the RaQ 4 and run commands from a Linux shell. If this feature is enabled, Site Administrators can grant shell access on a user-by-user basis.

  • Page 58: Frontpage Server Extensions

    Chapter 3: RaQ 4 Server Management FrontPage Server Extensions When you enable FrontPage Server Extensions on a virtual site, a FrontPage client webmaster account is created and you must provide a password for the webmaster account. ✍ Note: The FrontPage user webmaster is a part of the FrontPage Server Extension software and is not a true Linux site-user account.

  • Page 59: Active Server Pages (Asp)

    Site management Active Server Pages (ASP) The RaQ 4 uses Chili!Soft™ Active Server Pages (ASP) software. ASP is an HTML-embedded scripting language that includes one or more small embedded programs, or scripts, that are processed on a Web server before the Web page is sent to the user.

  • Page 60: Setting Defaults For A Virtual Site

    The same is true of all the options for a virtual site; it is best for you to decide the needs of your typical virtual site before assigning these values. Site defaults and site settings can only be configured by the RaQ 4 Administrator. If you (as the RaQ 4 Administrator) enable either the FrontPage Server...

  • Page 61: Modifying The Default Site Settings

    3. Enter the information for the site (information from the virtual site default settings is displayed here). 4. Make changes to the information or complete the necessary information. 5. Verify the settings and click Confirm New Site. Figure 17 shows the screen for adding a virtual site. Cobalt RaQ 4 User Manual...

  • Page 62: Adding A Name-Based Virtual Site

    Requests to the IP address are directed to the first name-based site created on that IP address. If you administer your DNS records on the RaQ 4, refer to Appendix D, “Domain Name System”, for more information about creating DNS records. If your Internet service provider (ISP) administers your DNS records, ask your ISP to create the DNS records for the new name-based virtual site.

  • Page 63: Removing A Virtual Site

    The screen refreshes and the virtual site is no longer listed. Both the Site Administrator and the RaQ 4 Administrator can configure the site user default settings. See “Setting defaults for a site user” on page 97.

  • Page 64: Raq 4 Administrator

    RaQ 4 Administrator Important: Be sure to remember the password you enter here— otherwise, you will need to reset it (See “Resetting the RaQ 4 Administrator password” on page 51). In the Administrator section of the Server Management screen, you enter information about the RaQ 4 Administrator—including user name, password...

  • Page 65: Changing The Raq 4 Administrator Password

    RaQ 4 Administrator password until you assign a new one. If you forget the RaQ 4 Administrator password, you can clear it by following these steps. Push and hold the end of a paper clip in the recessed Reset Password button (located between the LCD screen and the LCD arrow buttons, on the front of the RaQ 4).

  • Page 66: Control Panel

    Click Administrator on the left. The Administrator Settings table appears. 6. Enter the password twice to ensure that you have entered it as intended. The RaQ 4 supports long passwords through the UI. For guidelines on choosing a password, see “Password guidelines” on page 27.

  • Page 67: Web Server

    Chapter 5. Email server The RaQ 4 supports email for each virtual site on the host. It also supports email for entire domains (for example, www.mydomain.com). By default, each registered user has an email account created on the RaQ 4.
  • Page 68 Email service depends on DNS. so the IP address of a DNS server must be entered in the network settings for the RaQ 4; if not, the SMTP protocol will not work. If you did not enter this IP address in the Setup Wizard, see “Network”...
  • Page 69 Smart Relay Host Name You can enter an optional host name in this field. With this feature, you can configure the RaQ 4 to send Internet email to a specific email server. Enter the host name of the email server through which you want to relay your email.

  • Page 70: Email Relaying

    Every email server on the Internet has to be able to deliver email to you, so the email servers must be able to connect freely to send the email. The RaQ 4 accepts email for processing if the recipient has a user account or an alias email account, or if the sending host (your client PC) is trusted to relay outgoing email messages to another domain.
  • Page 71 Enabling email relaying To enable email relaying, add the IP addresses (or domain names, or both) of the machines which use your RaQ 4 as the SMTP server. On the Server Management screen, click Control Panel. The Service Settings table appears.

  • Page 72: File Transfer Protocol (Ftp) Server

    File transfer protocol (FTP) server Using the file transfer protocol, site users can upload and download files on the RaQ 4. Users can transfer files with FTP client software such as Fetch or WS-FTP. You can enable or disable the FTP server.

  • Page 73: Simple Network Management Protocol (Snmp) Agent

    SNMP agent. The default read-access community is “public”. 5. Click Save Changes in the SNMP Parameters table. 6. Click Save Changes in the Service Settings table. Figure 21 shows the SNMP Parameters table. Figure 21. SNMP Parameters table Cobalt RaQ 4 User Manual...

  • Page 74: Legato File Backup

    Legato file backup You can use the Legato NetWorker® client software to support backup and restore needs on the RaQ 4. To use this feature, you must install the Legato Networker Server software. The software is available at www.legato.com. To enable or disable the Legato file backup option: On the Server Management screen, click Control Panel.

  • Page 75: Arkeia File Backup

    RaQ 4. There is a client component and a server component to the Arkeia backup software. The client-side software is pre-installed on the RaQ 4. The server-side software can be obtained from the Arkeia Web site at http://www.arkeia.com.

  • Page 76: Asp Administrative Server

    Base RaQ 4 server If you have a base RaQ 4 server, you can back up the server over the local network connection to another device that has the Arkeia server-side software installed on a local tape drive.

  • Page 77: Domain Name System (Dns) Server

    Domain Name System (DNS) is a vital and integral part of the Internet. Setting up DNS correctly on your RaQ 4 is very important. For this reason, we have created an appendix solely for explaining DNS. See Appendix D, “Domain Name System”.

  • Page 78: Network

    Chapter 3: RaQ 4 Server Management Network The network settings make the RaQ 4 visible to other computers. If you change the IP address, the RaQ 4 reboots. Important: Coordinate the network configuration information with your network administrator to ensure the integrity of your network.

  • Page 79: Bandwidth

    Figure 25. Settings tables in the Network section Bandwidth The RaQ 4 allows you to set an output bandwidth limit for each IP address that you assign on a RaQ 4. The bandwidth limit applies to all of the name-based virtual sites associated with an IP address.

  • Page 80: Bandwidth Limits Table

    Chapter 3: RaQ 4 Server Management Bandwidth Limits table When you select the bandwidth-limit option, the Bandwidth Limits table appears; see Figure 26. If you have not applied a bandwidth limit to any IP addresses, the table is blank. If you have applied a bandwidth limit to an IP address, the table displays four columns: •...

  • Page 81: Applying A Bandwidth Limit

    3. Click Add. The Add Bandwidth Limit table appears. See Figure 27. ✍ Note: If each of the IP addresses on the RaQ 4 already has a bandwidth limit assigned to it, an error message at the bottom of the screen alerts you to this fact.

  • Page 82: Modifying A Bandwidth Limit

    Chapter 3: RaQ 4 Server Management Figure 27 shows the Add Bandwidth Limit table. Figure 27. Add Bandwidth Limit table Modifying a bandwidth limit To modify a bandwidth limit to an IP address: On the Server Management screen, click Control Panel on the left. The Service Settings table appears.

  • Page 83: Deleting A Bandwidth Limit

    IP address is removed. Time The RaQ 4 Administrator can configure the correct time and date and the time zone for the RaQ 4. On the Server Management screen, click Control Panel on the left. The Service Settings table appears.
  • Page 84 Chapter 3: RaQ 4 Server Management Figure 28 shows the Time Settings table. Figure 28. Time Settings table Cobalt RaQ 4 User Manual...

  • Page 85: Maintenance

    This feature should not be used for disaster recovery. As the RaQ 4 Administrator, you can perform different types of backups in the user interface. This is a separate function from the Legato and Arkeia backup support features.

  • Page 86: Manual Backup

    Chapter 3: RaQ 4 Server Management Manual backup This feature allows administrators to manually back up data stored on the RaQ 4. Figure 29 shows the File Backup table. Figure 29. File Backup table Cobalt RaQ 4 User Manual...
  • Page 87 Maintenance To manually back up data stored on the RaQ 4: On the Maintenance screen, click Backup at the top. 2. In “Data to Backup,” select the type of backup: • All server configuration, email and user files. This option backs up all the server configuration files for the users and the system setup, all users’...

  • Page 88: Scheduled Backup

    Chapter 3: RaQ 4 Server Management Scheduled backup This feature allows administrators to schedule regular automatic backups. Figure 30 shows the Scheduled File Backup table. Figure 30. Scheduled File Backup table Cobalt RaQ 4 User Manual...
  • Page 89 8. If the backup destination associated with your method of backup requires a password for access, enter the password in this field. This field is ignored for the NFS and anonymous FTP methods. See “Backup file locations” on page 76. 9. Click Save Changes. Cobalt RaQ 4 User Manual...

  • Page 90: Backup File Locations

    Chapter 3: RaQ 4 Server Management Backup file locations For a backup by FTP Server: • A location of puts the backup file in the <username>@ftp.server.com initial login directory. • A location of puts the <username>@ftp.server.com/path/to/backups/ backup file in the specified path on the server, using to login.

  • Page 91: Restore

    Internet Explorer or use a different browser software to restore the backup file. Caution: The system does not merge the current and backed-up data. When data is restored, any changes made to files on the RaQ 4 since the last backup are lost. Cobalt RaQ 4 User Manual...
  • Page 92 Chapter 3: RaQ 4 Server Management Figure 31 shows the File Restore table. Figure 31. File Restore table Cobalt RaQ 4 User Manual...
  • Page 93 On the Maintenance screen, click Restore at the top. The File Restore table appears. See Figure 31. 2. The RaQ 4 saves backed-up data in .raq files. Enter the path and filename of the backup file, or click Browse to select the .raq file archived on your computer which you wish to restore to the server.

  • Page 94: Install Software

    Chapter 3: RaQ 4 Server Management Install software You can add new software to the RaQ 4 from the browser. You can install new software obtained either from the Cobalt Networks Web site or from a CD supplied by Cobalt Networks.
  • Page 95 RaQ 4. To install software from a CD: 1. Insert the CD into a computer on the same network as the RaQ 4. 2. On the computer that has the CD, go to the Server Management screen.

  • Page 96: Third-Party Software

    You can also add a second internal hard disk drive on a RaQ 4i server. See “Adding or replacing a hard disk drive in a RaQ 4” on page 164 for installing an internal hard disk drive. Once you have added a second drive, you have to add (through the RaQ 4 UI) the drive to the list of available storage devices.
  • Page 97 Maintenance A virtual site cannot span multiple disks and the RaQ 4 does not automatically recognize virtual sites on an external disk storage device transferred from another RaQ 4. ✍ Note: If you have replaced a failed hard disk drive in a RaQ 4r server, you do not need to add the new hard disk drive through the Add Storage feature.

  • Page 98: Adding A Storage Device

    Click Confirm New Storage to add the storage to the RaQ 4. When adding a new virtual site to the RaQ 4, the RaQ 4 Administrator can choose where to store the new site. In the Add New Virtual Site table, next to the Maximum allowed disk space (MB) parameter, a pull-down menu lists in alphabetical order the available storage devices.

  • Page 99: Suspend A Virtual Site

    Maintenance Suspend a virtual site There are two ways to suspend a virtual site on the RaQ 4: a hard suspension and a soft suspension. For more information on soft suspensions, see “Suspend a virtual site” on page 115. Hard suspension A hard suspension occurs when a storage device is disabled through the UI or is disconnected from the RaQ 4.

  • Page 100: Shutdown

    The RaQ 4 can only be shut down from the LCD console located on the front of the unit. Refer to “Powering down” on page 155. Shutting down may take as long as a few minutes.
  • Page 101 If you are familiar with Linux, you can open this file and look through it to determine the problem. Or you can email the file as an attachment to diagnostics@cobalt.com. When Cobalt Networks receives the diagnostic file by email, a problem ticket is created for your case. Cobalt RaQ 4 User Manual...

  • Page 102: Site Usage

    Chapter 3: RaQ 4 Server Management Site Usage The Site Usage feature allows the RaQ 4 Administrator to monitor the amount of bandwidth consumed by Web, email and FTP traffic generated by the virtual sites on a RaQ 4. For the Site Usage feature on the Site Management screen, see “Site Usage” on page 126.

  • Page 103: System Status

    The System Status section allows the RaQ 4 Administrator to monitor the CPU, memory, disk and network status, as well as the services running on RaQ 4. In all cases, the RaQ 4 monitors the status of each of the subsystems and displays a green, amber, red or grey circle beside each item.
  • Page 104 Chapter 3: RaQ 4 Server Management Figure 35. System Status tables To view the status of the various system components and services: On the Server Management screen, click System Status on the left or Active Monitor at the bottom left. A table displays the status of the system components and the services.

  • Page 105: System Components

    (the number of collisions). Cobalt RaQ 4 User Manual...

  • Page 106: Services

    Chapter 3: RaQ 4 Server Management Services The Service Status section allows you to monitor Web, email, FTP, telnet, DNS and SNMP services. It follows the same LED conventions as the System Status section. Web server The Web server table displays the status of the Web server (green, amber, red or grey) and a text message.

  • Page 107: Active Monitor

    Active Monitor Active Monitor The RaQ 4 uses Active Monitor software. Active Monitor is a Cobalt Networks utility that runs on a RaQ 4 and updates key system information every 15 minutes. Active Monitor status is displayed on the Server Management screen only.
  • Page 108 Chapter 3: RaQ 4 Server Management Cobalt RaQ 4 User Manual...

  • Page 109: Site Management

    Chapter 4 Site Management There are three types of users on the RaQ 4: the RaQ 4 Administrator, Site Administrators and site users. This chapter describes the functions that the Site Administrator normally performs. As the Site Administrator, you access these functions from the Site Management screen on the RaQ 4.
  • Page 110 Chapter 4: Site Management The User List has five columns which display information about the each site user, and allow the RaQ 4 Administrator or Site Administrator to manage or remove a site. • The first column displays the full name of the site user.

  • Page 111: User Management

    Before assigning the default values for a site user, you must decide on the needs of your users. Both the Site Administrator and the RaQ 4 Administrator can configure the site user default settings. Figure 37 shows the screen for configuring the default settings of a site user.

  • Page 112: Modifying The Default User Settings

    • first name You can also enable or disable services for telnet/shell access, FrontPage User Web and Secure POP3 (APOP), if the RaQ 4 Administrator has enabled them for the virtual site. Click Save Changes. Once you have configured the default settings, you can adjust the settings for each site user that you add.

  • Page 113: Adding A Site User

    Caution: On the Site Management screen for the main site (for the main site, the trashcan icon is grayed-out, meaning that you cannot delete it), the user settings for the RaQ 4 Administrator can be modified, including name and password.

  • Page 114: Search And Sort Functions

    96. These functions are useful if you have a large number of site users on your RaQ 4 and you want to restrict the display to certain site users. You can search the list of site users according to the following criteria: •...

  • Page 115: Searching A List Of Site Users

    To sort in ascending (up arrow icon) or descending order (down arrow icon), click on the blue arrow icon so that it points in the correct direction. The screen regenerates and displays the results in a table with the same five columns. Cobalt RaQ 4 User Manual...

  • Page 116: Removing A Site User

    Entering user email settings and aliases Mail Forwarding and Vacation Reply Individual site users can choose to have their RaQ 4 email forwarded to another email account. Site users can also choose to enable a vacation-reply message that is automatically sent to each person who sends the user an email. This feature is useful when users know they will not be reading or responding to incoming email messages for a period of time.

  • Page 117: Email Aliases

    Each registered user on the RaQ 4 must have a user name that is unique across all virtual sites on the RaQ 4. You cannot create two users with the same name on different virtual sites because all users share the same password database file in...

  • Page 118: Changing User Settings

    2. Click the green pencil icon for the site user. The Modify User table appears. See Figure 39. 3. Enter the changes in the Modify User table. ✍ Note: The RaQ 4 supports long passwords through the UI. For guidelines on choosing a password, see “Password guidelines” on page 27. 4. Click Confirm Modify.

  • Page 119: Modify Email Options For A Site User

    Email Aliases field (for example, johnny@abc.com), the software gets confused. 5. To enable an automatic vacation reply, click the check box in the Vacation Message field and enter your message in the window. 6. Click Save Changes. Cobalt RaQ 4 User Manual...
  • Page 120 Chapter 4: Site Management Figure 40 shows the screen for modifying a site user’s email options. Figure 40. Modifying a site user’s email options Cobalt RaQ 4 User Manual...

  • Page 121: Catch-All Email Account

    “mary” does not exist on that domain, the email is routed to the catch-all account. A RaQ 4 Administrator or a Site Administrator can create a catch-all email account. This involves simply creating a certain alias for a designated user on the virtual site;...

  • Page 122: Mailing List Management

    A mailing list allows a discussion by email between a group of people; the email addresses of the people in the group make up the list. The mailing list is given a name, for example AlphaProject. The mailing list can include users on the RaQ 4 as well as external users.

  • Page 123: Adding A Mailing List

    To add external recipients to the mailing list, enter the email addresses in the External Recipients field. • To include existing registered site users on the RaQ 4 in the list, click the user name in the scrolling window. To select all the registered site users, click Select All.
  • Page 124 Chapter 4: Site Management Figure 42 shows the Add Mailing List table in the List Management section. Figure 42. Add Mailing List table Cobalt RaQ 4 User Manual...

  • Page 125: Modifying A Mailing List

    3. Modify the information as necessary (see the procedure for adding a new mailing list for the options). 4. Click Confirm Modify. Figure 43 shows the Modify Mailing List table in the List Management section. Figure 43. Modify Mailing List table Cobalt RaQ 4 User Manual...

  • Page 126: Removing A Mailing List

    Site settings Only the RaQ 4 Administrator can modify virtual site settings. For Site Administrators who are not the RaQ 4 Administrator, the Site Settings section is a read-only status page. For an explanation of the fields on the Site Settings table, see“Overview of virtual sites”...

  • Page 127: Changing Site Settings

    41. ✍ Note: Only the RaQ 4 Administrator can modify the settings for a virtual site. For Site Administrators who are not the RaQ 4 Administrator, the Site Settings section is a read-only status page.
  • Page 128 Enable PHP Embedded Scripting Enable shell accounts m. Enable Secure POP3 (APOP) Enable CGI scripts Enable Server Side Includes Suspend Site ✍ Note: A Site Administrator does not see the Suspend Site option. Click Save Changes. Cobalt RaQ 4 User Manual...

  • Page 129: Suspend A Virtual Site

    <username>@raq1.abc.com and <username>@abc.com. Suspend a virtual site There are two ways to suspend a virtual site on the RaQ 4: a hard suspension and a soft suspension. For more information on hard suspensions, see “Suspend a virtual site” on page 85.

  • Page 130: Suspend A Site User

    Chapter 4: Site Management Suspend a site user The Site Administrator or RaQ 4 Administrator can suspend a site user on a virtual site. The site user is denied access to telnet, FTP, POP3/IMAP/APOP services, as well as Web access to their files. The site user account however still receives email.
  • Page 131 Site Administrator can access the file through FTP. The size limit specified for FTP uploads is the total amount of disk space allocated for FTP uploads. If this number is set to 0, a guest cannot upload to the FTP site. Cobalt RaQ 4 User Manual...

  • Page 132: Ssl Settings

    A secure connection means two things: encryption and authentication. Encryption ensures that no one can snoop the connection between the browser and the RaQ 4; authentication ensures the client, through a certificate, that the server is who they say they are. The security is assured on two levels.

  • Page 133: Obtain An Externally Signed Ssl Certificate

    Most users want to create an externally signed SSL certificate. For e-commerce, an externally signed SSL certificate is required. To do this, the RaQ 4 Administrator must perform the following steps. These steps are explained in the following pages. enable the SSL feature on a virtual site (see page 119) generate a self-signed certificate (see page 120)

  • Page 134: Generate A Self-Signed Certificate

    The RaQ 4 saves the configuration of the virtual site. Generate a self-signed certificate Once you (as the RaQ 4 Administrator) have enabled SSL, the user must now create a self-signed certificate. The self-signed certificate can be signed later by an external authority.
  • Page 135 SSL settings Figure 46 shows the certificate subject information table for an SSL certificate. Figure 46. Certificate subject information table for an SSL certificate Cobalt RaQ 4 User Manual...
  • Page 136 Chapter 4: Site Management Figure 47 shows the processed information of a self-signed SSL certificate. Figure 47. Processed information of a self-signed SSL certificate Cobalt RaQ 4 User Manual...

  • Page 137: Ssl Certificate For The Main Site

    If the browser prompts you for your user name and password, you have enabled SSL on the main site of the RaQ 4. The browser prompts you since this secure connection is in fact a new connection to the RaQ 4.

  • Page 138: Receive The Response From The External Certification Authority

    (See “Receive the response from the external certification authority” on page 124.) Return to the RaQ 4 browser window and paste the new certificate information that you copied in Step 3 into the “Certificate” window.
  • Page 139 SSL settings Figure 48. Sample of an externally signed certificate Cobalt RaQ 4 User Manual...

  • Page 140: Delete An Ssl Certificate

    Click SSL Settings on the left side. 4. Select Delete certificate from the pull-down menu at the bottom. 5. Click Save Changes. The RaQ 4 processes the information and regenerates the screen; the Certificate Request and Certificate windows are now blank. Site Usage The Site Usage feature allows the Site Administrator to monitor the amount of bandwidth consumed by Web, email and FTP traffic generated by a virtual site as...
  • Page 141 The Web, FTP and Email options also display a table for Other Usage Statistics. Click on any of the links in the Other Usage Statistics table for more detailed information. Figure 49. Sample summary of disk usage Cobalt RaQ 4 User Manual...

  • Page 142: Backup

    Internet Explorer or use a different browser software to restore the backup file. Manual backup A Site Administrator can manually back up data stored on the RaQ 4. On the Site Management screen, click Backup. The File Backup table appears. See Figure 50.
  • Page 143 file to restore data, you risk corrupting the data already stored on the server. Figure 50 shows the File Backup table for a virtual site. Figure 50. File Backup table for a virtual site Cobalt RaQ 4 User Manual...

  • Page 144: Scheduled Backup

    8. If the backup destination associated with your method of backup requires a password for access, enter the password in this field. This field is ignored for the NFS and anonymous FTP methods. See “Backup file locations” on page 132. 9. Click Save Changes. Cobalt RaQ 4 User Manual...
  • Page 145 Backup Figure 51 shows the Scheduled File Backup table for a virtual site. Figure 51. Scheduled File Backup table for a virtual site Cobalt RaQ 4 User Manual...

  • Page 146: Backup File Locations

    For volumes that do not require a user, the location should be \\windowspc\share For All Scheduled backups: • Ensure the target location is available and has enough disk space to hold the backup archive. Failure to do this may result in zero-length or truncated archives. Cobalt RaQ 4 User Manual...

  • Page 147: Restore

    file. Caution: The system does not merge the current and backed up data. When data is restored, any changes made to files on the RaQ 4 since the last backup are lost. Figure 52 shows the File Restore table for a virtual site.
  • Page 148 To restore a user home directory or a site, make sure the user or site already exists. When data is restored, the RaQ 4 and its corresponding parts (site, user and email) are returned to the exact state they were in prior to backup.

  • Page 149: Server Management

    Server management Server management If you are the RaQ 4 Administrator, you can return to the RaQ 4 Server Management screen. On the Site Management screen, click Server Management on the left. For more information on managing the RaQ 4 server, see Chapter 3, “RaQ 4 Server Management”.
  • Page 150 Chapter 4: Site Management Cobalt RaQ 4 User Manual...

  • Page 151: Using Services On A Site

    Chapter 5 Using Services on a Site This chapter describes the functions that site users can perform on the RaQ 4. As a site user, you can change your user name and password, set email options, monitor the use of disk space in your directory, back up and restore your files, send and receive email, and create and upload Web pages and other files.

  • Page 152: Modify Site User

    On the Personal Profile screen, click Modify User. The Modify User table appears. See Figure 53. Change the settings. ✍ Note: The RaQ 4 supports long passwords through the UI. For guidelines on choosing a password, see “Password guidelines” on page 27. Click Confirm Modify.

  • Page 153: Forward Email To

    Click Save Changes. Forward email to You can forward your RaQ 4 email to another email account. In the Email Settings table, enter the destination email address in the Forward Email To field. Click Save Changes. Vacation reply You can create a vacation-reply message that is automatically sent to each person who sends you email.

  • Page 154: Usage Data

    (MB) • a usage bar showing how much space has been used (percentage) Figure 55 shows the Disk Usage table for a site user. Figure 55. Disk Usage table Cobalt RaQ 4 User Manual...

  • Page 155: Backup

    file transfer fails for any other reason, delete the partial backup file stored on your personal computer and try again. If you attempt to use a partial file to restore data, you risk corrupting the data already stored on the server. Cobalt RaQ 4 User Manual...
  • Page 156 file MUST have the extension .raq in order for the Restore function to work properly. 3. When you are ready to perform the backup, click Backup My Files. Figure 56 shows the File Backup table for a site user. Figure 56. File Backup table Cobalt RaQ 4 User Manual...

  • Page 157: Restore

    Web files). It does NOT restore virtual sites or site users to a RaQ 4. To restore the backed-up files (from your local disk to your RaQ 4 home directory): On the Personal Profile screen, click Restore on the left. The File Restore table appears.

  • Page 158: Using Email On The Raq 4

    Chapter 5: Using Services on a Site Using email on the RaQ 4 To use all of the email capabilities on the RaQ 4, the RaQ 4 Administrator must correctly set the parameters for the email server; see “Email server” on page 53.

  • Page 159: Developing Web Pages

    Use FTP to upload .cgi and .pl files; use ASCII mode to upload CGI files. Once the file is on the RaQ 4, use your FTP program to make the script executable. You can also use the telnet command: chmod 775 <filename>.cgi.

  • Page 160: Publishing Web Pages Using Ftp

    Note: For more information about the directory structure on the RaQ 4, see “Directory structure” on page 175. After creating your Web pages, you can publish them on the RaQ 4 using an FTP-based application. Make sure you have the following information: •...

  • Page 161: Publishing Web Pages With Frontpage For User Webs Only

    For example, the user Jason Paez would enter http://test130.cobalt.com/~jpaez/ Click OK. An authentication dialog appears. Enter your user name and password assigned to you on the RaQ 4. Click OK. For FrontPage and FrontPage Web information and technical support, see http://www.microsoft.com/frontpage/ and http://www.rtr.com/.

  • Page 162: Using Telnet

    An advanced user is someone who is proficient in the internal workings of the Unix operating system. The RaQ 4 Administrator can enable the telnet feature for a virtual site. If the telnet feature has been enabled, the Site Administrator can then enable telnet access for individual site users;...

  • Page 163: A Using The Lcd Console

    • reboot, which restarts the entire RaQ 4 • power down in a way that allows the RaQ 4 to close all open files, and minimizes startup time the next time the RaQ 4 is powered on • exit from the LCD commands without making any changes Important: Before turning off the RaQ 4, follow the proper power- down procedure, as described in “Powering down”...

  • Page 164: Changing Network Configuration

    Use the arrow buttons to toggle the cursor between [S]ave and [C]ancel. 10. Press the button. If you select the Save option, the RaQ 4 reboots using the new network configuration. If you select Cancel, you return to step 1 of this procedure. ✍...

  • Page 165: Configuring An Uninterruptible Power Supply (Ups)

    Configuring an uninterruptible power supply (UPS) Configuring an uninterruptible power supply (UPS) The are two options for configuring the RaQ 4 for a UPS: as the master or as a slave. The master communicates directly to the UPS through the serial port. The slave (or slaves) communicates with a master (not a RaQ 4 server) over the network to verify the status of the power supply.
  • Page 166 Appendix A: Using the LCD Console To configure the RaQ 4 for the UPS, first connect the UPS unit and the RaQ 4, and then configure the RaQ 4 through the LCD panel. (Refer to the UPS manual for more information on connecting the devices.) Plug the UPS into the wall socket.

  • Page 167: Verifying The Ups Configuration

    Unplug the UPS unit from the wall socket to simulate a power outage to the UPS. The UPS takes over the power supply to the RaQ 4 servers. Each of the RaQ 4 servers monitoring the UPS displays on the LCD screen:...

  • Page 168: Rebooting

    Use the arrow buttons to toggle the cursor between [Y] and [N]. Select [Y] to reboot the system. Press the button. ✍ Note: You can also reboot the RaQ 4 through the Web browser. See “Reboot” on page 85. Cobalt RaQ 4 User Manual...

  • Page 169: Powering Down

    Caution: To prevent the potential loss of data, it is important to follow the proper power-down procedure before turning off the RaQ 4. To power down the RaQ 4: On the LCD console, hold down the button for approximately 2 seconds.
  • Page 170 Appendix A: Using the LCD Console Cobalt RaQ 4 User Manual...

  • Page 171: B Product Information

    Appendix B Product Information Technical data for the RaQ 4 Hardware Depending on the configuration, your RaQ 4 server has the following hardware components. See Table 1 on page 2 for more information. • x86-compatible superscalar processor • 512 KB of L2 cache •...

  • Page 172: Software

    Appendix B: Product Information Software The RaQ 4 has the following software features. Features • Linux 2.2 multitasking operating system • Apache 1.3.12 Web server, HTTP/1.1 compliant • Virtual hosting services: name-based and IP-based • Common gateway interface (CGI) support •...

  • Page 173: System Management

    • SSL support for secure administration • Simple Network Management Protocol (SNMP) management support • Browser-based Setup Wizard • Browser-based RaQ 4 server management and individual virtual site management interfaces • Online ActiveAssist real-time help • ActiveMonitor maintenance agents •...

  • Page 174: Regulatory Approvals

    5% to 93% humidity (non-condensing) • Light-emitting diodes (LEDs): Power, Transmit/Receive, Link, Collision, 100 Mb/s Operation, Disk Activity, Web Activity Regulatory approvals • CISPR 22B • VCCI-B • • C-UL • • • Austel • BSMI/BCIQ • Cobalt RaQ 4 User Manual...

  • Page 175: Upgrading Your Raq 4

    RaQ 4 from the rack and take it to a service area. Do not attempt this upgrade while the RaQ 4 is still in the equipment rack. 4. Unscrew the top cover of the RaQ 4. Ten screws hold the top cover in place. The screws are labeled 1 through 10 in Figure 59.

  • Page 176: Adding A Memory Module Or Pci Card

    Secure the top cover properly and replace the ten screws that hold the top cover in place. See Figure 59. Figure 59 shows how to remove the top cover of the RaQ 4. Figure 59. Top cover on the RaQ 4...

  • Page 177: Printed Circuit Board

    Upgrading your RaQ 4 Printed circuit board Figure 60 shows the layout of the printed circuit board PCB) in the RaQ 4. ✍ Note: The base RaQ 4 server configuration does not offer all of the hardware components shown in Figure 60.

  • Page 178: Adding Or Replacing A Hard Disk Drive In A Raq 4

    Appendix B: Product Information Adding or replacing a hard disk drive in a RaQ 4 If you have the base RaQ 4 server configuration, you can replace a failed hard disk drive but you cannot add a second hard disk drive.

  • Page 179: Requirements

    If the RaQ 4 is mounted on an equipment rack, remove the RaQ 4 from the rack and take it to a service area. Do not attempt this upgrade while the RaQ 4 is still in the equipment rack.

  • Page 180: Opening The Raq 4

    Power down the RaQ 4. See “Powering down” on page 155. Unplug the RaQ 4 from the power supply. Remove the power cord from the rear of the RaQ 4. The cable is located beside the power switch. See Figure 2 on page 5.
  • Page 181 Upgrading your RaQ 4 Figure 61 shows the layout of the IDE cables in the RaQ 4. Figure 61. Layout of the IDE cables Cobalt RaQ 4 User Manual...
  • Page 182 Appendix B: Product Information Figure 62 shows the layout of the power cables in the RaQ 4. Figure 62. Layout of the power cables Cobalt RaQ 4 User Manual...

  • Page 183: Removing A Hard Disk Drive

    Place the hard disk drive in the bracket. On the underside, attach the hard disk drive to the bracket with the four screws. Caution: Be careful not to pinch the cables under the bracket when you replace the bracket on the chassis. Cobalt RaQ 4 User Manual...

  • Page 184: Connecting The Hard Disk Drive

    Power up the RaQ 4. The RaQ 4 boots up in the normal manner. If you have added a second hard disk drive to a RaQ 4i server, you now have to add (through the RaQ 4 UI) the second drive to the list of available storage devices; see “Storage” on page 82.

  • Page 185: C Advanced Information

    Serial console port You can connect a console terminal to the DB-9 connector on the back panel of the RaQ 4. The terminal can be either an ASCII terminal or a PC running terminal software. The console terminal should have the following communications parameters—115 200 baud, 8 data bits, no parity and one stop...
  • Page 186 • 1 stop bit Power on the RaQ 4 with the power switch on the back panel. A number of boot messages are displayed on your terminal screen. 4. The first prompt asks for an IP address. Enter the Primary IP address for the RaQ 4 (for example, 10.9.19.55).

  • Page 187: Development Tools

    You can run most pre-compiled x86-based commercial software packages on the RaQ 4, as long as the software does not require a mouse, keyboard or monitor. Ensure that the software is compatible with the Linux 2.2 kernel and the glibc library.

  • Page 188: Configuration Files

    Appendix C: Advanced Information Configuration files If necessary, you can change some of the configuration files for the RaQ 4 services for development purposes, but this may void your warranty. Please read your warranty card before making any changes. Caution: Changing any of the following configuration files can dramatically affect the operation of the services configured by...

  • Page 189: Directory Structure

    Directory structure Directory structure The hard disk drive on the RaQ 4 is partitioned into four segments. Most of the available space on the hard disk drive is on the partition mounted from . It /home is recommended to do most of your work under this partition. By default, quotas are turned on in this partition and are used extensively by the system software.

  • Page 190: Site User Home Page

    CGI file is executable and the file ends with a .pl or .cgi extension. The Web server is configured to execute CGI scripts using a wrapper program (cgiwrap), which preserves the permissions set for the executing script. For more information regarding this security precaution, refer to http://www.umr.edu/~cgiwrap/ Cobalt RaQ 4 User Manual...

  • Page 191: Scripting Languages Available Per Site

    You can save PHP files in any directory on your site, provided that support for PHP embedded scripting is enabled, the PHP file is executable and the file ends with a .php extension. The RaQ 4 is pre-configured with support for embedded PHP scripts. Cobalt RaQ 4 User Manual...
  • Page 192 Appendix C: Advanced Information Cobalt RaQ 4 User Manual...

  • Page 193: D Domain Name System

    Each domain name requires a primary domain authority on one DNS server. A secondary DNS server acts as a backup to the primary. DNS information is configurable only on the primary server, and not on the backup server. Cobalt RaQ 4 User Manual...

  • Page 194: Enabling The Dns Server Feature

    Your Internet service provider (ISP) can help you register your Internet server. To configure a primary DNS server for your RaQ 4: On the Server Management screen, click Control Panel. The Service Settings table appears.

  • Page 195: Specifying A Reverse Lookup (Ptr) Record

    (for example, 24). 5. In the Delivery Preference field, you can choose from the pull-down menu Very Low, Low, High or Very High. 6. Click Update List. 7. Click Save Changes to DNS Server. Cobalt RaQ 4 User Manual...

  • Page 196: Specifying An Alias (Cname) Record

    6. Click Save Changes to DNS Server. Configuring a secondary DNS server As the RaQ 4 Administrator, you can configure a secondary DNS server to provide redundant DNS service to your computers. If the primary DNS server is turned off, a computer can use the secondary DNS server with no loss of performance.

  • Page 197: Adding A Secondary Domain

    3. Select Secondary Name Service for Network from the Add... pull-down menu. 4. Enter the network to be serviced and the IP address of the primary DNS server. 5. Click Update List. 6. Click Save Changes to DNS Server. Cobalt RaQ 4 User Manual...

  • Page 198: Advanced Dns

    Use Table 6 to convert between dot-quad and network mask bit-count notations. Table 6. Network Mask Notation Conversion Dot-Quad Bit count 255.0.0.0 255.128.0.0 255.192.0.0 255.224.0.0 255.240.0.0 255.248.0.0 255.252.0.0 255.254.0.0 255.255.0.0 255.255.128.0 255.255.192.0 255.255.224.0 255.255.240.0 255.255.248.0 255.255.252.0 255.255.254.0 255.255.255.0 255.255.255.128 255.255.255.192 255.255.255.224 Cobalt RaQ 4 User Manual...

  • Page 199: Delegating A Subdomain

    DNS servers are organized hierarchically. You can delegate the name server authority for subdomains of any domain served by the RaQ 4 to other name servers. For example, domain.com can be served authoritatively by a RaQ 4 by defining an Address (A) Record using that domain.

  • Page 200: Delegating A Subnet

    Click Parameters next to the DNS service in the Service Settings table. 3. Select Server Settings from the Add... pull-down menu. 4. If the RaQ 4 is being used on a private network or in conjunction with a restrictive firewall, you can specify forwarding servers.

  • Page 201: Start Of Authority (Soa) Configuration

    The first record in the record list is called the Start of Authority (SOA) record. Click the green pencil icon to modify the SOA record. The SOA record defaults to acceptable values in the majority of RaQ 4 configurations. You can fine tune the values for the following parameters: •...

  • Page 202: Name Server (Ns)

    Appendix D: Domain Name System Name server (NS) The primary name server defaults to the host name of the RaQ 4. You can specify the qualified host name of the secondary DNS server for that domain in the Secondary Name Server (NS) host name field. Some top-level domain registration organizations require that the secondary name server record be defined.

  • Page 203: Sample Setup Of Dns Service

    Internet Corporation for Assigned Names and Numbers (ICANN) at http://www.icann.org. You have created the Web site on the RaQ 4. For instructions on how to do this, see “Developing Web pages” on page 145 and “Directory structure” on page 175.
  • Page 204 Click Save Changes. The browser screen refreshes. Click Parameters next to the DNS service in the Service Settings table. The DNS Settings table appears, as in Figure 63. Figure 63. DNS Settings table Cobalt RaQ 4 User Manual...

  • Page 205: Create An Address (A) Record

    Ensure the check box for Automatic Reverse Address Record Generation is checked. This automatically creates the Reverse Address (PTR) Record. Click Update List. The DNS Settings table is regenerated showing mydomain.com, as in Figure 64. Figure 64. DNS Settings table (mydomain.com) Cobalt RaQ 4 User Manual...

  • Page 206: Create A Second Address (A) Record

    Remove the check from the check box for Automatic Reverse Address Record Generation. 2. Click Update List. The DNS Settings table is regenerated showing mydomain.com and www.mydomain.com, as in Figure 65. Figure 65. DNS Settings table (mydomain.com and www.mydomain.com) Cobalt RaQ 4 User Manual...

  • Page 207: Create A Mail Server (Mx) Record

    If you exit this screen without saving your changes, they will not become active. The completed DNS Settings table is regenerated as in Figure 66. Figure 66. Completed DNS Settings table Cobalt RaQ 4 User Manual...

  • Page 208: Brief History Of The Domain Name System (Dns)

    In 1984, the architecture of a new system called Domain Name System (DNS) was designed and is the basis of the DNS service used today on the Internet. Cobalt RaQ 4 User Manual...

  • Page 209: What Is A Dns Record

    The basic method that allows a domain name to direct customers to your Web site is shown in Figure 67. This diagram describes a request made by a Web browser as the customer attempts to log on to your Web site. Cobalt RaQ 4 User Manual...
  • Page 210 The company Web server sends the Web page to the local name server. Figure 67. Basic method of DNS Local Root-level name server InterNIC name server Target Primary Secondary machine name server name server (www.xyz.com) Cobalt RaQ 4 User Manual...

  • Page 211: E Licenses

    OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Cobalt RaQ 4 User Manual...

  • Page 212: Gnu General Public License

    Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. Cobalt RaQ 4 User Manual...
  • Page 213 In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. Cobalt RaQ 4 User Manual...
  • Page 214 Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated, so long as such parties remain in full compliance. Cobalt RaQ 4 User Manual...
  • Page 215 This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. Cobalt RaQ 4 User Manual...
  • Page 216 Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. Cobalt RaQ 4 User Manual...
  • Page 217 LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Cobalt RaQ 4 User Manual...

  • Page 218: Ssl License

    BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Cobalt RaQ 4 User Manual...

  • Page 219: F Glossary

    Appendix F Glossary The entries in this glossary are for your information. Not all of the concepts, technologies and protocols apply to the RaQ 4 server. 10/100 BaseTX An Ethernet connection over twisted-pair cables with a throughput of 10 Mb/s or 100 Mb/s.
  • Page 220 A protocol that requires carrier sense and in which a transmitting data station that detects another signal while transmitting stops sending, sends a jam signal and then waits for a variable period of time before sending again. Used in ethernet LAN technology. See Common gateway interface (CGI). Cobalt RaQ 4 User Manual...
  • Page 221 6.1 Mb/s. More typically, individual connections provide from 512 kb/s to 1.544 Mb/s downstream and about 128 kb/s upstream. A DSL line can carry both data and voice signals and the data part of the line is continuously connected. See Domain Name System (DNS). Cobalt RaQ 4 User Manual...
  • Page 222 See Extended Simple Mail Transfer Protocol (ESMTP). Ethernet The most widely used technology for local area networks (LANs). Standard ethernet runs at 10 Mb/s, 100 Mb/s or 1000 Mb/s. It balances speed, price, ease of installation and availability. Cobalt RaQ 4 User Manual...
  • Page 223 A network device that acts as an entrance to another network. A gateway can also be any device that passes packets from one network to another network across the Internet. HTML See HyperText Markup Language (HTML). Cobalt RaQ 4 User Manual...
  • Page 224 Fast Ethernet. Physical variations of the original IEEE 802.3 specification include 10Base2, 10Base5, 10BaseF, 10BaseT and 10Broad36. Physical variations for Fast Ethernet include 100BaseT, 100BaseT4 and 100BaseX. IMAP See Internet Message Access Protocol (IMAP). Cobalt RaQ 4 User Manual...
  • Page 225 An Internet domain is a host-naming convention used to ensure that no two individual hosts on the global Internet have the same host name. An Internet domain should not be confused with an NT Domain. Cobalt RaQ 4 User Manual...
  • Page 226 A subnet mask is used to extract network and subnetwork information from the IP address. Also called an Internet address. IP Masquerading See Network Address Translation (NAT). ISDN See Integrated Services Digital Network (ISDN). Cobalt RaQ 4 User Manual...
  • Page 227 Media access control (MAC) sublayer The lower of the two sublayers of the data link layer defined by the IEEE. The MAC sublayer handles access to shared media, such as whether token passing or contention is used. Cobalt RaQ 4 User Manual...
  • Page 228 Internet. This protocol is capable of synchronizing distributed clocks within milliseconds over long time periods. Some configurations include cryptographic authentication to prevent accidental or malicious protocol attacks. See Network Time Protocol (NTP). Cobalt RaQ 4 User Manual...
  • Page 229 PPP is a full-duplex protocol that can be used on various physical media, including twisted pair, fiber optic lines or satellite transmission. It uses a variation of High Speed Data Link Control for packet encapsulation. PPP can handle synchronous as well as asynchronous communication. Cobalt RaQ 4 User Manual...
  • Page 230 The mail is then read using POP or IMAP. See also Internet Message Access Protocol (IMAP) and Simple Mail Transfer Protocol (SMTP). See Point-to-Point Protocol. PPPoE See Point-to-Point Protocol over Ethernet. RAID See Redundant Array of Independent Disks (RAID). Cobalt RaQ 4 User Manual...
  • Page 231 On the Internet, the root name server system is the manner in which an authoritative master list of all top-level domain names (such as .com, .net, .org and individual country codes) is maintained and made available. SCSI See Small Computer System Interface (SCSI). Cobalt RaQ 4 User Manual...
  • Page 232 In addition, all data sent over an encrypted SSL connection is protected with a mechanism for detecting tampering—that is, for automatically determining whether the data has been altered in transit. See also Authentication and Encryption. Cobalt RaQ 4 User Manual...
  • Page 233 Simple Network Management Protocol (SNMP) A network management protocol used almost exclusively in TCP/IP networks. SNMP provides a means to monitor and control network devices, and to manage configurations, statistics collection, performance and security on a network. Cobalt RaQ 4 User Manual...
  • Page 234 A common name for the suite of protocols developed in the 1970s to support the construction of worldwide internetworks. TCP and IP are the two best-known protocols in the suite. The TCP/IP protocols enable computers and networks to connect to an intranet or Internet. Cobalt RaQ 4 User Manual...
  • Page 235 FTP account can only be enabled on one virtual site per IP address hosted by the RaQ 4. The IP address of the RaQ 4 can be shared by many virtual sites or it can be unique to one virtual site.
  • Page 236 Appendix F: Glossary Cobalt RaQ 4 User Manual...

  • Page 237: Index

    Advanced DNS 184 manual 128 configuring server settings 186 scheduled 130 delegating a subdomain 185 Bandwidth management, virtual delegating a subnet 186 site 65 domain administrator email address 188 expire interval 188 name server 188 Cobalt RaQ 4 User Manual...
  • Page 238 Index Basic DNS 179 Connecting configuring power cord 21 primary DNS server 180 RaQ 4 to the network 21 secondary DNS server 182 Connector description 179 network 5 enabling DNS server 180 SCSI 5 record serial 5 address (A) 189...
  • Page 239 Index Directory structure 175 delegating CGI usage 176 subdomain 185 RaQ 4 home page 175 subnet 186 server-side scripting domain administrator email languages 177 address 188 site user home page 176 enabling 180 virtual site home page 175 expire interval 188...
  • Page 240 How does DNS work 195 Forwarding email 102 Front view 4 Icons 11 LCD arrow buttons 4 Initializing the RaQ 4 through the LCD screen 4 serial console port 171 logo badge 4 Install software on RaQ 4 80 reset password 4...
  • Page 241 80 from CD-ROM 81 from Cobalt Web site 81 OK to power off 5 remotely 81 Online registration of the RaQ 4 29 rebooting 85 Online Technical Papers 15 restore Organization of user manual 8 RaQ 4 server 77 Output bandwidth management.
  • Page 242 Power cord iv front view 4 Power socket 5 host name 41 Power switch 5 initializing through the serial Powering down the RaQ 4 155 console port 171 Powering on the RaQ 4 21 IP address 41 Primary DNS server maintenance 71...
  • Page 243 97 Requirements support tools 86 browsers v system status 89 equipment rack iv services 92 for the RaQ 4 6 system components 91 Resources target audience 6 Developer Network 14 virtual site, definition 35 Discussion Groups 15 Rear view 5...
  • Page 244 SNMP agent 59 authority 123 telnet server 58 suspend site user 116 Web server 53 suspend virtual site, soft 115 Setting up the RaQ 4 19 user management 97 Setup Wizard 25 Site services 137 network settings 26 email options 138...
  • Page 245 126 memory 91 description 118 network 91 enable on virtual site 119 enter info from external certification authority 124 Target audience, RaQ 4 6 externally signed certificate 119 Technical data. See Product generate self-signed specifications. certificate 120 Technical Support 13...
  • Page 246 113 authority 124 default settings 46 externally signed definition 35 certificate 119 directory structure generate self-signed home page 175 certificate 120 domain name 41 license 204 email server alias 42 main site certificate 123 Cobalt RaQ 4 User Manual...
  • Page 247 CGI scripts 145 server-side scripting languages 145 publishing pages FrontPage 147 FTP 146 Web browser requirements v setting up the RaQ 4 24 Setup Wizard 25 Web server control panel 53 status 92 Web server alias 41 Webmaster account for FrontPage 42...
  • Page 248 Index Cobalt RaQ 4 User Manual...

Table of Contents
