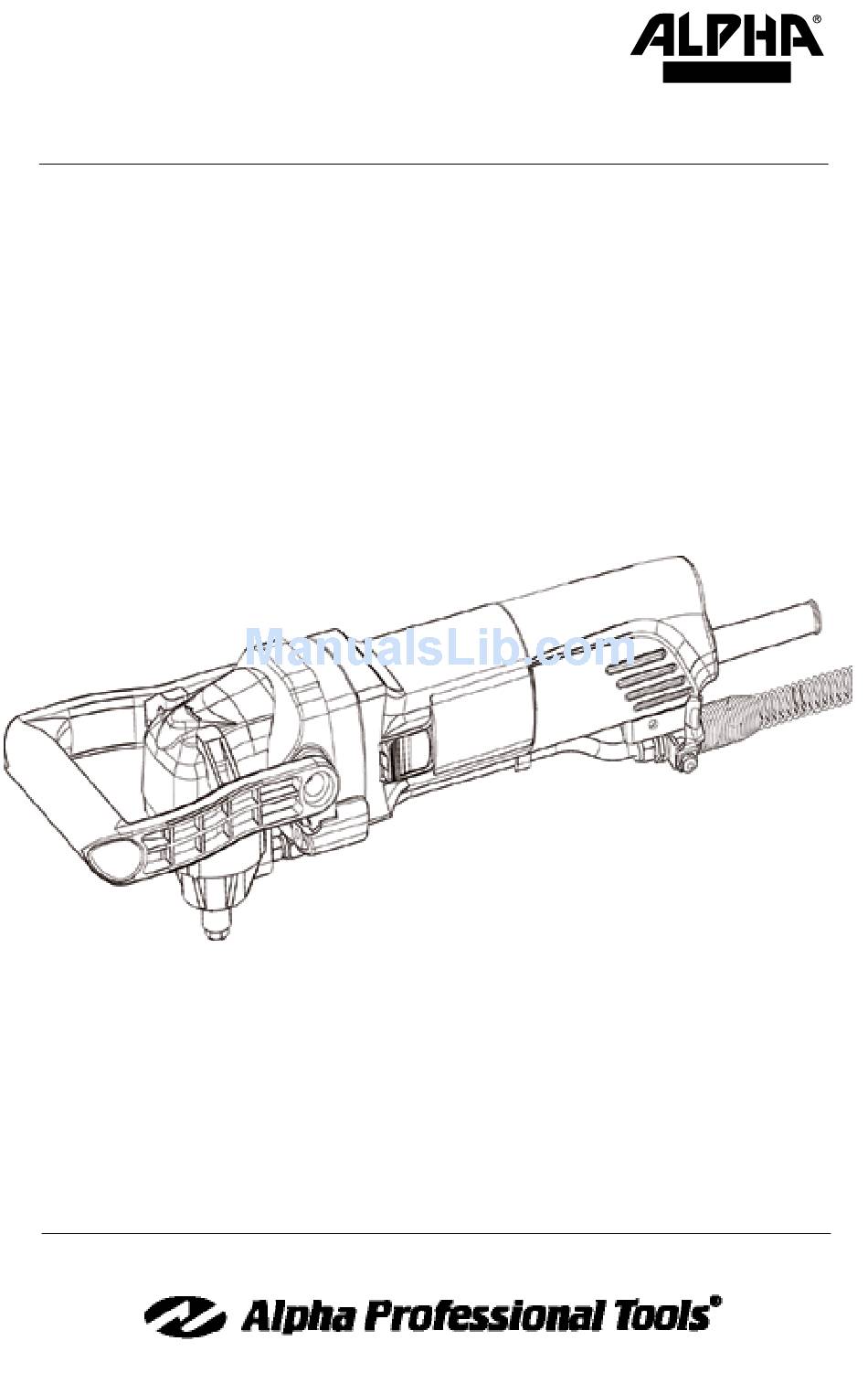

  • Page 1 MANUAL Alpha Variable ® Speed Polisher Instruction Manual Part No: VSP-110 / VSP-220 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com...
  • Page 2: Table Of Contents

    Introduction ........................3 About the Symbols ....................3 Safety Instructions ......................3 For Safe Operation....................3 Additional Precautions for Using the VSP-110 ............. 6 About Double Installation ..................7 Preparation Before Operation ................8 Laws and Regulations Regarding Noise Levels............ 8 VSP-110 Overview .......................
  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the Alpha Wet Polisher. Please read this instruction manual ® thoroughly to ensure safety and correct use of the polisher. Keep this manual in a place where operators can access it easily whenever necessary. ABOUT THE SyMBOLS According to the hazard level, all safety notes in this manual are classified into “DANGER”, “WARNING”, and “CAUTION”.
  • Page 4 Consider work area environment Do not expose power tools to rain. Do not use power tools in damp or wet locations without GFCI protection. Keep work areas well lit. Do not use the tool in presence of flammable liquids or gases. Guard against electric shock Prevent body contact with grounded surfaces.
  • Page 5 15. Remove adjusting keys and wrenches Check to see that keys and adjusting wrenches are removed from the tool before turning it on. 16. Avoid unintentional starting Do not carry a plugged-in tool with finger on switch. Be sure the switch is off when plugging in. 17. Outdoor use extension cords When tool is used outdoors, use only extension cords intended for use outdoors and so marked.
  • Page 6: Additional Precautions For Using The Vsp-110

    Failure to do so may cause an injury due to high impact at initial start up. 4. Stop using the polisher immediately when noticing any malfunctions or any suspicious abnormal noises. Turn the power switch OFF and contact your dealer or Alpha Professional Tools for repair. 5. Handle the polisher with care.
  • Page 7: About Double Installation

    WARNING! 10. Attach the backer pad and polishing disc correctly by following the procedure in this instruction manual. Attaching the polishing discs incorrectly may cause an accident. 11. Observe any suspicious abnormal noises when a polishing disc is attached for the first time and polisher is turned ON.
  • Page 8: Preparation Before Operation

    PREPARATION BEFORE OPERATION 1. GFCI Information. – Since the Alpha Wet Polisher is designed with double insulation, an in-line GFCI is ® provided as a standard accessory. For your safety and to prevent possible electric shocks, it is strongly advised to test the GFCI on a regular basis. Note: The GFCI must be used for your safety when this polisher is used anywhere in a damp environment, when used with water, or when it is used on...
  • Page 9: Vsp-110 Overview

    VSP-110 OVERVIEW Speed Adjuster Power Switch “C” Handle Water Valve In-line GFCI Water Line Center Water Feed Garden Hose Adapter SPECIFICATIONS Working Power Supply ........... Single-phase AC, 50/60 Hz Voltage ................110V / 220V Plug Type ............... A (110V) / C (220V) Amperage ...............
  • Page 10: Accessories

    ACCESSORIES    STANDARD ACCESSORIES: Side Handle Wrench Spare Set of Carbon Brushes...
  • Page 11: Before Use

    BEFORE USE: DANGER! Before using the polisher, check the following items before plugging the power supply cord into the power outlet. 1. Check the working voltage. Be sure that the voltage specified on the name plate is the voltage available at the power outlet. Do not use polisher with voltage higher than specified on the name plate. Make sure the ON/OFF switch is in the OFF position. SWITCHING ON AND OFF ON POSITION Switching on: Push power switch to the forward position until...
  • Page 12: Ground Fault Circuit Interrupter (Gfci)

    GROUND FAULT CIRCUIT INTERRUPTER (GFCI) A Ground Fault Circuit Interrupter is built in line with the power supply cord. The GFCI goes OFF when water enters inside the tool’s housing preventing the operator from electric shocks. CAUTION When the GFCI goes OFF, this could be the result of water entering the polisher housing.
  • Page 13: Variable Speed Adjustment

    VARIABLE SPEED ADjUSTMENT This polisher is equipped with a variable speed control that DECREASE SPEED will allow the spindle speed to be adjusted from 1,600 RPM to 2,800 RPM. Speed adjustment is controlled by rotation of the wheel as shown in the Figure 4. INCREASE SPEED NOTE- Wheel numbers are for reference point of mo- tor speed (#1 is 1,600 RPM and #6 is 2,800RPM).
  • Page 14: Side Handle Installation

    SIDE HANDLE INSTALLATION To switch from center handle to side handle follow the steps below: STEP 1 Remove both side screws from center handle as shown in Figure 8. Figure-8 STEP 2 Pull handle forward and clear of polisher as shown in Figure 9. Figure-9 STEP 3 Thread side handle into either...
  • Page 15: Backer Pad And Other Approved Spindle Attachments

    BACKER PAD AND OTHER APPROVED SPINDLE ATTACHMENTS This polisher has a 5/8” - 11 center water feed spindle thread. To attach a polishing backer pad or other approved spindle attachments follow the steps below: Screw the attachment onto the spindle by hand as shown in Figure 11. Figure-11 Tighten with supplied wrench as shown in Figure 12.
  • Page 16: Maintenance

    MAINTENANCE DAILy: CAUTION Before servicing polisher turn the switch off and disconnect from power supply. Before daily start-up inspect polisher, power cord, GFCI, and water feed system for loose hardware and/or damage. If damage has occurred, repair affected areas before use. After daily use of the tool, clean exterior and drain center water-feed system.
  • Page 17: Rear Cover Removal For Carbon Brush Replacement

    REAR COVER REMOVAL FOR CARBON BRUSH REPLACEMENT Gently pull water tube away from holder as shown in Figure 14. Figure-14 Release tube from holder as shown in Figure 15. Figure-15 Unwrap 3 inches of coiled harness as shown in Figure 16. Figure-16...
  • Page 18 Remove 2 screws from valve bracket as shown in Figure 17. Figure-17 Pull valve assembly away from mount as shown in Figure 18. Figure-18 Remove rear case screw as shown in Figure 19. Figure-19...
  • Page 19 Hold polisher with left hand and pull rear case straight back with the other hand as shown in Figure 20. NOTE: Do not twist case in a side to side motion when pulling back. Figure-20 Pull back rear case until carbon brush assembly is exposed as shown in Figure 21.
  • Page 20 Figure-22 Carbon Brush Spring Carbon Brush Holder Carbon Brush Wire Lift spring from carbon brush and place on the side of the brush holder as shown in Figure 23. Figure-23...
  • Page 21 10. R e m o v e c a r b o n b r u s h wire spade connector from terminal post as shown in Figure 24. Spade Connector Figure-24 11. Remove carbon brush from holder as shown in Figure 25. Figure-25 NOTE: Each polisher has 2 carbon brushes located on opposite sides of each other.
  • Page 22: Vsp-110 Schematic

    ALPHA VSP-110 SCHEMATIC ®...
  • Page 23: Vsp-110 Parts List

    ALPHA VSP-110 PARTS LIST ® DRAWING NO. PART NO. DESCRIPTION PIECES 210001 Screw M4x16 210002 Spring Washer 4 210003 Plain Washer 4 210004 Shower Bolt 210005/210080 Output Shaft 110V (5/8"-11) / 220V (M14-2) 210006 Key 3x10 210007 Gear Case Cover...
  • Page 24 ALPHA VSP-110 PARTS LIST ® DRAWING NO. PART NO. DESCRIPTION PIECES 210033 Screw M4x12 210034 Bearing Retainer 210035 O-Ring 21.2x1.8 210036 Ball Bearing 608 210037/210081 Armature 110V / 220V 210038 Ball Bearing 607 210039 Rubber Bearing Seat 210040 Windshield 210041 Screw ST4.2x70...
  • Page 25 The credit card will only be charged if the loaner tool is not returned to Alpha within 30 days. ® An authorized signature is required for the credit card being used. A second signature is required as an agreement of the overall policy. NEED MORE INFORMATION For information on Alpha Professional Tools complete product line, visit us on the web at ® www.alpha-tools.com...
  • Page 26: Ec Declaration Of Conformity

    ® workmanship for a period of 180 days from the date of original retail purchase (proof of purchase required). If Alpha Professional Tools receives notice of such defects ® during the warranty period, our obligation assumed under this warranty is limited to the repair or replacement of parts, without charge.
  • Page 27: Product Registration Card

    _________________________________ Dealer’s Name: Note: Serial & Model Number must be included for proper registration. (800) 648-7229 Mail or Fax to: Alpha Professional Tools ® 103 Bauer Drive, Oakland, NJ 07436 Fax: 800-286-0114 Photocopy of product registration form will be accepted.
  • Page 28 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com Copyright © 2005 Alpha Professional Tools. All rights reserved. Assembled in China Last revised: 11/2005...
