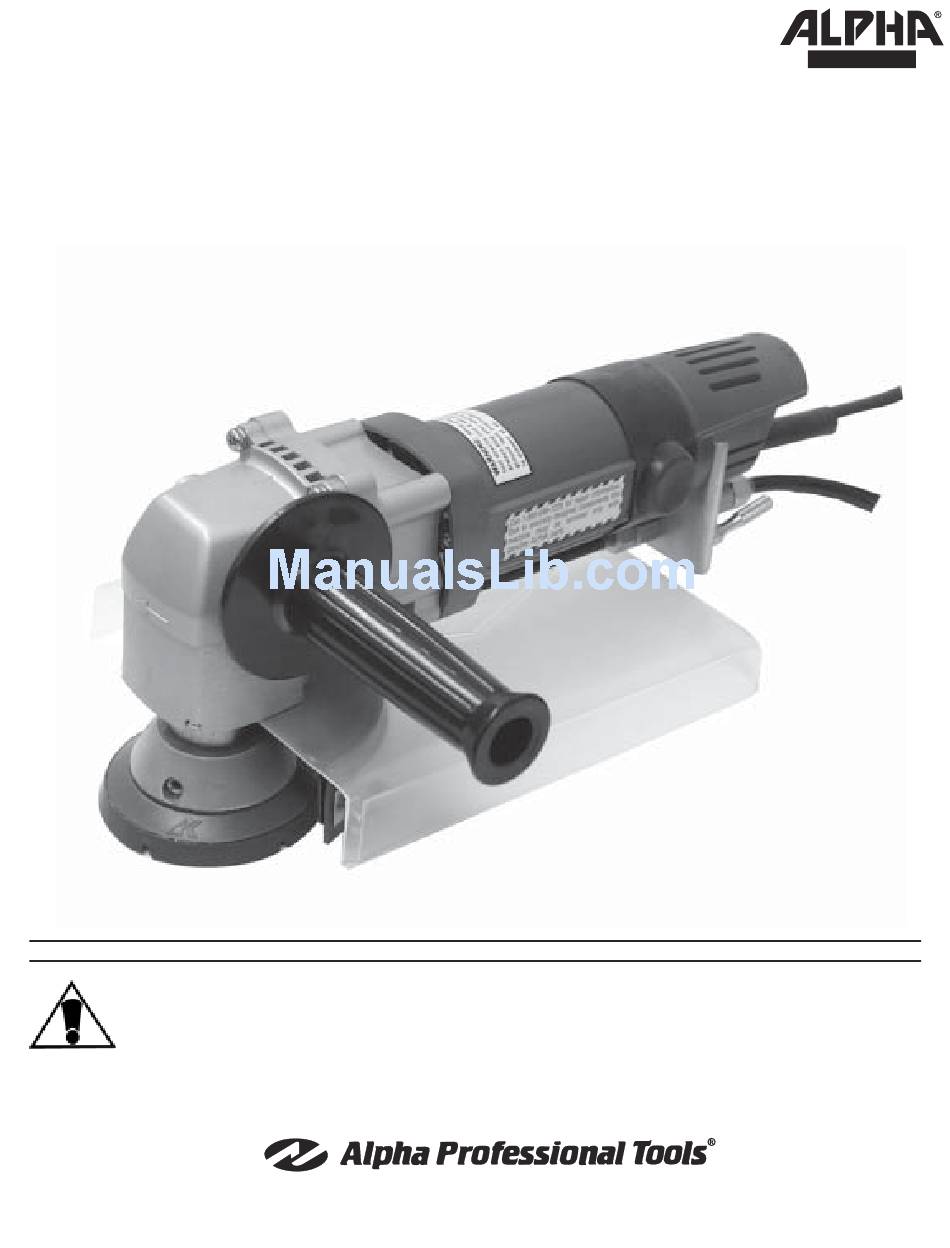

ELECTRIC TOOL

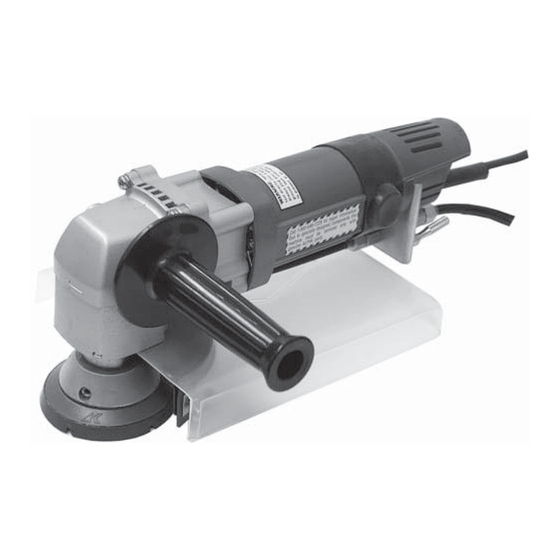

Alpha Electric Polisher
Instructional Guide
AEP-458 (110V - 50/60Hz)
Please read this instruction manual thoroughly to ensure safety and correct use of machine.
Keep this Manual in a place where operators can access it easily, anytime when necessary.
250 Braen Avenue, Wyckoff, NJ 07481 • 800-648-7229 • Fax: 201-447-1128
www.Alpha-Tools.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alpha Professional Tools AEP-458
Summary of Contents for Alpha Professional Tools AEP-458
- Page 1 ELECTRIC TOOL Alpha Electric Polisher Instructional Guide AEP-458 (110V - 50/60Hz) Please read this instruction manual thoroughly to ensure safety and correct use of machine. Keep this Manual in a place where operators can access it easily, anytime when necessary. 250 Braen Avenue, Wyckoff, NJ 07481 •...
- Page 2 ALPHA ELECTRIC POLISHER INSTRUCTION MANUAL Thank you for purchasing the Alpha Electric Polisher. This polisher is the workhorse of a complete polishing system. A wide range of accessories help you perform many different tasks. This tool lets you grind, shape, bevel, contour and polish all kinds of granite and marble.
-
Page 3: Table Of Contents
CONTENTS Precautions for the safe use of this machine..........3 1. Operating environment................3 2. Clothing and protective equipment............3 3. Before use....................3 4. Attaching a wheel..................4 5. During use....................4 6. After use.....................5 7. Precautions for using Alpha Electric Polisher..........6 Applications..........................7 Specifications.........................7 Part names..........................7 Standard accessories......................8 Alpha Hand Polishing System....................9 Preparations before starting a job..................15... -
Page 4: Precautions For The Safe Use Of This Machine
Precautions for the safe use of this machine Correct operation and regular maintenance are essential for the safe operation of this machine. Be sure to read safety notices in this manual carefully before using or servicing the machine. 1. Operating environment WARNING •... -
Page 5: Attaching A Wheel
CAUTION • Use the machine only for its designated applications. Do not use the machine for any purpose other than those specified in this manual. Do not use the machine for grinding or polishing metal and wood workpieces. This machine is specialized for processing of glass and natural stone. 4. -
Page 6: After Use
CAUTION • Use the machine after you have appropriate training and knowledge about it. Never permit an untrained person or a child to use the machine. • Handle the machine with care. If you accidentally drop, do not use the machine until checking that it is not cracked, deformed, or in any way damaged. -
Page 7: Precautions For Using Alpha Electric Polisher
Precautions for using the Alpha Electric Polisher. In addition to the general safety notices described on the preceding pages, please read and observe the following safety notices before using the machine. WARNING • Use protective cover. Be sure to attach the protective cover and use it during operation. The protective cover will protect the operator if the wheel breaks. -
Page 8: Applications
Application Grinding, sanding and polishing the corners of glass and natural stone. Grinding, sanding and polishing the straight edge of glass and natural stone. Grinding, sanding and polishing the bevel edge of glass and natural stone. Specifications Working power supply: Single-phase AC, 50/60 Hz Voltage: 115v (AEP-458) 220v (AEP-258) -
Page 9: Standard Accessories
Standard Accessories: Side Handle............1pc. 17 mm Wrench..........1pc. 26mm Wrench...........1pc. 15 Amp Ground Fault Interrupter.....1pc. Complete Water Supply Hose......1pc. Splash / Safety Guard........1pc. Carbon Brush............1pc. -
Page 10: Alpha Hand Polishing System
ALPHA HAND POLISHING SYSTEM The Alpha Wet Polishing System offers high quality, hand held, water-fed power tools to cover most common hand polishing applications in the stone and tile industries. High gloss polishes are easily achieved while reducing harmful dust and increasing safety. AEP-458 Page # GV Backer Pad... - Page 11 ALPHA RIGID BACKER PADS Alpha Professional Tools first introduced rubber backer pads with the AEP-458 electric polisher to promote the concept of wet polishing, which became the accepted method of polishing. Alpha recognized the need to add a rigid version of this backer pad to its product line for the straight edge or flat surface polishing applications.
- Page 12 ALPHA TWISTOUCH SYSTEM The New Alpha Twistouch System is a safe and long lasting TWISTOUCH ADAPTER polishing system that is quick and easy to use. The Twistouch System will increase performance and improve productivity, saving you time and money. The Twistouch Adapter is specially designed to accept Twistouch Turbo and Twistouch Backer Pads, which accept velcro backed accessories.
- Page 13 ALPHA CERAMICA THREE PART SYSTEM Alpha Ceramica is a three part system for polishing granite, hard marble and porcelain ceramics. Utilizing the best grade industrial diamonds and the best bond materials, Alpha Ceramica is sure to provide the best possible finish on your polished stone. Part 1: Ceramica Vitrified and Ceramica Metal •...
- Page 14 ALPHA TWISTOUCH TURBO New Alpha Twistouch Turbo works as part of the Alpha Twistouch System that replaces Alpha Turbo. The Alpha “Original” Turbo discs were a result of many years of research for a series of diamond grits specifically designed to polish flat granite areas. Before Turbo discs existed, hand polishing of flat granite was done with Ceramica –...
- Page 15 ALPHA FELT WHEELS The Alpha Felt Wheel is a very popular material for the final buff process in stone fabrication. Alpha Felt Wheels are Velcro™ backed buffing wheels designed for use with polishing powders, polishing pastes, and polishing bars to bring out a deep glossy finish on marble and delicate granite edges such as ogees &...
-
Page 16: Preparations Before Starting A Job
Preparation before starting a job Before using the machine, be sure to complete the following preparations. Installing a ground fault circuit interrupter. (GFCI) To prevent electrical shocks, be sure to install a ground fault circuit interrupt or between the main power supply and the cord of the machine. -
Page 17: How To Operate
Make sure that the switch is off. If you plug in the power cord without realizing that the switch is on, the machine will start, and may cause an accident. When the switch lever (see “Part names”) is tilted toward the ON label, the machine is turned on. When it is tilted toward the OFF label, the machine is turned off. - Page 18 1. When using the machine 1. WATER SUPPLY HOSE This hose may be connected to any faucet or garden hose. It is composed of a special kinkproof mate- rial. Replacements are available should the hose become damaged however. Water Supply Hose Garden Hose Screw on/off 2.
- Page 19 3. POWER SWITCH On/Off Switch 2. How to grind Make sure the water is flowing. Move the chamfer machine along the stone workpiece to grind it. Adjust the water flow, traveling speed and pressure while grinding. Switch operation When the switch lever (see “Part names”) is tilted toward the ON label, the machine is turned on.
-
Page 20: Maintenance And Inspection
Maintenance and inspection WARNING Be sure to unplug the cord from the outlet. Otherwise, the Unplug the power machine may start abruptly and it may cause an accident. cord from the outlet. Rubber gloves and waterproof safety boots Always be sure to wear rubber gloves and waterproof safety boots. If they are worn, cracked or have any holes in them, replace them. -
Page 21: If A Problem Occurs
If a problem occurs If the machine does not operate normally, do not try to repair it by yourself. Contact your dealer or Alpha Professional Tools. DANGER If this machine is disassembled, there may be a possibility of Never disassemble electrical shocks. -
Page 22: Schematic
AEP-458 Schematic Update Ver 2.0 July 96... -
Page 23: Parts List
PARTS LIST MODEL: ELECTRIC 458 ITEM # DESCRIPTION LIST PRICE SCHEMATIC # 416-01 HEAD (with sleeve) $ 14.36 416-02 BODY $ 23.61 416-03 END CASE $ 6.16 416-04 HEAD CAP $ 30.79 416-05 GEAR CASE (with sleeve) $ 18.99 416-06 GEAR SHAFT 5/8"-11 Thread $ 32.07 416-07 PROTECTOR BAND FOR DISC COVER $ 2.57... - Page 24 SCHEMATIC # ITEM # DESCRIPTION LIST PRICE $ 0.13 416-53 SET SCREW M5x16 $ 0.25 416-56 SET SCREW M4x45 $ 0.13 416-57 SET SCREW M4x10 $ 0.52 416-58 BOLT M4x10 $ 0.13 416-59 SET SCREW M5x25 $ 0.13 416-60 SET SCREW M4x60 $ 0.25 416-61 SELF TAPPING SCREW M4x12 $ 0.38...
-
Page 25: Declaration By The Manufactures
DECLARATION BY THE MANUFACTURER (amended directive 89/392/EEC - Annex II A) Name of manufacturer: Alpha Professional Tools Address of Manufacturer: 250 Braen Avenue Wyckoff, NJ, 07481 Herewith declares that: ELECTRIC TOOL: “Electric Polisher” Make: Alpha Professional Tools Type: AEP-458 / AEP-258 Serial No: between xxxxx and yyyyy inclusive.
