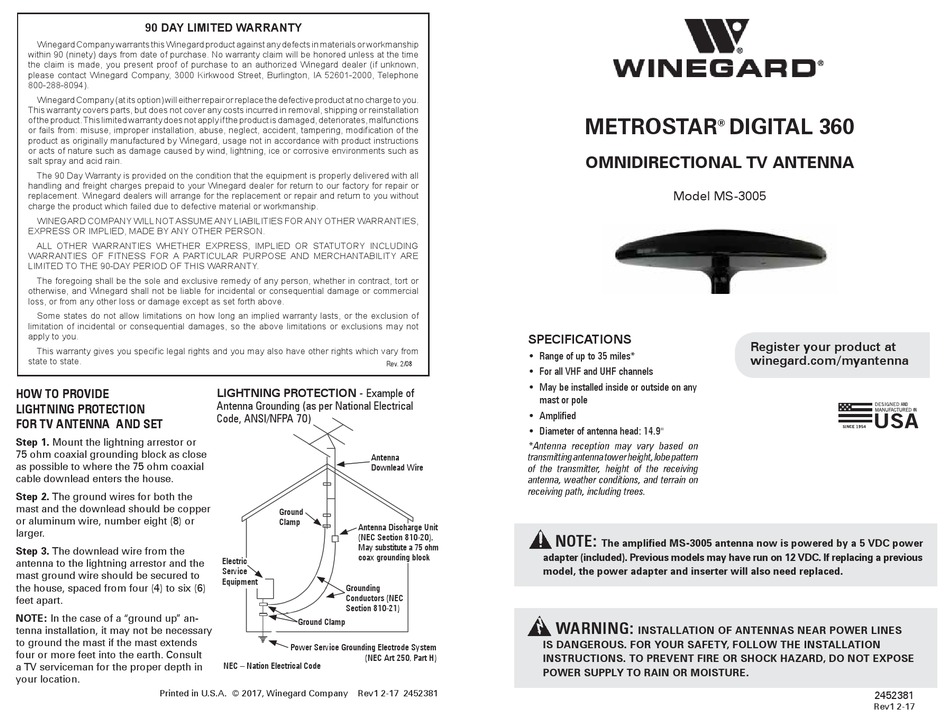

Winegard MS-3005 Installation Instructions

90 DAY LIMITED WARRANTY
Winegard Company warrants this Winegard product against any defects in materials or workmanship
within 90 (ninety) days from date of purchase. No warranty claim will be honored unless at the time
the claim is made, you present proof of purchase to an authorized Winegard dealer (if unknown,
please contact Winegard Company, 3000 Kirkwood Street, Burlington, IA 52601-2000, Telephone
800-288-8094).
Winegard Company (at its option) will either repair or replace the defective product at no charge to you.
This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation
of the product. This limited warranty does not apply if the product is damaged, deteriorates, malfunctions
or fails from: misuse, improper installation, abuse, neglect, accident, tampering, modification of the
product as originally manufactured by Winegard, usage not in accordance with product instructions
or acts of nature such as damage caused by wind, lightning, ice or corrosive environments such as
salt spray and acid rain.
The 90 Day Warranty is provided on the condition that the equipment is properly delivered with all
handling and freight charges prepaid to your Winegard dealer for return to our factory for repair or
replacement. Winegard dealers will arrange for the replacement or repair and return to you without
charge the product which failed due to defective material or workmanship.
WINEGARD COMPANY WILL NOT ASSUME ANY LIABILITIES FOR ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, MADE BY ANY OTHER PERSON.
ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY ARE
LIMITED TO THE 90-DAY PERIOD OF THIS WARRANTY.
The foregoing shall be the sole and exclusive remedy of any person, whether in contract, tort or
otherwise, and Winegard shall not be liable for incidental or consequential damage or commercial
loss, or from any other loss or damage except as set forth above.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of
limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from
state to state.
HOW TO PROVIDE
LIGHTNING PROTECTION
FOR TV ANTENNA AND SET
Step 1. Mount the lightning arrestor or
75 ohm coaxial grounding block as close
as possible to where the 75 ohm coaxial
cable downlead enters the house.
Step 2. The ground wires for both the
mast and the downlead should be copper
or aluminum wire, number eight (8) or
larger.
Step 3. The downlead wire from the
antenna to the lightning arrestor and the
mast ground wire should be secured to
the house, spaced from four (4) to six (6)
feet apart.
NOTE: In the case of a "ground up" an-
tenna installation, it may not be necessary
to ground the mast if the mast extends
four or more feet into the earth. Consult
a TV serviceman for the proper depth in
your location.
Printed in U.S.A. © 2017, Winegard Company
Rev. 2/08
LIGHTNING PROTECTION - Example of
Example of antenna grounding as per
Antenna Grounding (as per National Electrical
National Electrical Code, ANSI/NFPA 70
Code, ANSI/NFPA 70)
Antenna Lead
Antenna
In Wire
Downlead Wire
Ground
Ground
Clamp
Clamp
Antenna Discharge Unit
(NEC Section 810-20).
May substitute a 75 ohm
Electric
coax grounding block
Service Antenna
Electric
Equipment Discharge Unit
Service
(NEC Section 810-20)
Equipment (May substitute a 75 ohm
Grounding
Coax Grounding Block)
Conductors (NEC
Grounding Conductors
(NEC Section 810-21)
Section 810-21)
Ground
Ground Clamp
Clamps
Power Service Grounding
Power Service Grounding Electrode System
Electrode System
(NEC Art 250, Part H)
(NEC Art 250, Part H)
NEC – Nation Electrical Code
NEC - National Electrical Code
Rev1 2-17 2452381
METROSTAR

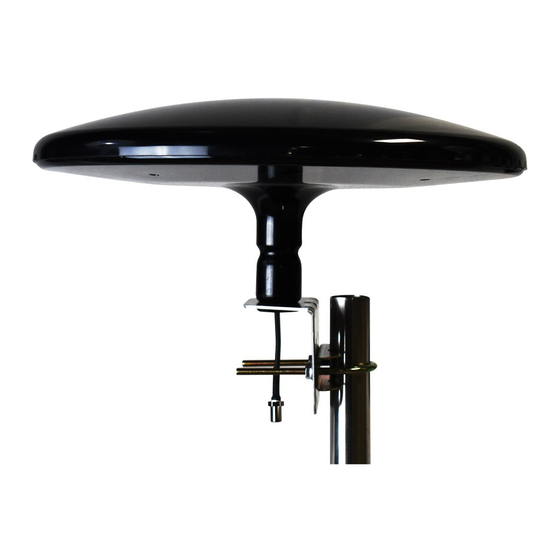

OMNIDIRECTIONAL TV ANTENNA
Model MS-3005

SPECIFICATIONS

• Range of up to 35 miles*
• For all VHF and UHF channels
• May be installed inside or outside on any
mast or pole
• Amplified
• Diameter of antenna head: 14.9"
*Antenna reception may vary based on
transmitting antenna tower height, lobe pattern
of the transmitter, height of the receiving
antenna, weather conditions, and terrain on
receiving path, including trees.
NOTE:
The amplified MS-3005 antenna now is powered by a 5 VDC power
adapter (included). Previous models may have run on 12 VDC. If replacing a previous
model, the power adapter and inserter will also need replaced.
WARNING:
INSTALLATION OF ANTENNAS NEAR POWER LINES
IS DANGEROUS. FOR YOUR SAFETY, FOLLOW THE INSTALLATION
INSTRUCTIONS. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
POWER SUPPLY TO RAIN OR MOISTURE.
DIGITAL 360
®
Register your product at
winegard.com/myantenna
2452381
Rev1 2-17
