Summary of Contents for Winegard RoadStar RS-3000

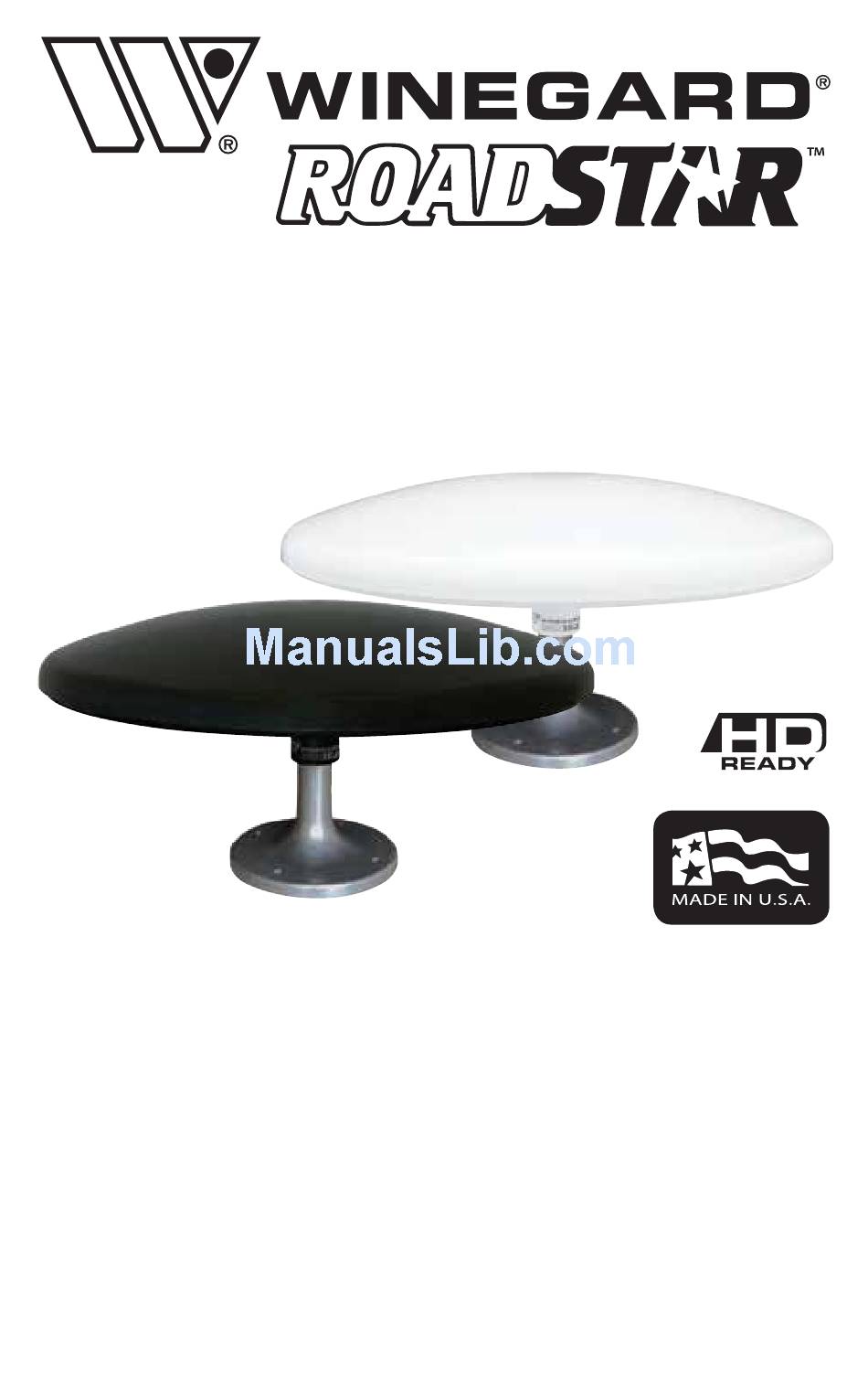

- Page 1 Omnidirectional TV/FM Antenna For Technical Services, email help@winegard.com or call 1-800-788-4417. DO NOT RETURN ANTENNA TO PLACE OF PURCHASE. DO NOT SNAP THE ANTENNA HEAD AND PEDESTAL TOGETHER PRIOR TO READING MANUAL. 2452249 Rev7 2-17...
-
Page 2: Specifications
Specifications Range of up to 35 miles* Models RS-3000 (white), RS-3035 (black) For VHF & UHF channels Models RP-RS30 (white) replacement head and RP-RS35 (black) For outdoor use only replacement head are available. Amplified *Antenna reception may vary based on transmitting antenna Height: 7.6”... -
Page 3: Safety Recommendations
Safety Recommendations Do not attempt to install this system in Do not paint this antenna. Painting the rain or under any wet conditions. the antenna will void your warranty. Choosing a Location for the Antenna & Power Supply Before mounting the antenna, Then, choose a location for the determine a location for the wall antenna that meets the following... -
Page 4: Mounting Option
Mounting Option 1 If installing the antenna so that the cable enters the vehicle directly beneath the antenna, follow the steps below for Mounting Option 1. Make sure the ceiling area is clear underneath the chosen location for the antenna. Run coaxial cable from the chosen location for the power supply to the chosen location for the antenna. - Page 5 Mounting Option 1, Cont. Twist the antenna head back and forth while pushing it onto the pedestal. The pedestal should engage with the snap ring inside the antenna head. While applying pressure, rotate the head until feeling the grooves in the head line up with the grooves in the pedestal.
- Page 6 Mounting Option 2 If installing the antenna so that the cable enters the vehicle via a cable entry plate (sold separately), follow the steps below for Mounting Option 2. Run coaxial cable from the power supply to the antenna via the cable entry plate.
- Page 7 Mounting Option 2, Cont. While applying pressure, rotate the head until feeling the grooves in the head line up with the grooves in the pedestal. Push down again; you should hear the head click into place. Warning: Once the head and pedestal are connected, the head cannot be removed without incurring damage.
-
Page 8: Installing The Power Supply
Installing the Power Supply Warning: The power supply should be turned off when connecting cables. Indicator light On/Off Coaxial button port for Set 2 Antenna main TV port port Power & Cable Ground port tabs The power supply may be flush the “SET 2”... - Page 9 Running a Channel Scan First time users must run a channel General Instructions scan after installing the antenna to 1. Using the remote that came with receive maximum programming. the TV or compatible device, select “Menu.” A new scan will find any new 2.
-
Page 10: Troubleshooting
ON. If not, check the polarity of the red/white wires and the +12 Disconnect the cable from the VDC source. antenna jack on the power supply. For Technical Services, email help@winegard.com or call 1-800-788-4417. RoadStar Antenna... - Page 11 Winegard Company warrants this product against defects in materials or workmanship for a period of five (5) years from the date of original purchase. During year one (1) of such warranty, Winegard Company will also pay authorized labor costs to an authorized Winegard dealer to repair or replace defective products.
- Page 12 800-288-8094 • Fax 319-754-0787 • www.winegard.com • Printed in U.S.A. ©2011 Winegard Company Rev7 2-17 2452249 Winegard is a registered trademark of Winegard Company, and RoadStar is a trademark of Winegard Company. dtv.gov is not affiliated with Winegard Company. Disclaimer: Although every effort has been made to ensure that the information in this manual is correct and complete, no company shall be held liable for any errors or omissions in this manual.
