Page 1: User Manual
User Manual Model 1816-1 Serial Distributor... -
Page 2: Package Contents

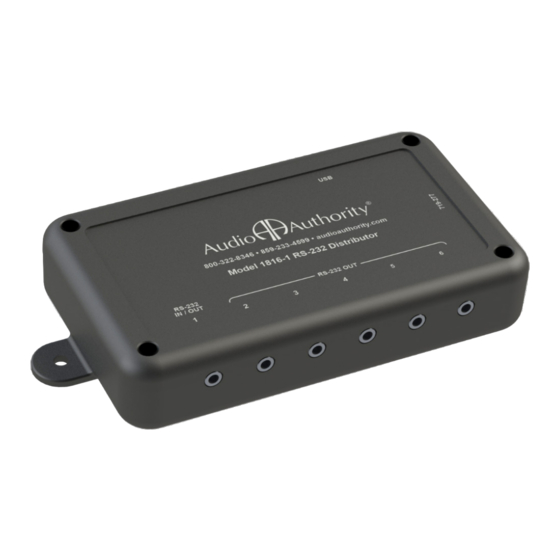

Model 1816-1 Serial Distributor The Audio Authority 1816-1 RS-232 Distributor provides a way to broadcast ® RS-232 serial commands. Each 1816-1 sends serial commands to up to six serial devices. RS-232 OUT 6 RS-232 OUT 5 USB MINI-B RS-232 OUT 4... -
Page 3: Usb Port
Installation • Attach the 1816-1 module to a flat surface with the screws provided. • Connect a Mini-B cable from the 1816-1 USB port to the source, such as a BrightSign media player. Use strain relief. • Connect 3.5mm cables from the numbered (1-6) distribution ports to the RS-232 ports on the sink devices. - Page 4 2048 Mercer Road, Lexington, KY 40511-1071 USA 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 752-734 support@audioauthority.com • www.audioauthority.com Rev. 20180328...
