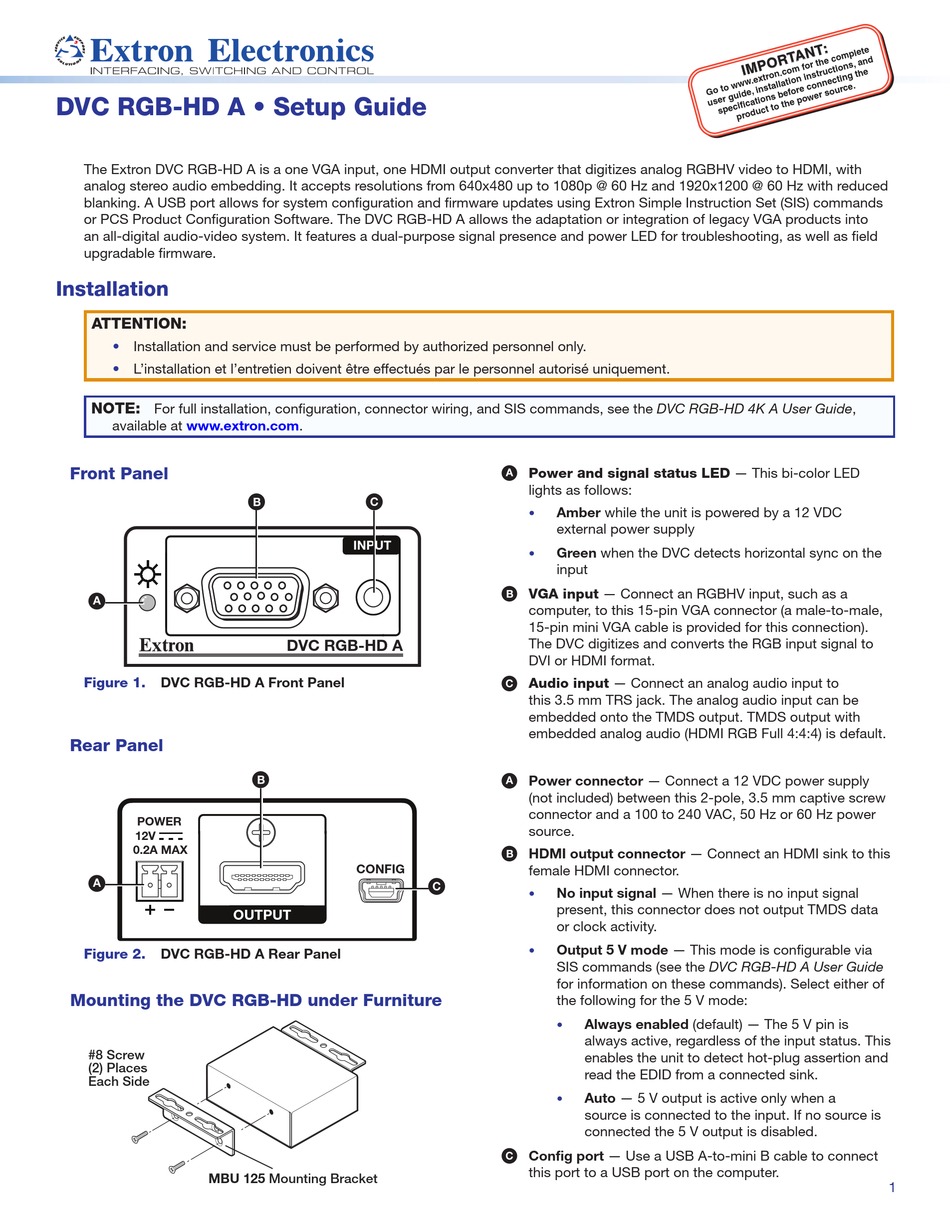

DVC RGB-HD A • Setup Guide
The Extron DVC RGB-HD A is a one VGA input, one HDMI output converter that digitizes analog RGBHV video to HDMI, with
analog stereo audio embedding. It accepts resolutions from 640x480 up to 1080p @ 60 Hz and 1920x1200 @ 60 Hz with reduced
blanking. A USB port allows for system configuration and firmware updates using Extron Simple Instruction Set (SIS) commands
or PCS Product Configuration Software. The DVC RGB-HD A allows the adaptation or integration of legacy VGA products into
an all-digital audio-video system. It features a dual-purpose signal presence and power LED for troubleshooting, as well as field
upgradable firmware.
Installation
ATTENTION:
•
Installation and service must be performed by authorized personnel only.
•
L'installation et l'entretien doivent être effectués par le personnel autorisé uniquement.
NOTE:
For full installation, configuration, connector wiring, and SIS commands, see the DVC RGB-HD 4K A User Guide,
available at www.extron.com.
Front Panel
A A
Figure 1.
DVC RGB-HD A Front Panel
Rear Panel
POWER
12V
0.2A MAX
A A
OUTPUT
Figure 2.
DVC RGB-HD A Rear Panel
Mounting the DVC RGB-HD under Furniture
#8 Screw
(2) Places
Each Side
MBU 125 Mounting Bracket
B B
C C
INPUT
DVC RGB-HD A
B B
CONFIG
Power and signal status LED — This bi-color LED
A
lights as follows:
Amber while the unit is powered by a 12 VDC
•
external power supply
Green when the DVC detects horizontal sync on the
•
input
VGA input — Connect an RGBHV input, such as a
B
computer, to this 15-pin VGA connector (a male-to-male,
15-pin mini VGA cable is provided for this connection).
The DVC digitizes and converts the RGB input signal to
DVI or HDMI format.
C
Audio input — Connect an analog audio input to
this 3.5 mm TRS jack. The analog audio input can be
embedded onto the TMDS output. TMDS output with
embedded analog audio (HDMI RGB Full 4:4:4) is default.
Power connector — Connect a 12 VDC power supply
A
(not included) between this 2-pole, 3.5 mm captive screw
connector and a 100 to 240 VAC, 50 Hz or 60 Hz power
source.
HDMI output connector — Connect an HDMI sink to this
B
female HDMI connector.
C C
No input signal — When there is no input signal
•
present, this connector does not output TMDS data
or clock activity.
Output 5 V mode — This mode is configurable via
•
SIS commands (see the DVC RGB-HD A User Guide
for information on these commands). Select either of
the following for the 5 V mode:
Always enabled (default) — The 5 V pin is
•
always active, regardless of the input status. This
enables the unit to detect hot-plug assertion and
read the EDID from a connected sink.
Auto — 5 V output is active only when a
•
source is connected to the input. If no source is
connected the 5 V output is disabled.
Config port — Use a USB A-to-mini B cable to connect
C
this port to a USB port on the computer.
1
