Vega POINTRAC 31 Operating Instructions Manual

Radiation-based sensor for level detection
Hide thumbs Also See for POINTRAC 31:
Table of Contents

Advertisement

Quick Links

Download this manual

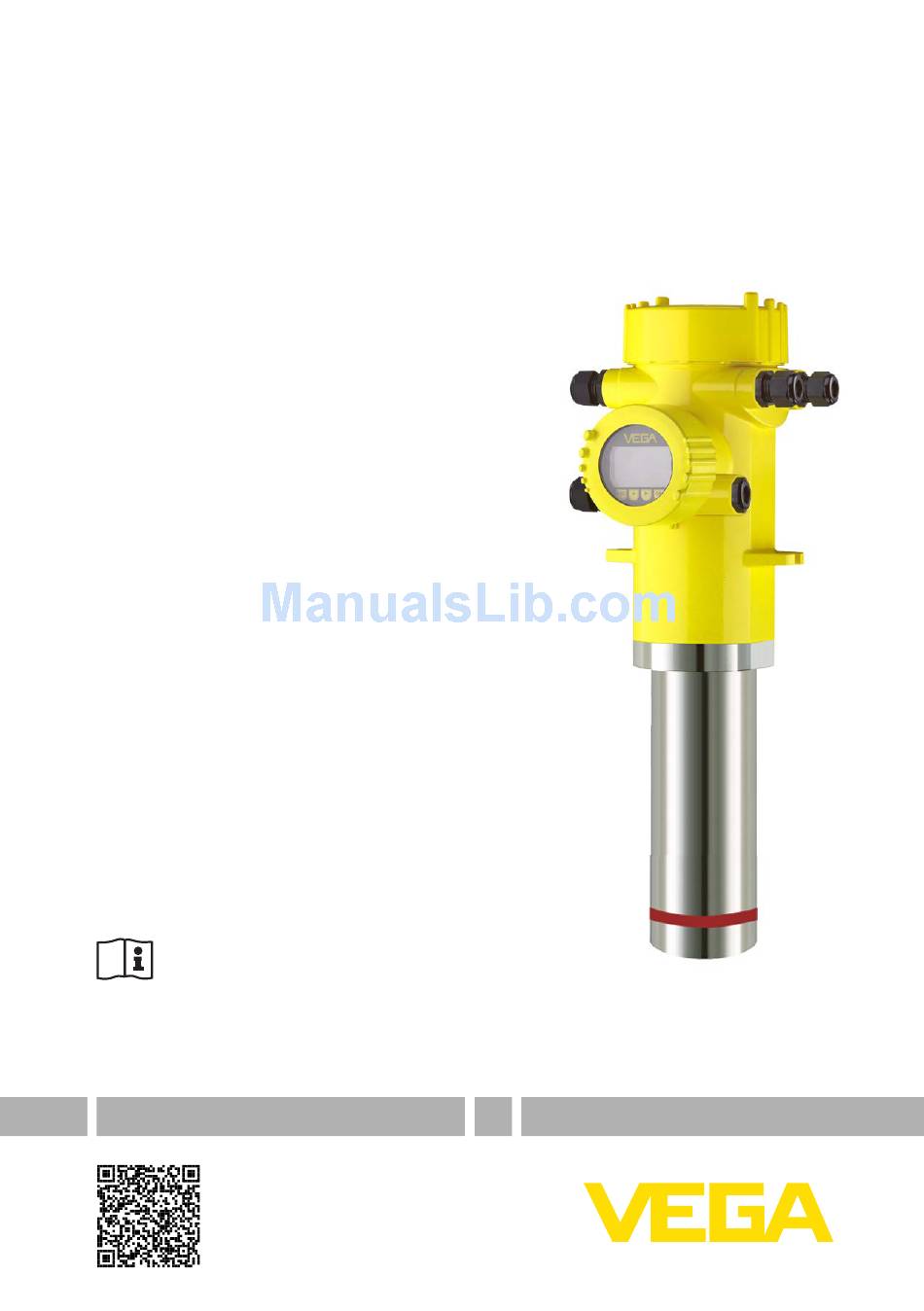

Operating Instructions

Radiation-based sensor for level
detection
POINTRAC 31
8/16 mA/HART - four-wire
With SIL qualification
Document ID: 43388

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POINTRAC 31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega POINTRAC 31

Summary of Contents for Vega POINTRAC 31

  • Page 1: Operating Instructions

    Operating Instructions Radiation-based sensor for level detection POINTRAC 31 8/16 mA/HART - four-wire With SIL qualification Document ID: 43388...

  • Page 2: Table Of Contents

    Connect the PC ......................44 Parameter adjustment with PACTware ................45 Saving the parameterisation data ................... 46 Diagnostics and servicing ....................47 Maintenance ........................47 Status messages ......................47 Rectify faults ........................49 POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 3 11.4 Trademark ........................62 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions manual. Editing status: 2018-03-19 POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, tip, note This symbol indicates helpful additional information.

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The POINTRAC 31 is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Eu Conformity

    Encrypted Bluetooth communication The sensor PIN as well as the sensor data are transmitted encrypted between sensor and adjustment device according to Bluetooth standard 4.0. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 7: Installation And Operation In The Usa And Canada

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 8: Product Description

    Alternatively, you can access the data via your smartphone: • Download the VEGA Tools app from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or •...

  • Page 9: Principle Of Operation

    When the intensity of the radiation drops below a defined value, e.g. due to damping, then the POINTRAC 31 switches. The measuring principle has proven itself well under extreme conditions because it measures contactlessly from outside through the vessel wall. The measuring system ensures maximum safety, reliability and plant availability independent of the medium and its properties.

  • Page 10: Packaging, Transport And Storage

    Unless otherwise indicated, the packages must be stored only under the following conditions: • Not in the open • Dry and dust free • Not exposed to corrosive media • Protected against solar radiation POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 11: Accessories And Replacement Parts

    PACTware with VEGA-DTM is required. You can find further information in the operating instructions "Interface adapter VEGACONNECT" (Document-ID 32628). VEGADIS 81 The VEGADIS 81 is an external display and adjustment unit for VEGA plics sensors. ® For sensors with double chamber housing the interface adapter "VEGADIS adapter"...

  • Page 12: Corresponding Source Container

    3 Product description The electronics module PT30… is a replacement part for radiation- Electronics module based sensors POINTRAC 31. The electronics module can only be exchanged by VEGA service technician. Device cooling The radiation-based sensor has temperature limits which must not be exceeded.
  • Page 13 (in Ger- many, for example, the radiation protection ordinance). We are at your disposal for further information concerning radiation protection and regulations in other countries. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 14: Mounting

    Chemical properties of the medium • Abrasion and mechanical influences You can find detailed information on the process conditions in chapter "Technical data" as well as on the type label. Suitability for the ambient The instrument is suitable for standard and extended ambient condi- conditions tions acc. to IEC/EN 61010-1. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 15: Mounting Instructions

    You must follow the instructions in this "Source Sizing" document in addition to the following mounting instructions. The following mounting information is applicable as long as there is nothing else specified in the "Source Sizing" document. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 16 4 Mounting Fig. 3: Mounting position - level detection - version with detector tube Vertical mounting Mounting horizontally, at right angles to container POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 17 Mounting clamp You can mount the sensor (version with detector tube) with the at- tached mounting clamp to your vessel. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 18 Sensor orientation Level detection - max. detection The POINTRAC 31 is suitable for level detection in liquids or bulk solids. It is mounted at the height of the requested switching point. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 19 4 Mounting Fig. 6: POINTRAC 31 as max. level detection (uncovered) Level detection - min. detection Fig. 7: POINTRAC 31 as min. level detection (covered) POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 20 Bulk solids with low density Fig. 8: POINTRAC 31 as level detection (top view) POINTRAC 31 lends itself well for level detection of bulk solids with low density. Mount the instrument horizontally at the height of the requested switching point.

  • Page 21: Connecting To Power Supply

    Cable glands Metric threads In the case of instrument housings with metric thread, the cable glands are screwed in at the factory. They are sealed with plastic plugs as transport protection. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 22 Connection to the display and adjustment module or to the interface adapter is carried out via contact pins in the housing. Connection procedure Proceed as follows: The procedure applies to instruments without explosion protection. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 23 8. Connect the screen to the internal ground terminal, connect the external ground terminal to potential equalisation 9. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable 10. Screw the housing lid back on The electrical connection is finished. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 24: Connection

    Fig. 11: Adjustment and connection compartment with non-Ex instruments and instruments with non-intrinsically safe current output Terminals for the external display and adjustment unit Contact pins for the display and adjustment module or interface adapter MGC = Multi Gauge Communication POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 25 Terminals for intrinsically safe signal output 8/16 mA/HART (Multidrop) ac- tive Contact pins for the display and adjustment module or interface adapter Terminals for the external display and adjustment unit Ground terminal MGC = Multi Gauge Communication POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 26: Functional Safety (Sil)

    Application area The instrument can be used for level detection or level measurement of liquids and bulk solids in a safety-related system according to IEC 61508. Take note of the specifications in the Safety Manual. The following inputs/outputs are permitted: • Relay output POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 27: Safety Concept Of The Parameterization

    The DTM suitable for the signal conditioning instrument in con- junction with an adjustment software according to the FDT/DTM standard, e. g. PACTware Note: To operate POINTRAC 31, the DTM Collection version 1.67.2 or higher is required. The modification of safety-relevant parameters is only possible with active connection to the instrument (online mode). Safe parameterization...
  • Page 28 Warning: Instrument reset In case of a reset to basic settings, all safety-relevant parameters will also be reset to default. Therefore all safety-relevant parameters must be checked or readjusted. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 29: Set Up With The Display And Adjustment Module

    The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 14: Insert display and adjustment module Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 30: Adjustment System

    The pen oper- ates the four keys of the display and adjustment module right through the closed lid (with inspection window) of the sensor housing. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 31: Parameter Adjustment

    For this reason, the instrument is shipped in locked conditon. The PIN in the delivery status is "0000". Before you lock the sensor in unlocked condition, you can modify the four-digit PIN number. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 32 Setup: Settings, e.g. for measurement loop name, isotope, applica- tion, background radiation, adjustment, signal output Display: Settings, for example language, measured value display Diagnosis: Information, for example, of device status, peak value, simulation POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 33 Special characters + - / _ blanks Setup - Isotope In this menu item you can adjust the POINTRAC 31 to the isotope installed in the source container. For this purpose, check which isotope is in the source container. You can find this information on the type label of the source container.
  • Page 34 With this menu item the natural background radiation can be faded out. For this purpose, the POINTRAC 31 measures the natural back- ground radiation and sets the pulse rate to zero. In the future, the pulse rate from this background radiation will be automatically deducted from the total pulse rate.
  • Page 35 (single point adjustment" as adjustment mode (Setup - Adjustment mode). adjustment) In this menu item you determine the point at which the POINTRAC 31 should switch in uncovered status. Empty the vessel until the sensor is uncovered. For this enter the requested pulse rate manually or let the rate be determined by POINTRAC 31.
  • Page 36 POINTRAC 31. Automatic determination of the pulse rate should be given preference. You can enter the adjustment point (ct/s) manually. You can let the adjustment point be determined by POINTRAC 31. Setup - Adjustment This menu item appears only if you have selected "Two point adjust- uncovered (two point ment"...
  • Page 37 7 Set up with the display and adjustment module You can let the adjustment point be determined by POINTRAC 31. Setup - Current output In this menu item you can activate or deactivate the current output. The POINTRAC 31 checks if with activated current output there is really an instrument connected.
  • Page 38 This is used to check the character respresentation and the communica- tion channels. Confirm if the two character strings are identical. The verification texts are provided in German and in the case of all other menu languages, in English. In a second step, all modified safety-relevant parameters are listed. Confirm the modified values. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 39 "OK". In case of fault, you will find the corresponding fault code here. Diagnosis - Peak value The peak value function holds the max. and min. values during opera- tion. • Pulse rates - min./max. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 40 This allows the signal path to be tested, e.g. through down- stream indicating instruments or the input card of the control system. You can simulate different values: Pulse rate of the sensor Current output Switching function of the relay POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 41 The following table shows the default values of the instrument. The values apply for the application "Limit level". First of all you have to select the application. Depending on the instrument version, not all menu items may be available or they may be differently assigned: POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 42 In Multidrop mode, up to 15 sensors can be operated on one two-wire cable. An address between 1 and 15 must be assigned to each sen- sor. With this function Additional settings - Copy instrument settings POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 43: Saving The Parameterisation Data

    In the display and adjust- If the instrument is equipped with a display and adjustment module, ment module the parameter adjustment data can be saved therein. The procedure is described in menu item "Copy device settings". POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 44: Setup With Pactware

    2 HART resistance 250 Ω (optional depending on evaluation) Connection cable with 2 mm pins and terminals Processing system/PLC/Voltage supply Voltage supply Necessary components: • POINTRAC 31 • PC with PACTware and suitable VEGA DTM • VEGACONNECT 4 • HART resistance approx. 250 Ω POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 45: Parameter Adjustment With Pactware

    Voltage supply Note: With power supply units with integrated HART resistance (internal resistance approx. 250 Ω), an additional external resistance is not necessary. This applies, e.g. to the VEGA instruments VEGATRENN 149A, VEGAMET 381 and VEGAMET 391). Commercially available Ex separators are also usually equipped with sufficient current limita- tion resistance. In such cases, VEGACONNECT 4 can be connected parallel to the 4 …...

  • Page 46: Saving The Parameterisation Data

    The standard version is available as a download under www.vega.com/downloads and "Software". The full version is avail- able on CD from the agency serving you. Saving the parameterisation data We recommend documenting or saving the parameterisation data via PACTware.

  • Page 47: Diagnostics And Servicing

    PACTware/DTM or EDD. Out of specification: The measured value is unreliable because an instrument specification was exceeded (e.g. electronics temperature). This status message is inactive by default. It can be activated by the user via PACTware/DTM or EDD. Maintenance: Due to external influences, the instrument function is limited. The measurement is affected, but the measured value is POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 48 • Exchanging the electronics Error on the current output • • F052 Invalid parameter adjustment Carry out a reset Faulty configuration • • F114 Discharge accumulator Readjust real time clock Error real time clock POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 49: Rectify Faults

    Maintenance The instrument has no status messages to the section "Maintenance". Rectify faults Reaction when malfunc- The operator of the system is responsible for taking suitable meas- tion occurs ures to rectify faults. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 50: Exchanging The Electronics Module

    Since we offer this service worldwide, the support is provided in English. The service itself is free of charge, the only costs involved are the normal call charges. Exchanging the electronics module If the electronics module is defective, it can be replaced by a VEGA service technician. With SIL qualified instrument, only a respective electronics module with SIL qualification must be used. In Ex applications, only instruments and electronics modules with ap- propriate Ex approval may be used.

  • Page 51: Software Update

    Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 52: Dismount

    Pass the instrument directly on to a spe- cialised recycling company and do not use the municipal collecting points. These may be used only for privately used products according to the WEEE directive. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 53: Supplement

    Measured variable The measured variable is the intensity of the gamma radiation. When the intensity of the radiation is below the stipulated value due to a damping by the medium, the POINTRAC 31 switches. POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 54 Is calculated automatically by the instrument HART output values Ʋ PV (Primary Value) Switching status Ʋ SV (Secondary Value) Electronics temperature Ʋ TV (Third Value) Ʋ FV (Fourth Value) Count rate Relay output Output Relay output (SPDT), floating spdt POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 55 Process pressure Unpressurized Process temperature (measured on the -40 … +60 °C (-40 … +140 °F) detector tube) With temperatures of more than 60 °C we recommend the use of water cooling POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 56 Max. rate deviation 10.5 min/year Additional output parameter - Electronics temperature Output of the temperature values Ʋ Analogue Via the current output Tested according to the guidelines of German Lloyd, GL directive 2. POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 57: Dimensions

    Instruments with approvals can have different technical specifications depending on the version. For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com, "Instrument search (serial number)" as well as in the download area. 11.2 Dimensions The following dimensional drawings represent only an extract of all possible versions.
  • Page 58 119 mm ½ NPT (4.69") 169 mm (6.65") 116,5 mm 175 mm (4.59") (6.89") 90 mm 100 mm (3.54") (3.94") 143,5 mm (5.65") Fig. 22: Aluminium housing or stainless steel housing (precision casting) POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 59 ø 76,2 mm (3") Fig. 23: POINTRAC 31 with detector tube - measuring length: 152 mm or 304 mm (6 in/12 in) Measuring range = Order length 152 mm or 304 mm (6 in/12 in) POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 60 (0.55") (0.55") Fig. 24: POINTRAC 31 with detector tube, 152 mm or 304 mm (6 in/12 in) - with supplied mounting accessories POINTRAC 31 without detector tube Fig. 25: POINTRAC 31 without detector tube - measuring range = order length 46 mm (1.8 in)
  • Page 61 111 mm (4.37") 195 mm (7.68") 152,5 mm (6.00") 127 mm (5.00") 51 mm (2.01") 14 mm (0.55") Fig. 26: POINTRAC 31 without detector tube, 46 mm (1.8 in) - supplied mounting accessories POINTRAC 31 • 8/16 mA/HART - four-wire...

  • Page 62: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 63 Service hotline 50 Shielding 22 Grounding 22 Simulation 40 Source 33 Source holder 12 Handling permit 12 HART 42 Heat 20 Time 41 Type label 8 Installation position 15 Instrument features 43 Unit 34 POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 64 INDEX Voltage supply 21, 57 Water cooling 20 POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 65 Notes POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 66 Notes POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 67 Notes POINTRAC 31 • 8/16 mA/HART - four-wire...
  • Page 68 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2018 Phone +49 7836 50-0 VEGA Grieshaber KG Am Hohenstein 113...
