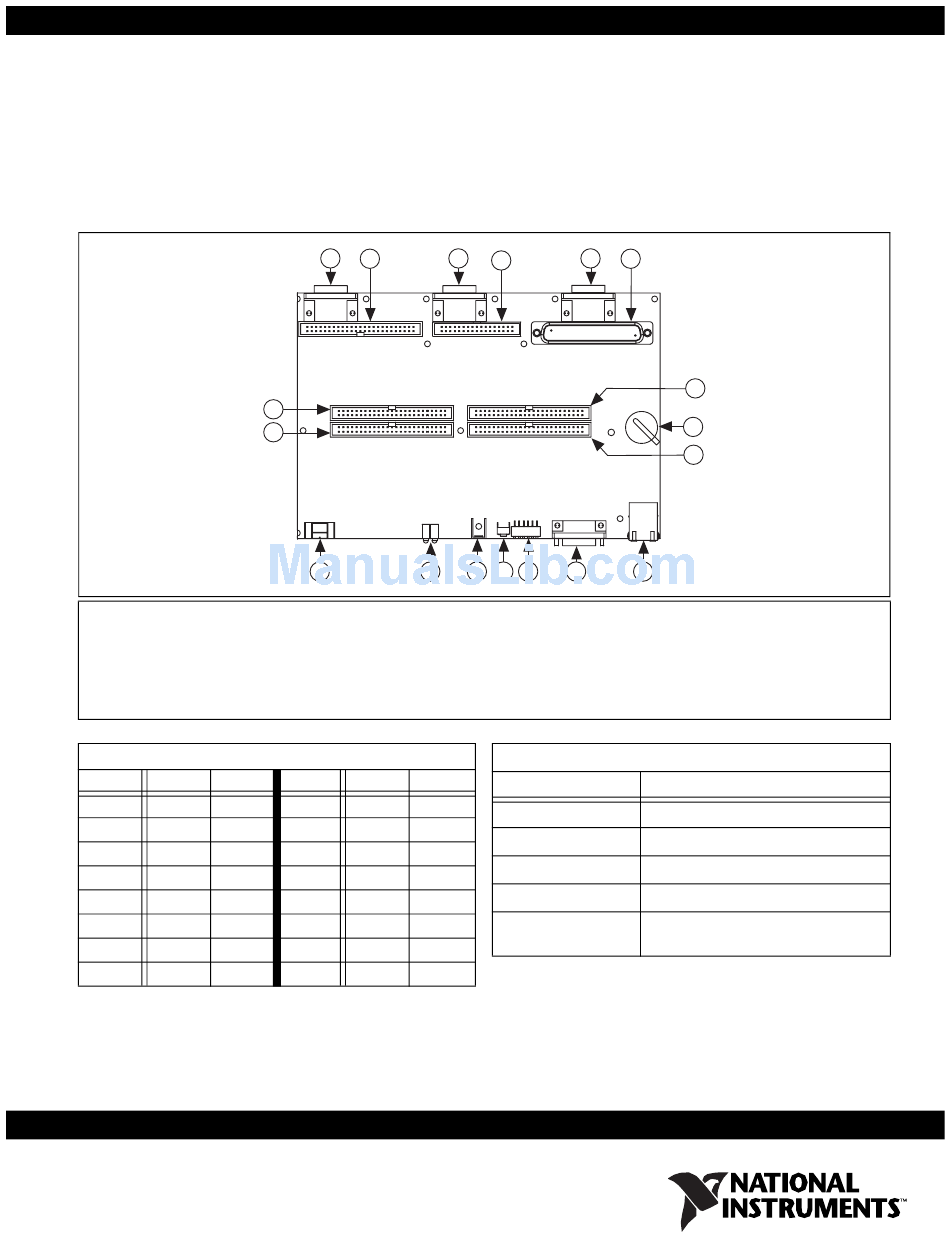

NI sbRIO-961 series Quick Reference

NI SINGLE-BOARD RIO QUICK REFERENCE
sbRIO-961x/963x/964x
Go to and enter the info code
ni.com/info
1 J10, Connector for C Series Module
2 J7, Analog I/O Connector
3 J9, Connector for C Series Module
4 J6, 24 V Digital Input (sbRIO-964x Only)
5 J8, Connector for C Series Module
6 J5, 24 V Digital Output (sbRIO-964x Only)
Signal Pairs for Differential AI on J7
Channel Signal+ Signal –
0 AI0 AI8
1 AI1 AI9
2 AI2 AI10
3 AI3 AI11
4 AI4 AI12
5 AI5 AI13
6 AI6 AI14
7 AI7 AI15
Enabling Console Out on J1 (Serial Port)
1. Turn DIP switch 2 on.
2. Connect null-modem cable.
to locate the user guide for this product.
sbriodocs
1
2
18
17
16 15
7 P4, 3.3 V Digital I/O
8 Backup Battery
9 P2, 3.3 V Digital I/O
10 J2, RJ-45 Ethernet Port
11 J1, RS-232 Serial Port
12 DIP Switches
Channel Signal+ Signal–
16 AI16 AI24
17 AI17 AI25
18 AI18 AI26
19 AI19 AI27
20 AI20 AI28
21 AI21 AI29
22 AI22 AI30
23 AI23 AI31
3.
3 5
6
4
14 13 12 11
# of Flashes
1
2
3
4
Solid or
continuously flashing
Configure host settings.
• 9,600 bps
• Eight data bits
7
8
9
10
13 Reset Button
14 P1, Ground Lug
15 LEDs
16 J3, Power Connector
17 P3, 3.3 V Digital I/O
18 P5, 3.3 V Digital I/O
Status LED
Indication
IP unconfigured
Software installation error
Safe mode on
Check RT VI
Check network and DHCP or contact NI
• No parity
• One stop bit
• No flow control
