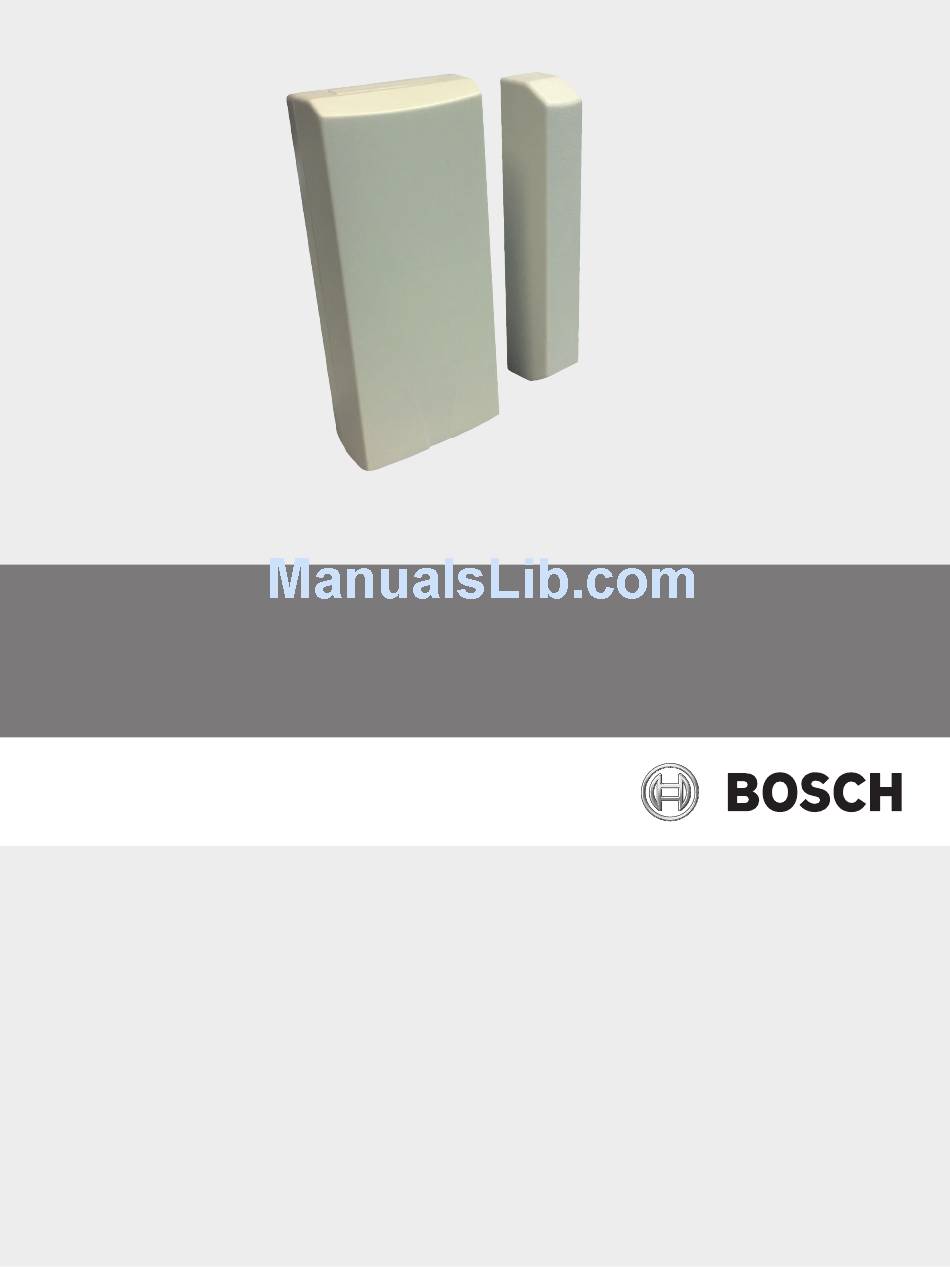

- Page 1 Security Escort Point Tracking Transmitter SEC-3402 Series Installation Manual...
-
Page 3: Table Of Contents
Enable/disable the auto-track Enable/disable the displacement detection Enable/disable the reed switch Enable/disable the buzzer Factory reset System programming Configuring the transmitter 4.10 Testing the transmitter Upgrading Transmitter Firmware Robert Bosch (SEA) Pte Ltd Installation Manual 2018.01 | SE3v1.0 | DL... -
Page 4: Copyright, Safety And Warranty
All software is provided "AS IS." The sole obligation of BOSCH SECURITY SYSTEMS shall be to make available all published modifications that correct program problems are published within one (1) year from the date of shipment. -
Page 5: Important Safety Notes
This will prevent damage to the unit due to lightning and excessive power line surges. 11. Restricted Access Locations are required for the installation. Robert Bosch (SEA) Pte Ltd Installation Manual 2018.01 | SE3v1.0 | DL... -
Page 6: Safety Precautions
Security Escort Point Tracking Transmitter Safety precautions Disposal Your Bosch product has been developed and manufactured using high- quality materials and components that can be reused. This symbol means that electronic and electrical devices that have reached the end of their working life must be disposed of separately from household waste. -
Page 7: System Overview
15 minutes. To reset the transmitter after an alarm has been initiated, all device conditions (such as tamper, loop, or magnet) must be reset to normal. Robert Bosch (SEA) Pte Ltd Installation Manual 2018.01 | SE3v1.0 | DL... -
Page 8: Installation And Setup
2 Push in Be sure to note the location of the magnet when mounting the base. Slide the point transmitter over the base to lock it into place. 2018.01 | SE3v1.0 | DL Installation Manual Robert Bosch (SEA) Pte Ltd... - Page 9 The point transmitter can be released from the base by pressing the release tab with a small screwdriver or a paper clip. For higher security installations, mount the transmitter using the tamper screw provided. Figure 3.4: Mount transmitter using tamper screw 1 Tamper screw Robert Bosch (SEA) Pte Ltd Installation Manual 2018.01 | SE3v1.0 | DL...
-
Page 10: Mounting Without The Mounting Plate
3.1.3 Mounting the magnet Mount the magnet as shown in the following figure. The magnet must mount within 19 mm (0.75 in.) of the base of the unit. 2018.01 | SE3v1.0 | DL Installation Manual Robert Bosch (SEA) Pte Ltd... -
Page 11: Powering Up The Point Transmitter
Install the recommended type of battery: Duracell® DL123A, Energizer® EL123AP or Panasonic® CR123A. Be sure to observe the polarity. Figure 3.8: Install battery 1 Jumper setting 2 Battery Robert Bosch (SEA) Pte Ltd Installation Manual 2018.01 | SE3v1.0 | DL... -
Page 12: 12 Vdc Input
External Normally Closed (NC) or external Normally Open (NO) contacts can be monitored. Recommended cable: 18 AWG < 20 ft (6 m) EOL resistor: 1 Mega ohms Notice! If not using external contacts, you must install the EOL resistor. 2018.01 | SE3v1.0 | DL Installation Manual Robert Bosch (SEA) Pte Ltd... - Page 13 Security Escort Point Tracking Transmitter Installation and Setup | en Figure 3.10: Magnet (optional) typical NC wiring 1 Magnet bar 2 EOL resistor Figure 3.11: Magnet (optional) typical NO wiring 1 EOL resistor Robert Bosch (SEA) Pte Ltd Installation Manual 2018.01 | SE3v1.0 | DL...
-
Page 14: Enabling And Disabling Features
Set switch number 1 on the dip switch to configure the RF of the device. This setting is not applicable for the SEC-3402-433 model as its RF is fixed as 433 MHz. The following settings are configurable for the SEC-3402-304 model. 2018.01 | SE3v1.0 | DL... -
Page 15: Enable/Disable The Auto-Track
Reed Switch Feature Switch Number on Dip Switch Disable (default setting) Enable Tab. 4.4: Reed switch setting on dip switch Robert Bosch (SEA) Pte Ltd Installation Manual 2018.01 | SE3v1.0 | DL... -
Page 16: Enable/Disable The Buzzer
A two part ID sticker is located on the enclosure. You need the number on this sticker to program this device into the system. See the Security Escort Technical Reference Manual for programming information for wireless type devices. 2018.01 | SE3v1.0 | DL Installation Manual Robert Bosch (SEA) Pte Ltd... -
Page 17: Configuring The Transmitter
There might be a brief delay of 2 to 3 seconds before the flashing light appears. A successful test transmission will light up the green LED on a receiver; retest if otherwise. Robert Bosch (SEA) Pte Ltd Installation Manual 2018.01 | SE3v1.0 | DL... -
Page 18: Upgrading Transmitter Firmware
Transmitter firmware can be upgraded wirelessly via a dedicated coordinator using the Utility Tool of the Security Escort software. For more information on the usage of Utility Tool, please refer to the Security Escort Technical Reference Manual. 2018.01 | SE3v1.0 | DL Installation Manual Robert Bosch (SEA) Pte Ltd... - Page 20 Bosch Sicherheitssysteme GmbH Robert Bosch (SEA) Pte Ltd Robert-Bosch-Ring 5 11 Bishan Street 21 85630 Grasbrunn 573943 Singapore Germany Singapore www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2018...
