Bosch ISW-EN1210 Installation And Setup

ISW-EN1210 Universal Transmitter
Overview
The ISW-EN1210 is a universal transmitter.

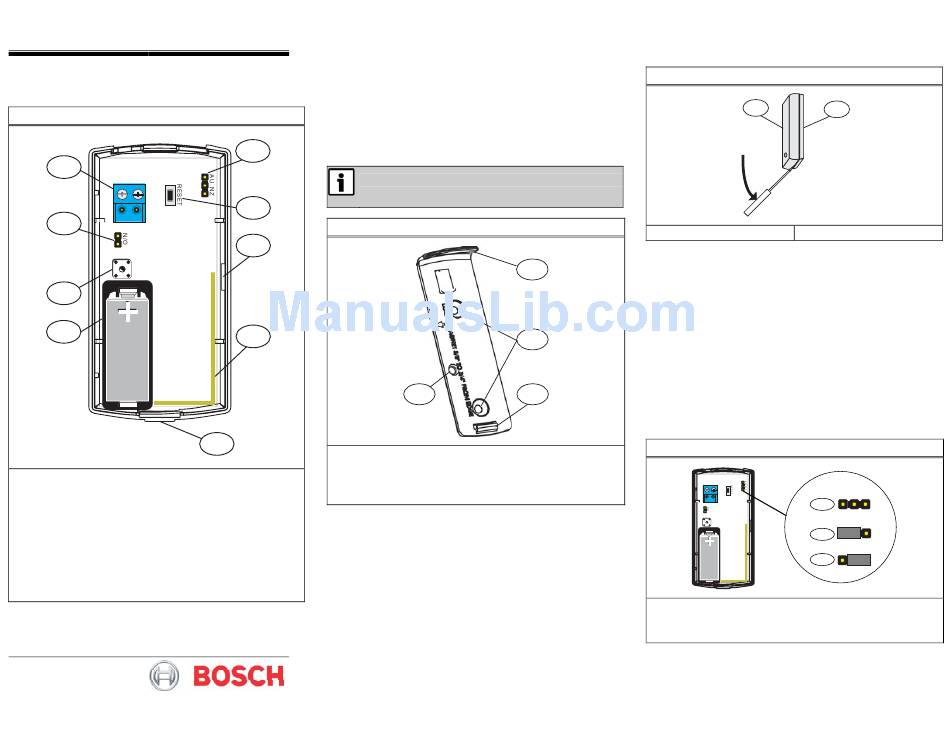

Figure 1: Transmitter Components
9
8
7
6
1 - Frequency Band pins
2 - RESET button
3 - Circuit board tab
4 - Antenna
5 - Housing release tab
6 - Battery
7 - Tamper switch with spring
8 - N/O–N/C pins
9 - Input terminal
1.0 Installation and Setup
1.1 Install the Mounting Bracket
Pry the top lip (refer to Figure 2) of the mounting bracket
1.
up, and lift the bracket off the transmitter.
Mount the bracket on the wall. Install two of the supplied
2.
1
screws in the mounting screw holes.
The third mounting screw, installed under the battery, is
optional. Refer to Section.1.5 Install the Battery.
2
Figure 2: Mounting Bracket
3
4
5
1 - Top lip
2 - Mounting screw holes (mounting bracket)
3 - Bottom catch
4 - Mounting screw hole (housing base, under the battery)
1.2 Open the Housing
Use a small flat-blade screwdriver to press the housing
1.
release tab (refer to Figure 1) on the bottom of the
transmitter.
Separate the housing cover from the housing base. Refer
2.
to Figure 3.
1
2
4 3
Figure 3: Open the Housing
1
1 - Housing cover 2 - Housing base
1.3 Mount the Transmitter on the Bracket
Clip the transmitter housing onto the bracket:
Hook the housing base onto the bottom catch (refer to
1.
Figure 2).
Press the top of the housing base into place under the
2.
top lip of the bracket.
1.4 Configure the Transmitter
1.4.1 Select the Frequency Band
Select the appropriate frequency band for your
1.
geographic area.
Place a jumper on the appropriate Frequency Band pins
2.
(refer to Figure 4).
Figure 4: Frequency Band Settings
1
2
3
1 - North America (902 MHz to 928 MHz) (default)
2 - Australia (915 MHz to 928 MHz)
3 - New Zealand (921 MHz to 928 MHz)
2
AU NZ
AU NZ
AU NZ
