CD Automation srl

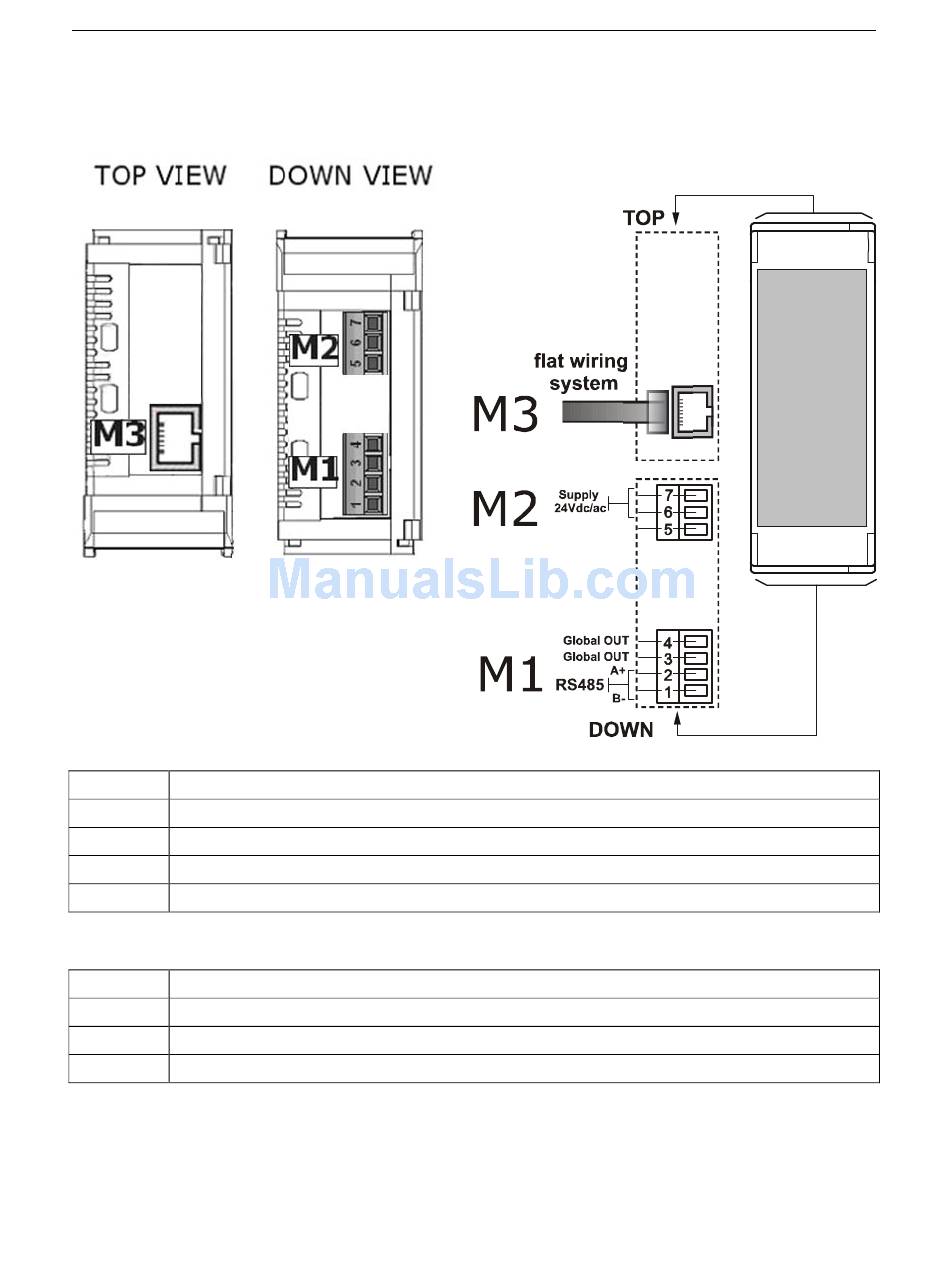

7 TU Module Basic
Revo TU is a termination unit that provides the power supply and RS485 comms (modbus RTU) for up to
max 10 REVO TC units.
Terminal block M1
Terminal
1
RS485 B -
2
RS485 A +
3
Global Output
4
Global Output
Terminal block M2
Terminal
5
Not Used
6
Supply 24Vdc/ac
7
Supply 24Vdc/ac
Terminal Block M3 for flat wiring system
Description
Description
pag. 18 di 121
