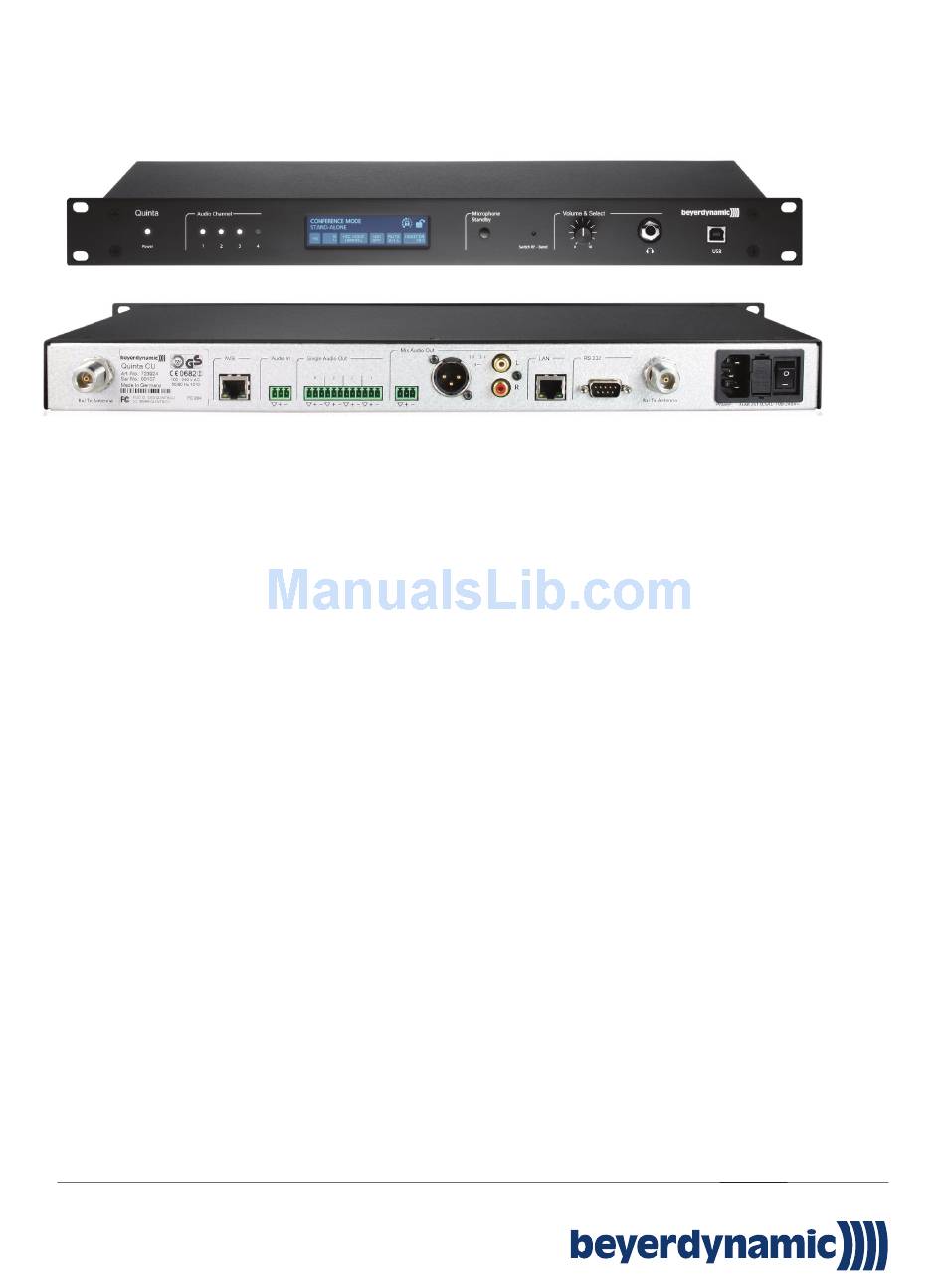

Quinta CU
Digital Control Unit
Order # 723.924
F
EATURES
• DSSS modulation to ensure high immunity from interference in
the frequency range of 2.4 / 5.2 and 5.8 GHz
• HD - High Definition audio mode provides an audio bandwidth
of 24 KHz and a sampling rate of 48 KHz
• HQ - High Quality of service mode for a user-optimised
transmitting and receiving performance in difficult
environments in terms of radio transmission
• AVB (Audio Video Bridging) input and output for digital signal
transmission in building networks - compliant to the IEEE 801.1
standards
• True diversity antenna technology ensures highest transmission
and reception reliability
• Digital 128-bit encryption and additional 24-bit PIN code
protection
• Automatic recognition of interferences in all frequency ranges
• Silent change to an interference-free frequency range -
automatic or manual according to the EN 300328 ETSI
• The control unit can manage up to 150 microphone units
• 4 audio up-streams for up to 4 microphone signals
• 2 audio down-streams for loudspeaker transmission and
headphone output
• NOM - Number of open Microphones function allows the
allocation of up to 4 microphone units simultaneously
• Processor-controlled and automatic audio channel allocation of
the microphone units
• Different operating modes:
Manual – each participant can turn the microphone on and off;
Voice Activation – the microphone is turned on when someone
speaks into it;
Override – when a microphone unit is activated, the one that
was activated before will be turned off;
Push-To-Talk – as long as the participant speaks into the micro-
phone, he/she must press the microphone button.
• Integrated DSP for flexible audio routing
• Zoning – the output channel allocation of individual micro-
phone units can be divided into 4 different audio zones
analogue or digital via AVB
1 of 4
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E2 / Quinta CU (01.13)
• With the Mix-Minus function the system can be integrated into
tele- and video conferences
• Fully parametrical 4-band equalizer for microphone unit loud-
speakers and master output
• NOM attenuation for the master output and individual audio
zone outputs
• Analogue audio input for external signals or digital via AVB
• System control and configuration via RS 232, USB or Ethernet;
connection to a media control system is possible
• Integrated web server for platform independent system
configuration via Smartphone, tablet PC or laptop/PC
• Individual audio channels can be monitored via adjustable
headphone connections with a jog/shuttle button on the front
• OLED display for indication of the system state and operation
of all parameters
• Connections on the front panel:
1x headphone output via 1/4" jack (6.35mm);
1 x USB Type B
• Connections on the rear panel:
1x bal. audio master output via 3-pin XLR;
1x bal. audio master output via Phoenix terminal strip;
1x unbal. audio master output via RCA;
4x bal. audio zone outputs via Phoenix terminal strip,
1x digital AVB (Audio Video Bridging) via RJ45;
1x unbal. audio input via RCA;
1x RS232 via 9-pin Sub-D;
1x TCP/IP via RJ45;
2x antenna connections N(HF)
• 19" desktop housing, 1 U
• Dimensions (W x H x D) 440 x 44 x 239 mm
[17.32" x 1.73" x 9.41"]
• Supplied with two angled rod antennas
