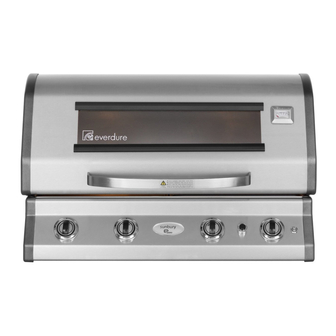

Everdure MURRAY ESEE Assembly Operation Maintenance Manual

4 burner built-in gas barbecues with flame safeguard system
Hide thumbs
Table of Contents

Advertisement

Quick Links

ASSEMBLY, OPERATION
& MAINTENANCE INSTRUCTIONS
FOR EVERDURE 4 BURNER ESEE BUILT-IN GAS BARBECUES WITH FLAME SAFEGUARD SYSTEM
Models Included:
MURRAY ESEE
SUNBURY ESEE
KIMBERLEY
STYLE, GRILLED TO PERFECTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MURRAY ESEE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Everdure MURRAY ESEE

Summary of Contents for Everdure MURRAY ESEE

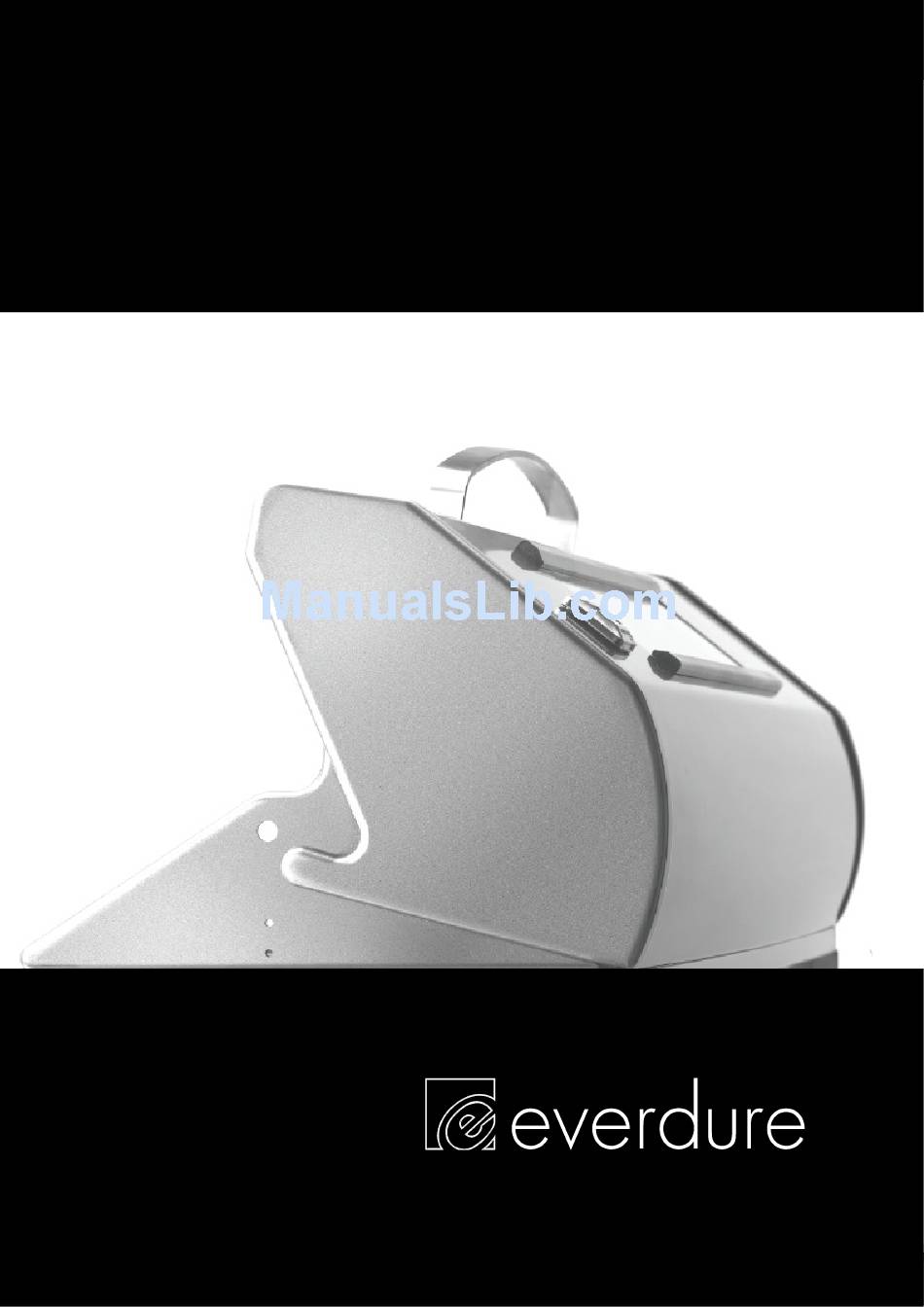

  • Page 1 ASSEMBLY, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE 4 BURNER ESEE BUILT-IN GAS BARBECUES WITH FLAME SAFEGUARD SYSTEM Models Included: MURRAY ESEE SUNBURY ESEE KIMBERLEY STYLE, GRILLED TO PERFECTION...

  • Page 2: Table Of Contents

    It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Everdure reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are available.

  • Page 3: General Safety Instructions

    (such as a domestic pool), as these chemicals can cause the appliance materials to deteriorate (and void the warranty). Regular cleaning and covering with an Everdure barbecue cover can help can help to reduce this. This appliance is not suitable for mounting in a movable vehicle (boat, trailer etc). The appliance should be on a solid surface (ground, concrete etc) when in use.

  • Page 4: Appliance Details

    (not at the manifold or regulator). Always cover the exposed fittings so dust or insects cannot enter the gas system. NOTE: Only certified components supplied in Everdure conversion kits can be used. The use of unauthorised gas conversion kits or non-authorised personnel for the gas conversion will void all warranties.

  • Page 5: Leak Testing

    GAS CONVERSION All barbecues are supplied for use with either propane gas or NG. To change the type of gas used, a conversion kit specifically for this appliance must be purchased and installed by a gas fitter or Everdure Service Technician.

  • Page 6: Outdoor Installation Guide

    OUTDOOR INSTALLATION GUIDE This Appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. This appliance must not be used indoors. Do not use your barbecue in garages, porches, sheds or other enclosed areas.

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS GAS TYPE AND CONSUMPTION The barbecues are designed to operate on Propane and NG Gas (gas type must be specified at time of purchase). Gas consumption, Pressure and Injector Orifice size are shown on the Data Plate found on the left-hand side of the barbecue (under the front fascia).

  • Page 8: Lighting Procedure

    LIGHTING THE BARBECUE USING THE ELECTRONIC IGNITION The Everdure 4 burner barbecue has 1 battery operated igniter to operate the appliance. The sparker ignites the second burner in from the right hand side. The remaining burners are ignited by a cross over channel.

  • Page 9: Cooking

    (between 145-160ºC). Once this temperature has been reached, apply a small amount of oil to both the hot plate and grill plate. Everdure recommends the use of Canola oil, or oils with a high smoke point (such as Sunflower or Safflower). Immediately after adding the oil, place items onto the cooking surfaces.

  • Page 10: Cleaning And Storage

    CLEANING & STORAGE CLEANING Before cleaning, ensure the appliance has cooled and is safe to touch. Painted surfaces can be cleaned using a mild household detergent or cleaner and a clean cloth (do not use scourers or harsh detergents). It is advisable to test cleaners on a small section of the appliance first.

  • Page 11: Troubleshooting

    Remove cooking surface & check flame after ignition. Could be due to thermocouple blockage in burner (clean burner) or strong winds. Flame safeguards not working Check thermocouple is in flame. Contact Everdure Service. Burner flame is erratic: Burner is blocked Remove burner and check for obstruction.

  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS PARTS LIST Barbecue Chassis Carton: Cooking Plates Pack: Roasting Hood Carton: Barbecue Chassis (with light switch & cable) Hot Plate Roasting Hood (with lights) Fat Tray Grill Plate Fastener Pack Gas Hose & Regulator (Propane only) Vapouriser Assembly Instructions Cross-over Tube Burners x 4 NG hose kit (NG only):...
  • Page 13 4 BURNER BARBECUE COMPONENTS BARBECUE CARCASS FAT TRAY RIGHT HAND LEFT HAND BUILT-IN BRACKET BUILT-IN BRACKET REAR LOUVRE ROD SPACER GRILL PLATE SOLID PLATE VAPOURISER M5 x 12MM SCREW M5 x 30MM SCREW STYLE, GRILLED TO PERFECTION...
  • Page 14 4 BURNER HOOD COMPONENTS HOOD M5 x 20 COUNTERSUNK SCREW M5 NUT FIBRE WASHER 4 BURNER POWER ADAPTOR COMPONENTS POWER ADAPTOR AND CABLE STYLE, GRILLED TO PERFECTION...

  • Page 15: Barbecue Assembly

    BARBECUE ASSEMBLY FITTING THE BUILT-IN BRACKETS TO THE BARBECUE ASSEMBLY 1. PLACE BARBECUE (PART 1) ON A RAISED SURFACE (REMOVE FAT TRAY). 2. SCREW THE REAR LOUVRE RODS (PARTS 5) TO THE BACK HOLES IN THE LEFT (PART 4) AND RIGHT (PART 3) BRACKETS WITH M5 X 12 SCREWS (PARTS 10).
  • Page 16 BARBECUE ASSEMBLY ATTACHING THE HOOD TO THE BARBECUE 1. TO CONNECT THE HOOD, THE FOLLOWING HARDWARE IS NEEDED: FOUR M5 NUTS (PART13), FOUR M5 x 20 SCREWS (PART 12) AND FOUR FIBRE WASHERS (PART 14). 2. PLACE THE HOOD ASSEMBLY (PART 11) ON TOP OF THE BARBECUE SO THAT THE TABS IN THE REAR HOOD SIDES LINE UP WITH THE HOLES ALONG THE INNER EDGES OF THE BARBECUE.
  • Page 17 BUILT-IN DIMENSIONS TOP VIEW OF BARBECUE CARCASS (4 BURNER BARBECUE ILLUSTRATED) WITH SPACING BRACKETS FITTED (LOUVRE BARS AT REAR). 1235 to 1240 (6 BURNER) 910 to 915 (4 BURNER) 300 MINIMUM FOR HOSE VENTILATION & HEAT TRANSFER GAP SIDE VIEW OF BARBECUE CARCASS WITH SPACING BRACKETS FITTED FOR RAISED INSTALLATION (20MM).
  • Page 18 BARBECUE ASSEMBLY: ADDING COOKING PLATES 1. WITH THE BARBECUE & HOOD ASSEMBLY IN PLACE, THE SUPPLIED PLATES CAN BE FITTED. PLACE THE VAPOURISER (DIMPLES UP) IN PLACE OVER THE RHS 2 BURNERS. PLACE THE GRILL PLATE OVER THE VAPOURISER ON THE RHS.PLACE THE SOLID PLATE OVER THE LHS 2 BURNERS. 2.

  • Page 19: Barbecue Accessories

    Polyester Oxford-PVC backed fabric Model No. AC4VC-10 EVERDURE BARBECUE ROTISSERIE Everdure barbecue hoods are designed to fit a 240 volt rotisserie, which will allow you to cook your favourite meats. Main Features: Full Stainless Steel rod and rotisserie forks (adjustable and lockable)

  • Page 20: Ng Conversion & Installation

    IMPORTANT – FOR THE CONSUMER & INSTALLER 1. CHECK WITH EVERDURE Not all Everdure barbecues are certified for conversion to NG. If in doubt, contact us on 1300 766 066 in Australia, or (09) 415 6000 in New Zealand. 2. LOCAL AUTHORITY REQUIREMENTS All gas fitting work, service and repairs should only be performed by an authorised person in accordance to AS5601 and your local gas regulations.

  • Page 21: Exploded Diagram

    EXPLODED COMPONENT DIAGRAMS DESCRIPTION USED PER DESCRIPTION USED PER BBQ 1.00 HOOD HANDLE 21.00 REAR LOUVER 2.00 TEMPERATURE GAUGE 22.00 RIGHT HAND BRACKET 3.00 FRONT HOOD ASSEMBLY 23.00 SPACER - BRACKET 4.00 REAR HOOD no lighting panel 24.00 LEFT HAND BRACKET 5.00 HOOD HINGE BOLT 25.00...
  • Page 22 NOTES ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ STYLE, GRILLED TO PERFECTION...
  • Page 23 ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ Other Products Available from Everdure (visit www.everdure.com for more details): Gas Heaters Electric Heaters Gas Radiant Ceramic Tower and Personal Heaters Heaters STYLE, GRILLED TO PERFECTION...
  • Page 24 A division of Shriro Australia Pty Ltd 104 Vanessa St Kingsgrove NSW 2208 In Australia: 1300 766 066 www.everdure.com IM Ref: MRXXE 0480 07/2013/05FC F O R O U T D O O R U S E O N L Y...
