Everdure FLINDERS Assembly, Operation & Maintenance Instructions

Everdure FLINDERS Assembly, Operation & Maintenance Instructions

Hide thumbs

Advertisement

Table of Contents

& MAINTENANCE INSTRUCTIONS
Models Included:
FLINDERS
NORFOLK II
DAINTREE
KIMBERLEY
KIMBERLEY
ASSEMBLY, OPERATION
FOR EVERDURE 4 BURNER GAS BARBECUES
STYLE, GRILLED TO PERFECTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLINDERS and is the answer not in the manual?

Questions and answers

Related Manuals for Everdure FLINDERS

Summary of Contents for Everdure FLINDERS

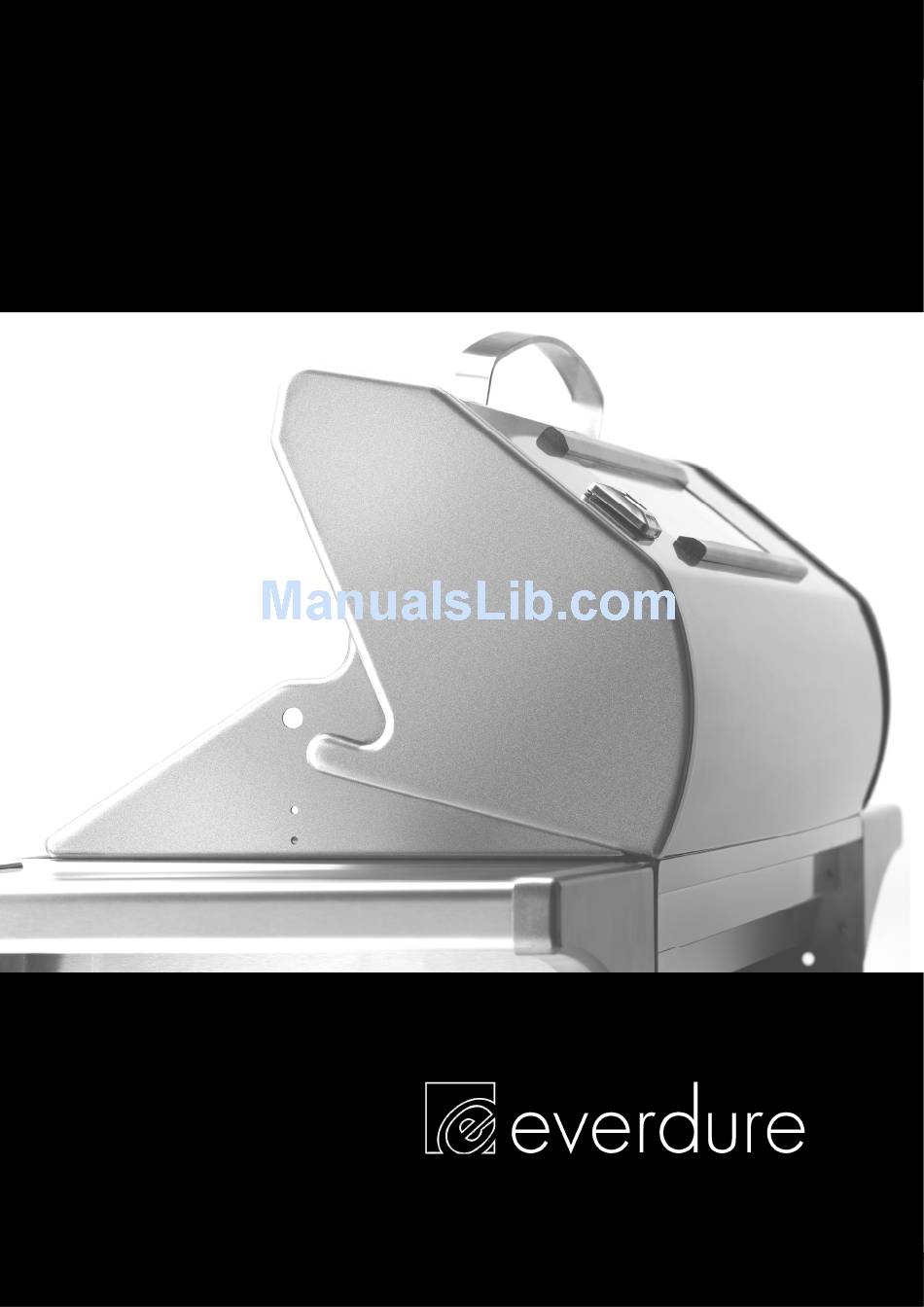

  • Page 1 ASSEMBLY, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE 4 BURNER GAS BARBECUES Models Included: FLINDERS NORFOLK II DAINTREE KIMBERLEY KIMBERLEY STYLE, GRILLED TO PERFECTION...

  • Page 2: Table Of Contents

    It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Everdure reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are available.

  • Page 3: General Safety Instructions

    19. Do not use or store this appliance in areas of high salt content (a marine environment) or an area with caustic fumes or liquids (such as a domestic pool), as these chemicals can cause the appliance materials to deteriorate (and void the warranty). Regular cleaning and covering with an Everdure barbecue cover can help can help to reduce this.

  • Page 4: Appliance Details

    All barbecues are supplied for use with propane gas. For natural gas usage, a conversion kit must be purchased and installed by a gas fitter or Everdure Service Technician. Please see the separate NG conversion and installation instruction at the end of this instruction manual for details.

  • Page 5: Outdoor Installation Guide

    OUTDOOR INSTALLATION GUIDE This Appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. This appliance must not be used indoors. Do not use your barbecue in garages, porches, sheds or other enclosed areas.

  • Page 6: Operating Instructions

    LIGHTING THE BARBECUE USING THE ELECTRONIC IGNITION The Everdure 4 burner barbecue has 1 battery operated igniter to operate the appliance. The sparker ignites the second burner in from the right hand side. The remaining burners are ignited by a cross over channel.

  • Page 7: Cooking

    (between 145-160ºC). Once this temperature has been reached, apply a small amount of oil to both the hot plate and grill plate. Everdure recommends the use of Canola oil, or oils with a high smoke point (such as Sunflower or Safflower). Immediately after adding the oil, place items onto the cooking surfaces.

  • Page 8: Cleaning And Storage

    This is most important as severe overheating and spoilt food will result if the two central burners are left on Hi. This is a general guide for roasting only – please check www.everdure.com for any updated cooking guides.

  • Page 9: Troubleshooting

    Remove plate and visually check ignition box for a spark. Check that the cable is not broken or disconnected. Also check the alignment of the sparker. If there is no spark, contact Everdure Service. Injector is blocked Clean injector with a toothbrush. Do not drill out or use wire. Do not remove injector.

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS PARTS LIST Barbecue Chassis Carton: Cooking Plates Pack: Burner Pack: Barbecue Chassis Hot Plate 4 x Burners Fat Tray Grill Plate Gas Hose & Regulator (Propane only) Vapouriser Cross-over Tube Steel Trolley Carton: (Not built in models) Roasting Hood Carton: Trolley Base Roasting Hood Trolley Frame...
  • Page 11 LEFT HAND DOOR RIGHT HAND DOOR LARGE INFILL PANEL CABINET TOP NOTE: KIMBERLEY NOTE: KIMBERLEY DOORS ARE FROSTED GLASS DOORS ARE FROSTED GLASS LEGEND FL : FLINDERS NO : NORFOLK KI : KIMBERLEY DA : DAINTREE STYLE, GRILLED TO PERFECTION...
  • Page 12 4 BURNER FASTENER COMPONENTS M6 x 50 BOLT M5 x 20 SCREW M5 x 12 SCREW ST3.5x10 SCREW M5 NUT M6 NUT M5 LOCK NUT ST3.5x10 SCREW DA x28 DOOR HINGE SPACER 5mm DIAMETER WASHER FIBRE WASHER 6mm DIAMETER WASHER KI x2 'L' BRACKET MAGNETIC CATCH...
  • Page 13 4 BURNER HOOD COMPONENTS HOOD M5 NUT FIBRE WASHER M5 x 20 COUNTERSUNK SCREW STYLE, GRILLED TO PERFECTION...
  • Page 14 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY VIEW OF NUTSERTS FRONT FINAL VIEW OF FITTED CASTOR FITTING OF THE CASTORS TO THE BASE ASSEMBLY 1. PLACE TROLLEY BASE (PART 2) UPSIDE DOWN, AS SHOWN IN THE DIAGRAM ABOVE. 2. PLACE A CASTOR (PART 27) ONTO THE BASE FRAME AS SHOWN.
  • Page 15 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY FINAL VIEW SHOWING REAR PANEL FITTED FITTING OF INFILL PANELS TO THE BASE ASSEMBLY 1. PLACE THE BARBECUE TROLLEY BASE IN IT'S UPRIGHT POSITION AS SHOWN. 2. PLACE THE LARGE INFILL PANEL (PART 11) INTO POSITION AND ALIGN THE HOLES OF THE LARGE INFILL PANEL AND THE BASE PLATE.
  • Page 16 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY NOTE: PLEASE ENSURE THE HOLE FOR THE SIDE BURNER HOSE IS TO THIS SIDE FRONT OF BARBECUE NOTE: THE BARBECUE CARCASS IS UPSIDE DOWN FOR THIS STAGE OF ASSEMBLY ATTACHMENT OF TROLLEY SIDE PANELS 1.
  • Page 17 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY ATTACHING TOP DOOR INFILL PANEL 1. THE TOP DOOR INFILL PANEL (PART 7) CAN BE ATTACHED TO THE TROLLEY SIDES, WHILE THE BARBECUE IS UPSIDE DOWN. 2. PLACE THE INFILL PANEL INTO THE POSITION SHOWN IN THE ABOVE DIAGRAM.
  • Page 18 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY ENLARGED VIEW FOR ATTACHMENT OF TROLLEY SIDE AND BOTTOM DOOR INFILL PANEL NOTE: FOR PROPANE BARBECUES, ENSURE THAT THE LARGE HOLE IN THE BASE IS TO THE LEFT HAND SIDE, WHEN LOOKING AT THE BARBECUE FROM THE FRONT.
  • Page 19 2. ATTACH THE CATCH BY USING 2 x ST3.5x10 SCREWS (PART 16) AND A PHILLIPS HEAD SCREW DRIVER. 3. FULLY TIGHTEN THE SCREWS. REPEAT FOR THE REMAINING 3 CATCHES. 4. FOR FLINDERS, NORFOLK & DAINTREE BARBECUES SEE PAGE 22 FOR NEXT INSTRUCTION. STYLE, GRILLED TO PERFECTION...
  • Page 20 KIMBERLEY TROLLEY ASSEMBLY ENLARGED VIEW TO SHOW FINAL ATTACHMENT OF THE 'L' BRACKETS AND FASTENERS FITTING OF THE 'L' BRACKETS 1. ALIGN THE HOLES IN THE 'L' BRACKET (PART 26) WITH THE HOLES IN THE TROLLEY BASE. 2. PLACE 1 x M5 SCREW (PART 14) THROUGH THE HOLE OF THE 'L' BRACKET (PART 26) AND THROUGH THE HOLE OF THE TROLLEY BASE PANEL.
  • Page 21 KIMBERLEY TROLLEY ASSEMBLY VIEW "A" ENLARGED VIEW TO SHOW INFILL PANEL ROTATED FINAL ASSEMBLED VIEW ATTACHMENT OF THE DOORS TO THE CABINET 1. TAKE THE LEFT HAND DOOR (PART 9 WITH GLASS) AND ALIGN THE HOLE IN THE BOTTOM DOOR INFILL PANEL. 2.
  • Page 22 FLINDERS, NORFOLK & DAINTREE TROLLEY ASSEMBLY VIEW "A" ENLARGED VIEW TO SHOW INFILL PANEL ROTATED FINAL ASSEMBLED VIEW ATTACHMENT OF THE DOORS TO THE CABINET 1. TAKE THE LEFT HAND DOOR (PART 9) AND ALIGN THE HOLE IN THE BOTTOM DOOR INFILL PANEL.
  • Page 23 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY FITTING OF SERVERIES TO THE BARBECUE CARCASS FITTING OF THE SERVERIES 1. ALIGN THE HOLES IN THE SERVERY (PART 5) WITH THE NUTSERTS IN THE BARBECUE CARCASS. SEE ENLARGED VIEW. 2. PLACE 1 x M5 SCREW (PART 14) THROUGH THE TOP HOLE AT THE FRONT OF THE SERVERY, AND SCREW IT INTO THE NUTSERT.
  • Page 24 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY WOK BURNER GAS SUPPLY HOSE HOLE IN TROLLEY SIDE FOR HOSE CONNECTION TO BBQ MANIFOLD IS DONE FROM INSIDE THE TROLLEY GAS SUPPLY HOSE AND REGULATOR CONNECTING THE GAS SUPPLY TO THE WOK BURNER 1.
  • Page 25 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY VIEW 'A' ATTACHING THE CABINET TOP TO THE TROLLEY 1. PLACE THE CABINET TOP (PART 12) ONTO THE BARBECUE CARCASS ENSURING THAT THE SAFETY EDGES ARE FACING DOWN. SEE VIEW 'A' ABOVE FOR DETAILS.
  • Page 26 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY HOOD ASSEMBLY ATTACHING THE HOOD TO THE BARBECUE 1. THE HOOD CARTON CONTAINS IT'S OWN HARDWARE PACK, CONSISTING OF FOUR M5 NUTS (PART 30), FOUR M5 x 20 SCREWS (PART 29) AND FOUR FIBRE WASHERS (PART 31).
  • Page 27 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY BARBECUE ASSEMBLY GRILL PLATE HOT PLATE VAPOURISER (RAISED PORTIONS FACING UP) BURNERS 'R' CLIPS BARBECUE CHASSIS CROSS-OVER TUBES FAT TRAY GAS CYLINDER AND HOSE. FOR PROPANE GAS: CYLINDER IS PLACED IN GAS HOSE IS CONNECTED TO...
  • Page 28 FLINDERS, NORFOLK, DAINTREE & KIMBERLEY COMPLETE BARBECUE ASSEMBLY NOTE: THE HOOD IS NOT SHOWN FOR CLARITY. NOTE: THE KIMBERLEY HAS FROSTED GLASS DOORS. STYLE, GRILLED TO PERFECTION...

  • Page 29: Barbecue Accessories

    Polyester Oxford-PVC backed fabric Model No. AC4BVC-10 EVERDURE BARBECUE ROTISSERIE Everdure barbecue hoods are designed to fit a 240 volt rotisserie, which will allow you to cook your favourite meats. Main Features: Full Stainless Steel rod and rotisserie forks (adjustable and lockable)

  • Page 30: Ng Conversion & Installation

    5. Remove the injector from the wok burner gas valve using a spanner & replace with an Ø1.8mm injector, taking care not to over-tighten the new injector. Check the data label or instruction manual for injector size, or ring Everdure Service with the serial number to confirm injector size.
  • Page 31 IMPORTANT – FOR THE CONSUMER & INSTALLER Once the barbecue has been converted to natural gas, a tether kit must be fixed to the rear panel of the barbecue trolley (this kit is not needed for the built-in models). This must then be connected to a point near or on the gas outlet (bayonet point) at the wall.

  • Page 32: Exploded Component Diagrams

    EXPLODED COMPONENT DIAGRAMS QTY USED DESCRIPTION PER BBQ 4 BURNER 1.00 HOOD HANDLE 2.00 TEMPERATURE GAUGE 3.00 FRONT HOOD ASSY 4.00 HOOD HINGE BOLT 5.00 REAR HOOD no lighting panel 5.10 HOOD HARDWARE KIT 6.00 LIGHTING PANEL 7.00 GLOBE 20W 12V AC 8.00 GLASS COVER - LIGHT 9.00...
  • Page 33 QTY USED DESCRIPTION PER BBQ 4 BURNER 30.00 WOK LID 31.00 TRIVET WOK 32.00 BRASS RING BURNER 33.00 WOK/LEFT HAND SERVERY no lid 34.00 WOK KNOB & BEZEL 35.00 ELECTRODE SPRING & CLIP 36.00 WOK HOSE 37.00 RIGHT HAND SIDE SEVERY 38.00 TOP TROLLEY PANEL 39.00...
  • Page 34 NOTES ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ STYLE, GRILLED TO PERFECTION...
  • Page 35 ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ Other Products Available from Everdure (visit www.everdure.com for more details): Gas Heaters Electric Heaters Gas Radiant Ceramic Tower and Personal Heaters Heaters STYLE, GRILLED TO PERFECTION...
  • Page 36 A division of Shriro Australia Pty Ltd 104 Vanessa St Kingsgrove NSW 2208 In Australia: 1300 766 066 www.everdure.com IM Ref: DCG 0480 08/2015/06FC F O R O U T D O O R U S E O N L Y...
