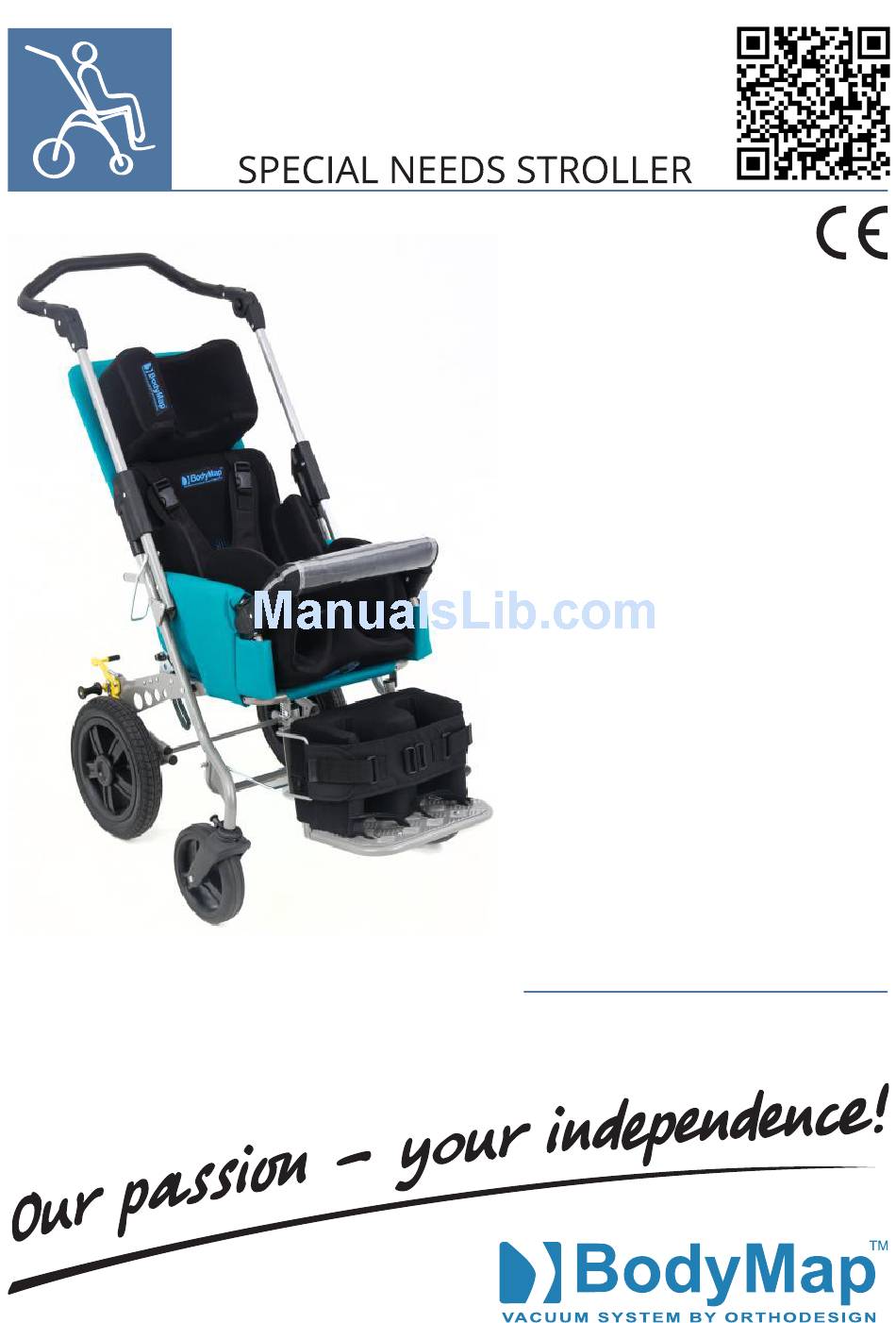

- Page 1 RACER EVO BODYMAP ™ USER MANUAL...
- Page 2 CAUTION! Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-Med employee or at specialized medical store! CAUTION! AKCES-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
-
Page 3: Table Of Contents

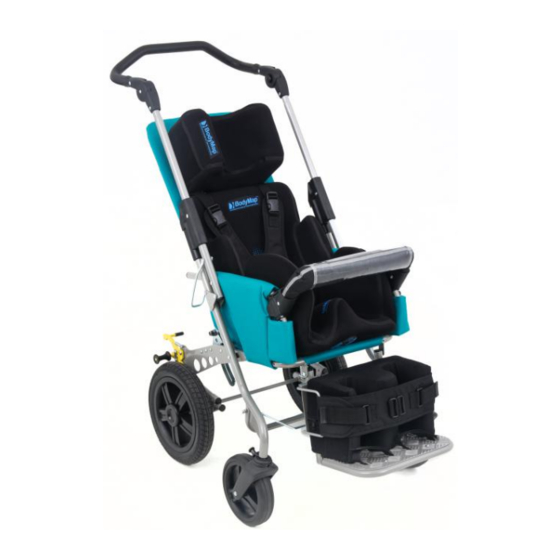

RACER EVO BODYMAP CONTENTS 1. The purpose of user manual....................5 2. Indications for use........................5 3. General characteristics of stroller..................6 3.1. Standard equipment....................6 4. Size table..........................7 6. Detailed description how to operate stroller..............8 5.1 How to unfold stroller....................8 5.2 How to fold stroller....................10 5.3 Adjustment of footrest's length................11... - Page 4 RACER EVO BODYMAP INTRODUCTION Special needs stroller RACER EVO BodyMap™ is a special version of the Racer Evo on which you can install BodyMap cushions. Special upholstery was equipped with firm Velcro tapes on which we can fixed the BodyMap cushions.
-
Page 5: The Purpose Of User Manual
The present user manual contains basic information which is essential for proper usage, preparation, maintenance, cleaning and guarantee conditions regarding RACER EVO BODYMAP™ special stroller. User manual should be kept in easily accessible place. It is designed for people who look after disabled children, and for both doctors as well as physiotherapists who operate the device. -
Page 6: General Characteristics Of Stroller
RACER EVO BODYMAP GENERAL CHARACTERISTICS OF STROLLER 3.1 Standard equipment 1.Adjustable and ergonomically shaped 9.Clip for backrest angle adjustment handle 10. Folding mechanism 2. Backrest 11. Safety frame 3. BODYMAP A+ 12. Pump 4.BODYMAP B+ 13. Pumped wheels 5.BODYMAP D 14. -
Page 7: Size Table
RACER EVO BODYMAP SIZE TABLE Symbol Measurement Size 0 Size 2 Size 3 Unit Size 1 Seat width (with BodyMap A+) [cm] [cm] Seat depth (with BodyMap A+) [cm] Headrest width ( BodyMap D) [cm] (with headrest BodyMap D) Backrest height... -
Page 8: Detailed Description How To Operate Stroller
RACER EVO BODYMAP DESRIPTION HOW TO USE STROLLER 5.1 How to unfold stroller Follow these steps so as to unfold stroller: STEP 1. Release clip that regulates backrest's tilt angle (fig.1),pull backrest (2) as backwards as possible (fig.2) and then block it with the aid of clip. - Page 9 RACER EVO BODYMAP STEP 2. Pull handle backwards until elements of folding mechanism are slammed (fig.3). It is highly important to make sure that safety frame is lifted before folding mechanism is slammed. Next, move safety rail down (fig.4) once folding mechanism is slammed.
-
Page 10: How To Fold Stroller
RACER EVO BODYMAP 6.2. How to fold stroller Please follow these steps so as to fold the stroller: STEP 1. Dismantle safety rail by releasing buttons that are situated on both sides of rail. Next, pull out rail from stroller frame (fig.6);... -
Page 11: Adjustment Of Footrest's Length
RACER EVO BODYMAP STEP 4. Release clip from backrest's tilt angle (fig.10) and push backrest (2) as forwards as possible (fig.11) fig.10 fig.11 5.3. The adjustment of footplate length (9) Please follow these steps so as to adjust footplate length: STEP 1. -
Page 12: Adjustment Of Backrest's Tilt Angle
RACER EVO BODYMAP 5.4. The adjustment of tilt angle Please follow these steps so as to adjust backrest's tilt angle: STEP 1. Loosen clip from the adjustment for backrest tilt angle (fig.14); STEP 2. Hold backrest and adjust it at your discretion;... -
Page 13: Vest
5.8 Wheel RACER EVO BODYMAP™ special stroller is equipped with rear inflatable wheels and front PU swivel with direction blockade which are blocked with the aid of catch. It is possible to order PU rear wheels. In case of transportation, rear wheels can be dismantled: undo nuts and remove wheels from axle. -
Page 14: Hand Brake
RACER EVO BODYMAP Hand brake Stroller is equipped with two independent brakes for rear wheels Press brake's lever (fig.17) so as to block rear wheels. Raise lever in order to unblock wheels. fig.17 5.10 Safety rail Chapters 'How to fold stroller' and ' How to unfold stroller' describe both assembly and disassembly of safety rail. -
Page 15: Leg Separator Equipped With Shin Belt
RACER EVO BODYMAP 5.12 Leg separator equipped with shin belt 5.12.1. Place the separator on the foot plate and fix under the plate using velcro tapes. fig.19 fig.20 5.12.2.Please follow fig.21-23 to know more how to fix the shin belt. -
Page 16: The Adjustment Of Bodymap Cushion
RACER EVO BODYMAP THE ADJUSTMENT OF BODYMAP CUSHION Special Leeds stroller RACER EVO BodyMap™ is a special version of the Racer Evo on which you can install BodyMap cushions. Special upholstery was equipped with firm Velcro tapes on which we can fixed the BodyMap cushions. -
Page 17: The Use Of Stroller
RACER EVO BODYMAP THE USE OF STROLLER CAUTION! RACER EVO BODYMAP™ stroller has to be used with compliance to guidelines included in this user manual. Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using RACER EVO BODYMAP™... -
Page 18: How To Use Stroller
RACER EVO BODYMAP 7.2. How to use stroller 1. Before use it is necessary to: · Unfold the device; · Place the device on even ground; · Make sure that all parts are serviceable, correctly mounted and stable; · Block brakes;... -
Page 19: Safety Rules
RACER EVO BODYMAP Equipment works correctly only when the device is adjusted according to patient's height as well as weight. Remember to take all these measurements into account while purchasing the product. Correct adjustment is the most important due to the fact that only then the product is safe. It is forbidden to force child to keep specific position because he/she will feel uncomfortable and it may lead to wrong posture. - Page 20 RACER EVO BODYMAP 2. It is forbidden to use stroller for different purposes that it is intended to. 3. It is forbidden to use stroller when it is damaged or any part is missing. 4. It is forbidden to leave the patient unattended.
- Page 21 The weight of user should not be bigger than maximal weight described on page 7 where you will find information regarding this issue. 1) AKCES-MED Sp. z. o. o sells products free from manufacturing defects or faults. 2) Manufacturer gives the purchaser 24-month guarantee from the date of purchase.
-
Page 22: Maintenance And Cleaning
4. It is forbidden to clean upholstery with strong chemical agents such as solvent or caustic chemicals. CAUTION! Akces-MED. Sp z o. o takes no responsibility for damages caused by use of wrong clearing agent. 5. It is forbidden to soak upholstery during cleaning. Remember that upholstery has to be always dry before using. - Page 23 RACER EVO BODYMAP CAUTION! Remember that upholstery has to be always dry before using! Before using it is necessary to: · clean wheels; · check if base as well as wheels are correctly mounted; check if brake stops turning wheel ·...
- Page 24 ORTHOPAEDIC DEVICES MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. (17) 864 04 77 www.akces-med.com e-mail: export@akces-med.com Authorised Dealer Date of issue: 13.09.2016 The last update: 05.10.2016...
