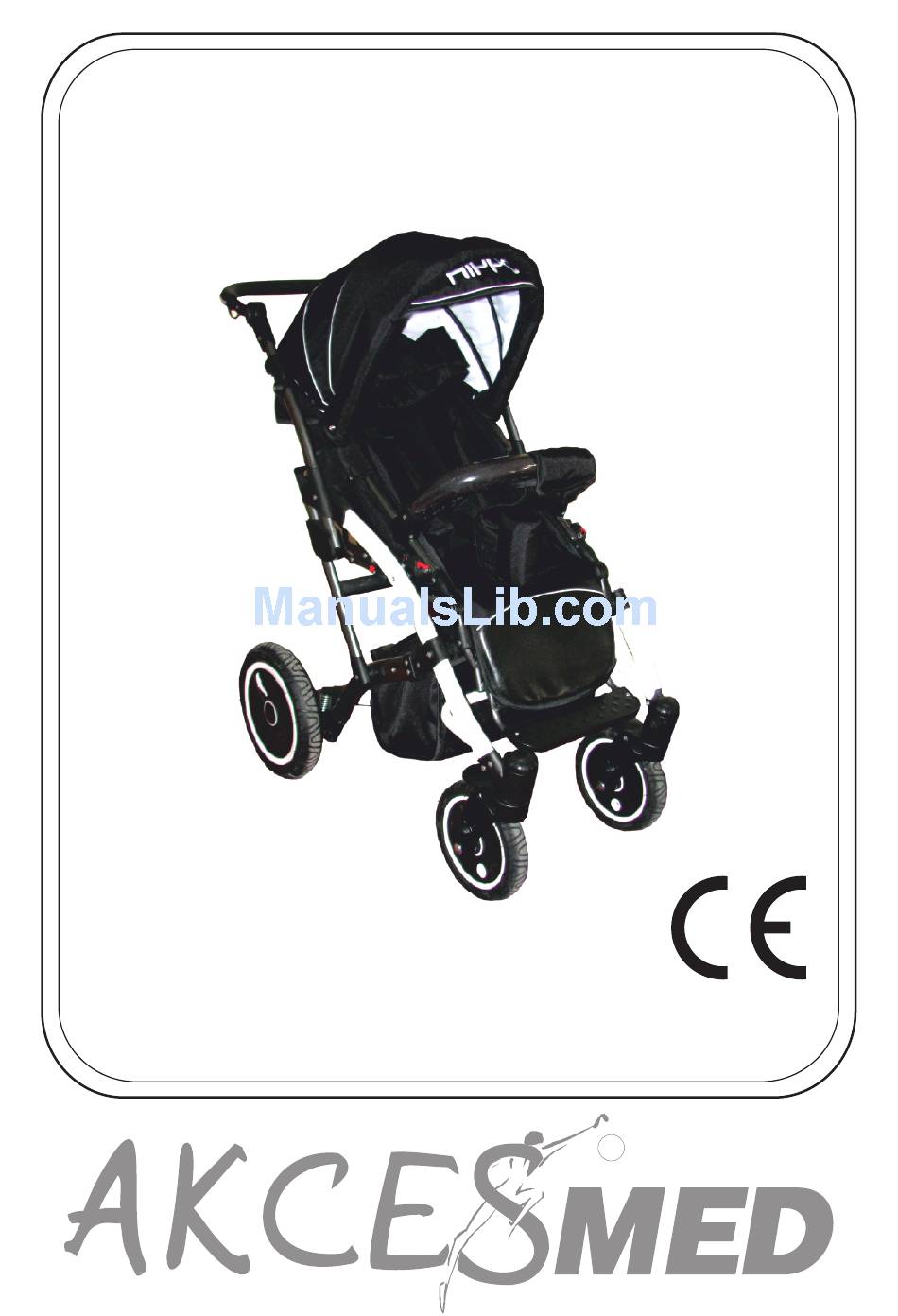

- Page 1 Push-chair for Children HIPPO Usage and Maintenance Instruction...
- Page 2 9001 13485 Akces-Med Sp. a o.o. has implemented quality management systems complying to the norms of ISO 9001:2000 and ISO 13485:2003 regarding organization of production, sales and service. The system is certified by Det Norske Veritas. Medical product class I in conformity to the Directive 93/42/EWG of the European Parliament and Council regarding medical product.
- Page 3 INTRODUCTION Hippo special stroller is designed for children with motor dysfunctions which enable them to move or change positions single-handedly. This stroller makes it possible for patient to have an upright position in sitting or half-lying position. Furthermore, it is advanced product which makes it easier for patient to perform everyday activities.
-
Page 4: Table Of Contents
HIPPO STROLLER'S STANDARD EQUIPMENT ....................6 ......7 HIPPO STROLLER'S ADDITIONAL EQUIPPMENT WEIGHT AND DIMENSIONS ..........SIZE TABLE .....................8 DETAILED USER'S GUIDE FOR HIPPO STRO ......9 HOW TO FOLD THE STROLLER? 6.1..........9 ROZŁOŻENIE WÓZKA. 6.2..............11 ADJUSTMENT OF BACKREST'S TILT ANGLE 6.3. -
Page 5: General Information
New Hippo stroller is better as well as improved version. It is equipped with additional functions which make the product more comfortable. -
Page 6: Hippo Stroller's Standard Equipment
2. HIPPO STROLLER'S STANDARD EQUIPMENT 1. Foldable frame with wheels and rear brake 2. Swivel front wheels 360° 3. Drive system with shock absorbers 4. Roomy basket 5. Adjustable Foot Rest 6. Seat 7. Removable Abduction Block 8. Adjustable backrest 9. -
Page 7: Hippo Stroller's Additional Equippment
3. HIPPO STROLLER'S ADDITIONAL EQUIPPMENT CAR SEAT UMBRELLA SUN UMBRELLA CUP HOLDER... -
Page 8: Weight And Dimensions
WEIGHT AND DIMENSIONS Size Width Length Height Weight SIZE TABLE... -
Page 9: Detailed User's Guide For Hippo Stro
DETAILED USER'S GUIDE FOR HIPPO STROLLER HOW TO FOLD THE STROLLER? 6.1.1. In order to take out the seat, it is necessary to tighten red levers situated on stroller's sides until they will be blocked. This activity needs to be repeated for second side of the stroller. - Page 10 6.1.2 Po uprzednim wyjęciu konstrukcji wewnętrznej możliwe jest złożenie stelaża wózka poprzez jednoczesne pociągnięcie do siebie uchwytów znajdujących się po obydwu stronach stelaża wózka aż do momentu odblokowania się rurek stelaża wózka z uchwytów. Stelaż składa się poprzez pociągniecie rączki stelaża wózka w dół aż do momentu całkowitego złożenia się...
-
Page 11: Rozłożenie Wózka
6.2 ROZŁOŻENIE WÓZKA 6.2.1. Aby rozłożyć wózek należy pociągnąć rączkę wózka w górę aż do momentu naskoczenia rurek stelaża wózka na otwory w uchwytach oraz całkowitego rozłożenia stelaża wózka. 6.3 ADJUSTMENT OF BACKREST'S TILT ANGLE 6.3.1. So as to adjust backrest's tilt angle it is necessary to pull handle (8) upwards. -
Page 12: Foot Rest Adjustment
6.4. FOOT REST ADJUSTMENT 6.4.1. In order to adjust foot rest's tilt angle it is necessary to push buttons on sides of foot rest in order to release hinges (it is important to push these buttons at the same time). Once buttons are released, foot rest will be blocked in a proper position. -
Page 13: Front Rail
6.5. FRONT RAIL 6.5.1. Front rail (17) can be dismantled by releasing protections situated on rail sides and then by pulling rail. 6.5.2. In order to assemble front rail, it is necessary to put rail against tubes and unblock protection HEADREST ADJUSTMENT 6.6.1. -
Page 14: Brakes
6.7. BRAKES 6.6.1. The height of headrest may be adjusted. In order to do it, it is necessary to undo knob situated at the back of backrest and then pull headrest upwards and once again tighten nut. 6.6.2. The width of headrest is also possible. It may be done by adjusting headrest chock with the aid of Allen key. -
Page 15: The Adjustment Of Handle's Stroller
6.9. THE ADJUSTMENT OF HANDLE'S STROLLER 6.9.1. In order to adjust handle's tilt angle, it is necessary to push buttons situated on sides of handle. Once buttons are released, handle will be blocked in a proper position. 6.10. CASTORS 6.10.1. Front castors can be blocked by turning knob situated above castors clockwise. -
Page 16: Canopy
6.10.2 In order to unblock castors it is necessary to turn knob anticlockwise. 6.10.3. Front castors may be dismantled by pushing buttons situated above castors. It is essential to push buttons when stroller is lifted and front castors do not touch the floor. 6.10.4. -
Page 17: Side Pelottes
6.12. SIDE PELOTTES 12.1. Side pelottes are fastened with the aid of Velcro tapes. 6.13. UPHOLSTERY 6.13.1. Cover The product is equipped with cover which protects the patient against adverse weather conditions. It can be fastened only when rail is dismantled. -
Page 18: Warunki Gwarancji
11. GUARANTEE CONDITIONS The producer gives the purchaser a 2-year guarantee for the purchased rehabilitation device, counting from the day of purchasing. Any defects which will be found in that period will be removed within 14 days from the date of registration and delivery of the device to the place of purchasing or to the producer. - Page 19 PRODUCER OF ORTHOPEDIC DEVICES Akces-MED Sp. z o.o. Leszka Czarnego 3 35-615 Rzeszow Poland Ph. 0048 17 864 04 70 Fax. 0048 17 864 04 71 http:// www.akces-med.com e-mail: akces-med@akces-med.com Authorized Dealer: Date of issue: Last update: 22-07-2013 22-07-2013 AKCES-MED reserves the right to introduce technical and commercial changes to the content of this instruction without previous warning.
